Introduction to the RGL EBGBWC02/PTE and its key features

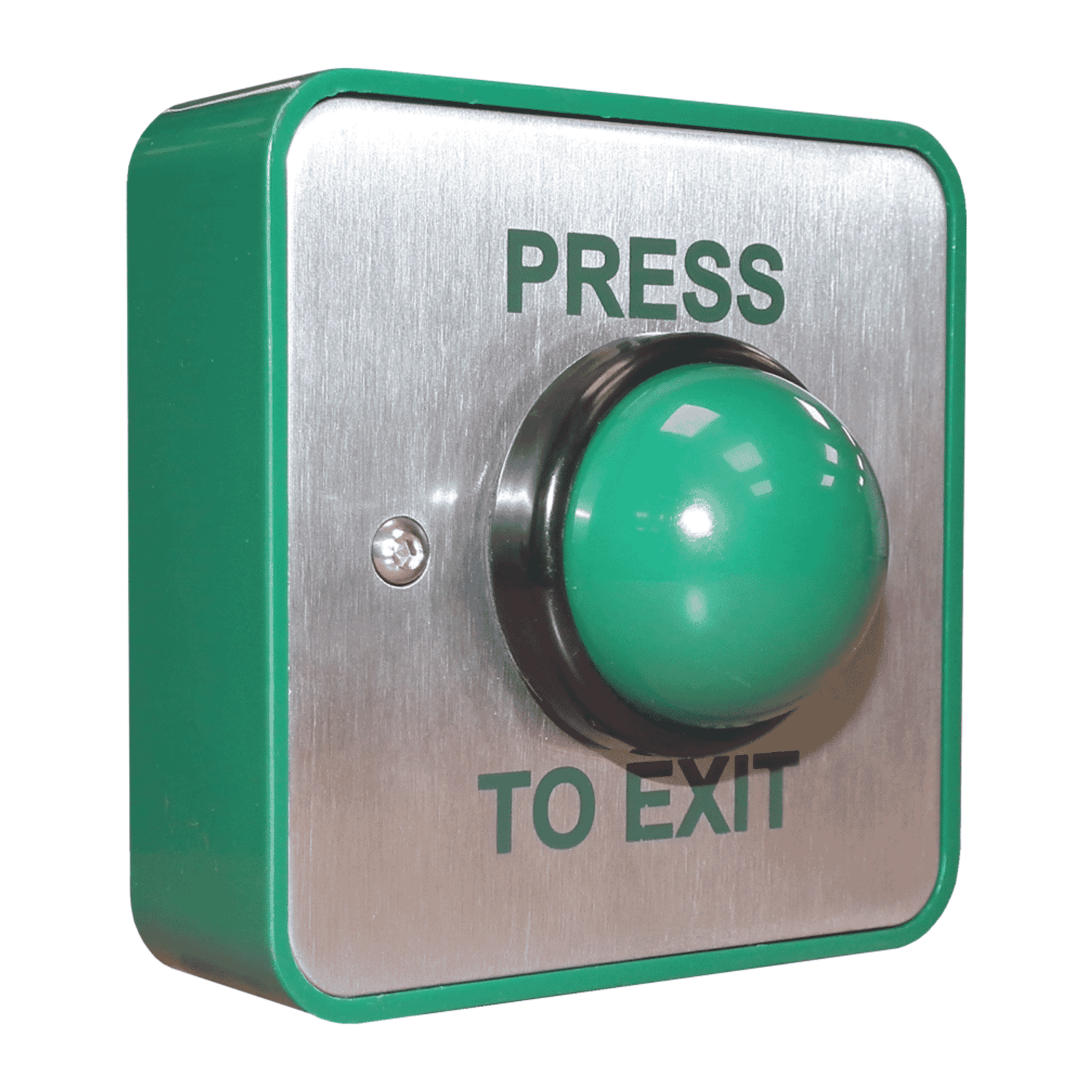

RGL EBGBWC02/PTE — Press-to-Exit, Stainless Steel, Green Domeis a purpose-built press-to-exit (PTE) button designed for access control applications where a clear, durable and easily operated exit actuator is required. With a large green domed actuator, stainless steel faceplate and double-pole momentary contacts, this unit provides a visible and tactile way to release doors, gates or locks in commercial and residential settings. The product balances functional reliability with a straightforward aesthetic, making it suitable for a wide range of egress points.
Key features at a glance:
- Large green domed actuator for clear visual identification and a comfortable push surface.
- Stainless steel faceplate for durability and easy cleaning; supplied with a high-impact plastic surface backbox.
- Momentary (press-to-exit) operation with double-pole NO/NC contacts, ideal for door release circuits.
- Electrical rating of 4 A @ 30 V AC/DC for small access loads.
- Supplied with security screws to prevent tampering and unauthorised removal.
Detailed specifications and benefits
Understanding the specifications helps determine whether the RGL EBGBWC02/PTE is the right choice for your installation. The unit is engineered with access control integration and practical durability in mind.
- Output rating:4 A @ 30 V AC/DC — suitable for door release relays, small solenoids and low-voltage control inputs.
- Contacts:Double-pole NO/NC (momentary) — provides flexibility for wiring either normally open or normally closed circuits, and can be used to switch two circuits if required.
- Operation:Momentary press-to-exit — the button returns to its default position after actuation, preventing latch-up and ensuring controlled egress activation.
- Dimensions:85 x 85 x 28 mm (note some listings show a 32 mm variant) — compact footprint that fits standard surface-mount backboxes and many flush-mount cutouts.
- Weight:Approximately 248 g boxed, 200 g unboxed — lightweight yet robust.
- Faceplate:Stainless steel — resists corrosion, is easy to clean, and maintains a professional finish in busy environments.
- Actuator:High-impact plastic with a large green domed profile — easy to find in low light and intuitive to press.
- Backbox:High-impact plastic surface backbox included for surface mounting; flush mounting is also possible where appropriate.
- Mounting:Supplied with a surface backbox for simple installation; also compatible with flush mounting depending on wall/cabinet setup.
- Security:Included security screws help prevent tampering and unauthorised removal in public areas.
- Variants & compliance:The standard EBGBWC02/PTE does not specify an IP rating; weatherproof (WP) variants with IP66 protection are available under different codes. Always verify CE/UKCA marking and local compliance on the manufacturer’s datasheet before installation.
Benefits derived from these specifications include visible and reliable egress activation, compatibility with most access control systems, and a rugged aesthetic suited to high-traffic areas.
Use cases and scenarios where the product excels
The EBGBWC02/PTE is designed primarily for egress points where a prominently visible exit actuator is required. Below are common scenarios where it performs especially well:
- Commercial office buildings:Installed beside internal doors, stairwell exits or secure corridors where staff need a clear and consistent method for exiting controlled areas.
- Retail and hospitality environments:Back-of-house doors, staff-only areas and service exits benefit from the large green dome — visitors and employees can easily identify the exit control under stress or in unfamiliar layouts.
- Residential multi-tenant buildings:For communal doors or parking access points where a durable, non-illuminated exit button is preferred over more complex solutions.
- Light industrial sites:Where dust and occasional moisture may be present but a full weatherproof solution is not required; for outdoor or exposed areas, consider the WP/IP66 variant instead.
- Integration with access control systems:The double-pole NO/NC contacts allow the button to work with a variety of lock release circuits, alarms and control panels — simple plug-and-play integration for installers accustomed to low-voltage wiring.
In these contexts the EBGBWC02/PTE stands out for its simplicity, tactile feedback and clear visual cue, which reduce confusion and speed egress.
Comparisons with similar products in the market
When selecting a press-to-exit button, consider alternative types and features available on the market. The EBGBWC02/PTE occupies a niche as a non-illuminated, stainless-steel faceplate unit with a large green dome and modest electrical rating. Here’s how it compares to common alternatives:
- Standard flat-button PTEs:Flat or small pushbuttons are lower profile but can be harder to use or see in emergency or low-light situations. The EBGBWC02/PTE’s large dome offers superior ergonomics and visibility.
- Illuminated exit buttons:These provide backlit feedback and can show status (e.g., active, disabled) but require additional wiring and can be more expensive. The RGL unit is simpler and more cost-effective where illumination is not necessary.
- Heavy-duty industrial PTEs:Industrial-rated buttons often have higher electrical ratings and stronger ingress protection (e.g., IP67). If your application requires high-current switching or consistent exposure to harsh weather, choose a weatherproof or industrial-rated alternative (or the WP variant of this model).
- Integrated reader/keypad combos:Some egress devices combine exit buttons with card readers or keypads for two-factor egress. Those are ideal where additional security is needed, but they are more complex and expensive; the EBGBWC02/PTE is ideal for straightforward egress functionality without added authentication overhead.
Overall, the EBGBWC02/PTE competes well on price, simplicity and look-and-feel for standard access control egress points, while specialised alternatives are better where illumination, higher ratings or integrated credentials are required.
Customer testimonials and typical feedback
There are no manufacturer-supplied individual customer reviews included here. However, installers and facility managers who choose similar stainless steel, dome-style press-to-exit buttons commonly report the following benefits:
- "The green dome is easy for staff to spot even in dim corridors, which reduces fumbling and delays during egress."
- "Stainless steel faceplates look professional and hold up well to frequent cleaning — ideal for retail and healthcare settings."
- "The double-pole NO/NC contacts made wiring flexible for our access control panel, and the included security screws are a simple but effective anti-tamper measure."
- "For small door release circuits the 4 A @ 30 V rating was sufficient and reliable; for larger loads we used a relay but that is a common practice."
These recurring comments reflect the practical advantages of the EBGBWC02/PTE design: visibility, durability and installer-friendly features.
Conclusion: Why the RGL EBGBWC02/PTE is a strong choice
The RGL EBGBWC02/PTE Press-to-Exit Button offers a balanced combination of visibility, robustness and straightforward functionality. It is particularly well suited to commercial, retail and residential access control applications where a clear and durable exit point is needed without complex features.
- Practical and visible:The large green dome makes egress intuitive and fast, reducing hesitation in everyday and emergency use.
- Durable finish:Stainless steel faceplate and high-impact plastics give the unit a professional look and long service life.
- Installer-friendly:Double-pole contacts, included surface backbox and security screws simplify installation and integration with existing access control systems.
- Cost-effective:With a suggested price point that positions it as an affordable, no-frills egress solution, the EBGBWC02/PTE is a solid choice for projects where budget and reliability matter.
Before purchasing, confirm whether the standard EBGBWC02/PTE (non-weatherproof) suits your environment or whether a WP/weatherproof variant (IP66) is required. Also verify compliance markings on the manufacturer’s datasheet and consult a qualified electrician or access-control installer for proper installation.
For straightforward, visible and reliable egress control, the RGL EBGBWC02/PTE is a dependable option that meets the needs of many everyday access-control scenarios.
