Introduction to the RGL EBNT/TF-1PLUS Touch-Free Exit Button and its key features

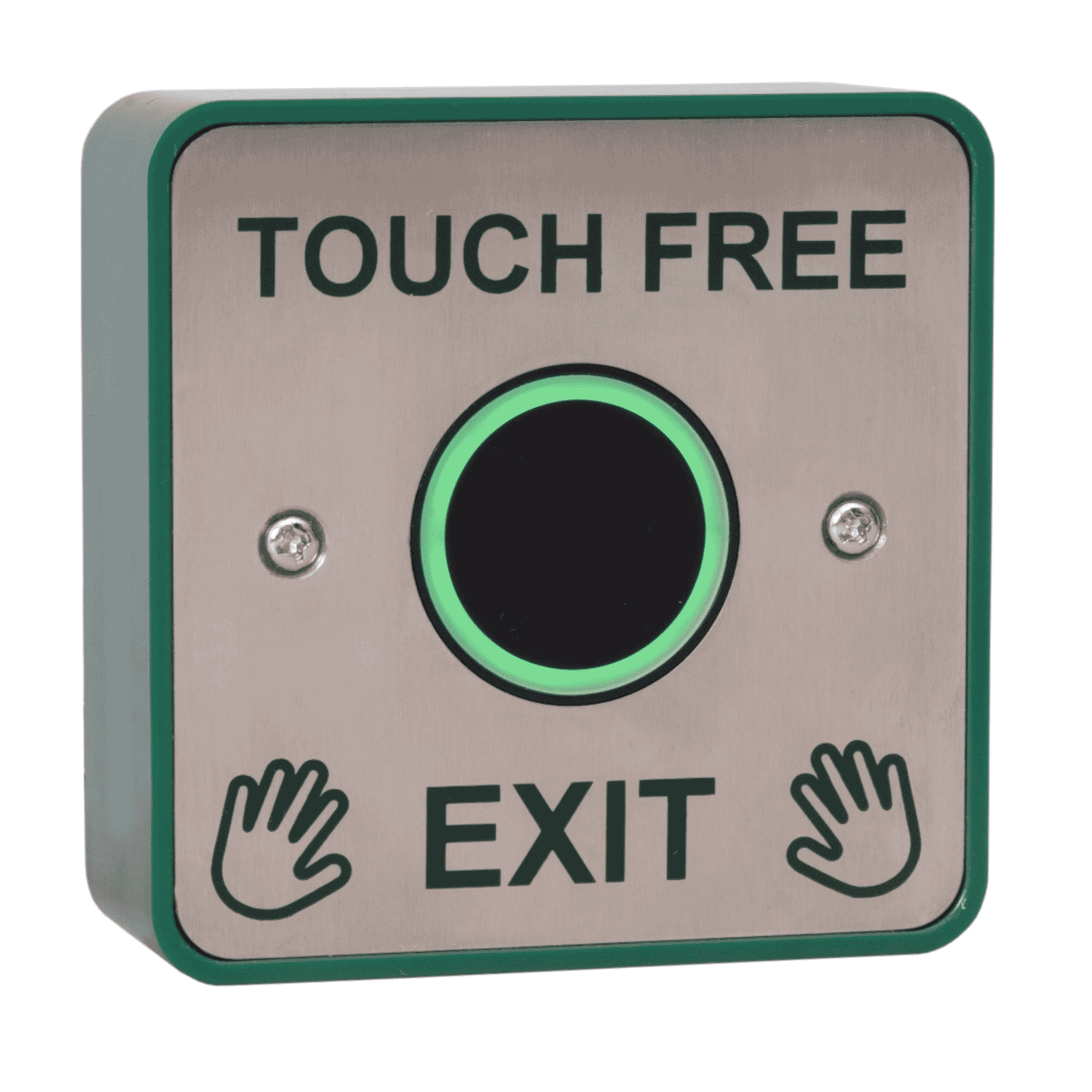

RGL EBNT/TF-1PLUS Touch-Free Exit Buttonis a compact, robust infrared (IR) exit/egress device designed to enable contactless door release for a wide range of access-control applications. The PLUS variant pairs a 35 mm flush IR sensor with a stainless-steel faceplate and a high-impact plastic backbox, offering a hygienic, easy-to-clean surface plus splash and dust resistance (IP65). Operating from a 12/24 V DC supply, the unit features an illuminated indicator (red for standby, green when activated) and an internally wired relay with a fixed 5-second timer designed to trigger electric strikes, magnetic locks, or other door control hardware.
- 35 mm flush infrared sensor for true touch-free operation.
- Illuminated status — red (standby) and green (activated) for immediate visual feedback.
- Stainless-steel faceplate on a high-impact plastic backbox — durable and easy to clean.
- Built-in relay with a fixed 5 s timer on the PLUS model for simple, reliable egress timing.
- Versatile mounting (surface or flush) with a screw footprint that fits standard back boxes (approx. 60 mm spacing).
- Ingress protection IP65 — suitable for wet or dusty environments.
Product specifications and benefits — a detailed description
The EBNT/TF-1PLUS is engineered to meet practical needs where contactless interaction and durability matter. Below is a detailed look at the most relevant specifications and what they deliver in real-world use.
- Supply voltage:12/24 V DC, with a typical current of ≈45 mA. This common voltage compatibility makes the unit easy to integrate into existing access control power supplies and fire-exit circuits.
- Contacts:Double-pole NO/NC (volt-free) — this gives installers flexibility to wire the relay into a variety of systems without passing mains through the device.
- Contact/load ratings:0.5 A @ 125 VAC and 2 A @ 30 VDC — appropriate for low-voltage locking devices and control circuits. For higher loads, a separate relay or interface module is recommended.
- Relay/timer:Fixed 5 s activation on the PLUS variant — a simple, predictable egress duration that reduces configuration time during installation.
- Faceplate material:Stainless steel — corrosion-resistant, hygienic, and able to withstand repeated cleaning with disinfectants commonly used in healthcare and food-service environments.
- Backbox:High-impact plastic supplied for either surface or flush mounting. Security screws are included to deter tampering.
- Sensor diameter:35 mm — a flush-mounted IR detector designed for reliable proximity detection without protrusions that can trap dirt or damage.
- Dimensions and mounting:Approx. 85 × 85 × 28–32 mm; fixing hole spacing ~60 mm for compatibility with standard boxes.
- Ingress protection:IP65 — suitable for splash-prone areas and dusty locations; ideal where moisture or hygiene cleaning is part of daily operations.
- Operating environment:−30° to +80° C and 20%–80% RH, enabling deployment in a wide range of climates and indoor/outdoor transition zones.
- Hygiene:Touch-free operation reduces surface contact and helps limit the spread of germs — a critical benefit in hospitals, clinics, kitchens, and public washrooms.
- Durability:Stainless-steel faceplate and IP65 rating mean the unit stands up to harsh cleaning agents, splashes and dust exposure.
- Simplicity:The fixed 5-second relay on the PLUS variant removes the need for timer configuration while providing a standard egress duration that suits most doors and locks.
- Visual feedback:Red/green illumination provides immediate confirmation to users and staff that the device has registered the activation.
- Easy installation:Fits standard back boxes and includes a supplied backbox and security screws to streamline fitting and improve site security.
Use cases and scenarios where the EBNT/TF-1PLUS excels
The EBNT/TF-1PLUS is particularly suited to locations where hygiene, durability and straightforward operation are top priorities. Typical recommended uses include:
- Healthcare facilities:Emergency exits, patient room doors and staff-only entries where touchless operation reduces cross-contamination risks.
- Food preparation and processing areas:Kitchens and food-handling zones that require frequent cleaning and where non-porous stainless-steel surfaces are preferred.
- Public buildings and amenities:Libraries, municipal buildings, restrooms and transit hubs where high footfall demands robust, low-maintenance solutions.
- Cleanrooms and laboratories:Environments where minimal surface contact is a requirement and corrosion-resistant finishes are necessary.
- Retail and commercial premises:Back-of-house access, staff entrances and other areas where a reliable, tamper-resistant exit control is needed.
Comparisons with similar products on the market
When selecting a touch-free exit button, you’ll commonly evaluate IR-based models like the EBNT/TF-1PLUS versus alternatives such as capacitive touchless switches, motion (PIR) sensors, mechanical push buttons, and configurable TF variants. Key comparison points include:
- IR sensors detect proximity without contact and are generally less sensitive to hand moisture or surface contaminants than capacitive sensors, which rely on changes to an electrical field and can be affected by gloves or moisture.
- IR devices like the EBNT/TF-1PLUS are a strong choice where users may be wearing gloves (medical or industrial) or where repeated cleaning is routine.
- The PLUS model’s fixed 5 s relay simplifies setup for standard egress needs, while other TF series models that offer adjustable timers provide finer control when unique timing is required (e.g., longer delays for heavy doors or timed access control sequences).
- If you require different dwell times, look at other TF variants or an external relay/interface for expanded control.
- Stainless steel provides superior durability and is easier to disinfect, making it preferable in healthcare and food environments. Plastic alternatives are lighter and can be more cost-effective but may age or stain faster under heavy cleaning regimes.
- IP65 adds confidence in wet or dusty settings. Non-rated devices may be adequate for indoor, climate-controlled offices but are less suitable where splashes, steam, or dust are present.
Customer testimonials and feedback
At the time of writing, specific public reviews for the RGL EBNT/TF-1PLUS are limited. However, feedback for similar RGL touch-free exit products commonly highlights:
- Ease of installation and wiring when integrated into existing 12/24 V access systems.
- The practical value of stainless-steel faceplates for frequent cleaning in clinical and food-prep environments.
- Positive user response to the red/green illuminated feedback which reduces uncertainty during activation.
- Reliability of the IR proximity sensing in varied lighting conditions and with gloved users.
If you are considering procurement for a large project, request sample units or site demonstrations and consult installer reviews or references from RGL distributors to gather direct customer feedback relevant to your use case.
Conclusion — why the RGL EBNT/TF-1PLUS is a strong choice
The RGL EBNT/TF-1PLUS combines the essential elements expected from a modern touch-free exit button: reliable infrared proximity sensing, a durable stainless-steel finish, clear illuminated status indicators, and an IP65 rating for splash and dust protection. Its 12/24 V compatibility and volt-free relay outputs make it straightforward to integrate into existing access control systems, and the fixed 5-second timer on the PLUS variant simplifies commissioning where standard egress timing is acceptable.
For facilities prioritising hygiene, durability and simplicity — particularly healthcare settings, food-prep areas, public amenities, and commercial premises — the EBNT/TF-1PLUS presents a practical and cost-effective option. Its build quality and ingress protection reduce maintenance overheads and support rigorous cleaning regimes, while the stainless-steel aesthetic also suits professional environments.
Before installation, always consult the official RGL datasheet for full wiring diagrams, contact ratings and any certification details (CE/UKCA), and ensure installation is performed by a qualified electrician in accordance with local regulations. For projects with special timing or load requirements, consider other TF-series variants or supplemental interface relays.
Suggested retail pricing for reference: USD 34.99 (suggested retail) with typical cost price indications available from distributors. If you need help determining whether this model meets your technical or regulatory needs, share your door hardware, locking device and control system details and a qualified access-control installer or supplier can advise on compatibility and alternatives.
