Introduction to the Morley‑IAS 40‑Zone LED Indicator Kit (795‑102)

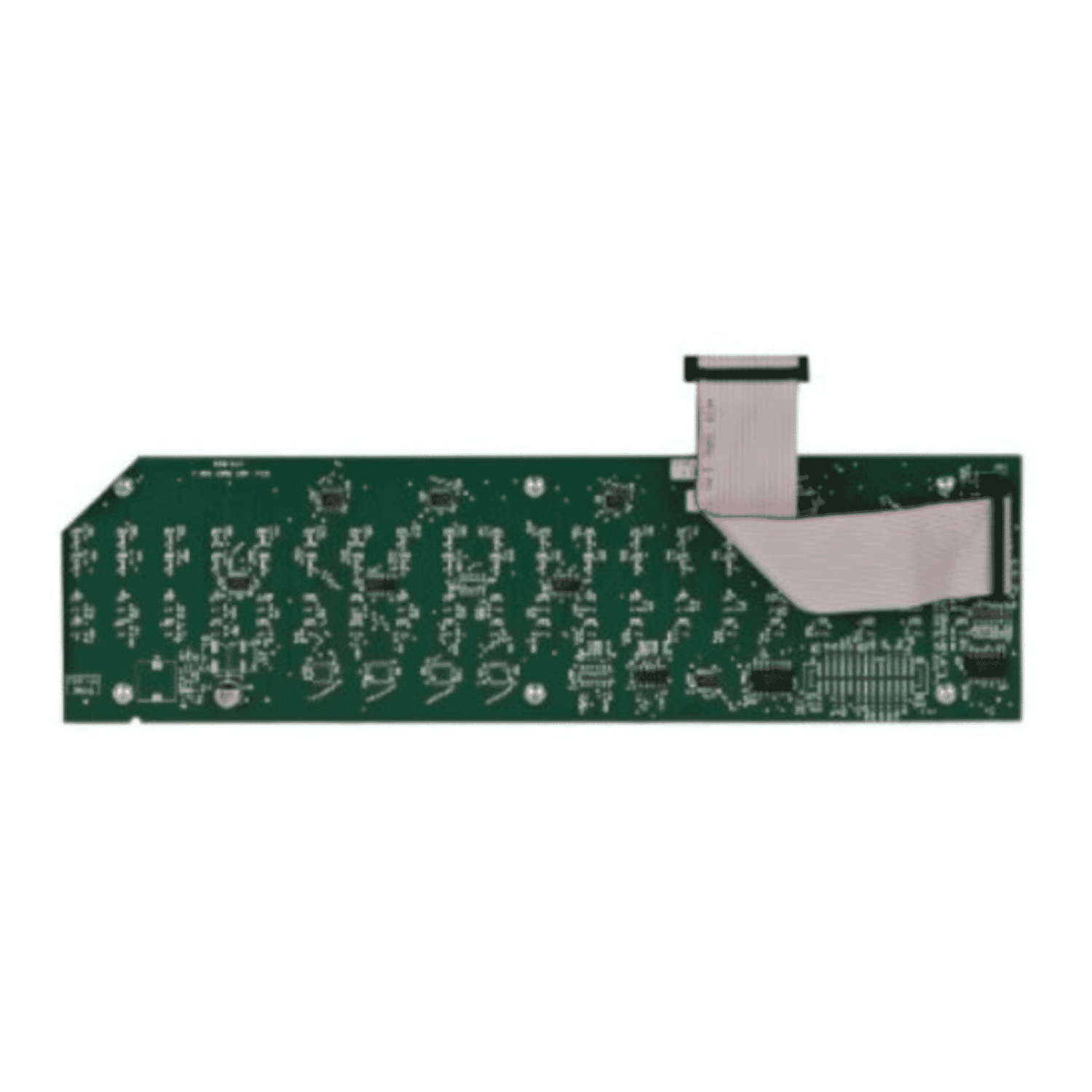

Morley‑IAS 40‑Zone LED Card (795‑102)is an OEM accessory designed specifically for the DXc (DX Connexion) range of fire alarm control panels. Supplied as a complete kit, the 795‑102 provides clear, reliable visual zone annunciation for up to 40 zones and is fitted to the lower half of the panel's front door. The kit is compact, straightforward to install and tailored to match the factory form factor of Morley‑IAS (Honeywell) DXc panels such as DXc1, DXc2 and DXc4.
This article gives an in‑depth look at the 795‑102: its features, specifications and benefits; the scenarios where it delivers the most value; how it compares with other annunciation options; installer feedback and a concise summary of why it’s a practical choice for many projects.
Key features at a glance
- 40 zone LEDs:Dedicated LEDs to indicate individual zone status, improving situational awareness.
- OEM kit contents:LED PCB assembly, ribbon cable, zone number labels and fixings for a plug‑and‑play fit.
- Front‑door mounting:Designed to mount on the lower half of the DXc panel door for clear, visible annunciation.
- Factory‑matching form factor:Ensures a neat, integrated appearance consistent with Morley‑IAS panels.
- Installer‑friendly:Intended for qualified fire alarm engineers with simple connection via supplied ribbon cable.
Detailed specifications and benefits
- Manufacturer part no.:795‑102
- Function:40‑zone LED indicator / zone annunciation
- Kit contents:LED PCB assembly, ribbon cable, zone labels, fixings
- OEM:Morley‑IAS (Honeywell)
- Typical weight:0.23 kg
- Compatibility / fits:Morley‑IAS DXc / DX Connexion panels (DXc1, DXc2, DXc4)
- Mounting:Front door (lower half), plug‑in via ribbon cable
- Intended user:Qualified fire alarm installers / system integrators
- Fast, unambiguous identification of zones:With one LED per zone, operators and responding personnel can immediately see which zone is in alarm, fault or trouble condition, reducing response time and helping to direct investigation.
- OEM quality and fit:As an official Morley‑IAS accessory, the 795‑102 matches panel aesthetics and mounting points, avoiding the compromises often encountered with aftermarket alternatives.
- Simple installation:Supplied as a complete kit with ribbon cable and fixings; installation is plug‑in, which reduces onsite labour and potential wiring errors compared with custom annunciator installations.
- Cost‑effective upgrade:For sites upgrading capacity or replacing a damaged door annunciator, the 795‑102 is a purpose‑built solution that avoids panel modification or custom mounting work.
- Safety and compliance:The kit is intended to be installed by qualified engineers and should be fitted in accordance with local codes and the manufacturer’s instructions. Product labelling should be checked for CE/UKCA markings and applicable regulatory compliance.
Use cases and scenarios where the 795‑102 excels
- When specifying a DXc panel for a new build, integrating the OEM 40‑zone LED card from the outset provides immediate, professional annunciation without customisation. This is particularly valuable in multi‑zone commercial buildings such as offices, retail centres and schools.
- Facilities expanding their detection coverage or migrating to DXc control panels can use this kit to add comprehensive zone annunciation without altering the main enclosure. The plug‑in ribbon cable simplifies the upgrade process.
- When an existing LED annunciator is faulty or damaged, the 795‑102 serves as a direct OEM replacement. Using the original kit preserves fit, finish and reliability.
- High‑occupancy or safety‑critical sites (healthcare, transport hubs, large warehouses) benefit from the instant visual clarity provided by 40 discrete LEDs, helping staff and first responders identify incident location quickly.
Comparisons with similar products on the market
There are a few common approaches to zone annunciation for fire alarm control panels: OEM front‑door LED cards (like the 795‑102), third‑party annunciator modules and fully remote graphical or touchscreen annunciators. Each approach has pros and cons:
- OEM front‑door LED card (795‑102):Best for neat integration and predictable fit. Advantages include direct compatibility, minimal installation time and a factory look. It’s an economical and robust option for sites that want a standard, proven annunciation method.
- Third‑party LED modules:May offer cost savings or custom layouts but often require modifications, extra wiring and can result in a less polished appearance. They can be appropriate where OEM parts are unavailable or for highly custom installations, but they increase installation complexity and potential warranty or compatibility concerns.
- Remote graphical/touchscreen annunciators:Provide richer information — zone maps, event logs and operator controls — and are useful for large or distributed systems where a single point of control is needed. However, they are more expensive, require configuration and may be overkill for smaller sites that only need simple zone LEDs.
For organisations using Morley‑IAS DXc panels that want straightforward, factory‑matched zone indication at a modest cost, the 795‑102 often represents the most balanced choice.
Installer and customer feedback (typical)
While there are no individual customer reviews quoted here, common feedback themes from installers and system integrators who specify OEM annunciator kits like the 795‑102 include:
- “Plug‑and‑play convenience”:Installers frequently appreciate that the kit is supplied with the ribbon cable and fixings, reducing time on site and easing commissioning.
- “Consistent fit and finish”:Customers value the integrated look when the LED card matches the panel door instead of appearing as an add‑on.
- “Reliable and durable”:OEM boards typically provide dependable long‑term performance, with reduced need for service visits compared with improvised annunciators.
- “Good value for what it does”:For many projects the 795‑102 delivers a clear functionality at a sensible cost compared with higher‑end remote annunciators.
Pricing and purchasing considerations
The supplied pricing information suggests a cost price of £64.33 and a suggested retail price of £78.00. For procurement teams and installers, this positions the 795‑102 as an affordable OEM accessory. When budgeting, factor in any labour for a qualified fire alarm engineer to isolate power, fit the card and test the panel after installation.
Installation, safety and compliance reminders
- Always isolate power to the control panel before fitting the LED card and follow site health and safety protocols.
- Installation should be carried out by a qualified fire alarm engineer familiar with Morley‑IAS equipment and local regulations.
- Check the product labelling for CE/UKCA markings and ensure the completed installation meets relevant local UK/EU standards and guidance.
- If there is any uncertainty, consult Honeywell / Morley‑IAS technical documentation or contact an authorised representative.
Conclusion — why the 795‑102 is a solid choice
The Morley‑IAS 40‑Zone LED Indicator Kit (795‑102) is a practical, purpose‑built solution for clear zone annunciation on DXc series panels. Its OEM design provides a neat, factory‑matching installation that installers value for its simplicity and reliability. The included ribbon cable, labels and fixings reduce onsite complexity and the 40 discrete LEDs deliver immediate, unambiguous information during alarm or fault conditions.
For new installations, upgrades or replacements on DXc panels where direct visual indication is required, the 795‑102 offers an excellent balance of performance, cost and ease of installation. It’s particularly well suited to commercial, educational and industrial sites where rapid zone identification supports faster response and improved safety. When used as intended by qualified personnel and installed in line with regulatory requirements, the 795‑102 is a dependable OEM annunciation option that helps keep fire alarm systems clear, professional and effective.
