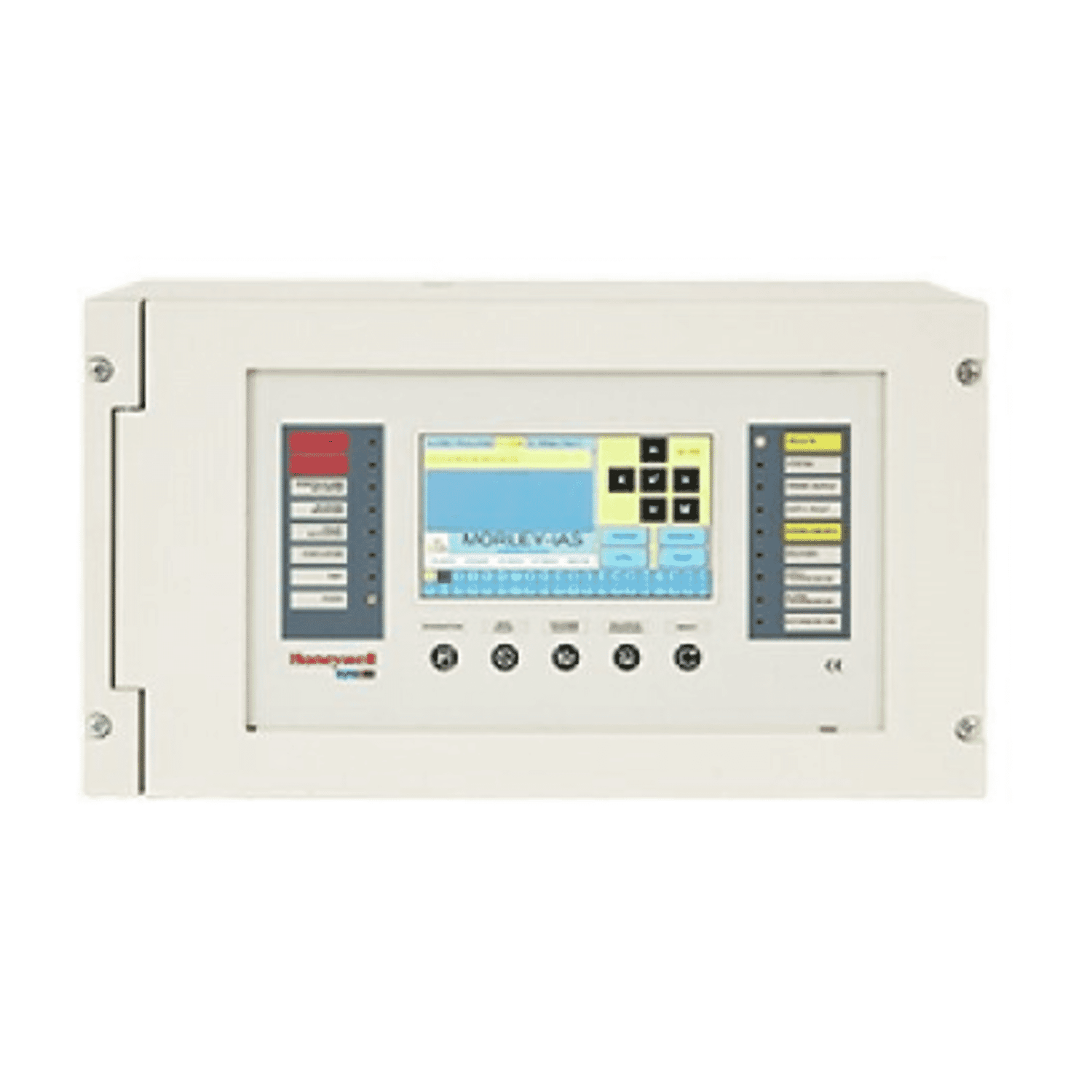

Introduction to the Morley‑IAS MAx MA‑2000‑01
Morley‑IAS MAx MA‑2000‑01is a 2‑loop addressable fire alarm control panel designed for medium to large commercial installations. Combining a glove‑friendly 7" colour resistive touchscreen, CANbus networking for multi‑panel systems and a large event history, the MA‑2000‑01 provides a modern operator experience with the flexibility needed for hotels, offices, hospitals and industrial sites. The unit supports multiple communications ports, configurable outputs and is designed to meet EN54‑2 and EN54‑4 requirements where applicable.
Key features at a glance
- 2 addressable detection loops with approximately 750 mA loop current capacity per loop
- 7" TFT resistive touchscreen (800 × 480) that is glove‑friendly for site operators
- Built‑in, optically isolated CANbus networking for multi‑panel systems and repeater support
- Large event and history log storing up to 10,000 events with programmable text
- Multiple communications ports: USB, RS‑232, RS‑485 (isolated)
- Support for 24 V DC power with external battery backing (typical: 2 × 12 V up to ~17 Ah)
- Compliance with EN54‑2 and EN54‑4 where applicable; CE/UKCA markings on applicable variants
Detailed specifications and benefits
Understanding a fire alarm control panel requires looking at both hardware capabilities and how those capabilities translate into operational benefits. The MA‑2000‑01 balances loop capacity, user interface ergonomics and networkability to suit demanding installations.
- Loops: 2 addressable loops — ideal for sites that need zone segmentation without the complexity (or cost) of larger base panels.
- Loop power: Approx. 750 mA per loop — sufficient to support a healthy population of addressable devices (detectors, call points, modules) while keeping wiring and power planning straightforward.
- Power supply and battery support: Built‑in 24 V DC supply with PSU options (typically 120 W / 150 W depending on SKU) and support for 2 × 12 V batteries up to ~17 Ah. This arrangement gives reliable standby operation and easy battery sizing for required autonomy periods.
- Relay outputs: Configurable alarm, fault and supervised outputs allow straightforward integration with building management systems (BMS), door hold‑open devices, dampers and other plant control.
- 7" TFT resistive touchscreen (800 × 480) — offers a clear, tactile interface designed to be used while wearing gloves, practical for maintenance staff and fire service responders.
- Large event log: Up to 10,000 historic events stored with programmable text entries and grouping for fast diagnostics and post‑event review.
- Zones and groups: Up to 400 logical groups in standalone operation (scales when networked), enabling mapped decision logic and precise alarm routing.
- CANbus networkable (optically isolated): Built‑in networking simplifies multi‑panel architectures for large sites — manufacturer references indicate networks of up to 64 panels / 128 loops are possible.
- Ports: USB for local service access, RS‑232/RS‑485 for third‑party integrations and an isolated RS‑485 interface for repeaters or remote annunciation.
- Control‑By‑Event logic: Programmable cause‑and‑effect that can reduce the need for additional relay panels by automating responses based on event sequences and group membership.
- Dimensions approx. 483 × 265 × 217.5 mm (W × H × D) with IP30 enclosure — well suited for equipment rooms, switchrooms or wall mounting in plant cupboards.
- Operating temperature −5 °C to +40 °C and finish in RAL 9002.
- Standards: EN54‑2 (control and indicating equipment) and EN54‑4 (power supply) certification where applicable — variants may carry CE/UKCA markings, so always check the unit label and documentation for a specific SKU.
Benefits in everyday operation
- Improved situational awareness: The touchscreen, programmable text and large event history speed up fault‑finding and incident responses.
- Scalable networking: CANbus allows the MA‑2000‑01 to function as part of a larger, distributed system without the cost and complexity of bespoke communication wiring.
- Flexible integration: Multiple communications ports and configurable outputs make integration with BMS, access control and other lifesafety systems straightforward.
- Cost effectiveness: For sites that need addressable detection but do not require extremely large loop counts, a 2‑loop configurable controller offers a good balance of initial expenditure and capability (suggested price around 1,049; cost price 858.36 — actual pricing varies by distributor and region).
Use cases and scenarios where the MA‑2000‑01 excels
The MA‑2000‑01 is targeted at medium‑sized commercial and institutional sites where addressable detection, clear operator interfaces and multi‑panel networking are desirable. Typical deployments include:
- Hotels need precise alarm location, quiet false‑alarm management and the ability to interface with door hold‑open and HVAC control. The MA‑2000‑01 supports granular grouping and cause‑and‑effect programming to manage these requirements.
- Multi‑panel networking via CANbus enables a central control strategy with remote annunciation. The touchscreen makes day‑to‑day management and fire‑drill testing efficient for facilities teams.
- Hospitals and clinics benefit from addressable locations and reliable event logging for audit trails. Configurable relay outputs allow integration with evacuation lifts and bedhead zone management.
- In harsh environments where staff wear gloves, the resistive touchscreen remains useful. The panels loop power and relay flexibility support complex interlock and shutdown sequences required by plant safety strategies.
Comparisons with similar products on the market
When evaluating the MA‑2000‑01, it helps to compare it against other commonly deployed addressable control panels. Below are key comparative points rather than an exhaustive product listing.
- Advanced and Notifier systems offer a wide range of loop counts and modular options. Where they can scale to very large systems, the MA‑2000‑01 focuses on a compact 2‑loop footprint with built‑in networking — making it a cost‑effective choice for mid‑size sites that still require multi‑panel capability.
- Notifier models often include robust integration options and an established global service network. Morley‑IAS MAx positions itself with user‑friendly touchscreens and competitive event logging capacity.
- Siemens and Hochiki panels can be strong contenders for enterprise deployments. The MA‑2000‑01 distinguishes itself with a glove‑friendly touchscreen and an emphasis on straightforward CANbus networking for distributed architectures.
- Loop capacity: If a single panel needs many loops (4, 8, 16+), larger modular panels may be a better fit. If two loops meet your site segmentation needs, MA‑2000‑01 is small, simple and economical.
- Service ecosystem: Choose a manufacturer and installer with a local support network. Morley‑IAS (Honeywell brand) has broad support in many regions, but local availability should be confirmed.
- Feature parity: The panel offers important modern features such as CANbus networking, large event logs and touchscreen control. Very specific niche features (advanced IP telemetry, proprietary cloud platforms) should be checked against the latest SKUs and firmware options.
Customer testimonials and reviews
Public, verifiable customer testimonials specifically for the MA‑2000‑01 SKU (ITM003220) are not broadly published in open consumer review channels. Typical feedback from installers and building engineers using MAx series equipment commonly highlights:
- Ease of commissioning and intuitive touchscreen interface for routine operation.
- Reliable loop performance and straightforward CANbus networking for multi‑panel sites.
- Clear event logs that simplify post‑incident investigation.
When procuring a panel, ask distributors or installers for site references and operator training records. Request demonstration access to the user interface where possible and confirm that firmware and documentation match the planned application.
Installation, maintenance and safety notes
The MA‑2000‑01 must be installed, commissioned and maintained by a competent, qualified fire‑alarm installer in accordance with local regulations and the MA‑2000 installation manual. Verify battery sizing, PSU option and I/O configuration for your site. For full technical details and wiring information refer to the official Honeywell / Morley‑IAS MA‑2000 datasheet and installation manual. Ensure that any variant you buy has the appropriate markings (CE/UKCA) and that you account for required redundancy and autonomy times in your specification.
Conclusion: why choose the MA‑2000‑01?
The Morley‑IAS MAx MA‑2000‑01 offers a compelling combination of user‑centric design, flexible networking and practical loop capacity for many commercial and institutional sites. Its 7" glove‑friendly touchscreen, substantial event logging and optically isolated CANbus networking make it especially attractive where clear operator interfaces and distributed control are priorities. For projects that need addressable detection without a very large loop count, the MA‑2000‑01 represents an economical, standards‑aware choice.
Before final selection, confirm your sites loop population and power requirements, check local support and certification for the specific SKU, and arrange a hands‑on review of the operator interface. With due diligence, the MA‑2000‑01 can provide a durable, feature‑rich core for a reliable fire detection system.
