Introduction: What the Hikvision AX Pro Wireless Intruder Alarm Kit Offers
TheHikvision DS-PWA64-Kit1-WE(marketed as the AX Pro Wireless Kit, 64 Zones) is a compact yet feature-rich wireless intruder alarm solution designed for residential and small commercial sites. Built around the DS-PWA64-L-WE control panel, this kit brings high-capacity wireless protection (up to 64 zones) together with modern verification options such as PIRCAM video verification, multi-transport network connectivity (LAN, Wi‑Fi and built-in 3G/4G modem), and two-way AES‑128 encrypted communications on the 868 MHz band. Supplied with core detectors, keyfobs and an external sounder, it aims to provide an out-of-the-box alarm system that supports app/cloud management, video buffering and professional integration options.
Key Features at a Glance
- Supports up to64 wireless zones(including up to 48 PIRCAMs for video verification).
- Two-way AES‑128 encryptionon 868 MHz using Tri‑X/Cam‑X protocol for secure wireless links.
- Multi-transport connectivity: Wired LAN, Wi‑Fi and built-in GPRS/3G/4G modem (SIM) for resilient reporting.
- Onboard video bufferingfor alarm clips from up to 4 IP cameras to enable quick video verification.
- Cloud and app ecosystem: Hik‑Connect, Hik‑ProConnect and Convergence Cloud for configuration, alerts and remote management.

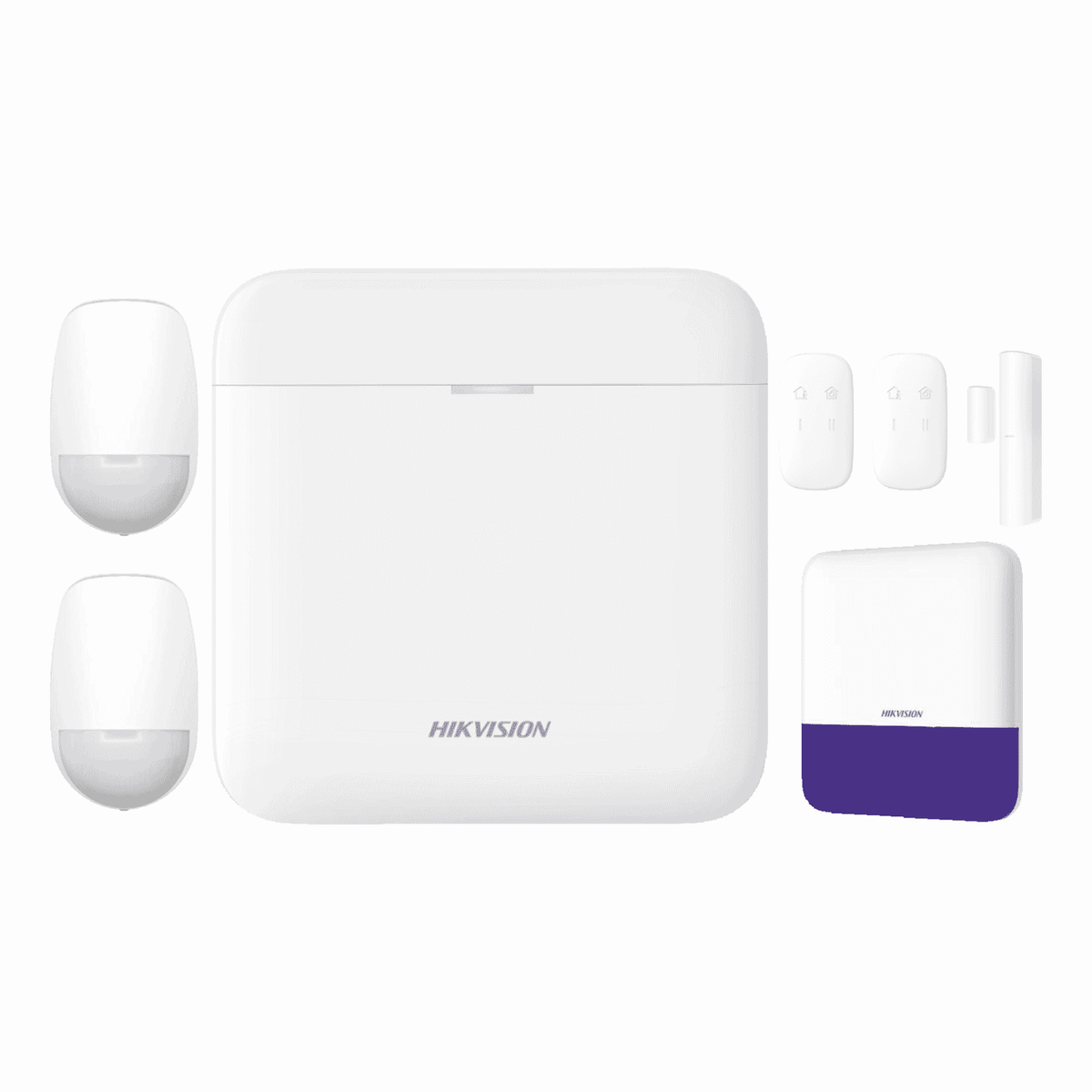

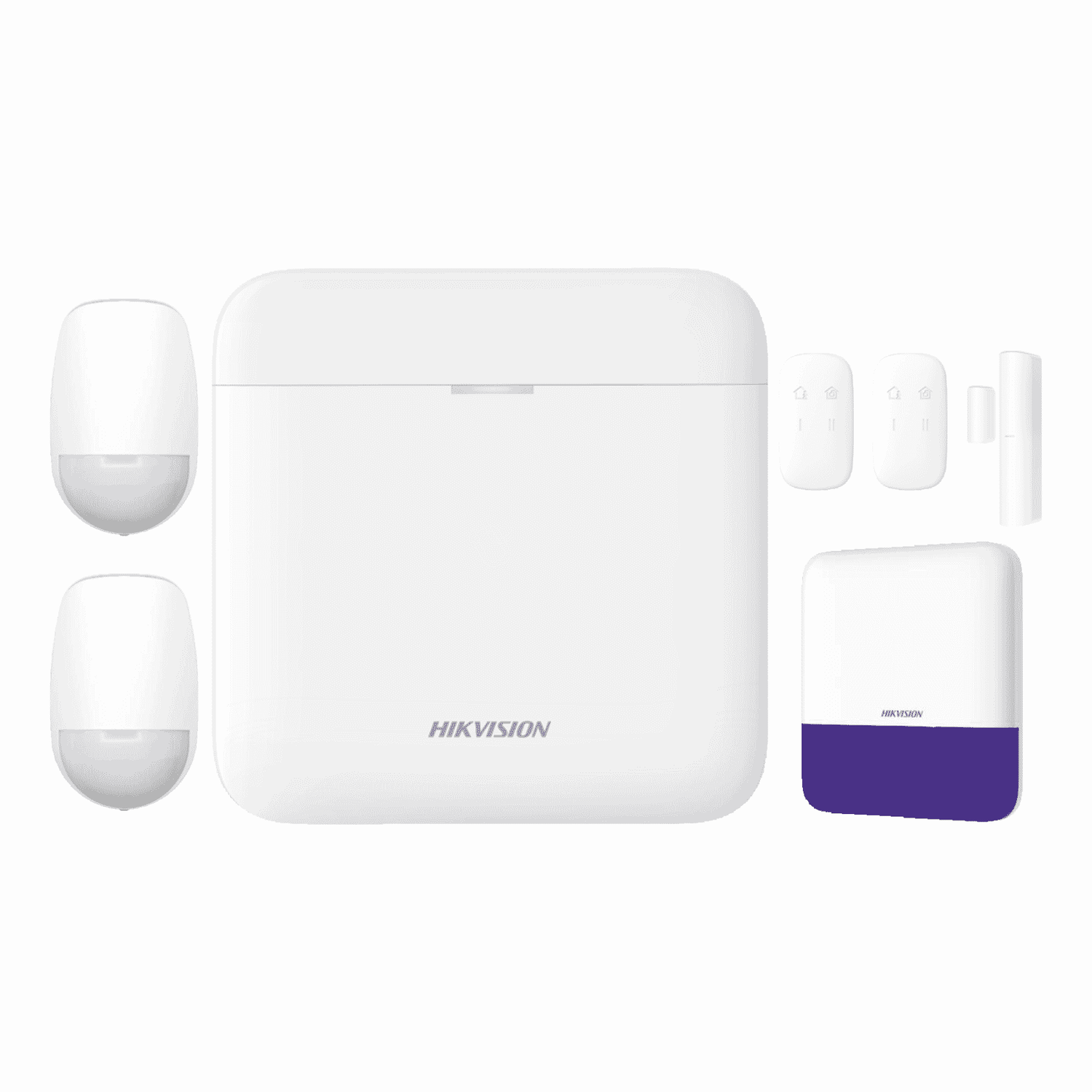

- Includes a starter kit of devices: control panel, keyfobs, PIR detectors, a door/window contact and an external sounder.
Detailed Specifications and Benefits
The DS-PWA64-Kit1-WE is engineered to combine capacity, connectivity and verification. Below are the technical highlights and how they translate into benefits for end users and installers.
With support for up to 64 wireless zones (and up to 48 PIRCAMs for video verification), the system covers larger homes, multi-room apartments or small commercial premises. This capacity means you can add multiple PIRs, door/window contacts, glass-break sensors and PIRCAMs without quickly exhausting the panel’s resources—useful for expansions or phased installations.
The kit uses two-way frequency-hopping communication on the 868 MHz band with AES‑128 encryption and Hikvision’s Tri‑X/Cam‑X protocol. Two-way devices provide confirmation of commands and better supervision, helping to reduce false alarms and improving reliability compared with one-way sensors. AES‑128 encryption protects the wireless link from eavesdropping and tampering.
Connectivity options include wired LAN, built-in Wi‑Fi and an integrated GPRS/3G/4G modem that accepts a SIM. This multi-transport approach provides redundancy: if broadband or Wi‑Fi fails, the built-in mobile modem can still report events to monitoring services or cloud platforms. That redundancy is particularly valuable for commercial sites or second homes where network reliability is a concern.
Video verification capability is a standout feature for reducing false alarms and accelerating response. The panel supports onboard buffering of alarm clips from up to four IP cameras so that short video clips are available for immediate review or cloud upload when an alarm triggers. Integrating PIRCAMs (up to 48) enables motion-triggered snapshots or clips tied directly to sensor events.
The panel supports up to about 46 users (model/version dependent) and stores up to 5,000 event logs—useful for audits, troubleshooting and incident review. A built-in rechargeable lithium battery (≈4520 mAh) provides around 12 hours of typical backup power (actual runtime depends on configuration and peripherals). The compact control panel (170 × 170 × 38.6 mm) is discreet and suitable for wall mounting.
Use Cases and Scenarios Where the Kit Excels
The DS-PWA64-Kit1-WE is versatile. Below are scenarios where its features deliver clear value:
Homes with multiple entry points, outbuildings or garage spaces benefit from the 64-zone capacity. Video verification via PIRCAMs helps differentiate between benign events (pets, stray animals) and legitimate intrusions, reducing unnecessary responses.
Retail shops, small offices and clinics need reliable perimeter protection and rapid incident evidence. The panel’s ability to buffer camera clips and send event notifications over multiple network paths (LAN/Wi‑Fi/4G) ensures owners and monitoring centers receive timely, actionable information.
For sites with unreliable broadband, the built-in mobile modem provides a reliable fallback. Remote owners can receive push notifications and video clips via Hik‑Connect or cloud services, enabling quick check-ins or dispatch to local contacts.
With support for reporting formats like SIA DC09 and Contact ID, plus ISUP/ISAPI (SDK), the system can integrate with alarm receiving centers (ARCs) and third-party management platforms—important for businesses that need monitored protection linked to professional responders.
Comparisons with Similar Products on the Market
When evaluating the DS-PWA64-Kit1-WE, it’s useful to compare it with both Hikvision’s broader AX Pro line and competing offerings from brands like Ajax, DSC, and Honeywell/Resideo.
Full AX Pro panels may offer increased device capacity, additional wired zone support, or expanded professional features. The DS-PWA64-Kit1-WE is positioned as an AX Pro “Lite” option—streamlined for smaller installations while retaining core AX Pro strengths (video verification, secure wireless, multi-transport connectivity). If you anticipate very large installations or extensive wired subsystems, consider other AX Pro models.
Ajax is known for a polished user experience, strong battery life and modern design. Ajax systems generally emphasize rapid DIY installation and cloud connectivity. Compared to Ajax, the Hikvision kit stands out for deeper video verification integration and built-in cellular modem options—features that matter for monitored or camera-enabled sites. Ajax may lead on battery lifetime and simplicity for purely sensor-based setups.
Established alarm brands like DSC and Honeywell often provide robust panels geared to professional installers with long-standing ARC integrations. Hikvision competes closely by offering ARC protocols, cloud services and advanced video tie-in. Where these legacy manufacturers may excel is in widespread ARC compatibility and installer familiarity; Hikvision’s advantage is the tight integration with IP video and its multi-transport failover wiring.
Customer Feedback and Typical Reviews
While specific user reviews depend on regional retailers and installers, common themes among customers who choose systems like the DS-PWA64-Kit1-WE include:
- Appreciation for video verification—many users report fewer false alarms and faster confirmation of genuine incidents.
- Positive comments on network resilience—having a built-in SIM modem provides peace of mind for those in locations with flaky broadband.
- Installers report the ease of integrating PIRCAMs and IP cameras, which speeds up commissioning for monitored sites.
- Some users note a learning curve with advanced configuration and recommend professional installation for ARCs and complex integrations.
Note: If you plan to buy, check up-to-date regional reviews and installer feedback to confirm service quality and compatibility with local monitoring centers.
Conclusion: Why the DS-PWA64-Kit1-WE Is a Strong Choice
The Hikvision DS-PWA64-Kit1-WE AX Pro Wireless Kit balances capacity, security and verification features in a compact package. Its support for up to 64 zones and extensive PIRCAM video verification options makes it suitable for larger homes and small businesses that require reliable, verifiable alarms. AES‑128 encrypted two-way wireless, multi-transport connectivity (including built-in cellular), and onboard video buffering for up to four IP cameras deliver resilience and faster incident confirmation. Combined with Hikvision’s cloud and app ecosystem (Hik‑Connect, Hik‑ProConnect and Convergence Cloud), the kit offers modern remote management and notification options.
For buyers seeking a system that can grow with their needs, integrate camera evidence, and provide redundant reporting paths, the DS-PWA64-Kit1-WE is a compelling choice. For mission-critical or larger-scale deployments, consult with a professional installer to compare full AX Pro panels and ARC integration requirements. At a suggested retail price (around 299.00), the kit presents a strong value proposition for those prioritising video verification and reliable reporting.
