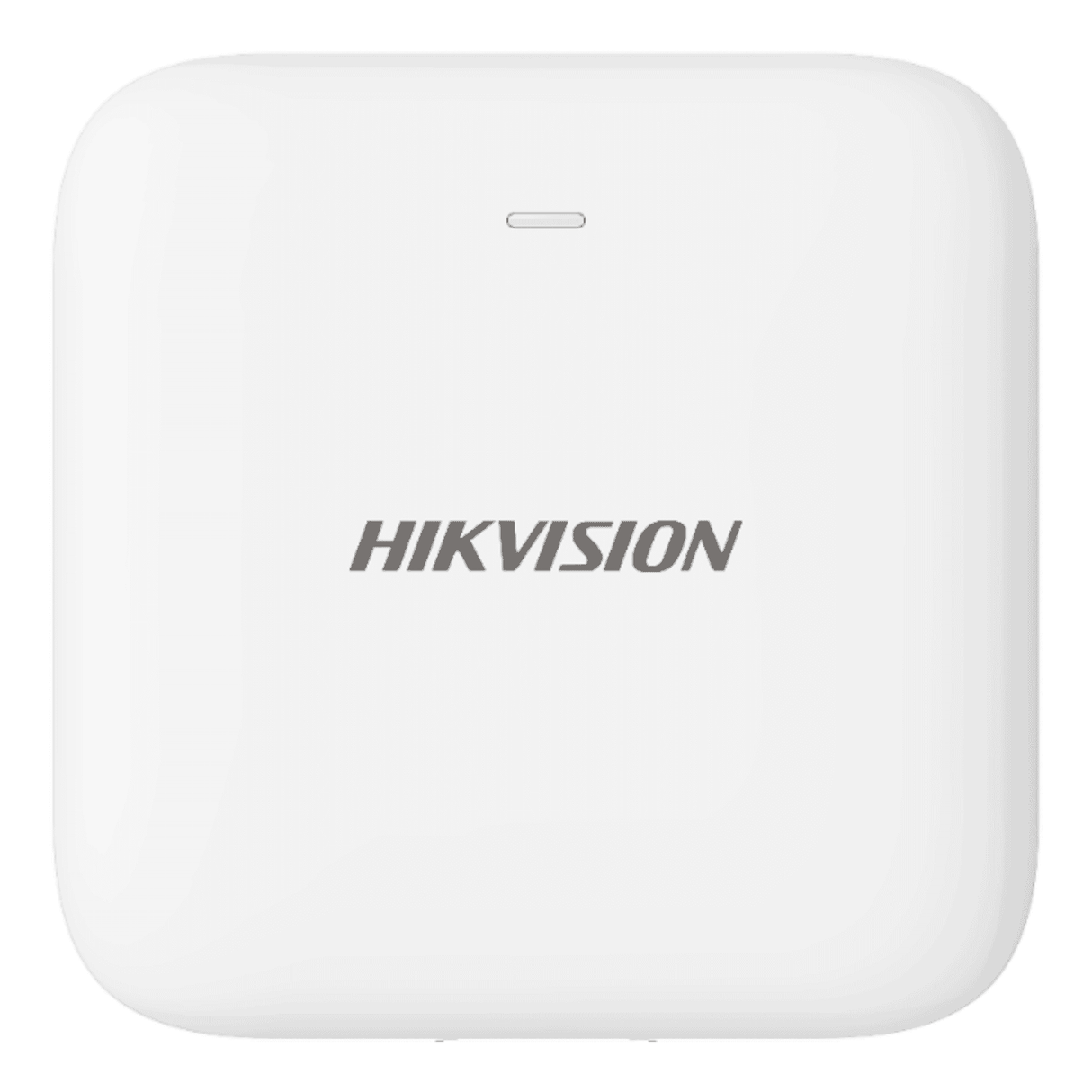

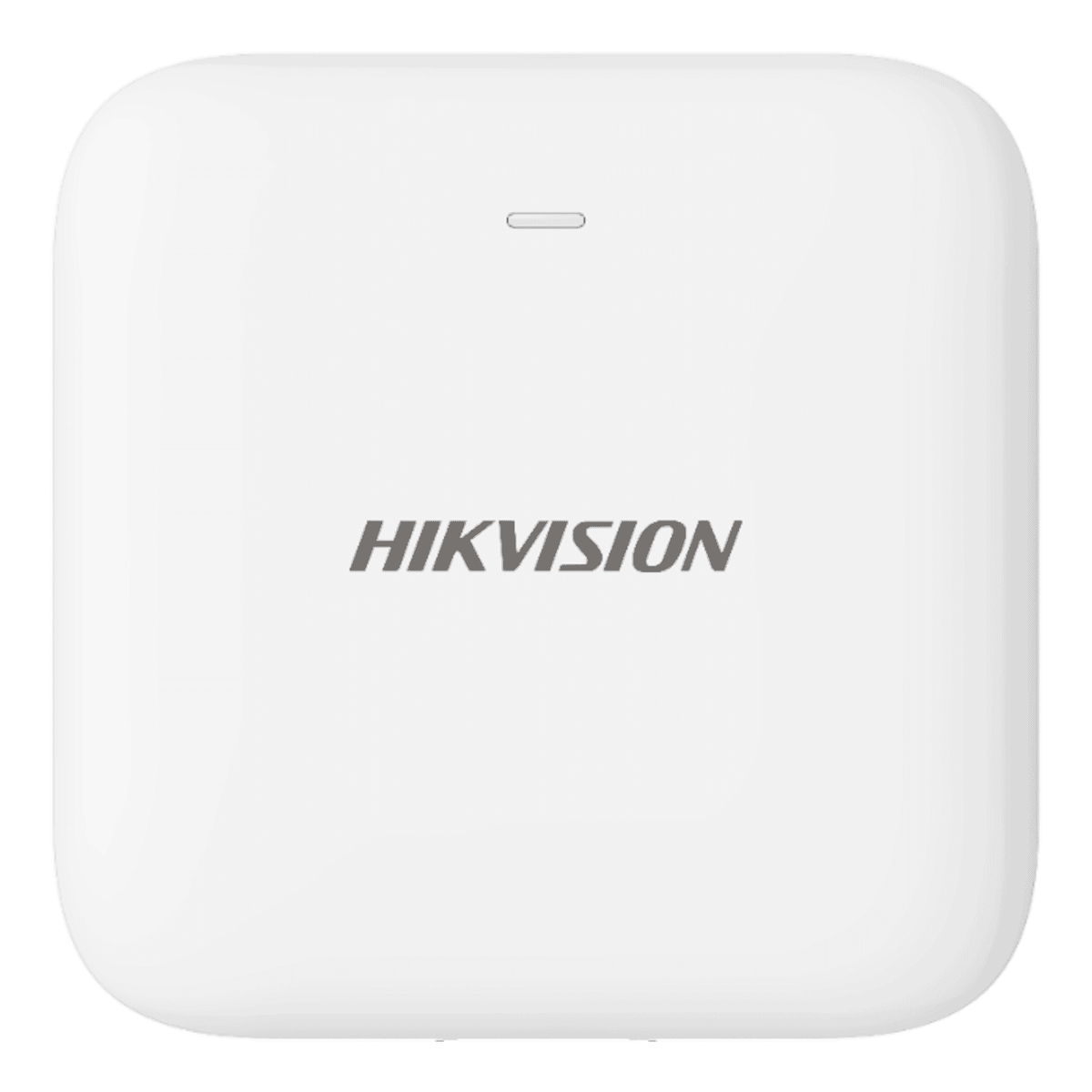

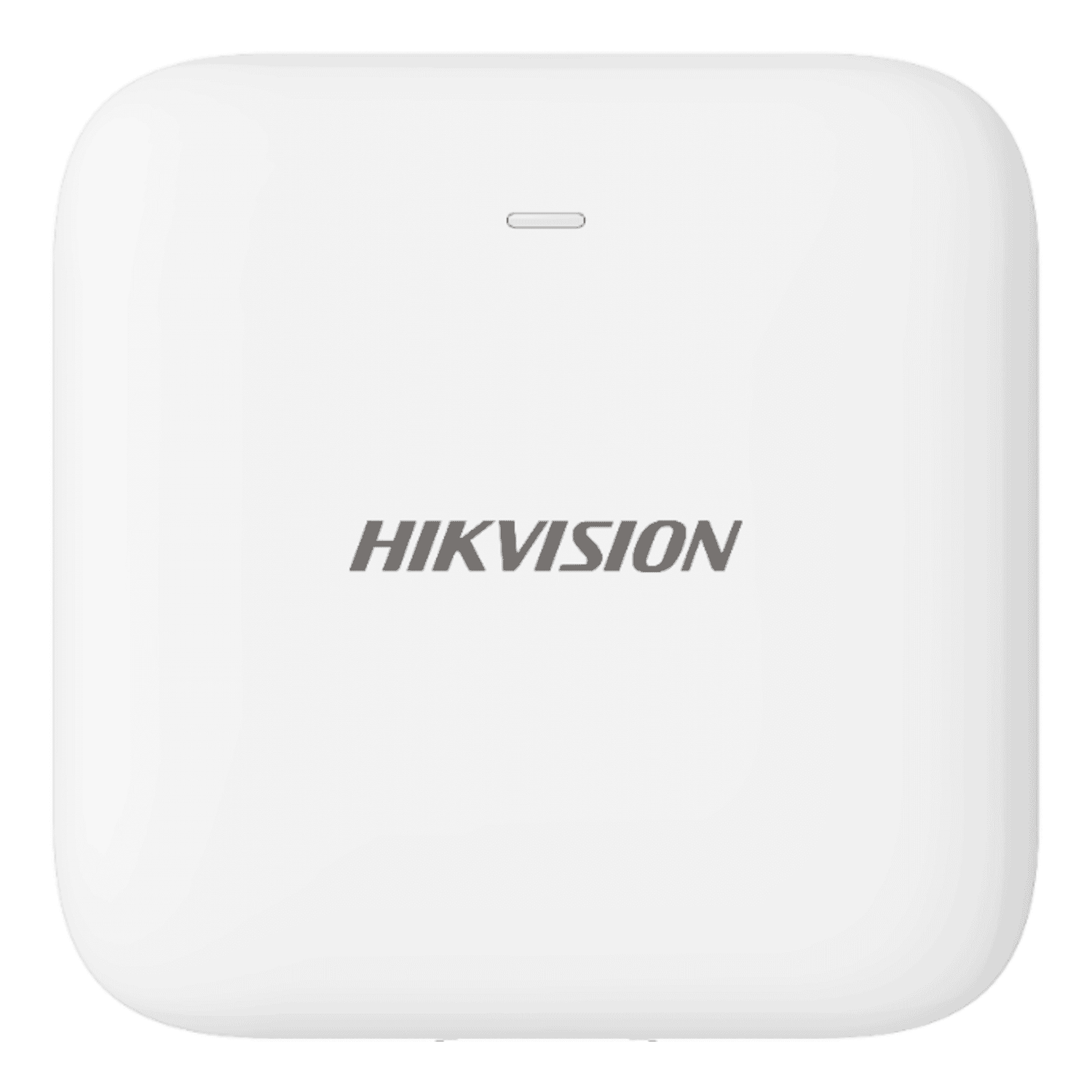

Hikvision AX‑Pro Wireless Water Leak Detector DS‑PDWL‑E‑WE

Introduction: Reliable leak detection with the Hikvision AX‑Pro DS‑PDWL‑E‑WE

The Hikvision AX‑Pro Wireless Water Leak Detector DS‑PDWL‑E‑WE is a compact, purpose‑built sensor designed to spot water where it shouldnt be and alert your security or building management system quickly. Combining Tri‑X two‑way RF communications (868 MHz), AES‑128 encryption, an IP66 enclosure and a battery life of up to three years, this detector is aimed at both domestic and light commercial installations: think under sinks, behind washing machines, near boilers, in plantrooms and server rooms. With a suggested retail price of $49.99, it offers a cost‑effective way to reduce the damage and disruption caused by unnoticed leaks.

Key features at a glance

• Wireless two‑way Tri‑X RF (868 MHz)with AES‑128 encryption and frequency‑hopping for robust, jam‑resistant communications.
• IP66‑rated enclosurefor protection against heavy splashes and dust — suitable for wet‑area proximity (not continuous immersion).
• Tamper detectionon both the front and rear, plus visual LED alarm indicator, signal strength and environment temperature indicators.
• Long battery lifefrom a single CR2450 (3 V) battery — approximately up to 3 years standby under normal conditions.
• Easy enrolmentvia power‑up, remote ID or QR code and up to 1.2 km free‑space range for flexible placement.
• Compact footprint(62.4 × 62.4 × 14.6 mm) for surface or wall mounting in tight spaces.

Detailed specifications and benefits

Understanding a detectors technical details helps ensure it meets the needs of your site. The DS‑PDWL‑E‑WE pairs practical hardware with secure communications to deliver reliable leak detection.

• Model: DS‑PDWL‑E‑WE.
• Application: Indoor water leak detection — works standalone or with a probe for remote sensing.
• Mounting: Wall or surface mounting allows placement directly under fixtures or along skirting boards.
• Dimensions and weight: 62.4 × 62.4 × 14.6 mm; 85.5 g — slim and unobtrusive.
• Operating temperature: −10°C to 55°C; storage: −20°C to 60°C; operating humidity: 10% to 90% RH.
• Ingress protection: IP66 rating — dust tight and protected against powerful water jets, making it suitable for areas where splashes and humid conditions occur.

• Wireless protocol: Tri‑X two‑way RF at 868 MHz provides a long free‑space communication range (up to 1.2 km) and reliable signalling for larger sites and multi‑building deployments.
• Security: AES‑128 encryption plus frequency‑hopping reduces the risk of signal interception and jamming — important when the device is integrated into alarm systems that trigger automated responses.
• Enrolment: Multiple enrolment methods (power‑up, remote ID, QR code) simplify commissioning and repeatable deployments by installers.

• Power: Single CR2450 battery (3 V) provides lightweight, low‑maintenance operation.
• Battery life: Up to ~3 years standby depending on reporting intervals and environmental conditions; battery replacement is straightforward.
• Indicators: Blue LED alarm indicator, plus signal strength and environment temperature feedback for quick onsite diagnostics.
• Tamper protection: Front and rear tamper detection helps prevent accidental removal or tampering in sensitive installations.

Use cases and scenarios where the AX‑Pro leak detector excels

This detector is built for places where early detection of moisture can prevent costly repairs or operational downtime. Typical use cases include:

• Domestic kitchens and bathrooms:Installed under sinks, dishwashers or washing machines, the unit provides immediate alerts for leaking hoses, blocked drains or appliance failures.
• Boiler and plant rooms:Boilers, condensate drains and refrigeration units are common sources of leaks. The devices IP66 rating and robust communications make it suitable for mechanical rooms where moisture and dust are present.
• Server rooms and IT racks:Even small water incursions can damage networking gear and servers. Integrating the sensor into an AX‑Pro alarm system enables remote alerts and automated shutdowns or notifications to IT staff.
• Commercial kitchens and laundries:High‑traffic, water‑prone areas benefit from multiple, networked detectors to spot leaks early and avoid slip hazards and equipment damage.
• Retail and multi‑unit buildings:Long RF range and encrypted communications allow centralised monitoring across floors or separate buildings without the need for extensive wiring.

How the detector reduces risk and total cost of ownership

Water damage is expensive: detection that is both rapid and reliable can reduce repair costs, business interruption and insurance claims. The AX‑Pro DS‑PDWL‑E‑WEs advantages contribute to lower total cost of ownership through low installation complexity (wireless), minimal maintenance (multi‑year battery life) and integration with alarm systems that can trigger immediate responses (notifications, shut‑off valves, service calls).

Comparisons with similar products on the market

There are several categories of water leak detectors available: battery‑powered wireless sensors that use proprietary RF (like this Hikvision unit), smart home Wi‑Fi sensors, and Z‑Wave/Zigbee devices designed for home automation hubs. Heres how the DS‑PDWL‑E‑WE compares in key areas:

• Range and reliability:The 868 MHz Tri‑X RF offers a longer free‑space range (up to 1.2 km) and better building penetration than many 2.4 GHz Wi‑Fi devices. Compared with Zigbee/Z‑Wave sensors, the proprietary RF and frequency‑hopping help reduce interference in congested RF environments.
• Security:AES‑128 encryption and two‑way communications make the Hikvision device more suitable for professional alarm integrations than many consumer Wi‑Fi sensors that may lack enterprise‑grade encryption or tamper protection.
• Ingress protection:An IP66 rating is higher than many indoor‑focused detectors, which are rated only for splash resistance. That makes the DS‑PDWL‑E‑WE a better choice near utility equipment and in semi‑wet areas (though not for continuous immersion).
• Battery life and maintenance:Up to three years of standby on a single CR2450 is comparable to many low‑power wireless leak sensors and reduces servicing frequency. Some smart home Wi‑Fi sensors consume more power and require more frequent battery changes.
• Integration:While consumer sensors may offer direct cloud or smartphone integrations, the Hikvision devices strength is professional integration into AX‑Pro alarm ecosystems — ideal for installations managed by security or building automation professionals.

Tradeoffs: If you need direct cloud connectivity and smartphone app control without an alarm panel or gateway, consumer Wi‑Fi or Z‑Wave/Zigbee sensors may be easier to deploy. However, for secured alarm‑grade installations with long range and strong interference resistance, the DS‑PDWL‑E‑WE is often the better fit.

Customer feedback and typical reviews

While specific user reviews vary by deployment, installers and facility managers commonly praise the Hikvision DS‑PDWL‑E‑WE for:

• Easy enrolment and reliable RF links in larger properties, reducing the need for repeat visits.
• Robust construction and IP66 rating, which give confidence when placing units near appliances and plant equipment.
• Long battery life that reduces maintenance overhead in multi‑sensor setups.
• Encrypted communications and tamper detection that fit securely within a managed alarm system.

Points of constructive feedback sometimes include reminders to follow installation guidance: the units IP66 rating protects against jets of water, but it is not designed to be submerged. Correct placement (e.g., using a probe for recessed areas) and periodic testing are still recommended to ensure optimal performance.

Conclusion: Why the Hikvision AX‑Pro DS‑PDWL‑E‑WE is a strong choice

The Hikvision DS‑PDWL‑E‑WE Wireless Water Leak Detector blends professional‑grade communications, strong physical protection and practical installation features into a compact, affordable package. For site managers, integrators and homeowners who need dependable early warning of leaks — especially in environments where interference, distance and robustness matter — this detector delivers the essentials: secure RF, IP66 ingress protection, tamper detection and multi‑year battery life.

Priced competitively (suggested price $49.99), it represents a cost‑effective building block in a wider AX‑Pro alarm or building management system. When paired with the right alarm controller and following manufacturer installation guidance, it can significantly reduce the risk and cost associated with water damage, while offering straightforward deployment and low ongoing maintenance.

For anyone evaluating leak detection options, the DS‑PDWL‑E‑WE is worth strong consideration where encrypted, long‑range wireless communication, a rugged enclosure and professional monitoring integration are priorities.
