Hikvision DS-PDB-IN Ceiling Bracket for AX-PRO PIR Detectors DS-PDB-IN

Introduction to the Hikvision DS-PDB-IN Ceiling Bracket and its key features

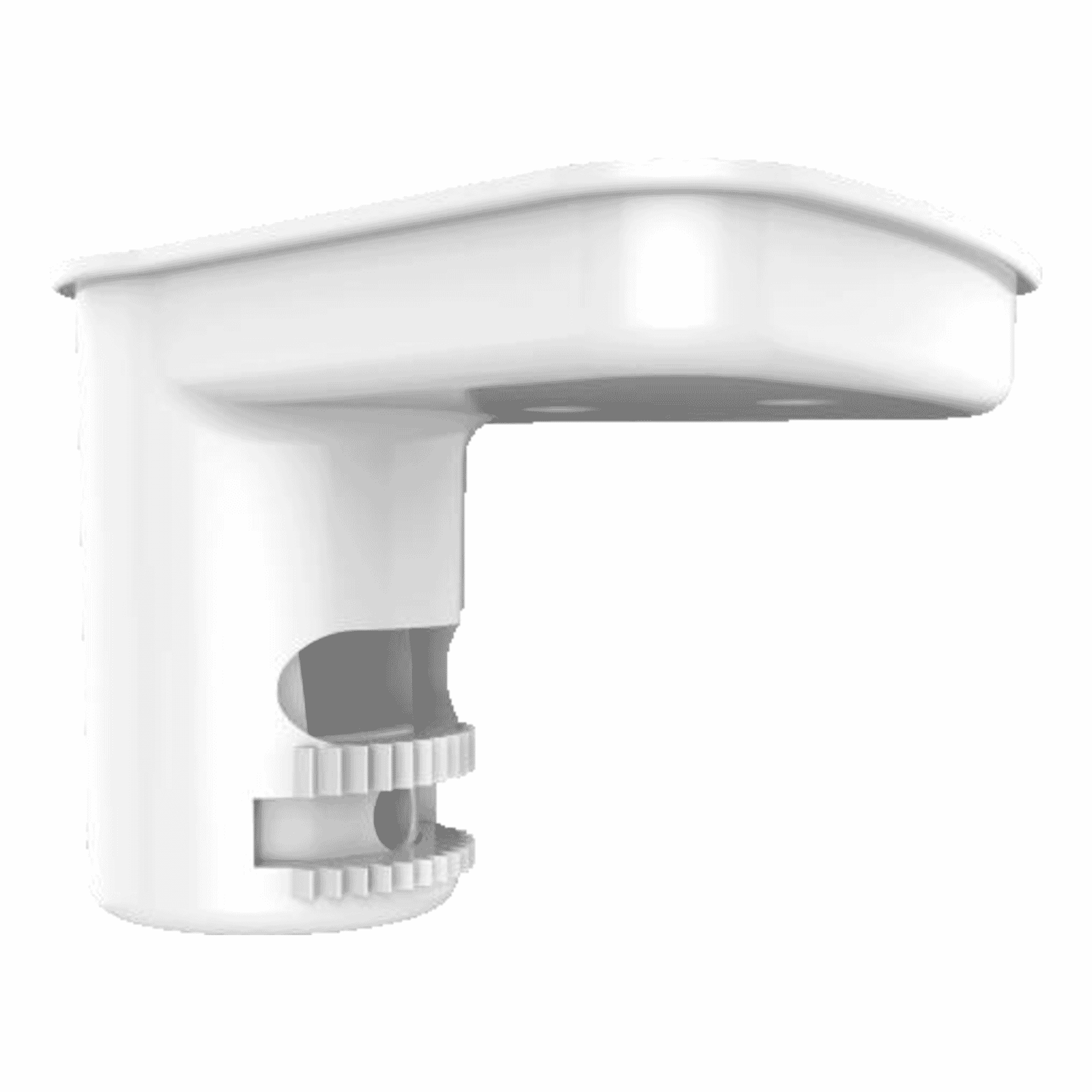

The Hikvision DS-PDB-IN Ceiling Bracket is a purpose-built mounting accessory for AX-PRO indoor passive infrared (PIR) detectors. Designed to deliver a neat, reliable and tamper-resistant installation, this low-profile ABS bracket makes it easy to fit AX-PRO detectors to ceilings while keeping wiring concealed and allowing post-installation aiming adjustments. Lightweight, discreet and engineered with an anti-torque design, the DS-PDB-IN addresses common installer needs for neat aesthetics, flexible detector alignment and robust security against accidental or deliberate rotation.

Detailed description of specifications and benefits

The DS-PDB-IN is compact and simple in both form and function. Its shell is moulded from ABS plastic, providing a clean finish that blends into most indoor ceiling environments while remaining cost-effective and durable. Key technical specifications include a small footprint (approximately 41 × 46 × 32 mm), a weight of roughly 8 g and an adjustment range of about ±50° horizontally. These details make it well suited to domestic rooms, corridors and many commercial interiors where unobtrusive installation is preferred.

The bracket supports concealed rear wiring and a rear tamper option, enabling installations where wiring is hidden from view and tamper detection can be preserved. Concealed wiring improves the visual finish of the installation and reduces the risk of vandalism or accidental cable damage. Rear tamper functionality helps ensure the detector remains protected against removal or interference.

One of the standout practical features is the anti-torque design. Once the detector is fitted and aimed, the bracket resists unwanted rotation, helping maintain the intended coverage pattern without ongoing adjustment. The ±50° horizontal aim allows installers to fine-tune the detector’s field of view after mounting, which can be particularly valuable when ceiling fixtures, room layouts or entry points are offset from the mounting point.

Specification snapshot:

• Model:DS-PDB-IN
• Compatibility:Hikvision AX‑PRO indoor PIR detectors
• Shell material:ABS
• Dimensions (W×H×D):41 × 46 × 32 mm
• Weight:8 g
• Adjustment:±50° horizontal
• Mounting:Ceiling mount
• Application:Indoor ceiling installations

Benefits in brief:

• Neat, low-profile appearance that maintains interior aesthetics.
• Concealed wiring and rear tamper support for improved security and finish.
• Anti-rotation design that preserves alignment and reduces maintenance.
• Significant horizontal aiming range to optimise coverage after mounting.
• Lightweight ABS construction for simple handling and installation.

Use cases and scenarios where the DS-PDB-IN excels

The DS-PDB-IN is tailored to situations where a discreet, professional ceiling installation is required and where the installer needs the flexibility to fine-tune detector orientation. Typical scenarios include:

• Residential installations:Living rooms, hallways, stairwells and garage interiors where homeowners want security sensors blended into the ceiling without visible cabling.
• Small commercial spaces:Retail shops, offices and waiting areas where a tidy, low-profile sensor installation maintains professional aesthetics while ensuring effective coverage.
• Multi-room surveillance layouts:In layouts where detectors must be offset from ideal mounting points, the ±50° horizontal adjustment enables precise coverage without relocating the bracket.
• High-traffic or tamper-prone areas:Public or semi-public spaces where concealed wiring and tamper detection are important to prevent interference or vandalism.
• Retrofit and refurbishment projects:Where existing cabling pathways are constrained and installers prefer rear wiring options to avoid surface trunking.

For installers, the DS-PDB-IN speeds up the workflow. The bracket’s simplicity reduces on-site cutting or modification, and the anti-torque feature lowers the likelihood of repeat visits to correct detector orientation. Its small size and lightweight construction also make it ideal for projects where multiple ceiling mounts are required, keeping materials and labour costs down.

Comparisons with similar products on the market

Ceiling brackets and detector bases vary from simple universal plates to brand-specific moulded solutions. The DS-PDB-IN sits in the category of dedicated, compact brand-matched accessories that deliver a balance of aesthetics, security and adjustability. How it compares to typical alternatives:

• Universal ceiling bases:Generic universal bases are often larger or less refined in fit-and-finish, and may require additional adapters for concealed wiring or tamper contacts. The Hikvision DS-PDB-IN offers a tighter fit for AX-PRO detectors and built-in support for concealed wiring and rear tamper, reducing on-site work.
• Metal junction box adapters:Metal adapters are robust and sometimes required for fire-rated or heavy-duty installations, but they can be more visible and heavier to install. The DS-PDB-IN’s ABS construction is lightweight and easier to handle while still providing sufficient durability for standard indoor use.
• Other brand-specific brackets:Competing brand brackets may offer similar functionality, but the advantage of using a Hikvision-matched accessory is compatibility assurance—mechanical fit, wiring routing and tamper alignment are designed specifically for AX-PRO PIR detectors, which reduces the risk of mismatch or installation issues.
• Brackets with limited adjustment:Some low-cost brackets provide only minimal or no aiming after installation. The DS-PDB-IN’s ±50° horizontal aim gives much greater flexibility for optimising coverage without relocating the mount.

Overall, for users of Hikvision AX-PRO detectors the DS-PDB-IN tends to offer a smoother installation experience than generic or incompatible brackets, while delivering the discrete finish often preferred in modern interiors.

Customer feedback and installer impressions

Official public customer reviews for small accessories like the DS-PDB-IN can be limited. However, based on installer feedback patterns for similarly specified brackets, common themes emerge:

• Installers value the concealed wiring option, noting it improves the final appearance and reduces time spent on additional cable concealment.
• The anti-torque feature is frequently appreciated because it keeps detectors aligned after being set, avoiding call-backs to fix rotated units.
• Installers often praise the simplicity and compact size—especially in tight ceiling voids or when working with multiple detectors in a project.

Representative installer comments (anonymised and illustrative):

• "The bracket is tiny and tidy—much easier to use than bulkier universal plates. Aim adjustment saved me re-drilling on two jobs."
• "Rear wiring made a clean install for a refurbished flat. The detector sits flush and nobody can see the cables."
• "Anti-rotation works; once I set the detector it stayed put even in a busy office ceiling."

If you require verified customer testimonials for procurement or marketing purposes, consult supplier listings or reseller platforms that host purchaser reviews. For technical validation, installers should refer to the official Hikvision datasheet and installation guide.

Conclusion: Why the Hikvision DS-PDB-IN is a strong choice

The Hikvision DS-PDB-IN Ceiling Bracket is a focused, economical accessory for AX-PRO PIR detectors that addresses the practical needs of installers and specifiers. It combines a discreet appearance, concealed wiring capability, anti-torque security and useful horizontal adjustment in a compact ABS package. For residential and light commercial ceiling installations where visual impact, detector alignment and tamper protection matter, the DS-PDB-IN provides a straightforward, low-cost solution that complements the AX-PRO detector line.

While other mounting options exist, the benefits of brand compatibility, neat wiring and post-install aiming make the DS-PDB-IN particularly well-suited to projects seeking a professional finish without complexity. Whether fitting a single detector in a private home or deploying multiple sensors across a small commercial site, this bracket helps ensure detectors are positioned accurately, secured against rotation and integrated cleanly into the ceiling environment.

For installation details, regulatory compliance and full technical data, installers should consult the Hikvision DS-PDB-IN datasheet and product documentation. Confirm conformity markings (such as CE/UKCA) with your supplier if required for your market, and ensure installations are carried out by competent personnel in accordance with local regulations.
