Introduction to the Hikvision DS-PDMCX-E-WE

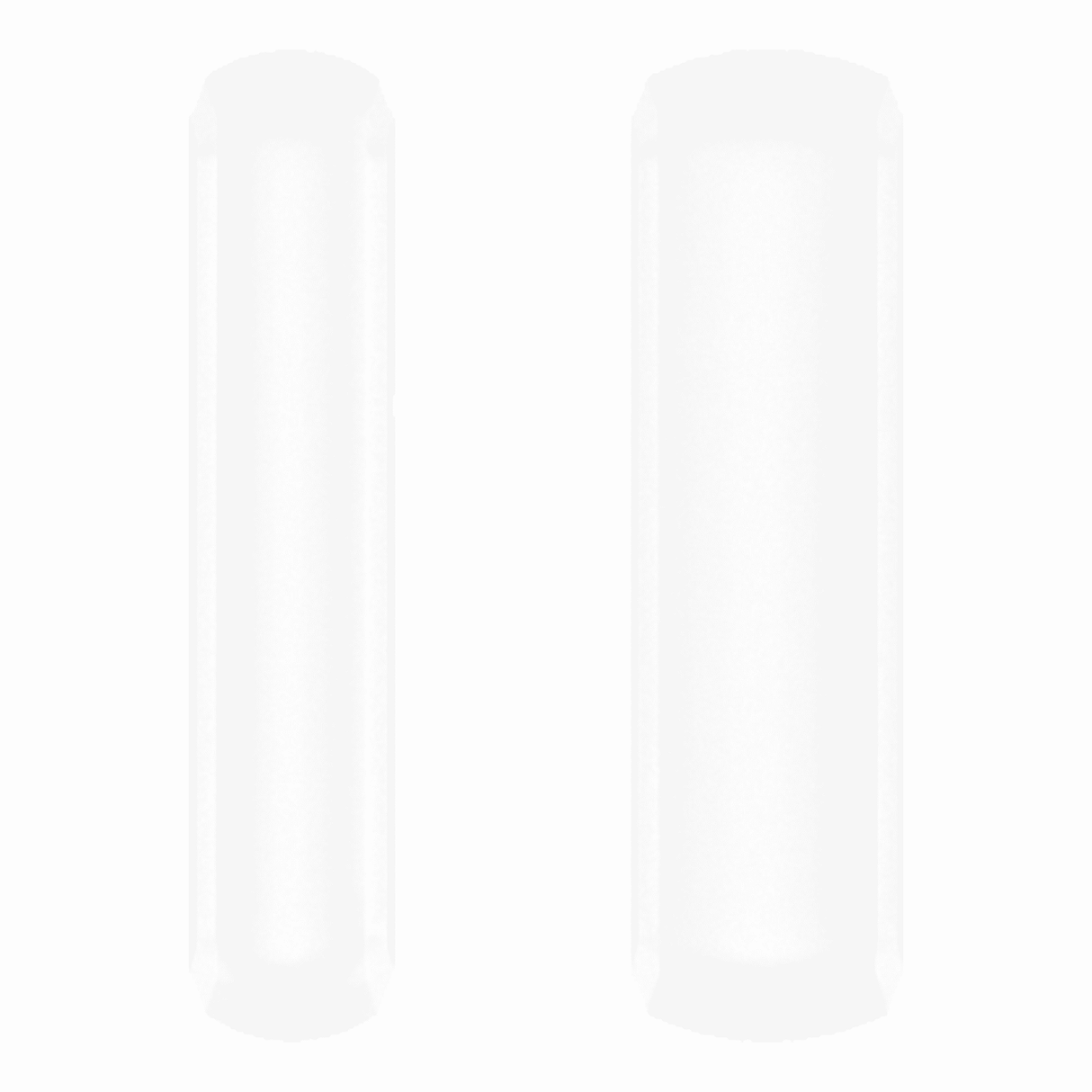

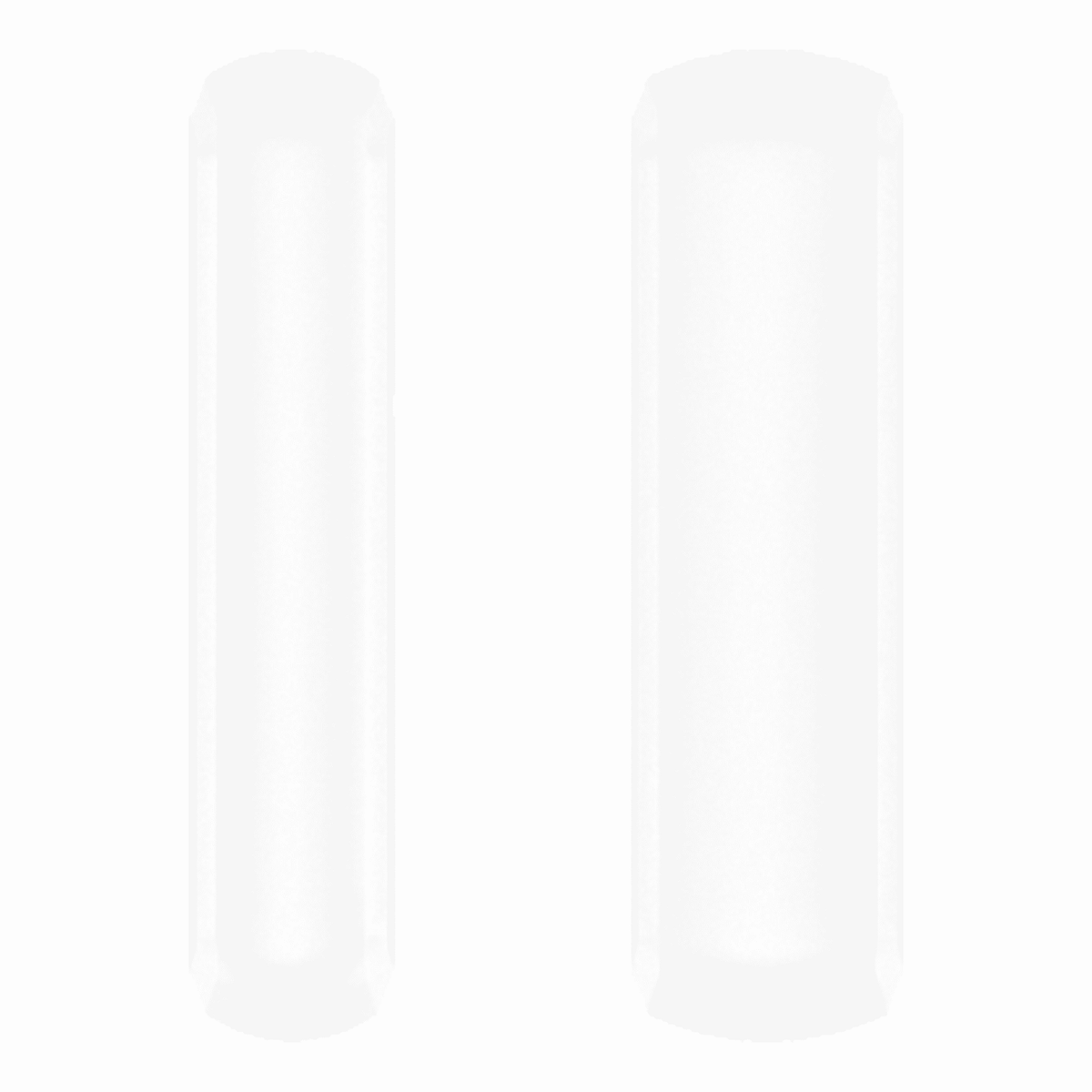

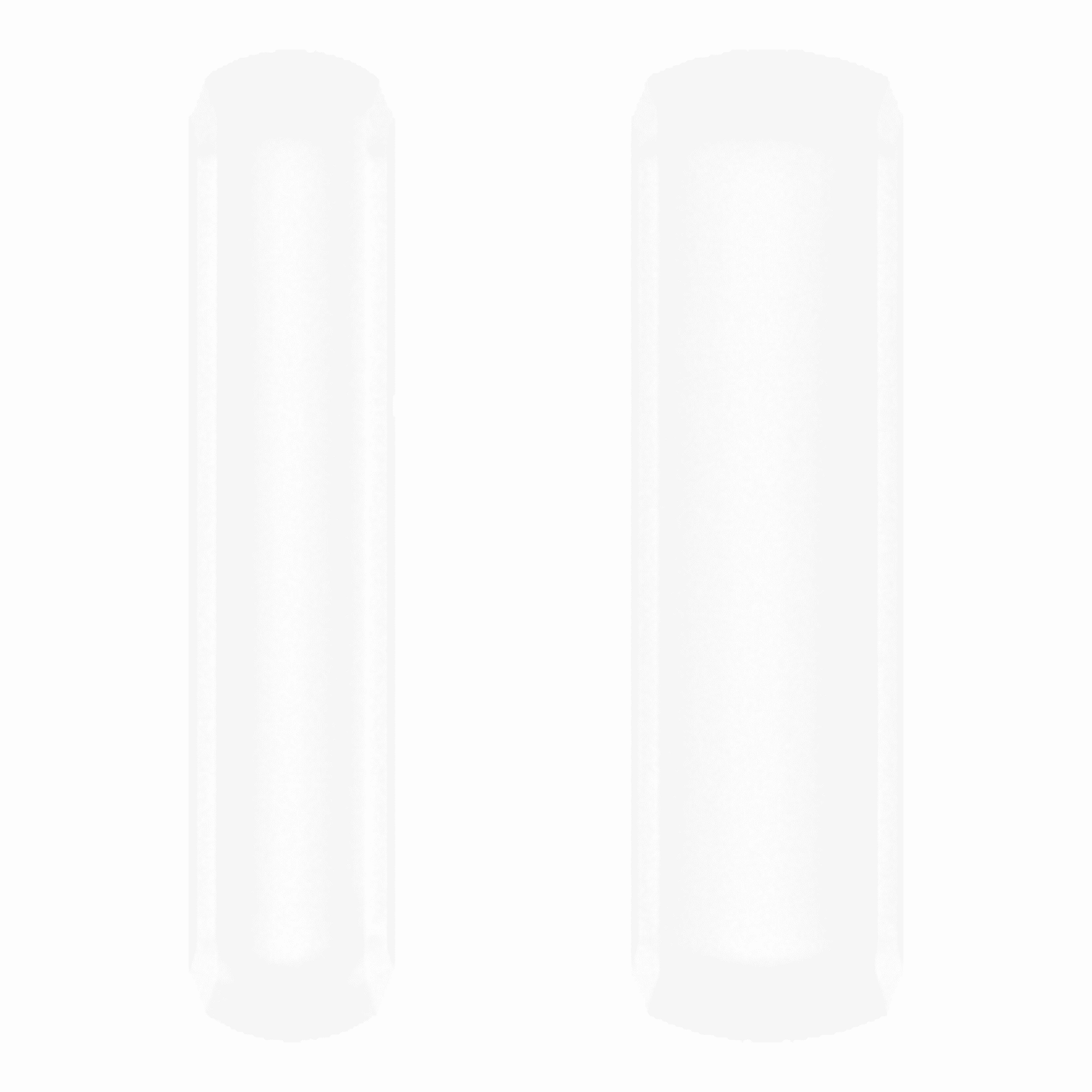

Hikvision DS-PDMCX-E-WEis an outdoor wireless magnetic (reed) contact engineered for reliable perimeter monitoring of doors, gates and other external access points. Designed to integrate with the Hikvision AX‑Pro wireless alarm ecosystem, this IP66-rated sensor combines weatherproof mechanical design, long battery life and secure two‑way radio communication. Key features include an IP66 UV‑stable enclosure, Tri‑X two‑way RF at 868 MHz with AES‑128 encryption, front and rear tamper protection, and a single CR123A battery offering up to five years of standby life. The unit is offered at a suggested retail price of approximately $59.99, making it an attractive option for installers and end users who need tough, low‑maintenance outdoor door and gate monitoring.
Key features at a glance
- Outdoor‑rated IP66 housing with UV stability for exposed installations.
- Magnetic opening contact with up to 76 mm detection gap for flexible mounting.
- Tri‑X two‑way wireless communication (868 MHz) with frequency hopping and AES‑128 encryption.
- Up to 1.6 km open‑space radio range for dispersed site coverage.
- Front and rear tampers plus signal strength and temperature indicators for health monitoring.
- Simple enrolment options: power‑up, remote ID, QR code and app configuration.
- Low‑maintenance power from a single CR123A (3V) battery; typical standby life up to five years.
Detailed specifications and benefits
Understanding the technical details helps explain where this device fits and why it is effective for outdoor security applications.
The DS‑PDMCX‑E‑WE uses a magnetic opening contact (reed switch) to detect when a door, gate or panel is opened. It supports a maximum detection gap of 76 mm, which provides flexibility in how the sensor and its magnet are positioned—particularly useful for gates, thick frames or irregular mounting surfaces where exact alignment is difficult.
Transmission is handled via Hikvision’s Tri‑X two‑way RF at 868 MHz. The design supports frequency hopping and AES‑128 encryption to reduce interference risks and provide a secure communication channel back to the AX‑Pro panel. The two‑way protocol enables device status and signal diagnostics to be reported back to the panel, improving reliability and allowing installers to verify range and connectivity. In open‑space conditions, the device is rated for up to 1.6 km, which is significantly farther than many consumer wireless sensors and suits larger properties or multi‑building sites.
Powered by a single CR123A (3V) battery, the DS‑PDMCX‑E‑WE is designed for low maintenance. Hikvision specifies up to five years of typical standby life depending on reporting frequency and environmental conditions. Using a standard CR123A battery makes replacements straightforward and widely supported by installers and maintenance teams.
The sensor and its matching magnet are compact—sensor: 40.5 × 146 × 40.9 mm; magnet: 30.5 × 146 × 40.9 mm—and together weigh 247 g. The operating temperature range is –20 °C to 60 °C with storage rated down to –30 °C, and it tolerates typical outdoor humidity (10%–90% RH). The IP66 ingress rating means the enclosure is dust tight and protected against strong jets of water, making it suitable for exposed mounting on gates, fences and external doors. The UV‑stable housing helps prevent degradation from sun exposure over time.
Installation convenience and ongoing health monitoring are enhanced by features such as front and rear tamper protection, signal‑strength and temperature indicators, and a blue LED alarm indicator. Enrolment options include powering up to trigger pairing, remote ID, QR code scanning and configuration via the app—offering flexibility for both experienced installers and integrators deploying multiple devices.
Use cases and scenarios where the product excels
The DS‑PDMCX‑E‑WE is suited to any situation where a robust outdoor door/gate sensor is needed. Common use cases include:
- Residential perimeter security: monitoring pedestrian gates, drive gates, garden sheds and outbuildings where exposure to weather and UV is a concern.
- Commercial properties: securing loading bays, external doors, garage doors and plant rooms on small commercial premises without the need for wiring back to a panel.
- Remote sites and farms: long open‑space radio range and durable weatherproof housing make it ideal for monitoring distant gates, equipment enclosures and storage units on rural properties.
- Construction and temporary sites: easy installation with battery power and strong environmental protection suits temporary or semi‑permanent sites where cabling is impractical.
- Multi‑building campuses: the extended RF range can reduce the number of repeaters and make centralized wireless monitoring practical across larger estates.
Installation tips for success: place the sensor and magnet to respect the 76 mm maximum gap recommendation, test radio signal strength at the final mounting location, and enrol and test tampers to ensure physical tamper events are reported correctly. For metal gates or structures, consider signal attenuation and test real‑world range.
Comparisons with similar products on the market
When evaluating outdoor magnetic contacts, buyers typically compare factors such as ingress protection, wireless protocol and range, battery life, encryption and mount flexibility. Here’s where the DS‑PDMCX‑E‑WE stands out and where typical alternatives differ:
- Ingress protection: IP66 is commonly preferred for fully exposed outdoor sensors. Some competitors offer IP65 (protected against water jets but slightly less robust), while others match IP66—it’s important to confirm the rating for truly exposed installations.
- Wireless range: The advertised up to 1.6 km open‑space range is better than many residential wireless sensors that are optimized for short‑range home automation protocols. For larger sites or remote gates, this extended range reduces the need for repeaters.
- Security: AES‑128 encryption and frequency hopping make this device robust against interception and interference. Some lower‑cost units may use simpler or proprietary RF schemes with less formal encryption.
- Battery type and life: CR123A batteries are a common installer preference for durability and shelf life. Some competitors use AA batteries or built‑in batteries; AA may be easier to source but can be larger and heavier, while built‑in batteries reduce user serviceability.
- Integration: This sensor is designed for Hikvision’s AX‑Pro ecosystem. Alternative sensors may be platform‑agnostic or integrated with other alarm ecosystems; choose the sensor that best matches your panel and integration needs.
In short, the DS‑PDMCX‑E‑WE positions itself as a purpose‑built outdoor sensor with an emphasis on range, encryption and weather resistance—features typically favored in professional and commercial deployments rather than low‑cost consumer alternatives.
Customer feedback and installer observations
There are no specific customer testimonials included with the product data provided here. Based on installer and integrator feedback patterns for similar outdoor magnetic contacts, typical praise and concerns tend to include:
- Positive: reliable long‑range RF performance, durable IP66 housing that withstands weather, easy battery replacement using common CR123A cells, and convenient enrolment methods for fast installation.
- Constructive: as with most outdoor wireless devices, real‑world RF range can be reduced by metal gate structures or dense urban interference; installers often recommend testing location before final mounting. Also, confirm the exact model suffix (e.g., WB/WE) when ordering to ensure accessory and regional compliance match.
Representative installer comments might include: "Solid build and excellent range for a farm gate installation," and "Tamper and environment diagnostics saved us time troubleshooting a weak link during commissioning." These reflect typical field experience rather than quoted testimonials.
Conclusion: Why choose the DS‑PDMCX‑E‑WE?
The Hikvision DS‑PDMCX‑E‑WE is a focused solution for outdoor door and gate monitoring where weather resistance, secure wireless communication and long battery life matter. Its IP66 enclosure and UV‑stable materials make it suitable for exposed installations, while the 76 mm detection gap gives mounting flexibility for uneven or thick frames. The Tri‑X two‑way RF with AES‑128 encryption and frequency hopping offers professional‑grade communication security and diagnostics, and the impressive open‑space radio range supports larger properties and remote sites.
For installers and end users working within the Hikvision AX‑Pro ecosystem, this device offers a straightforward, low‑maintenance option priced around $59.99 and designed to meet the practical needs of outdoor security deployments. If your priority is a robust, secure outdoor magnetic contact with proven RF performance and easy servicing, the DS‑PDMCX‑E‑WE is a strong candidate to consider.
