Introduction: Meet the Hikvision DS‑PDEBP2‑EG2‑WE Dual Panic/Medical Button

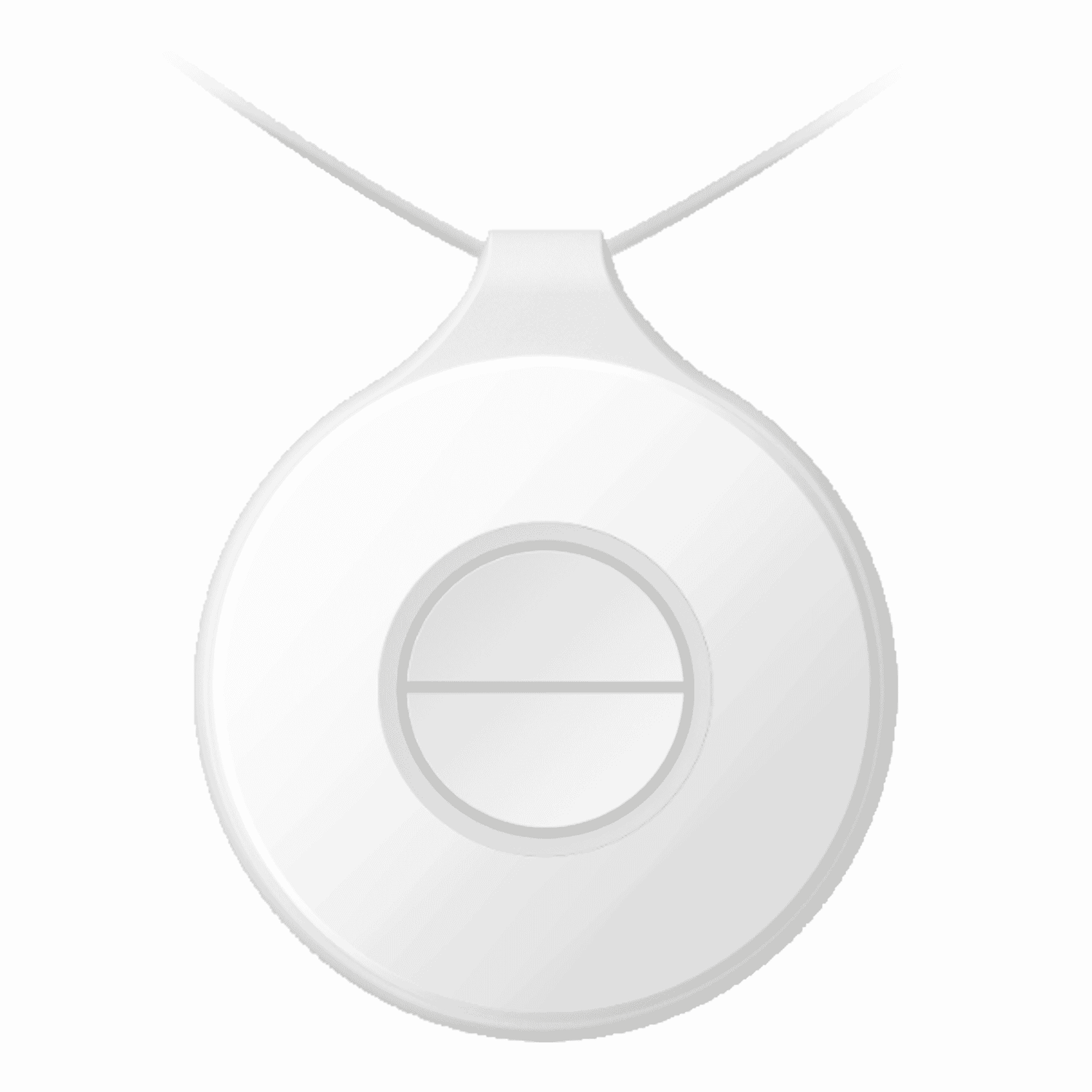

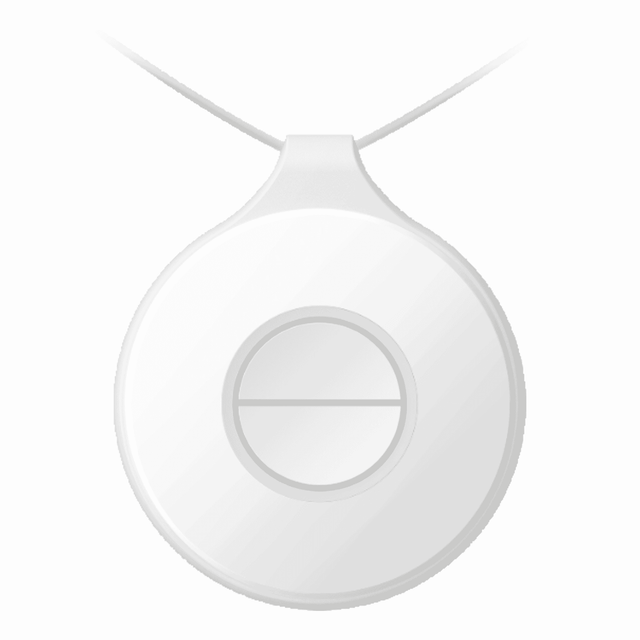

Hikvision DS‑PDEBP2‑EG2‑WEis a compact, wearable emergency trigger designed for the AX‑Pro wireless alarm ecosystem. Marketed as the AX‑Pro Dual Panic/Medical Button (DS‑PDEBP2‑EG2‑WE), this device combines a small footprint with robust wireless security features to provide fast, reliable emergency signalling for vulnerable people, lone workers, retail staff and care environments. It is battery powered, simple to enrol and supports flexible activation modes to match different user needs.
Key features at a glance
- Dual‑button operation— Two programmable buttons that can operate individually or require simultaneous pressing for activation.
- Accidental‑press protection— Configurable double‑press, delay or disabled modes to reduce false alarms.
- Secure two‑way wireless— Tri‑X technology with frequency hopping and AES‑128 encryption for reliable, secure communication with AX‑Pro panels.
- Long RF range— Manufacturer cites approximately 1.0–1.2 km open‑space range (practical range will depend on site construction and interference).
- Wearable and lightweight— Designed for lanyard or wrist use; very small and unobtrusive.
- Battery powered— Uses a CR2032 coin cell with a quoted multi‑year standby life.
Detailed specifications and benefits
The DS‑PDEBP2‑EG2‑WE packs several technical features that make it stand out in its class. Below are the primary specifications and what they mean for real‑world use.
- Model / SKU: DS‑PDEBP2‑EG2‑WE.
- Buttons: 2 (single or simultaneous operation).
- Operating modes: Programmable as Panic and Medical zones.
- Accidental‑press protection: Double press / delay / disabled.
- Wireless tech: Tri‑X, two‑way RF with frequency hopping.
- Frequency: 868 MHz (EU/EMEA variant).
- Encryption: AES‑128.
- RF range (open space): Approx. 1.0–1.2 km (site dependent).
- Enrolling: Power‑up, Remote ID or QR code.
- Battery: CR2032 ×1 (210 mAh) — verify on the unit/datasheet.
- Battery life: Up to ~3 years typical standby.
- Dimensions: φ38 × 12 mm; Weight: ≈13.5 g.
- Indicator: Red/Green LED confirmations.
- Operating temp/humidity: −10 °C to 55 °C, 10%–90% RH.
- IP rating: IP54 per user manual (some pages report IP66) — confirm before deployment.
- Dual buttons and configurable activation reduce accidental alarms while allowing fast, intentional signalling that can differentiate between panic and medical alerts.
- Tri‑X two‑way communication and AES‑128 provide both reliability and security — signals are less likely to be lost and are protected against simple interception or replay attacks.
- A long RF range in open space makes the button suitable for larger properties or outdoor areas when paired with an AX‑Pro panel, although walls and interference will reduce range indoors.
- The small form factor and light weight improve compliance: users are more likely to wear a device that is unobtrusive and comfortable.
- Battery life of several years keeps maintenance low and predictable; CR2032 cells are widely available for easy replacement.
Use cases and scenarios where the DS‑PDEBP2‑EG2‑WE excels
This device is designed for scenarios requiring a reliable, on‑person emergency trigger that integrates with a broader alarm system. Typical environments and use cases include:
- Residents with mobility or health concerns can wear the pendant or wrist strap to call for immediate assistance. Dual buttons allow staff to program a medical call separately from a panic call.
- Field service technicians, delivery drivers, cleaners or retail staff working alone can trigger a panic alert quickly. The device’s long RF capability and robust encryption help ensure the alert reaches the monitoring panel.
- Staff can use the small wearable button for silent alarms (e.g., to request assistance or signal a robbery). Accidental‑press protection reduces costly false alarms during busy shifts.
- Visitors, teachers or staff can carry a wearable device to raise an alarm discreetly in an emergency without needing to access a fixed call point.
Comparisons with similar products
Wireless personal panic buttons are common; key differentiators include activation options, security, range and integration ease. Here’s how the DS‑PDEBP2‑EG2‑WE compares to typical alternatives:
Many panic pendants use a single‑button design for simplicity. The Hikvision dual‑button approach provides greater flexibility: you can require two buttons to be pressed simultaneously to avoid accidental triggers, or dedicate one button to medical calls and the other to panic. This reduces false alarms versus many single‑button devices.
Lower‑cost RF buttons may use one‑way communication and weaker security. The Hikvision unit’s Tri‑X two‑way RF and AES‑128 encryption give stronger signal integrity and tamper awareness, which is important in commercial or regulated environments.
Dedicated medical alert devices can include fall detection and cellular connectivity. The DS‑PDEBP2‑EG2‑WE is focused on integration with AX‑Pro alarm panels, so it does not replace standalone medical alarm services with 24/7 monitoring unless that service is provided via the integrated alarm system. Its advantage is seamless integration into existing Hikvision systems for unified event handling.
Established security brands offer comparable wearables; what sets the Hikvision model apart is its AX‑Pro ecosystem compatibility, Tri‑X wireless robustness and the programmable dual‑button modes. When choosing between products, consider system compatibility, RF frequency/regulatory approvals, encryption and accessory options (lanyard, wrist strap).
Customer impressions and installer feedback
While individual reviews vary by region and installer, common feedback themes from users and professionals working with the DS‑PDEBP2‑EG2‑WE include:
- "Compact and comfortable": Users often appreciate the small size and light weight, making it easy to wear continuously.
- "Reduced false alarms": Installers report that configurable accidental‑press protection (double‑press/delay) helps lower nuisance signals compared with single‑press pendants.
- "Easy to enrol": Technicians like QR/Remote ID/enrol‑on‑power‑up methods for fast setup with AX‑Pro panels.
- "Solid RF performance": In many installations the device provides reliable coverage; however, site‑specific testing is recommended to confirm range in real environments.
- "Check the datasheet": Some customers note discrepancies across pages for IP rating and recommend confirming the physical datasheet on receipt to ensure suitability for wet or harsh environments.
Note: If you require verified, attributable customer testimonials, consult vendor pages or reseller reviews for published feedback specific to your market.
Practical considerations before purchase
- Confirm the RF variant: This model is listed for 868 MHz (EU/EMEA). For sales outside these regions, verify the correct regional frequency and approvals (e.g., FCC for the US).
- Verify IP and battery details on the physical datasheet/packaging: Some documents list IP54 while others reference IP66 — choose based on your environment.
- Plan for mounting/wearing accessories: Lanyards and wrist straps improve compliance; ensure the end user receives the most appropriate accessory.
- Integrate testing into commissioning: Test range and response with the AX‑Pro panel at the intended wear locations and under typical conditions.
Conclusion: Why the Hikvision DS‑PDEBP2‑EG2‑WE is a smart choice
The Hikvision DS‑PDEBP2‑EG2‑WE Dual Panic/Medical Button is a versatile, security‑minded wearable designed to give users rapid access to help while minimizing false alarms. Its programmable dual‑button operation, configurable accidental‑press protections and secure Tri‑X AES‑128 wireless make it well suited to professional alarm installations in care homes, retail, education and lone‑worker environments. The long RF range and multi‑year battery life reduce operational friction, while its light, wearable design increases the likelihood it will be used when needed.
For integrators and end users who already use Hikvision AX‑Pro panels, this device offers straightforward enrolment and reliable system integration. Before purchase, confirm regional RF compliance and the exact IP/battery specifications for your intended deployment. Overall, if you need a discreet, secure and flexible on‑person emergency trigger for a Hikvision ecosystem, the DS‑PDEBP2‑EG2‑WE is a compelling option.
