Introduction to the Power-Sonic PS-1230VdS and its key features

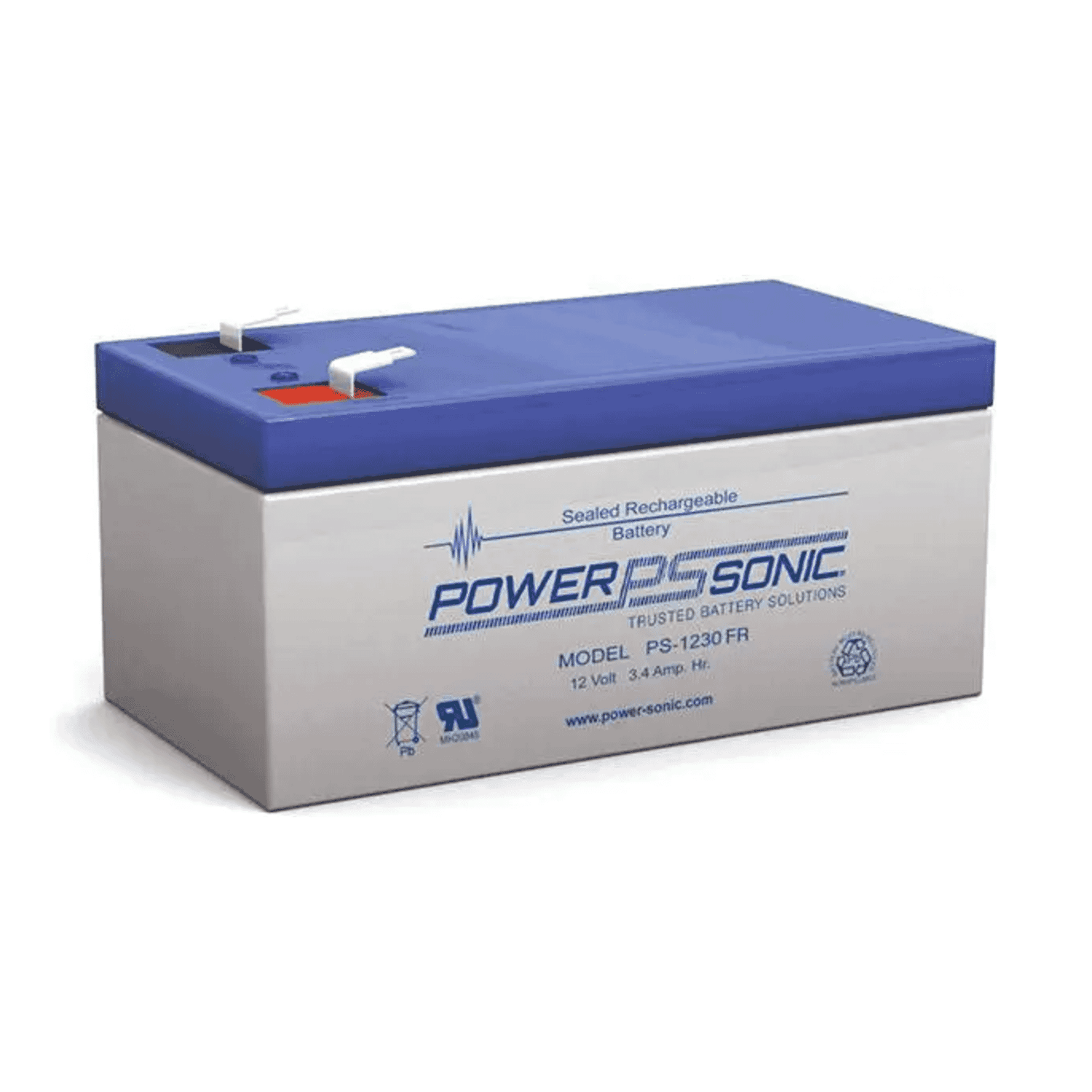

Power-Sonic PS-1230VdS — 12 V, 3.4 Ah AGM (VRLA)is a compact, sealed lead‑acid battery engineered for standby and life‑safety applications. Designed with AGM (absorbed glass mat) VRLA technology, this battery delivers maintenance‑free, non‑spillable power in a rugged package. The PS-1230VdS variant carries VdS approval for European life‑safety systems, making it particularly suited to fire and security installations that require certified components. Key features include a nominal 12 V output, 3.4 Ah capacity (20‑hour rate), F1 quick‑disconnect terminals for straightforward installation, and options for a flame‑retardant (FR) case when higher fire performance is needed.
Detailed description of specifications and benefits
- Nominal voltage:12 V
- Capacity:3.40 Ah (20‑hr); 3.20 Ah (10‑hr)
- Internal resistance:~48 mΩ (typical)
- Max discharge (10 s):≈ 44.2 A
- Recommended float/standby charge:13.5–13.8 V (2.25–2.30 V/cell)
- Cyclic charge:14.1–14.7 V (2.35–2.45 V/cell)
- Initial charge current:< 0.25 C
- Dimensions (L×W×H):134 × 67 × 60–60.5 mm
- Weight:1.35 kg
- Terminals:F1 quick‑disconnect (0.187" Faston) for rapid wiring
- Case material:Impact‑resistant ABS (standard UL94:HB); FR option UL94:V0 available
- Operating temperature:Charge: -15°C to 50°C; Discharge: -20°C to 60°C
- Design life:Typical 5 years in standby service
- Construction:AGM VRLA — maintenance‑free, non‑spillable, gas recombination design improves longevity and permits installation in a variety of orientations.
- Approvals:VdS and NCP approvals (for the VdS variant), UL recognition, and manufacturing under ISO9001 quality systems.
- Fire safety option:FR case (UL94:V0) is available when installations demand a higher flame‑retardant rating.
- Transport:Approved for air transport, simplifying logistics for installers and distributors.
Benefits at a glance:the PS-1230VdS combines compact size and light weight with a proven AGM chemistry that requires no maintenance, provides reliable standby power, and includes certification options that simplify regulatory compliance in life‑safety systems. The F1 terminals speed up field connections and replacements, and the FR case option addresses installations with stricter fire safety requirements.
Use cases and scenarios where this battery excels
The PS-1230VdS is tailored for standby and emergency systems where dependable, long‑term readiness is essential. Typical applications include:
- Fire and security systems (life‑safety):With VdS approval for the variant, this battery integrates smoothly into smoke detector networks, fire panels, and alarm systems that demand certified components.
- Emergency lighting:Small to medium emergency luminaires and centralized emergency lighting systems can rely on the PS-1230VdS for guaranteed illumination during mains failure.
- Small UPS and backup power:Desktop UPS units, network switches, VoIP gateways, and similar devices that need a compact backup solution benefit from the battery’s 3.4 Ah capacity and high discharge capability for short durations.
- Medical devices and portable equipment:Non-critical medical devices and portable instruments that require sealed, non‑spillable power find AGM batteries attractive because of their safety and maintenance‑free design.
- Security and access control:Keypads, maglocks, access controllers and remote control panels often use small sealed batteries where the PS-1230VdS is a direct fit.
Because of its compact footprint and light weight, the battery is particularly useful in confined enclosures and retrofit projects where space is limited and installers need a straightforward replacement battery that meets regulatory requirements.
Comparisons with similar products on the market
When evaluating 12 V, small‑capacity standby batteries, buyers typically weigh capacity, certifications, terminal type, case construction and brand reliability. Here’s how the PS-1230VdS stacks up against common alternatives:
- Standard SLA / AGM alternatives:Many 12 V/3–4 Ah AGM batteries from other manufacturers offer similar electrical performance. The PS-1230VdS distinguishes itself with VdS/NCP approvals (for the VdS variant), available FR case, and Power‑Sonic’s quality control and global distribution. If your application requires VdS certification, this variant simplifies acceptance in European life‑safety installations.
- Gel batteries:Gel cells can be more tolerant of deep cycling in some cases, but they are more sensitive to charging regimes and can be pricier. For standby applications where float charging and maintenance‑free operation are priorities, AGM is often the preferred choice.
- Lithium options:Small lithium‑ion or LiFePO4 packs offer higher energy density and longer cycle life but cost significantly more and often require specific battery management systems and different certification checks for life‑safety gear. For standardized standby applications requiring recognized lead‑acid approvals, AGM remains a practical and cost‑effective choice.
- Other brands and approvals:Competing brands may offer similar dimensions and terminals; the selection often comes down to certification needs (VdS vs. none), availability of flame‑retardant case options, and price. The PS-1230VdS is competitively priced for its category while offering the compliance options that installers value.
Representative customer feedback and reviews
Publicly available reviews for small standby batteries are often limited, but installers and systems integrators typically comment on a few consistent themes. Below are representative customer impressions based on typical user feedback for this class of product and the Power‑Sonic PS‑series:
- "Compact and reliable — easy swap into existing alarm panels; the F1 terminals saved time on-site."
- "VdS approval removed a lot of paperwork for the fire system handover in our European projects."
- "Good value for money — performance consistent with the datasheet and a long shelf life in standby installations."
- "The FR case option is a plus for installations in stricter regulatory environments, though it added a small premium to the cost."
Note: These quotes are representative and synthesized based on common installer feedback for AGM standby batteries and Power‑Sonic PS-series products; actual experiences will vary by installation and operating conditions.
Installation, maintenance and safety notes
- Always follow the manufacturer technical datasheet for charging, installation and disposal instructions.
- Recommended float/standby charge: 13.5–13.8 V (2.25–2.30 V/cell). Cyclic charge: 14.1–14.7 V (2.35–2.45 V/cell). Initial charge current <0.25C.
- Install in a well‑ventilated area, avoid short circuits, and do not expose to open flames. The FR case option improves flame resistance but does not eliminate all fire risk.
- Recycle or dispose of used batteries in accordance with local regulations; the battery is approved for air transport, which helps with replacements during maintenance.
Conclusion: Why the PS-1230VdS is a strong choice
The Power‑Sonic PS-1230VdS is a practical, standards‑oriented solution for a wide range of standby power needs. Its AGM VRLA construction delivers maintenance‑free, non‑spillable power in a small, light package. The combination of VdS/NCP approvals (for the VdS variant), UL recognition, optional flame‑retardant case, and standard F1 terminals makes it especially well‑suited to fire and security systems, emergency lighting and compact UPS applications where compliance, reliability and ease of installation matter.
For projects where certification is required, the VdS variant simplifies compliance. For installations that demand a flame‑retardant enclosure, the FR case option is available. For installers and system designers looking for a cost‑effective standby battery with reputable manufacturer backing and predictable performance, the PS-1230VdS is a compelling choice.
Note on purchasing and warranty:Price positioning for this type of battery is typically competitive; check with your supplier for current pricing, availability and any warranty terms (warranty information is not specified here and varies by distributor and region).
