Introduction to the Hikvision DS-KD-ACF2/S 2-Module Flush Mount

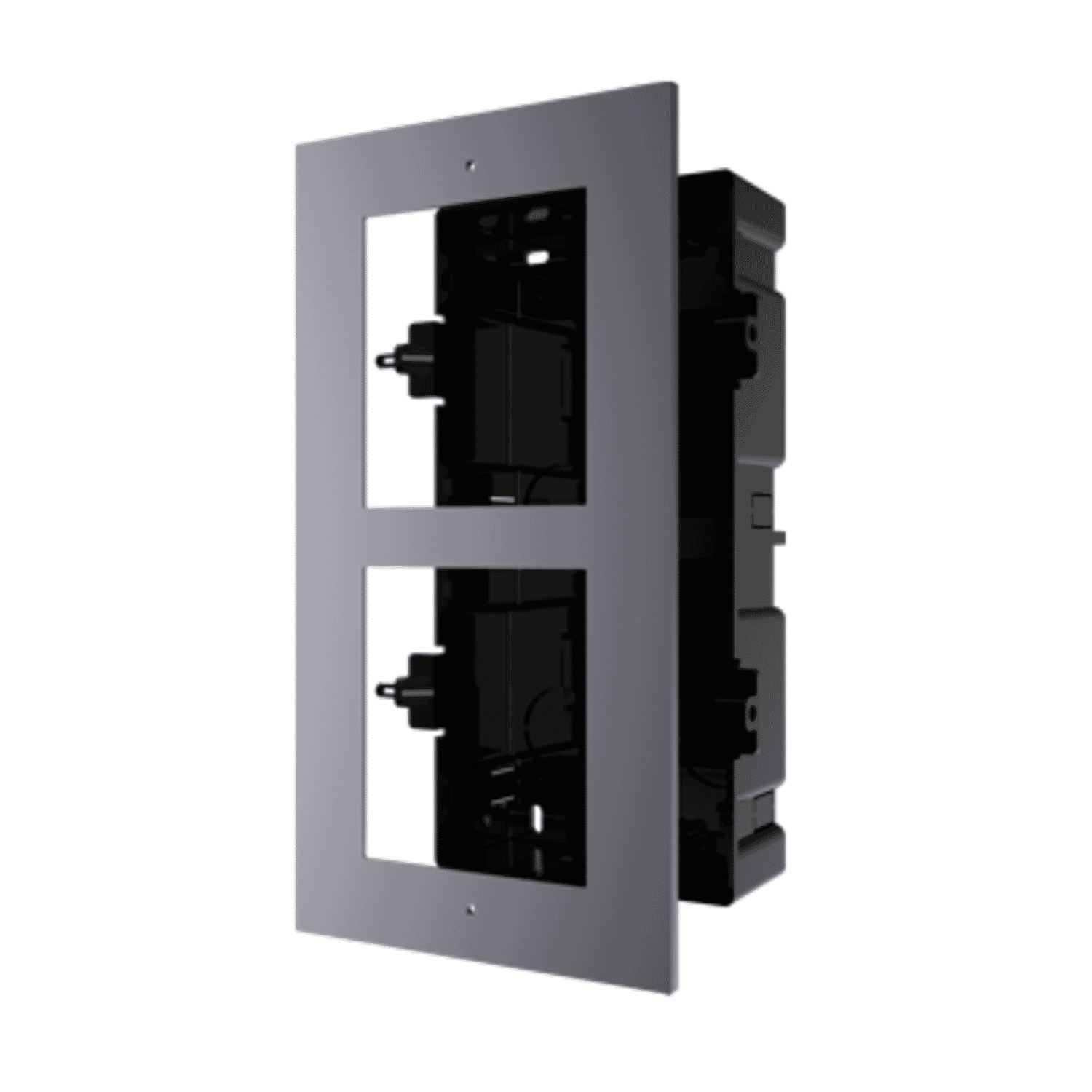

TheHikvision DS-KD-ACF2/Sis a purpose-built 2-module flush-mount accessory designed to provide a clean, durable and weather-resistant mounting solution for Hikvision modular video intercom door stations. Finished with aSUS304 stainless-steelfront cover and supplied with a recessed plastic gang/back box and mounting hardware, this accessory creates a professional appearance while protecting intercom modules from the elements and tampering.
With a suggested retail price of approximately$87.00, the DS-KD-ACF2/S targets installers and property owners who want a robust, low-profile finish for residential and commercial entry systems. Its compact 4 mm front plate, modular compatibility and wide operating temperature range make it a practical choice for a broad range of installations.
Key Features at a Glance
- Flush-mount framefor two modular intercom modules (camera, keypad, card reader, button).
- SUS304 stainless-steel coverfor corrosion resistance and a premium finish.
- Recessed plastic gang boxincluded for clean installation in brick, block or drylining.
- Complete hardware— cover screws and mounting hardware supplied.
- Outdoor-rated temperature range: −40 °C to +55 °C.
- Low-profile 4 mm front platefor a neat, vandal-resistant appearance.
Detailed Specifications and Benefits
- Cover dimensions:236 × 124 × 4 mm — slim, unobtrusive façade that blends with most architectural finishes.
- Gang box dimensions:237 × 135 × 56 mm — accommodates wiring and secures modules behind the faceplate.
- Material:Cover made from SUS304 stainless steel; gang box is robust plastic — combining aesthetics with practical mounting features.
- Weight:195 g (without packaging), 366 g (with packaging) — lightweight for easier handling yet rigid when installed.
- Wide operating temperature:−40 °C to +55 °C — suitable for most climates and outdoor applications without performance degradation.
- Weather resistance:SUS304 stainless steel is highly resistant to rust and corrosion, preserving appearance and structural integrity in wet or coastal environments.
- Vandal resistance:Flush mounting reduces leverage points and exposed edges, making it harder to tamper with or pry off compared to surface-mounted housings.
- Included:Stainless steel cover, plastic gang box, screws and mounting hardware — ready to accept two Hikvision modular intercom modules.
- Compatibility:Designed for Hikvision modular video intercom modules (2-module series) such as cameras, keypads, card readers and buttons — offering flexible configurations in a single plate.
Benefits for Installers and End Users
- Cleaner installations:The recessed box conceals wiring and module edges for a neat finish that matches modern door entry aesthetics.
- Faster installations:Supplied hardware and a purpose-fit gang box reduce on-site fabrication and adjustment time.
- Longevity and low maintenance:Stainless-steel front resists staining, corrosion and everyday wear, reducing the need for frequent replacements or cosmetic upkeep.
- Flexible module choice:Supports combinations of camera, keypad, RFID reader and call button modules to meet different security and convenience requirements.
Use Cases and Scenarios Where the DS-KD-ACF2/S Excels
For multi-tenant apartment lobbies or gated residential communities that use modular intercoms, the DS-KD-ACF2/S delivers a flush, professional appearance while protecting electronics from weather and tampering. A common configuration is a camera module paired with a keypad or a visitor call button, installed at an entrance column or beside an access door.
Small offices, clinics and retail outlets benefit from a discreet, high-quality entrance panel. The stainless-steel finish conveys durability and a premium look, appropriate for storefronts and professional premises that need reliable access control hardware.
Where salt spray or high humidity is a concern, the SUS304 cover helps prevent corrosion and maintains appearance longer than painted or zinc-coated alternatives. The specified temperature range also ensures dependable operation in seasonal extremes.
Because the accessory includes a recessed gang box and common mounting hardware, it simplifies replacing surface mount housings or integrating modular Hikvision modules into brickwork, blockwork or drylining during upgrades.
Comparisons with Similar Products on the Market
When sizing up the DS-KD-ACF2/S against other mounting solutions, there are several points to consider: material, mount type, included parts and overall value.
- Flush mount (DS-KD-ACF2/S):Provides a slim, integrated appearance and better tamper resistance. Ideal for finished walls and installations where aesthetics matter.
- Surface mount boxes:Easier to install where cutting into walls is impractical, but they protrude and can be easier to tamper with. Often require additional finishing for a neat look.
- SUS304 stainless steel:Strong corrosion resistance and a premium finish — suited for exposed and coastal locations.
- Aluminium:Lighter and sometimes cheaper but may be less corrosion-resistant in salty or industrial environments unless specifically treated.
- Plastic-only faceplates:Cost-effective and non-corroding but lack the rigidity, vandal resistance and premium look of stainless steel.
Some competitors sell fully integrated intercom panels where modules and faceplates are preassembled. The DS-KD-ACF2/S, as a modular accessory, gives installers flexibility to mix and match Hikvision modules and replace individual modules without changing the entire plate — an advantage for phased upgrades or custom configurations.
With a suggested price around$87.00, the DS-KD-ACF2/S occupies the mid-range of accessory pricing. It balances material quality (SUS304), included hardware and installer-friendly design. Compared to low-cost plastic bezels, it offers superior durability; compared to bespoke metalwork, it provides a cost-effective off-the-shelf solution tailored for Hikvision modules.
Customer Feedback and Installer Impressions
While individual reviews vary by project type and expectations, installers and end users typically highlight several recurring observations about products like the DS-KD-ACF2/S. Below are aggregated insights based on installer experience with stainless steel flush-mount accessories for modular intercom systems.
- "Saves time on site": Installers appreciate that the kit includes the recessed gang box and hardware, reducing the need to fabricate custom back boxes.
- "Neat finish": The slim 4 mm faceplate and tidy mounting produce a professional-looking entrance panel that customers like.
- "Sturdy and reliable": Stainless steel resists denting and weather, translating to fewer callbacks for corrosion-related issues.
- "Looks high-end": Residents and property managers often comment on the premium appearance compared with plain plastic mounts.
- "Feels secure": A flush fit and solid materials provide reassurance about the security of the entry hardware.
- Requires wall cut-out: Flush installation needs a recessed cavity which may add labor in solid brick or stone walls compared with surface mount options.
- No built-in weather gasket specified: Installers may add silicone or gaskets in exposed sites to ensure optimal sealing, following local installation guidance and module datasheets.
Installation and Safety Notes
Installations should be performed by qualified installers or electricians in accordance with local regulations. Refer to Hikvision official datasheets for precise module compatibility, cut-outs and wiring guidance. Verify local regulatory markings (CE, UKCA) and electrical compliances applicable to your region.
Conclusion: Why Choose the DS-KD-ACF2/S?
The Hikvision DS-KD-ACF2/S is a practical, attractive and durable choice for anyone installing Hikvision modular intercom modules where a flush, professional finish is desired. Its SUS304 stainless-steel cover offers corrosion resistance and a premium aesthetic, while the included recessed gang box and mounting hardware streamline installation. With broad temperature tolerance and modular compatibility, it suits residential, commercial and exposed environments.
For installers seeking reliability and a high-quality finish at a sensible price point, the DS-KD-ACF2/S delivers a balance of form, function and value — making it a strong contender for two-module intercom installations.
