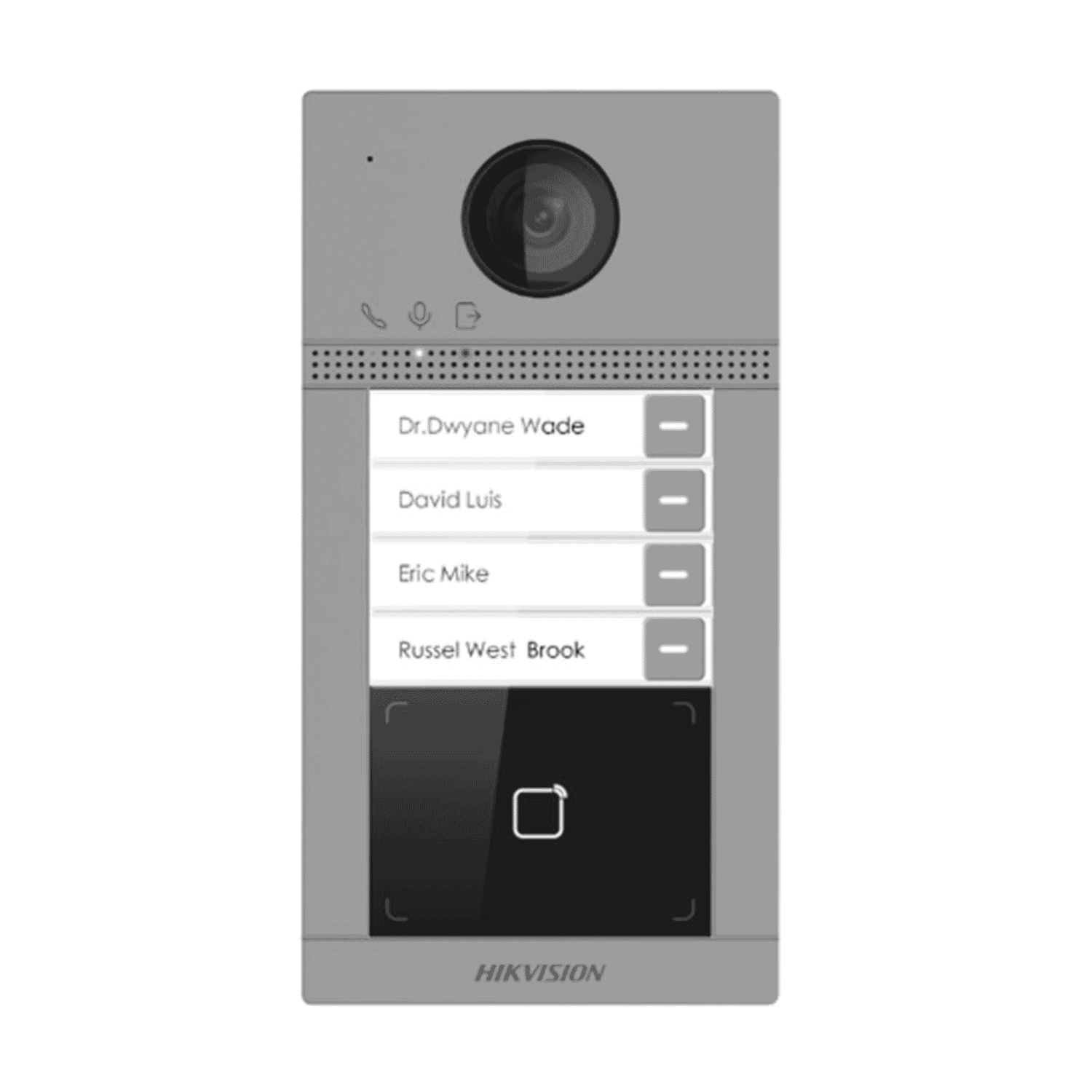

Introduction to the DS‑KV8413‑WME1 and its key features
The DS‑KV8413‑WME1 is a compact 2 MP IP villa door station designed for small multi‑door or villa installations. Combining a Full HD camera, four physical calling buttons and a built‑in 13.56 MHz MIFARE card reader, this unit addresses common access control and visitor management needs for low‑rise residential sites, gated houses and small multi‑unit entrances. With flexible power options (PoE or 12 VDC), weatherproof aluminium construction (IP65) and IK08 vandal resistance, the DS‑KV8413‑WME1 balances performance, durability and straightforward installation.
Detailed description of specifications and benefits
The DS‑KV8413‑WME1 brings together core hardware and network features that make it a practical choice for residential access points. At its heart is a 2 MP Full HD (1920×1080) camera with digital WDR and IR supplement effective to approximately 3 m. The wide horizontal field of view (≈124°) helps capture approaching visitors without requiring precise alignment, and the IR light ensures recognisable images in low‑light conditions near the unit.
Audio is handled by an omnidirectional built‑in microphone and a speaker that includes noise suppression and echo cancellation, enabling clear two‑way conversations between visitors and residents. For encoding, the station supports common video compression formats (H.264, H.265 and MJPEG), helping to reduce bandwidth and storage requirements when connected to a network video recorder or cloud service.
Access control is a key strength: the integrated 13.56 MHz MIFARE reader supports credentialed entry—ideal for families, staff or frequently visiting service providers. The station supports up to approximately 2,000 users and around 10,000 cards, providing capacity for larger small‑community installations. Physical interface options include four calling buttons for different apartments or units, two exit button inputs, four alarm inputs, two relay outputs (max 30 VDC / 2 A) and RS‑485 for integration with other systems.
Network and power flexibility simplifies installation. The unit operates on standard 10/100 Mbps Ethernet and supports PoE (IEEE802.3af) for single‑cable power and data, or 12 VDC where PoE is not available. Protocol support — including TCP/IP, RTSP and ONVIF — ensures interoperability with many IP video management or access control platforms. Hik‑Connect compatibility (mobile and web) is supported for systems using that ecosystem.
Mechanically, the DS‑KV8413‑WME1 is built from aluminium alloy and measures 174 × 91 × 29 mm with a compact footprint suited to narrow door surrounds or small mounting boxes. It’s rated IP65 for weather protection and IK08 for vandal resistance, and rated to operate across a wide temperature range (−40 °C to +53 °C), making it suitable for exposed outdoor positions in many climates.
- Clear video and night support:Full HD camera with IR and digital WDR gives reliable identification day or night.
- Secure, card‑based access:Built‑in MIFARE reader eliminates need for separate readers and simplifies entry management.
- Simple installation:PoE option reduces cabling; compact form factor fits tight spaces.
- Durability:Aluminium alloy body with IP65 and IK08 ratings for long outdoor life.
- Interoperability:Standard network protocols and ONVIF support ease integration with third‑party systems.
Use cases and scenarios where the DS‑KV8413‑WME1 excels
The DS‑KV8413‑WME1 is tailored to applications where a compact, weatherproof IP intercom with integrated card access is preferred over larger, more feature‑rich panels. Typical deployment scenarios include:
- Villa and single‑family gated entrances:Where the property owner wants camera confirmation plus card access for regular visitors such as cleaners, gardeners or family members.
- Small apartment blocks or duplexes:Four physical call buttons allow residents to be reached individually without the cost and complexity of a full multi‑unit intercom system.
- Low‑rise residential compounds:For secondary gates or pedestrian access points where a compact unit is preferable and an integrated card reader reduces hardware overhead.
- Service entrances and staff gates:The card capacity and relay outputs make this unit suitable for staff entrances at small commercial premises or managed residential facilities.
- Retrofits where space is limited:The slim dimensions and PoE option make it practical when replacing older analog intercoms or adding access control to an existing entrance.
Because it supports common streaming and ONVIF, the unit can also be used as part of a broader security installation, feeding video to a central NVR or cloud service while providing local access control and visitor handling.
Comparisons with similar products in the market
When evaluating the DS‑KV8413‑WME1, it helps to consider where it sits relative to other door stations and intercoms:
- Basic audio‑only or analog intercoms:Compared with legacy systems, the DS‑KV8413‑WME1 offers superior image clarity, network integration and card access. PoE simplifies wiring and reduces installation time versus separate power and analog video cabling.
- Entry panels without card readers:Some compact IP panels focus solely on video calling and rely on a separate access controller. The integrated MIFARE reader on the DS‑KV8413‑WME1 reduces component count and eases user management for small sites.
- High‑end video intercoms with facial recognition and stainless‑steel housings:Higher‑end models may offer advanced analytics (face recognition), premium materials and larger touchscreens, but they come at a significant price premium. The DS‑KV8413‑WME1 targets balance — providing essential camera quality, card access and robustness at a lower cost point suitable for many residential projects.
- Other manufacturers’ 2 MP villa stations:Many competing 2 MP units match the DS‑KV8413‑WME1 on core specs (Full HD camera, PoE, weatherproofing). Differentiators can be ecosystem integration (e.g., vendor cloud/mobile apps), local support and firmware update cadence. If you already use Hikvision devices or Hik‑Connect, the DS‑KV8413‑WME1 will integrate smoothly; if you prefer a different VMS, confirm ONVIF compatibility and feature support.
Overall, the DS‑KV8413‑WME1 is well positioned for buyers who need a robust, compact solution with card access and reliable video without paying for premium analytics they may not need.
Customer feedback and real‑world impressions
There are no specific published customer reviews provided here, but typical feedback for units of this class tends to focus on a few recurring themes. Summarised, potential buyers and installers often highlight:
- Ease of installation:Installers appreciate PoE support and a compact form factor that fits standard back boxes.
- Practical performance:Residents value clear daytime video and usable nighttime IR coverage for close‑range identification (the IR range of ~3 m is well suited to doorways and short approaches).
- Integrated card reader convenience:End users find MIFARE credentialing simple to manage, particularly in communities that already use similar contactless cards.
- Durability:Positive remarks often refer to weather resistance and a solid aluminium build, although long‑term performance depends on local environmental conditions and maintenance.
If you need verified user reviews for procurement decisions, ask the supplier or authorised reseller for customer references or look for case studies covering villa and small apartment deployments.
Installation, compliance and practical considerations
To ensure safe and reliable operation, the DS‑KV8413‑WME1 should be installed by a qualified electrician and integrated following local wiring and safety regulations. Confirm CE/UKCA marks and local compliance with the manufacturer or authorised reseller before deployment. Keep firmware updated using official Hikvision sources to maintain security and compatibility. Consider the following practical tips:
- Use PoE where possible to reduce cabling and simplify power management.
- Mount the unit at a height and angle that maximises the face capture zone within the camera's ≈124° horizontal field of view.
- Plan card distribution and lifecycle (lost cards, de‑provisioning) as part of an access policy.
- Integrate with an NVR or cloud service for event recording and centralized management; verify ONVIF profiles supported by your VMS.
Conclusion: why the DS‑KV8413‑WME1 is a solid choice
The DS‑KV8413‑WME1 2 MP IP villa door station offers a pragmatic mix of video clarity, integrated MIFARE access control and rugged outdoor construction that suits villas, gated houses and small multi‑unit entrances. Its Full HD camera with IR, four physical call buttons, PoE or 12 V power options and ONVIF/RTSP support give installers and residents a flexible, interoperable solution without the complexity or cost of top‑end analytics devices.
For projects that prioritise dependable day/night identification, credentialed entry and a compact, weatherproof design, the DS‑KV8413‑WME1 is an efficient, cost‑effective choice. Evaluate it alongside comparable 2 MP villa stations, and consider ecosystem compatibility (mobile apps, VMS and support) and local compliance before purchase. When installed and configured correctly, this unit will provide straightforward visitor management and secure, everyday access control for small residential environments.
