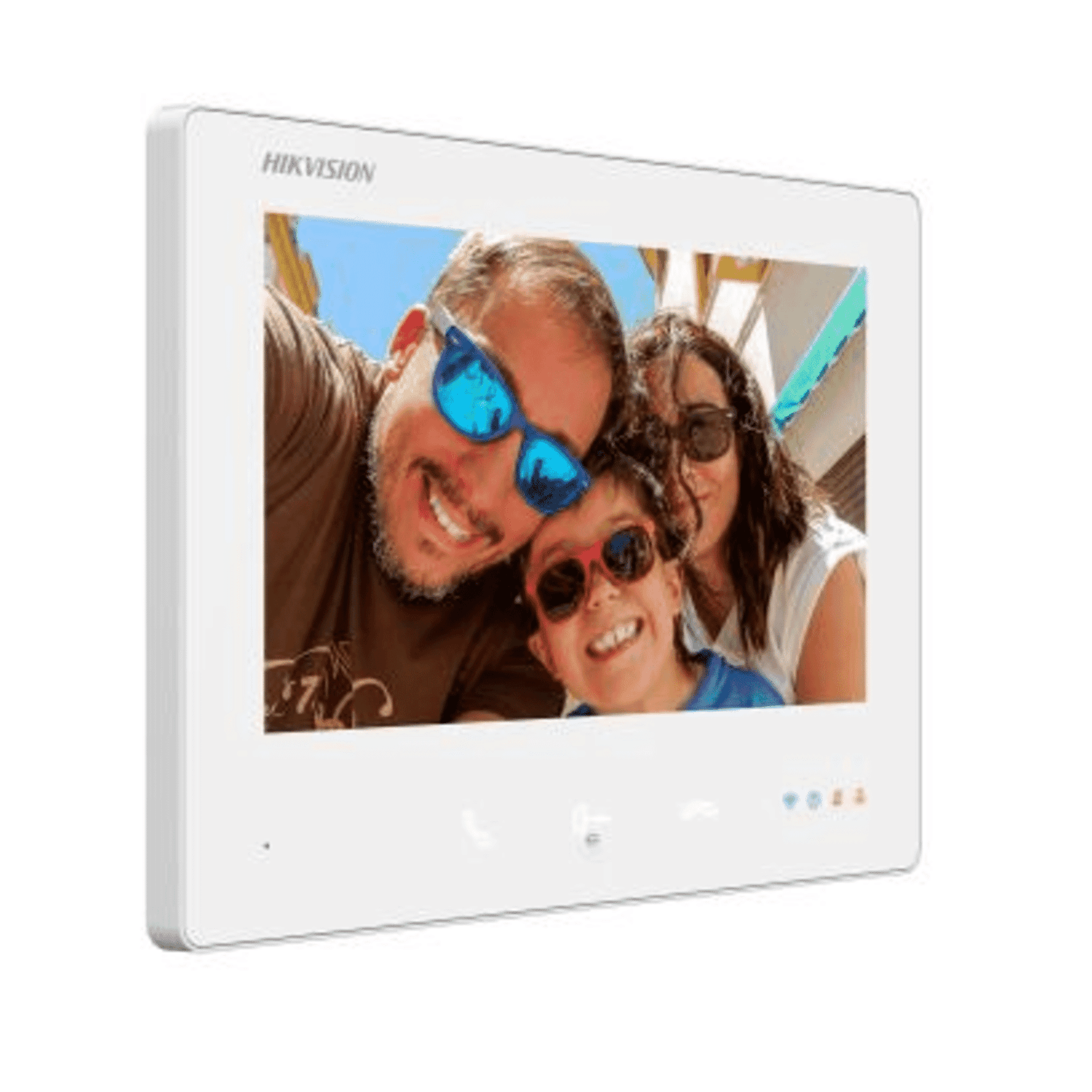

7" Two‑Wire HD Indoor Video Intercom Monitor, Capacitive Touch, Wi‑Fi, DS-KH7300EY-WTE2

Introduction: Meet the DS-KH7300EY-WTE2

The Hikvision DS-KH7300EY-WTE2 is a 7" two-wire HD indoor video intercom monitor designed for residential and small commercial door-entry systems. Built to work with Hikvision's 2‑Wire HD platform, this surface-mounted indoor station combines a high-resolution capacitive touch display, two-way audio with echo cancellation, onboard microSD storage, and 2.4 GHz Wi‑Fi for mobile connectivity. With low power draw and a compact profile, it is positioned as a straightforward, modern interface for visitors, deliveries and everyday access control.

Key features at a glance

• 7" 1024×600 capacitive touch screen:crisp TFT display designed for responsive touch control and clear video.
• Two‑way audio:omnidirectional microphone and loudspeaker with echo cancellation and noise suppression using G.711 codecs.
• Local storage:microSD/TF card slot supporting up to 128 GB for images and events (approx. 200 pictures capacity for events).
• Wi‑Fi connectivity:2.4 GHz IEEE802.11b/g/n for Hik‑Connect mobile app integration and cloud/P2P notifications.
• Two‑wire interface:1-in / 1-out two‑wire IP connection simplifying retrofit into existing 2‑wire door systems (requires Hikvision 2‑wire distributor).
• Energy efficient:typical power ≤ 5 W, standby ≤ 1.2 W; powered via a 48 V Hikvision two‑wire distributor.

Detailed specifications and benefits

The DS-KH7300EY-WTE2 is compact and focused on delivering a reliable user experience without unnecessary complexity. Key technical elements and the benefits they bring include:

• 7" capacitive TFT, 1024 × 600 resolution:The screen provides clear, detailed live video of visitors and a responsive touch surface for menu navigation, door release and intercom functions. Capacitive touch offers modern, smartphone-like responsiveness compared with resistive alternatives.

• Two‑way audio with echo cancellation (G.711U/G.711A):Built‑in omnidirectional microphone and adjustable loudspeaker are tuned for intelligible calls. Echo cancellation and noise suppression reduce feedback and ambient noise, improving conversations in typical residential and small commercial environments.

• microSD up to 128 GB:Local event storage supports snapshots and event recordings without relying exclusively on network storage. This can be useful for short-term evidence capture or offline operation when network connectivity is interrupted.
• Event capacity:The unit’s event snapshot capacity is modest (approx. 200 pictures), reflecting its role as a lightweight monitor rather than a full NVR solution.

• 2.4 GHz Wi‑Fi (IEEE802.11b/g/n):Enables integration with the Hik‑Connect mobile app for remote notifications and two‑way talk from a smartphone. Note that only 2.4 GHz networks are supported.
• Two‑wire interface:The monitor uses Hikvision’s two‑wire IP topology (1 in / 1 out) and requires a compatible 48 V distributor (e.g., DS‑KAD7060EY/DS‑KAD7061EY). This makes the unit well suited for retrofit projects where replacing existing cabling with Cat5/PoE is undesirable or impractical.

• 48 V via distributor, low consumption:The unit draws ≤ 5 W during active use and ≤ 1.2 W on standby, which helps keep distributor load and energy costs low.
• Operating range:−10 °C to 50 °C, 10%–90% non‑condensing humidity—adequate for indoor residential and light commercial settings.

Use cases and scenarios where the product excels

The DS-KH7300EY-WTE2 fits a range of real-world scenarios where simplicity, retrofit capability and mobile connectivity matter:

• Retrofit in apartment buildings:Many multi‑apartment buildings already have legacy two‑wire door entry cabling. This monitor and the Hikvision two‑wire distributor system allow building owners to upgrade to HD video and app notifications without re-cabling every unit, reducing installation disruption and cost.
• Single-family homes converting from audio-only systems:Homeowners who want video and app-based calling but who do not want extensive wiring works can benefit from the two‑wire approach.
• Small offices and retail front desks:The compact surface mount and simple UI make the monitor useful for small commercial sites where staff need quick visitor screening and remote answering via the mobile app.
• Properties prioritizing low power consumption:The device’s modest power draw makes it easier for distributors to support multiple monitors on the same feed and keeps operational costs low.

Comparisons with similar products on the market

When evaluating the DS-KH7300EY-WTE2, it helps to compare its strengths and trade-offs against alternative approaches: classic IP/PoE monitors, other two‑wire solutions and competing brands.

• Two‑wire advantage:Simplified retrofit using existing wiring, lower installation disruption. Ideal where replacing cabling is expensive or impossible.
• IP/PoE advantage:Full PoE IP monitors typically offer higher performance, richer integrations, wider network features (VLANs, higher bitrates, dual-band Wi‑Fi), and often larger storage or direct NVR connectivity without proprietary distributors.
• Which to choose:Choose the two‑wire Hikvision monitor for retrofit simplicity and cost-controlled upgrades; choose IP/PoE if you require the most advanced network features and broader third‑party compatibility.

Brands such as Aiphone, Comelit, DoorBird and other manufacturers offer indoor monitors with different strengths: some provide robust IP-based features, cloud services, or premium hardware and design. The DS-KH7300EY-WTE2’s main selling points are its integration into the Hikvision 2‑Wire HD ecosystem, Wi‑Fi mobile app support via Hik‑Connect, and the balance of price and functionality for typical residential/commercial installs.

Customer feedback and typical installer notes

There are no verified customer testimonials included with the product listing provided. However, installers and users familiar with Hikvision two‑wire systems commonly report the following patterns of feedback:

• Installers:Appreciate the retrofit-friendly two‑wire architecture and compact surface mounting. They note the importance of using the correct 48 V distributor and following Hikvision wiring guidelines to avoid power or communication issues.
• Residents/homeowners:Value the clear capacitive touchscreen and the convenience of receiving visitor calls on their smartphones via Hik‑Connect. Some users report that the mobile app integration is a particularly useful feature for day‑to‑day convenience.
• Limitations mentioned:Because the device is tied to the Hikvision two‑wire ecosystem, some customers expect more advanced third‑party integrations available with IP/PoE systems. Also, Wi‑Fi is limited to 2.4 GHz which can be a constraint in congested environments.

Pricing and value proposition

With a suggested retail price of approximately $149 (cost price indicated at $121.72 in the supplied data), the DS-KH7300EY-WTE2 sits in an affordable bracket for an indoor video intercom monitor. Its value is strongest where the two‑wire installation model reduces labour and materials compared with a full network rewire, and where homeowners or managers want a modern touchscreen interface combined with basic mobile app connectivity.

Conclusion: Why choose the DS-KH7300EY-WTE2?

The Hikvision DS-KH7300EY-WTE2 is a practical, focused indoor monitor for projects that prioritize straightforward upgrades, reliable audio/video for visitor screening, and the convenience of Hik‑Connect mobile integration. It excels in retrofit and light commercial scenarios where keeping installation disruption and cost low is important. While it doesn’t compete with high-end IP monitors on advanced networking features or extensible third‑party integrations, its combination of a responsive capacitive display, two‑way audio with echo cancellation, local microSD support, and low power consumption make it an attractive choice for many residential and small business applications.

Before purchase or installation, ensure system compatibility with Hikvision two‑wire distributors, confirm local regulatory requirements, and engage a qualified installer to follow the official datasheet and user manual. For straightforward indoor monitoring and app-enabled visitor handling without extensive re‑wiring, the DS-KH7300EY-WTE2 is a strong, cost‑effective option.
