Introduction: Hikvision 3-Module Stainless Rain Shield — Key Features at a Glance

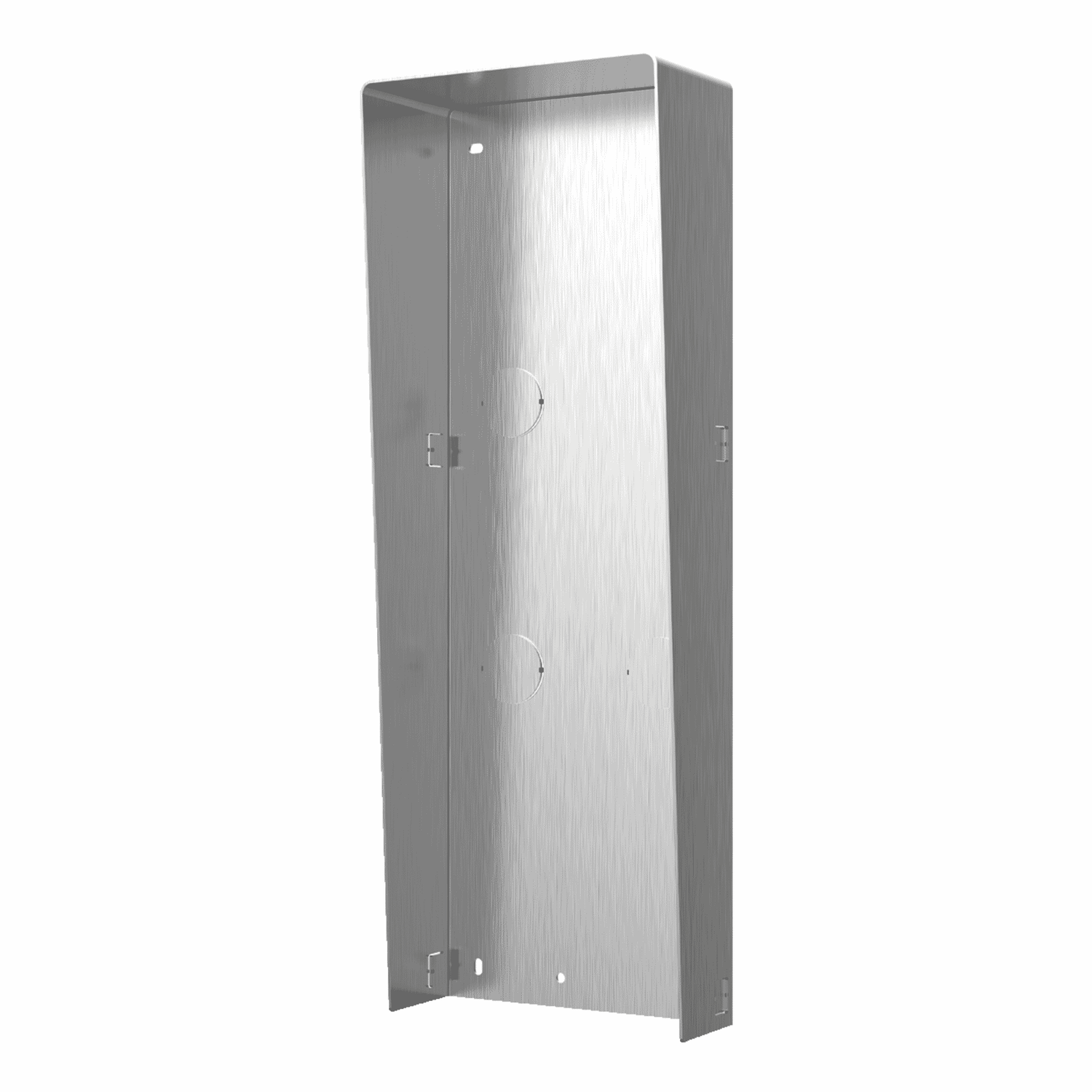

The Hikvision DS-KABD8003-RS3/S is a dedicated stainless-steel rain shield engineered to protect and present Hikvision 3-module modular door stations (compatible with DS-KD8003-IME1 and DS-KD8003-IME2). Combining durable materials, a purpose-built design and simple surface-mount installation, this rain shield is aimed at installers and end users who want a neat, weather-resistant finish for multi-module intercom systems. With external dimensions of 325.8 × 116.4 × 58 mm and a weight of about 702.3 g, it balances robust protection with a slim profile suitable for residential and commercial entrances.
Detailed Product Description: Specifications and Benefits
The DS-KABD8003-RS3/S is constructed from stainless steel, offering long-term resistance to corrosion and maintaining an aesthetic finish in outdoor environments. Its core purpose is straightforward: to shield sensitive intercom modules from rain, snow, dust and direct exposure while providing a tidy, integrated look for up to three modular Hikvision door-station components.
Technical highlights and specifications include:
- Model:DS-KABD8003-RS3/S
- Material:Stainless steel for durability and corrosion resistance
- Supported modules:3-module configuration compatible with DS-KD8003-IME1 and DS-KD8003-IME2
- Dimensions:325.8 × 116.4 × 58 mm
- Weight:702.3 g
- Operating temperature:-40° C to +60° C
- Operating humidity:10%–95% (non-condensing)
- Installation:Surface-mount; drill four Ø6 mm × 25 mm holes; expansion sleeves and bolts supplied; leave ~100 mm cable outside
- Package contents:Mounting frame, cover, fixing hardware, installation template, hexagon wrench
Benefits at a glance:
- Weather protection:Stainless steel construction and a covered profile help keep modules dry and protected from wind-driven rain and debris.
- Durability:Stainless steel offers excellent long-term resistance to rust and discoloration, especially compared to painted or plastic options.
- Neat aesthetics:The shield provides a clean, professional appearance for multi-module door stations, helping maintain architectural integrity for residential or commercial entrances.
- Installer-friendly:The package includes a mounting template, expansion bolts and hex wrench to streamline installation; clearly documented steps reduce on-site time.
- Wide operating range:Rated for extreme temperatures and broad humidity levels, making it suitable for diverse climates.
Installation Notes and Practical Considerations
Installation is designed to be straightforward for a qualified installer. Use the supplied installation sticker or template to mark the drill points. Drill four Ø6 mm × 25 mm holes, insert the supplied expansion sleeves and fix the mounting frame with the included expansion bolts. Route the module cables through the frame, insert the modules and secure the cover using the provided hex wrench. Hikvision recommends leaving approximately 100 mm of cable outside before finalizing the fit to ensure easy module connection during installation.
Compliance and safety: always check the product labeling and documentation for applicable regulatory marks (CE/UKCA) and follow local electrical and access control regulations. For reliability and warranty coverage, installation should be performed by a qualified professional.
Use Cases and Scenarios Where the Rain Shield Excels
This rain shield is best suited to environments and applications where both protection and appearance matter. Common use cases include:
- Residential multi-module entries:Homes with multi-apartment or gated entrances that require a tidy, weatherproof mounting for intercom modules.
- Small-to-medium commercial premises:Office block lobbies, retail entries and clinics where a professional finish and reliable protection against the elements are required.
- Harsh climates:Cold or hot regions, coastal installations exposed to salt spray, or areas with heavy rain benefit from stainless-steel corrosion resistance and broad operating temperature range.
- Retrofit projects:Upgrading older, exposed intercom installations to a cleaner, more weatherproof arrangement without changing the internal modules.
- Security-focused installations:Where protection from vandalism and tampering is desirable; the rigid stainless-steel cover is less prone to damage than thin plastic alternatives.
Because it is compatible with the DS-KD8003 series modules, this rain shield is particularly useful for integrators standardizing on Hikvision hardware in multi-unit projects or when adding entry control to existing buildings.
Comparisons with Similar Products on the Market
When evaluating a rain shield for modular intercoms, the main variables to consider are material, fit/compatibility, aesthetics, and installation method. Here’s how the DS-KABD8003-RS3/S stacks up against common alternatives:
- Stainless steel vs. plastic:Plastic shields are lightweight and lower cost, but are more prone to UV degradation, cracking and can look cheaper over time. Stainless steel provides superior long-term durability and a premium appearance, which many installers and building owners prefer.
- Stainless steel vs. aluminum:Aluminum options are also corrosion resistant and lightweight, but stainless steel is typically tougher against dents and abrasions and maintains finish better in coastal environments where galvanic corrosion can be a factor.
- Purpose-built vs. universal housings:Purpose-built units like the DS-KABD8003-RS3/S are tailored to specific module dimensions and mounting points, making installation neater and reducing the need for custom brackets. Universal housings may fit a wider range of devices but often require additional drilling or adapters to achieve a finished look.
- Price vs. value:At a suggested retail price of around $109, the Hikvision stainless-steel rain shield is positioned as a mid-range to premium accessory. While cheaper alternatives exist, the integration, finish and included hardware provide time savings and a professional result, which can justify the price for many projects.
Customer Feedback and Reviews
While specific verified testimonials for this exact model may vary by reseller, typical customer feedback for stainless-steel intercom rain shields emphasizes durability, appearance and ease of installation. Representative comments might include:
Reviewer A:"Solid build and a clean look — installation was straightforward and it fits our 3-module Hikvision station perfectly. Much nicer than the plastic cover we replaced."
Reviewer B:"We chose stainless steel because we’re near the coast. After a year of exposure the finish still looks great and the modules are dry and working reliably."
Reviewer C:"Good value for the price—comes with the template and hardware so we had the mount done in under 30 minutes. Professional finish for our office entrance."
If you are purchasing through a distributor or installer, ask for local references or project photos to see how the unit looks installed in similar environments.
Conclusion: Why the DS-KABD8003-RS3/S Is a Strong Choice
The Hikvision DS-KABD8003-RS3/S 3-module stainless-steel rain shield is a practical, well-considered accessory for anyone deploying Hikvision DS-KD8003 series door stations. It combines the robustness of stainless steel with installer-friendly hardware and documentation, a compact footprint, and the protective qualities required for outdoor installations across diverse climates. For residential and light commercial projects where appearance, durability and reliable protection are priorities, this rain shield offers a balanced combination of value and performance.
Ultimately, choosing the DS-KABD8003-RS3/S makes sense when you want a purpose-built, long-lasting solution that simplifies installation and enhances the finished appearance of a multi-module intercom system. If you prioritize premium materials, neat integration and proven compatibility with Hikvision modules, this rain shield is a dependable choice.
