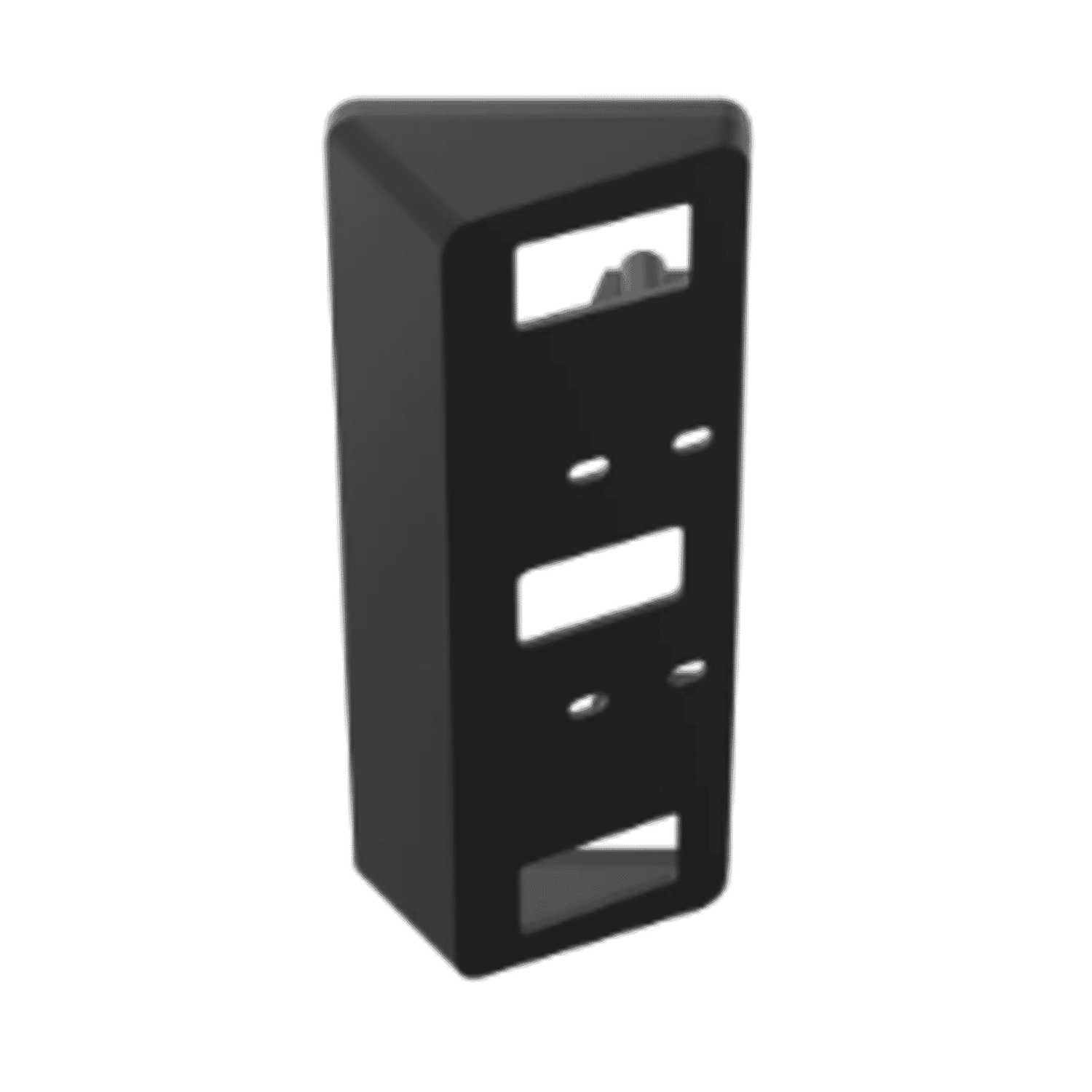

Introduction to the Hikvision DS-KABV6113-A Angle Wall Bracket
Hikvision DS-KABV6113-Ais a compact, purpose-built wall/angle mounting bracket designed for the Hikvision KV6 series villa door stations. It provides a clean surface-mount solution with an adjustable tilt of approximately 30° so installers can optimise camera framing and door-station ergonomics. Constructed from polycarbonate reinforced with 10% fibreglass, the bracket is built for outdoor use across a wide temperature range and intended for residential and light-commercial intercom installations.
Key features at a glance
- Adjustable tilt:Approx. 30° angle to improve camera view and user access.
- Purpose-built compatibility:Designed specifically for the Hikvision KV6-series villa door stations (for example KV6113 / KV6103).
- Durable thermoplastic construction:PC (polycarbonate) with 10% fibreglass for strength, UV and weather resistance.
- Compact footprint:Neat surface mounting for walls or posts where flush installation is not practical.
- Wide operating range:Rated for outdoor temperatures from -40 °C to +70 °C.
- Simple install:Mechanical accessory only — follows Hikvision mounting guidance and local regulations.
Detailed specifications and benefits
The DS-KABV6113-A is engineered to be a straightforward, dependable mounting accessory. The core specifications underline why it is a practical option for installers working with KV6 door stations:
- Model:DS-KABV6113-A.
- Compatibility:Hikvision KV6 series villa door stations, commonly used with KV6113 and KV6103 models.
- Application:Wall/angle bracket for villa door stations — enables surface mounting where in-wall mounting is undesirable or impossible.
- Adjustable Angle:Approx. 30° tilt to better frame the camera and optimise visitor interaction at various mounting heights.
- Material:PC (polycarbonate) reinforced with 10% fibreglass — a combination that balances impact resistance, dimensional stability and outdoor durability.
- Dimensions (W×H×D):133.1 × 60.1 × 35.2 mm — compact enough for discreet installation while still providing solid support.
- Operating Temperature:-40 °C to +70 °C — suitable for most climates, from cold winters to hot summers.
- Documentation:Datasheet and quick start guide are available from the manufacturer for installation guidance and measurements.
Certain items such as product weight, colour/finish and manufacturer warranty are not explicitly listed in the available specification set; these should be checked on the official datasheet or with your supplier if they are required for project documentation.
Using PC reinforced with fibreglass offers several practical advantages for a mounting bracket. Polycarbonate provides impact resistance and dimensional stability, while the fibreglass reinforcement increases stiffness and improves resistance to deformation over time. Together this means a slim-profile bracket can securely support a villa door station exposed to rain, sunlight and temperature cycles without cracking, warping or suffering unacceptable wear.
Practical benefits for installers and end users
The DS-KABV6113-A is intentionally simple: no electronics, no wiring complexity — just a reliable mechanical solution. This simplicity translates into several benefits:
- Faster installs:Surface mounting avoids the need to chase walls or alter existing masonry for flush boxes, reducing labour time and disruption.
- Optimised camera angles:The 30° tilt lets installers fine-tune the door-station camera to reduce glare, frame faces correctly and improve recognition for access control systems.
- Neat aesthetics:Compact footprint keeps the mounted system discreet and visually tidy, which is especially important on residential facades.
- Durability:Materials and temperature rating make it suitable for exposed locations without frequent maintenance.
Use cases and scenarios where the product excels
The DS-KABV6113-A is most useful in situations where a KV6-series villa door station is required but flush mounting is impractical, undesirable or more costly. Typical scenarios include:
- Renovations and retrofit projects:When upgrading an older door entry system, installers often face brick, stone or other facades where cutting in a flush box is difficult. A surface-mount angle bracket offers a quick, low-impact alternative.
- Rental properties and temporary installations:Landlords or site managers who need to add intercoms without major construction benefit from a reversible surface-mount solution.
- Optimising camera framing:At properties with porches, recessed entries or reflective surfaces, the adjustable tilt helps achieve a consistent, usable camera view for occupant safety and identification.
- Light-commercial settings:Small offices, clinics or guesthouses where aesthetics and ease of installation are both important.
- Post-mounted installations:In gate or driveway post scenarios where a flat mounting plane is not available, the bracket allows secure and properly angled installation.
Comparisons with similar products on the market
When choosing a mounting accessory for a villa door station, installers typically consider several options: manufacturer-specific angle brackets, universal brackets, metal (aluminium or stainless-steel) mounting plates, and in-wall flush boxes. The DS-KABV6113-A compares as follows:
- Manufacturer-specific vs universal brackets:The Hikvision DS-KABV6113-A is designed to fit KV6-series units exactly, which simplifies alignment and reduces cosmetic gaps. Universal brackets might fit multiple models but can require padding, shims or custom drilling to achieve a clean fit.
- Plastic (PC+fibreglass) vs metal brackets:Metal brackets (aluminium/stainless) offer a premium look and higher stiffness, but can be heavier, more expensive and more challenging to machine or finish. The reinforced PC bracket provides corrosion resistance, lighter weight and lower cost while delivering sufficient strength for villa door stations under normal conditions.
- Surface mount vs flush mount:Flush mounting gives a fully recessed, streamlined appearance but requires cutting into walls and potentially more complex cable routing. Surface-mount angle brackets like the DS-KABV6113-A are a faster, less invasive alternative that still allows for precise camera angling.
- Price and value:At a suggested price point geared to budget-conscious installations, the DS-KABV6113-A offers a cost-effective balance between fit, finish and durability compared with higher-cost metal bespoke brackets or time-consuming flush installations.
Customer testimonials and installer feedback
Publicly available user reviews for specific mounting accessories can be limited. However, common feedback themes from installers and small integrators who use manufacturer-matched plastic angle brackets include:
- "Saves time on site" — installers appreciate quick surface-mount solutions that eliminate the need to chase walls or build custom backboxes.
- "Good fit for the KV6 line" — manufacturer-specific brackets tend to reduce alignment issues and produce a neater final appearance than universal options.
- "Durable for most residential uses" — polycarbonate reinforced brackets typically hold up well outdoors and resist cracking from knocks or temperature cycling.
- "Check finish and colour" — some installers note that plastic brackets may not match premium metal trims, so consider façade aesthetics if appearance is a priority.
These installer comments align with the DS-KABV6113-A’s intended purpose: a practical, efficient accessory that addresses common on-site challenges during intercom installs.
Conclusion — why the DS-KABV6113-A is a great choice
The Hikvision DS-KABV6113-A angle wall bracket is a focused, practical accessory that solves several everyday installation problems. It delivers a manufacturer-matched fit for KV6 villa door stations, a useful 30° tilt for better camera framing, and weather-resistant construction in a compact package. For installers and contractors working on residential or light-commercial projects, it offers a low-cost, low-effort way to surface-mount a door station neatly and reliably.
While higher-end metal solutions exist for premium aesthetics or specific heavy-duty environments, the DS-KABV6113-A strikes a sensible balance of cost, ease-of-install and durability for the majority of villa door station installations. If you need a straightforward surface-mount bracket that integrates cleanly with the KV6 range and performs in challenging outdoor conditions, this accessory deserves serious consideration.
