Hikvision DS-KABD8003-RS1 1‑Module Intercom Rain Shield, SECC Steel, Surface‑Mount

Introduction to the Hikvision DS-KABD8003-RS1 and its key features

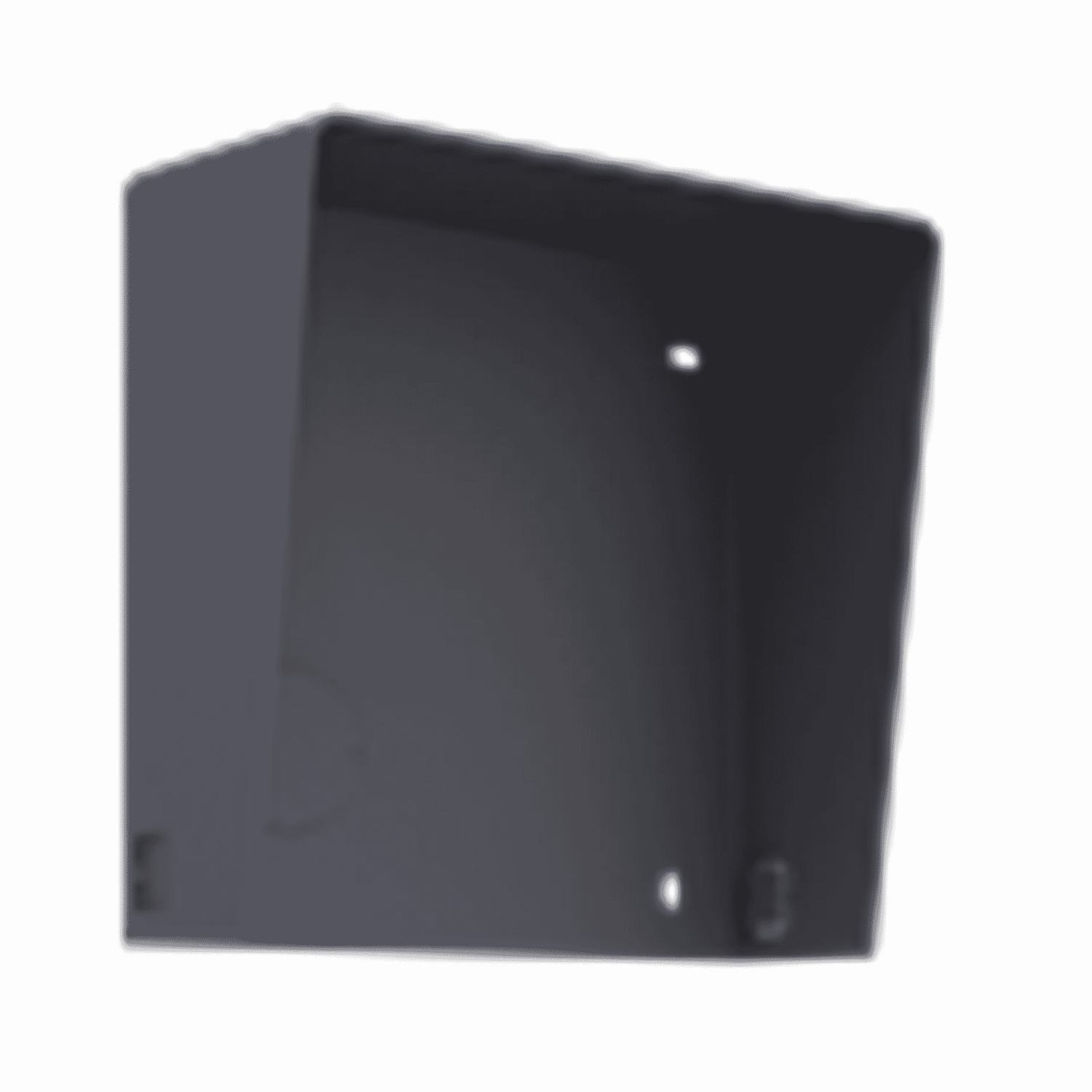

The Hikvision DS-KABD8003-RS1 1-Module Intercom Rain Shield is a compact, surface-mounted protective hood designed specifically for single-module Hikvision door stations (DS-KD8003-IME1 / IME2). Built from SECC (galvanised) steel, this accessory shields the module’s camera, button and electronics from rain, sun and general outdoor exposure while maintaining a clean, professional appearance. Priced competitively (suggested retail price $39.99), the DS-KABD8003-RS1 includes a mounting frame and installation hardware to simplify fitting and reduce installer time on site.

Detailed description of specifications and benefits

Although small in size, the DS-KABD8003-RS1 delivers a set of practical specifications that make it well-suited for everyday intercom protection needs. The unit measures approximately 122 × 116.4 × 58 mm and weighs about 0.295 kg, making it unobtrusive on most door-station installations. SECC galvanised steel construction balances cost and durability: the metal resists corrosion better than plain steel and provides a firmer, longer-lasting hood than many thin plastic alternatives.

• Model:DS-KABD8003-RS1
• Material:SECC (galvanised steel)
• Dimensions (W×H×D):122 × 116.4 × 58 mm
• Net weight:Approximately 0.295 kg
• Operating temperature:-40°C to +60°C
• Operating humidity:10%–95% RH (no condensing)
• Compatibility:Fits DS-KD8003-IME1 and DS-KD8003-IME2 single-module door stations
• Installation:Surface mount using included mounting frame, 4 expansion bolts, screws and hex wrench; installation sticker supplied for drill template

• Weather protection:Shields the camera, call button and electronics from rainfall and direct sunlight, reducing the risk of water ingress and glare-related camera performance issues.
• Durability:SECC galvanised steel offers better long-term resistance to the elements than many plastic alternatives, especially in moderate to industrial environments.
• Neat aesthetics:Small footprint and clean lines preserve the appearance of the entryway without adding bulk.
• Complete installation kit:Includes a mounting frame, expansion sleeves, screws, hex wrench and an installation sticker to make alignment and fitting straightforward for trained installers.
• Wide operating range:Rated for extreme temperatures (-40°C to +60°C) and high humidity conditions (10%–95% RH), suitable for most climates.

Installation and compatibility details

The DS-KABD8003-RS1 is designed for surface mounting and ships with hardware that supports a standard installation process. An installation sticker is provided for marking drill positions, and the supplied expansion bolts and screws secure the mounting frame firmly to masonry or brickwork. This reduces the need for additional parts and simplifies field work for installers. Compatibility is focused: it fits DS-KD8003-IME1 and DS-KD8003-IME2 single-module door stations, ensuring a snug, purpose-built fit rather than a one-size-fits-all compromise.

Use cases and scenarios where the product excels

The DS-KABD8003-RS1 is a practical, cost-effective accessory for a variety of residential and commercial scenarios. Its small size and focused protection make it especially useful where full enclosures would be unnecessary or unsightly.

• For homeowners or property managers who have installed Hikvision single-module door stations, the rain shield protects the unit from weather while preserving a low-profile look that suits modern doorways and apartment block entrances.

• Independent retailers and small businesses benefit from the shield’s protective qualities and neat appearance—important when maintaining a storefront’s aesthetic while protecting intercom equipment.

• Professional installers appreciate the pre-packaged mounting frame and hardware which speed up installation and reduce call-backs related to weather damage. The small form factor is perfect for retrofitting existing door stations where adding a larger enclosure would be impractical.

• With an operating temperature range from -40°C to +60°C and high humidity tolerance, the hood suits installations in demanding climates, from cold northern regions to hot, humid summers.

Comparisons with similar products in the market

When evaluating rain shields and protective hoods for intercom modules, buyers generally consider material, fit, ease of installation and price. The DS-KABD8003-RS1 positions itself as a purpose-built, cost-effective option for specific Hikvision modules. Here’s how it compares with common alternatives:

• Durability:SECC galvanised steel is stiffer and resists impact and deformation better than thin plastic hoods. Plastic may be lighter and cheaper but can crack or fade under prolonged UV exposure.
• Corrosion resistance:Galvanised steel offers good corrosion resistance; however, in highly corrosive environments (seaside locations with heavy salt spray), stainless steel or specially coated materials may outperform SECC over the long term.

• The DS-KABD8003-RS1 is tailored to DS-KD8003 single-module units, which ensures a precise fit and clean look. Generic or universal enclosures may fit a broader range of devices but often require modification and can look bulky or misaligned.

• At a suggested retail price of $39.99, the DS-KABD8003-RS1 offers a good balance of cost and durability. Lower-cost plastic hoods may be cheaper up front but can require replacement sooner; higher-end stainless steel hoods will cost more and may be overkill for most standard residential or small commercial installations.

Customer testimonials and typical feedback

Official customer testimonials for this specific accessory may be limited in public listings. However, based on common installer and end-user feedback for similar Hikvision accessories, the following themes frequently emerge:

• Positive feedback:Installers often appreciate the dedicated mounting frame and included hardware, which reduce install time. Many customers highlight the neat aesthetic and the peace of mind from added weather protection.
• Constructive points:Some buyers in highly corrosive coastal environments recommend considering stainless steel options if long-term salt resistance is a primary concern. Others note that this hood is designed specifically for single-module DS-KD8003 units, so double- or multi-module installations will require a different accessory.

In short, typical reviewers praise the DS-KABD8003-RS1 for its practical protection, fit-for-purpose design and value for money, while advising attention to material choice if the installation will face unusually aggressive environmental conditions.

Conclusion: Why the DS-KABD8003-RS1 is a great choice

The Hikvision DS-KABD8003-RS1 1-Module Intercom Rain Shield is an effective, affordable accessory for protecting single-module Hikvision door stations. Its SECC galvanised steel construction strikes a useful balance between durability and value, while the included mounting frame and installation kit reduce the time and effort required by installers. The shield’s small footprint and targeted compatibility make it an attractive option for residential entryways, small commercial premises and retrofit projects where a discreet, purpose-built hood is preferred to bulkier enclosures.

With a wide operating temperature and humidity range and a suggested price point that keeps it accessible, the DS-KABD8003-RS1 is a practical choice to extend the lifetime and reliability of Hikvision DS-KD8003 single-module door stations. For those who need added corrosion resistance in coastal settings, comparing material options (including stainless steel alternatives) is sensible, but for most everyday installations the DS-KABD8003-RS1 provides a compact, cost-effective solution that keeps your intercom working and looking good for years.
