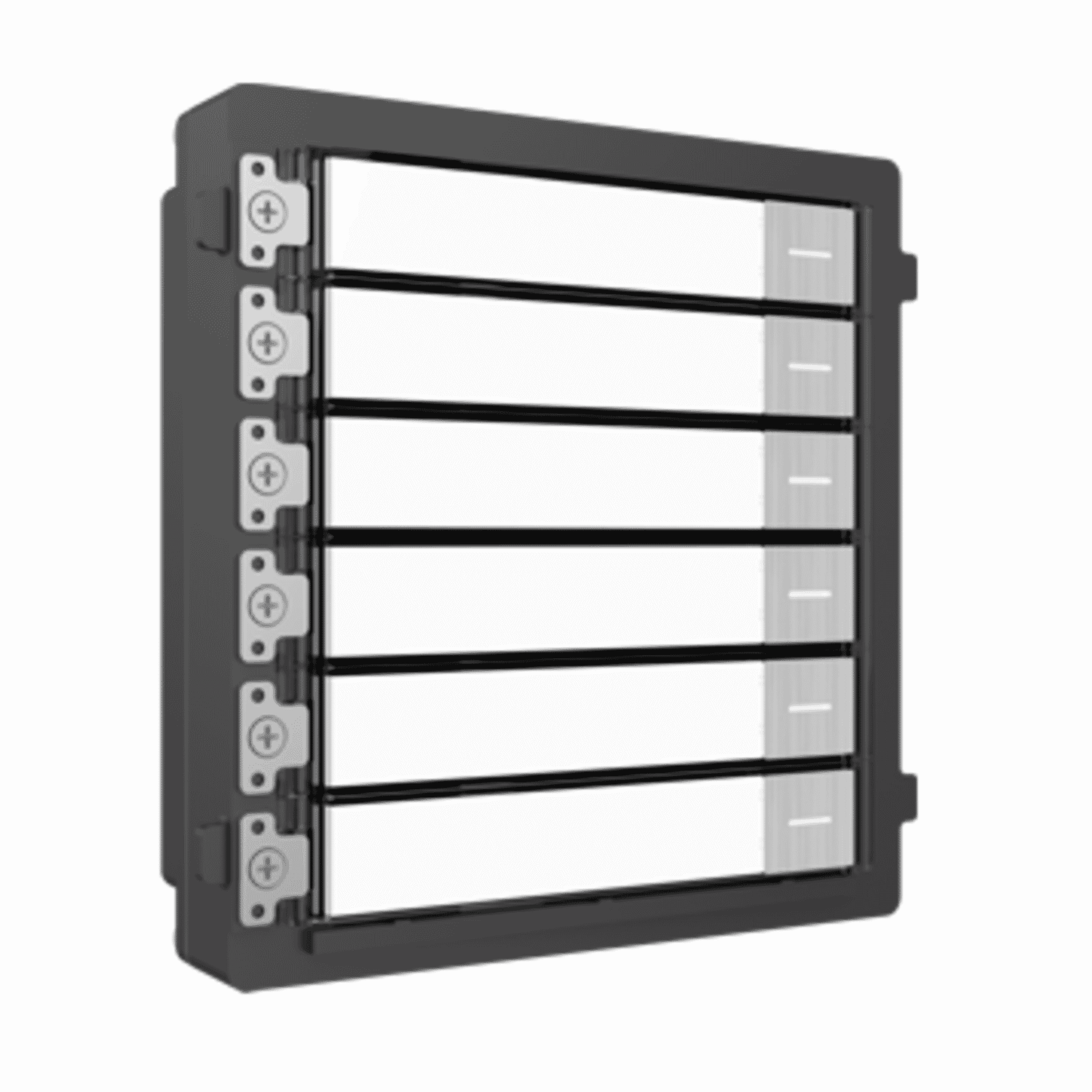

Hikvision DS-KD-KK/S 6-Button Nametag Module, Stainless Steel, KD8 Series

Introduction to the Hikvision DS-KD-KK/S 6-Button Nametag Module

Product:Hikvision DS-KD-KK/S 6-Button Nametag Module (Stainless Steel) — a purpose-built call-button extension for the KD8 series modular video intercom systems. Designed as a durable, outdoor-ready expansion panel, the DS-KD-KK/S provides six backlit, one-touch call buttons with replaceable nametags that integrate seamlessly with Hikvision KD8 door stations.

• Six physical one-touch call buttons with replaceable/customisable backlit nametags.
• Stainless-steel front plate with IP65 weather protection and IK07 impact resistance for robust outdoor use.
• Modular input/output connections to daisy-chain additional KD8 modules for larger installations.
• Low power draw — powered from the main door-station module (typical consumption ≤ 2 W).
• Supports flush or surface mounting and integrates with KD8 series main stations and network protocols via the main module.

Detailed specifications and benefits

The DS-KD-KK/S is compact, simple to install, and tailored for real-world entry systems. Below is a breakdown of its main specifications alongside practical benefits that installers, property managers and end users will notice in daily use.

• Model:DS-KD-KK/S — designed specifically for the Hikvision KD8 series modular video door stations.
• Material:Stainless-steel front plate offers corrosion resistance, a premium aesthetic and easy cleaning for public-facing installations.
• Mounting:Flush or surface mounting options provide flexibility during retrofits or new-build installations.

Benefits: stainless-steel construction delivers a professional look and durability in high-traffic or coastal environments, while flexible mounting reduces labour time and compatibility headaches.

• Buttons:Six physical one-touch call buttons with blank caps included for unused positions.
• Nametags:Replaceable and customisable backlit nametags with backlight compensation for readability in low light conditions.

Benefits: residents and visitors enjoy clear, illuminated labelling at night and in adverse lighting. The ability to replace or customise nametags means administrators can update occupant names or functions without replacing the whole module.

• Power supply:Powered by the main door-station module (e.g., DS-KD8003-IME1), nominally 12 V DC from the main module.
• Power consumption:Very low — ≤ 2 W typical (refer to the datasheet for exact figures).
• Interfaces & network:Module connections: 1 × input and 1 × output for daisy-chaining. Network and protocol support depend on the main station; KD8 main modules typically offer TCP/IP and RTSP capabilities.

Benefits: centralised power and low consumption simplify wiring and reduce the need for additional power infrastructure. Daisy-chain connections let installers expand calling capacity without complex rewiring for each module.

• IP Rating:IP65 — protected from dust ingress and low-pressure water jets.
• Impact rating:IK07 — resists moderate impact and vandal attempts.
• Operating range:-40 °C to +55 °C; humidity tolerance 10%–95% non-condensing.

Benefits: these ratings make the DS-KD-KK/S suitable for exposed external installations — apartment entryways, multi-tenant housing, or commercial sites — with the confidence that the panel will endure weather and typical mechanical stress.

• Dimensions:Approximately 98.2–98.5 mm (W) × 100–100.2 mm (H) × 33.7–34.2 mm (D).
• Weight:Net ≈ 265 g; packaged ≈ 529 g.

Benefits: a compact footprint eases installation in constrained panels and allows multiple modules to be arrayed together while keeping the visual impact minimal.

Use cases and scenarios where the DS-KD-KK/S excels

• Small to medium residential blocks:Ideal for buildings with a modest number of units where a clean, backlit nametag panel provides easy visitor calling and a professional entrance.
• Modular multi-panel systems:When a property requires more than the main station’s button capacity, the DS-KD-KK/S can be daisy-chained to add labelled stations without redesigning the entire enclosure.
• Commercial customer sites:Retail or office campus reception points that need weatherproof extension panels for visitor direction or vendor calling.
• Durable outdoor environments:Coastal apartments, shared housing, university halls and similar locations where stainless steel, IP65, and IK07 are advantageous for long-term reliability.
• Retrofit projects:The module’s compact size and flexible mounting options make it useful in upgrades where existing door stations need extra call buttons without major structural work.

Comparisons with similar products on the market

In its category — modular call-button extension modules for IP video door stations — the DS-KD-KK/S competes on build quality, modularity and brand ecosystem. When comparing choices, consider these factors:

• Material and finish:The stainless-steel front gives the Hikvision module a premium feel and corrosion resistance that plastic or painted panels may not match.
• Ingress and impact protection:IP65 and IK07 are common benchmarks for external panels. Some competing modules may offer IP54 or unlisted IK ratings, which are less protective in harsh environments.
• Integration and ecosystem:The strongest advantage for KD8 modules is their plug-and-play integration with Hikvision KD8 main stations and the vendor’s configuration tools. Third-party modules may be more generic but could require protocol matching or additional interface hardware.
• Expandability:The DS-KD-KK/S’s daisy-chain input/output design makes it straightforward to scale. Some competing systems use bus or wired matrix approaches that may be more complex to expand.
• Price vs. support:While some alternatives might be cheaper, choosing modules from the same manufacturer as the main station often simplifies support, firmware compatibility and warranty handling.

In short, the DS-KD-KK/S is positioned as a robust, installer-friendly extension module that balances a high-quality finish with practical installation features. Buyers should weigh the benefit of staying inside a single vendor ecosystem versus cost savings from third-party or generic modules.

Customer feedback and installer notes

There are no individual customer testimonials provided with the product information above. However, common feedback themes from installers and property managers who choose similar Hikvision KD8 modules include:

• Ease of installation: installers often note the convenience of daisy-chain wiring and compatibility with KD8 main modules, which reduces commissioning time.
• Readability and durability: residents appreciate backlit nametags and a clean stainless-steel appearance; maintenance teams report fewer weather-related failures compared with lower-rated panels.
• Flexibility: the availability of blank caps and replaceable nametags is frequently cited as a practical feature for evolving tenant lists or repurposed buttons.

Installers should always consult the Hikvision datasheet and the main station manual for correct wiring and power limits. Observing local electrical regulations (e.g., BS 7671 in the UK) and ensuring CE/UKCA compliance where required are vital for a compliant, safe installation.

Conclusion: why the Hikvision DS-KD-KK/S is a strong choice

The Hikvision DS-KD-KK/S 6-Button Nametag Module is a compact, purpose-built solution for expanding KD8 series video door stations. It blends practical features — backlit, replaceable nametags, modular daisy-chain connectivity and low power draw — with robust mechanical protection (stainless steel, IP65, IK07). For small- to medium-sized residential and commercial installations that require a reliable, weatherproof, and visually tidy calling interface, this module offers a sensible balance of durability, expandability and ease of installation.

Before purchase, confirm installation requirements, regional compliance markings and whether the cost (listed here as 42.78 — please verify the currency) fits your pricing strategy. If you prioritise seamless integration with Hikvision KD8 systems, professional-grade materials and straightforward scalability, the DS-KD-KK/S is a practical and durable choice.
