Hikvision DS-KD-TDM Touch Display Module, 4" IPS, MIFARE DS-KD-TDM

Introduction to the Hikvision DS-KD-TDM Touch Display Module

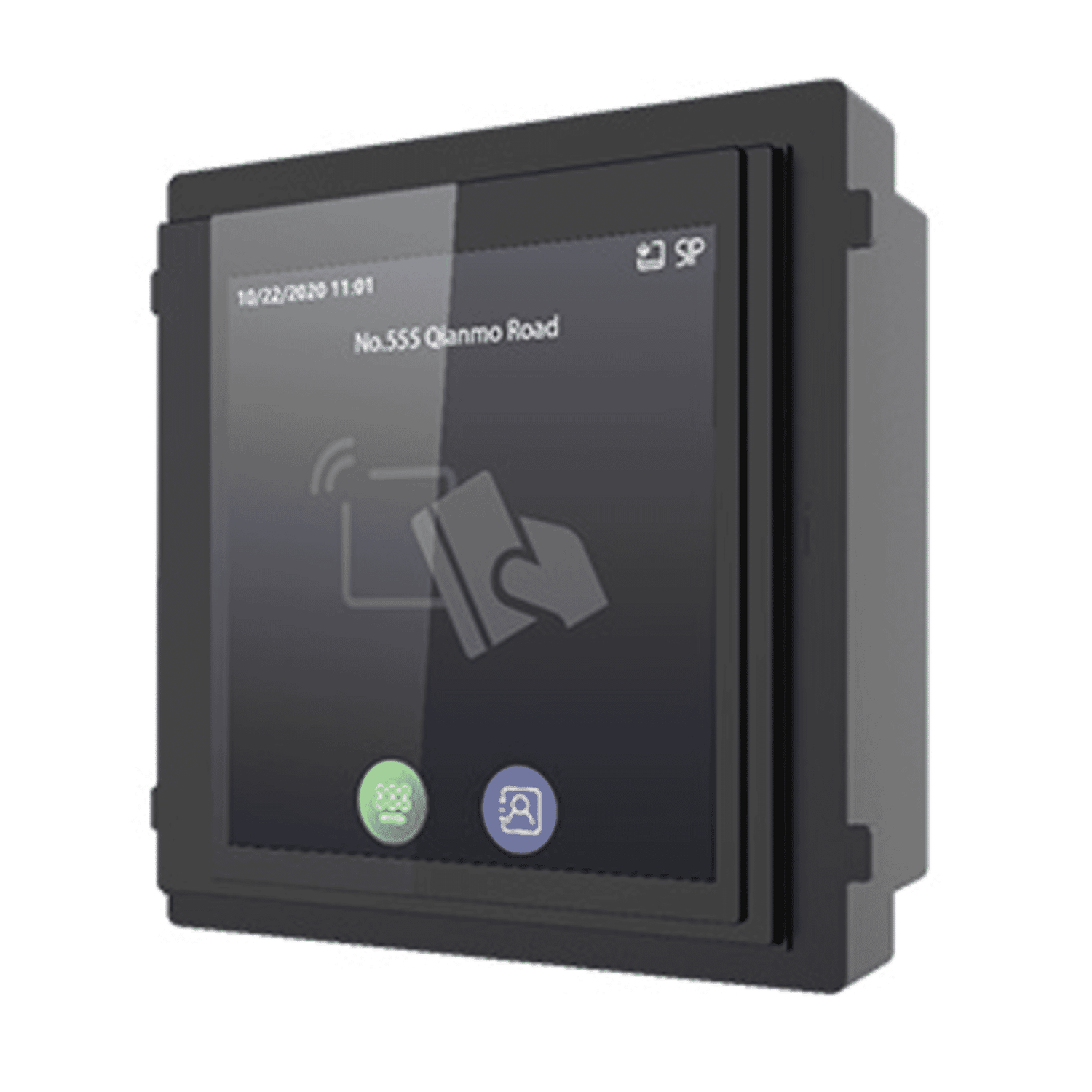

The Hikvision DS-KD-TDM is a modular 4.0" IPS capacitive touch-display extension designed for the Hikvision KD-series door stations. Combining a crisp square IPS touchscreen with an integrated MIFARE (13.56 MHz) card reader and PIN entry, the DS-KD-TDM upgrades visitor interaction and access control without replacing an entire door station. It’s intended for outdoor use and engineered with weather and vandal resistance, making it a practical addition to residential, multi-tenant and light-commercial entry systems.

Key highlights include on-screen dialing and directory search for up to 2,000 contacts, support for advert/home-screen images, low power draw (supplied by the main door station at 12 VDC, ≤4 W), and compact modular mounting options (flush or surface). With a suggested retail price of $359.00 (cost price listed at $300.29), the DS-KD-TDM positions itself as a mid-range accessory to extend the functionality of existing KD-series installations.

Detailed description of specifications and benefits

The DS-KD-TDM blends a focused set of specifications geared toward enhanced usability and robust outdoor performance. Below are the most relevant technical details and what they mean in practical use.

• 4.0" IPS capacitive touchscreen (480 × 480)— The IPS panel provides wide viewing angles and consistent color/contrast outdoors. The square 480×480 resolution is optimized for directory browsing, dialing, PIN input, and clear iconography.
• Brightness— Rated up to about 500 cd/m², which helps maintain readability in direct or bright daylight.
• Touch experience— Capacitive touch makes on-screen dialing and directory search intuitive for visitors, mirroring the smartphone-like interactions many users expect.

• MIFARE (M1) card reader, 13.56 MHz— Provides contactless card access for convenience and security. Typical read range is approximately 2 cm, which is standard for short-range proximity authentication.
• PIN entry supported— Offers a fallback or alternative authentication method for cardless users or temporary access codes.
• Directory capacity— Stores up to 2,000 contacts, making it suitable for most apartment blocks, small commercial buildings, and gated communities.

• Power— Operates at 12 VDC and consumes ≤4 W, and is supplied by the main KD-series door station. This simplifies wiring but means the module depends on the door station’s power source.
• Ingress and impact ratings— IP65 ingress protection and IK08 impact rating for resistance to dust, water jets and moderate vandalism — suitable for exposed outdoor mounting.
• Operating conditions— Rated from -20 °C to 60 °C and 10–95% non-condensing humidity, allowing deployment in a wide range of climates.
• Form factor— Compact dimensions around 100 × 100 × 35 mm with both flush and surface mounting options for flexibility during retrofit or new installations.

• Memory— 128 MB RAM and 32 MB ROM to run the Linux-based module interface and store UI assets.
• Network & interfaces— Module-level AP mode and cascading interfaces (2) plus DIP switch configuration; TF card slot is reserved for future expansion.
• Audio— The module provides a buzzer output but does not list a dedicated two-way speaker; audio interaction is handled by the main door station.

Benefits at a glance

• Improved visitor experience with a modern touchscreen UI and on-screen dialing.
• Flexible authentication — cards and PINs provide convenience and varied access scenarios.
• Durable construction for outdoor use, with IP65 and IK08 ratings.
• Cost-effective upgrade path for existing Hikvision KD-series door stations without full-system replacement.
• Compact footprint and multiple mounting options simplify retrofit projects.

Use cases and scenarios where the DS-KD-TDM excels

This module is especially useful when you want to add modern touch-based interaction and card access to an existing KD-series system. Typical scenarios include:

• Large directories: The 2,000-contact capacity covers many medium-sized residential developments, and the touch search makes finding residents faster than scrolling physical lists.
• Tenant access: MIFARE card access and PIN codes allow tenants to enter without relying on the resident to answer the call every time.

• Receptionless or limited-staff sites can benefit from on-screen calling and contact directories for departments or tenants.
• Advert/notice display allows promotions or building notices to be shown on the home screen when idle.

• When replacing or upgrading an existing KD-series door station is impractical, adding the DS-KD-TDM refreshes the user interface and access methods while retaining core hardware.

How it compares with similar products on the market

In the modular access-control space, buyers typically weigh integrated door stations (camera, speaker, keypad built-in) against modular extensions like the DS-KD-TDM. Compared to integrated units, the DS-KD-TDM’s advantages are targeted upgrades, lower replacement cost, and minimal disruption during installation. Compared to competing accessory modules from other vendors, consider these points:

• Versus integrated all-in-one stations:All-in-one stations may include higher-resolution cameras, two-way audio and full standalone operation, but they require complete replacement if you want a touchscreen or card reader. The DS-KD-TDM is ideal if you already have a KD-series base station and want a focused enhancement.
• Versus similar modules from other brands (e.g., Aiphone, Comelit, Dahua):Many competitors offer touchscreen or card reader add-ons, but compatibility, mounting form-factor and ecosystem integration differ. The DS-KD-TDM’s primary strength is out-of-the-box compatibility with Hikvision KD-series hardware and management tools; if your site already uses Hikvision, this ensures easier integration and consistent firmware workflows.
• Feature trade-offs:Some rival modules might provide longer RFID read ranges, integrated cameras or independent power options. The DS-KD-TDM focuses on a compact footprint, robust environmental protection and tight KD-series integration rather than maximizing every single spec.

Customer impressions and typical feedback

Official end-customer testimonials specifically for the DS-KD-TDM are limited in the public domain. However, common installer and end-user feedback themes for this class of module—and consistent with the DS-KD-TDM’s design—include:

• Positive— Installers appreciate the simple power arrangement (supplied by the main door station), compact module size for retrofits, and the IPS touchscreen’s readability. Tenants and visitors often highlight the intuitive touchscreen directory and convenience of card-based access.
• Constructive— Some integrators note the module relies on the main door station for audio and power, so troubleshooting requires knowledge of the broader KD-series system. Others mention that the read range is short (≈2 cm), which is normal for MIFARE but may require users to tap the card precisely on the reader area.

If you require third-party reviews before purchasing, ask your distributor for reference installations or seek feedback from installers familiar with Hikvision KD-series retrofits.

Conclusion: Why the DS-KD-TDM is a strong choice

The Hikvision DS-KD-TDM Touch Display Module is a focused, practical accessory for sites that already use KD-series door stations and want to add a modern touchscreen interface plus MIFARE card/PIN authentication. Its strengths lie in compact design, outdoor durability (IP65/IK08), good display readability with an IPS panel, and a directory capacity suitable for apartment blocks and small commercial buildings.

While it’s not a standalone door station—relying instead on the KD-series main unit for power and audio—it delivers valuable functionality at a lower cost and installation impact than full-station replacements. For installers and building managers seeking a cost-effective upgrade path to modern access methods, the DS-KD-TDM is a compelling option that balances usability, robustness and ecosystem compatibility.

For complete certification details, firmware updates and installation instructions, consult the Hikvision product page and the supplied datasheet/manual. Consider discussing specific deployment requirements with your installer to confirm compatibility, mounting preferences and any site-specific constraints before purchasing.
