Introduction to the Penton TERRA-EX/G2 and its key features

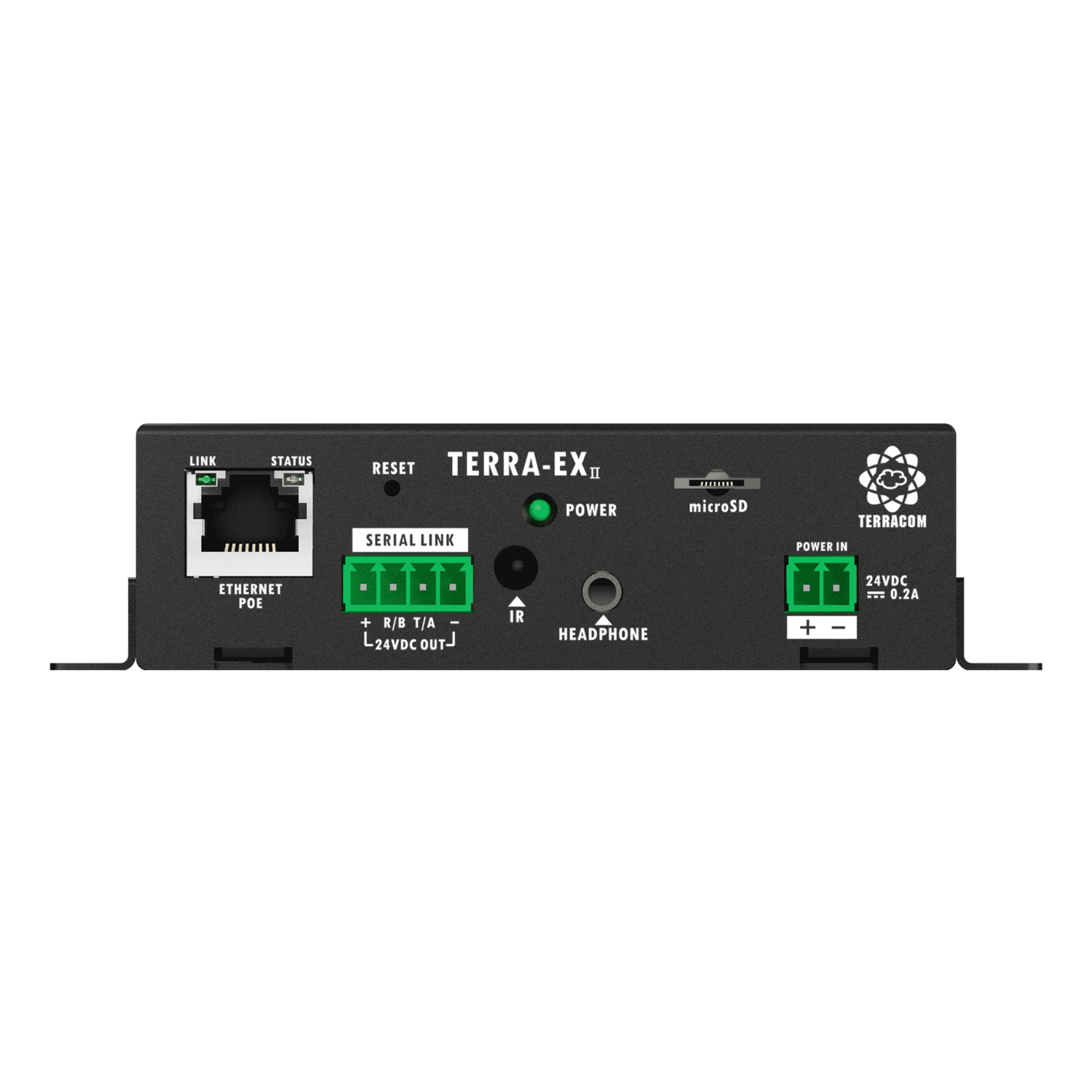

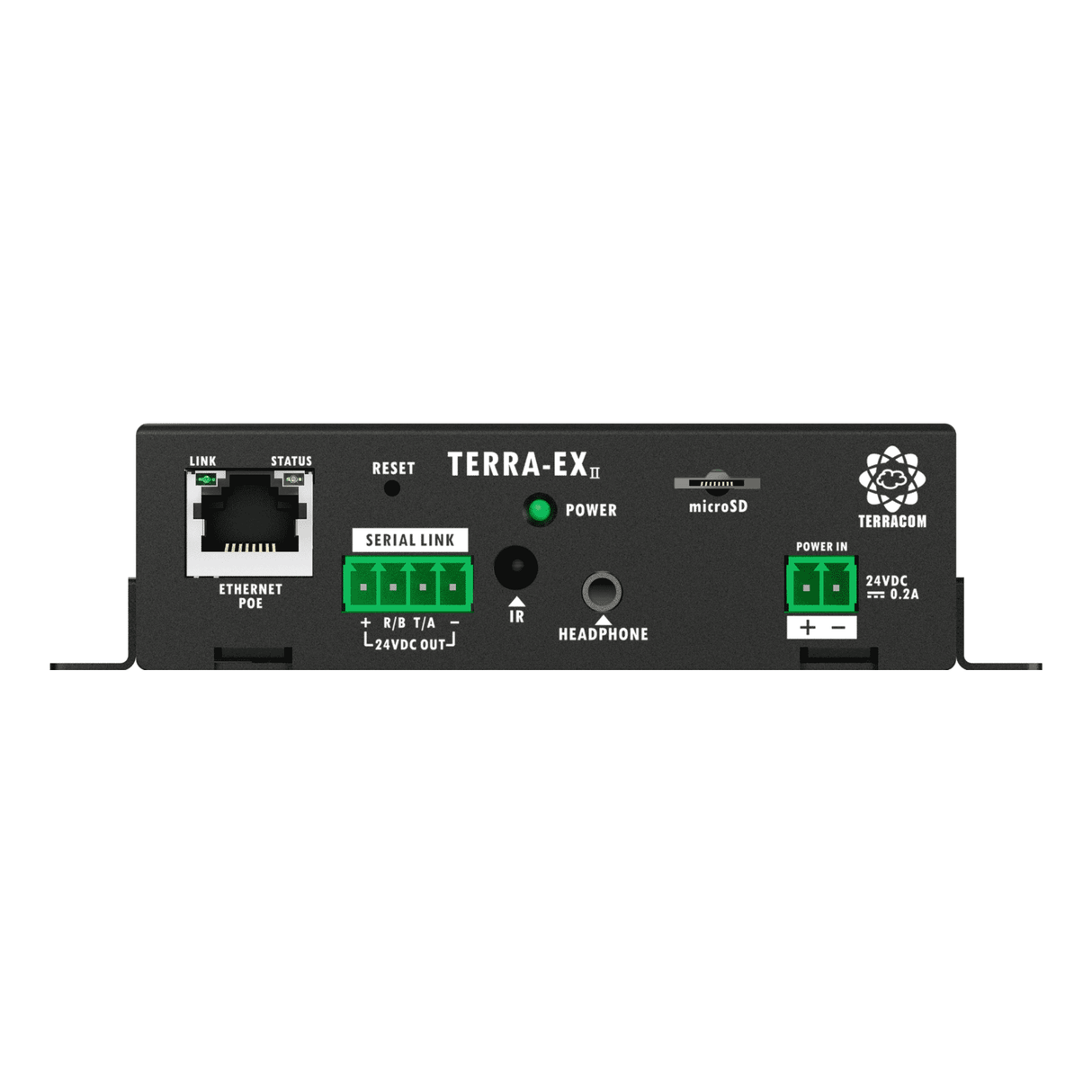

The Penton TERRA-EX/G2 (model ITM002701) is a compact, PoE-enabled IP audio decoder built on the TERRACOM platform. Designed for paging, intercom, background music (BGM) and scheduled or pre-recorded announcements, the TERRA-EX/G2 decodes a wide range of network audio formats and presents them as balanced analogue outputs for integration with amplifiers, speakers and public-address nodes. With support for SIP, unicast and multicast streams, plus common voice and music codecs (G.711, G.722, G.726, G.727, G.729, MP3 and AAC+), it is suited to commercial and institutional deployments where reliable network audio distribution is required.
The unit is PoE-capable for simplified installation and includes 2 balanced line outputs (configurable as one stereo or two mono channels), a 3.5 mm stereo headphone jack, internal storage with SD/USB expansion and basic I/O for external control. It also features web-based configuration and SNMP for remote management, making it a practical option for both single-site and larger multi-node audio systems.
Detailed specifications and benefits
Below is a concise breakdown of the TERRA-EX/G2’s specifications and the practical benefits these features bring to everyday installations.
- Model / SKU:TERRA-EX/G2 / ITM002701
- Platform:TERRACOM
- Primary uses:Paging, intercom, BGM, scheduled announcements
- Line outputs:2 balanced outputs (configurable as 1 stereo or 2 mono)
- Headphone output:Stereo 3.5 mm jack
- Codecs supported:G.711, G.722, G.726, G.727, G.729, MP3, AAC+
- Network:Single Ethernet port (CAT5/6), supports SIP, unicast, multicast, SNMP
- Storage:Internal storage (see manufacturer for exact capacity), SD (up to 512 GB) and USB expansion
- I/O:3 contact inputs, 1 relay output for system integration
- Power:PoE primary, optional 24 VDC backup
- Physical:Approx. 104 × 32 × 109 mm, approx. 433 g
- PoE simplifies deployment:Power over Ethernet removes the need for dedicated power wiring to each node, reducing install time and cabling costs, and enabling placement near network drops.
- Balanced outputs for low-noise audio:The balanced analogue line outputs make the unit well suited to professional audio systems and longer cable runs where noise immunity matters.
- Flexible codec support:Compatibility with common voice codecs and music formats ensures interoperability with SIP telephony systems, streaming servers and content management platforms.
- Local storage and scheduled playback:Internal storage plus SD/USB expansion allow for pre-recorded announcements, on-device schedules and fallback playback when live streams are interrupted.
- Web and SNMP management:Web-based configuration offers straightforward local setup while SNMP allows administrators to monitor and manage multiple units centrally.
- I/O for system automation:Contact inputs and a relay output enable the decoder to interact with door systems, CCTV, triggers and other building automation tasks.
Use cases and scenarios where the TERRA-EX/G2 excels
The TERRA-EX/G2 is a versatile endpoint suited to numerous audio-over-IP scenarios. Its combination of network protocol support, analogue outputs and local storage makes it appropriate for the following deployments:
Install the TERRA-EX/G2 at hallways, stairwells or individual zones to act as a paging node tied into a central IP paging server or SIP-based telephony system. Its balanced outputs allow direct connection to local amplifiers or speaker lines, and PoE enables simple, low-cost installations at network drops.
In shopping centres, campuses or airport concourses the decoder can serve as an audio source feeding local amplifiers or line-level inputs on speaker controllers. The ability to receive multicast streams and decode high-quality codecs like AAC+ is especially useful for background music applications.
Integrated I/O and SIP support let the TERRA-EX/G2 be used as part of intercom stations or to provide audio for access-control systems and CCTV integration. The relay output and contact inputs can be used to trigger recordings, announcements or lock/unlock events in response to sensors.
Its internal storage and SD/USB expansion are ideal for scheduled messages in schools, transit hubs and industrial sites. In environments where network interruptions are possible, local playback of pre-recorded files maintains critical messaging without reliance on a live stream.
Comparison with similar products on the market
There are several categories of IP audio decoders and streaming endpoints from other vendors. Rather than attempt an exhaustive head-to-head against every model, the following points highlight where the TERRA-EX/G2 stands in relation to common alternatives:
- Compared to stream-only decoders:Some network audio devices only support a limited set of codecs or lack local storage and I/O. The TERRA-EX/G2’s broader codec set, SD/USB expansion and contact I/O give it an edge when integration and offline playback are required.
- Compared to full PA appliances:Larger PA controllers or rack-mount decoders often include built-in amplification, multiple zones and advanced DSP. The TERRA-EX/G2 is more of a compact endpoint—better for distributed installations where local line-level outputs feed existing amplification.
- Compared to competitor compact endpoints:Many compact decoders from other vendors (for example, streamers from specialist audio-over-IP manufacturers) match the TERRA-EX/G2 on core streaming features. Penton’s strengths here are the TERRACOM platform integration, web/SNMP management, and the combination of PoE plus optional 24 VDC backup for installations needing power redundancy.
- Cost and value:With a suggested price around $331.72 (suggested retail), the TERRA-EX/G2 competes in the mid-range of compact IP audio decoders. Installers prioritising balanced outputs, on-device storage and flexible I/O will find strong value compared with cheaper, limited-feature models; those needing built-in amplification or DSP may prefer higher-end, more expensive units.
Customer feedback and installer perspectives
There are few widely published consumer reviews for specialist AV hardware like the TERRA-EX/G2. In the absence of extensive public testimonials, installer and systems-integrator feedback commonly highlights a few recurring strengths and considerations:
- Strengths often reported:Ease of deployment via PoE, reliable decoding of SIP and multicast streams, and the convenience of SD/USB storage for scheduled announcements.
- Integration notes:Installers appreciate the balanced outputs and contact I/O for tying the decoder into amplifiers, access control and monitoring systems. Web configuration and SNMP are also cited as helpful for managing multiple devices.
- Considerations:As a compact endpoint, the TERRA-EX/G2 does not replace a full PA controller with multi-zone DSP or high-power amplification—soliciting system requirements before specifying this device is recommended.
Representative installer comments (anonymized):
- "We use the TERRA-EX/G2 as distributed PA nodes—PoE made rollout quick, and the balanced outputs reduced ground-loop noise on long runs."
- "The SD backup for scheduled messages was a lifesaver during network outages; local playback kept the site announcements running."
- "Setup via the web GUI was straightforward, and SNMP monitoring simplified support across multiple sites."
Conclusion: Why the TERRA-EX/G2 is a strong choice
The Penton TERRA-EX/G2 is a well-rounded, compact IP audio decoder that balances affordability, flexibility and practicality for a range of commercial audio-over-IP applications. It excels where distributed line-level audio endpoints are needed: paging terminals, intercom nodes, BGM zones and scheduled announcement points. Key advantages include PoE support for straightforward deployment, balanced analogue outputs for noise-resistant audio connections, extensive codec compatibility for interoperability, and local storage options for resilience and scheduled playback.
For system designers and installers, the TERRA-EX/G2 presents a sensible mid-range option: it offers more integration capability than entry-level streamers while remaining simpler and more cost-effective than full PA controllers with onboard amplification. If your deployment needs include SIP integration, multicast/unicast audio distribution, on-device message storage and basic control I/O, the TERRA-EX/G2 is a practical component to include in a scalable TERRACOM-based solution.
Model: TERRA-EX/G2 (ITM002701). Suggested retail price: approximately $331.72. For mission-critical environments, combine the decoder with appropriate power redundancy, network best practices and central management tools to maximise availability and simplify maintenance.
