Introduction to the PPM-IT5 and its key features

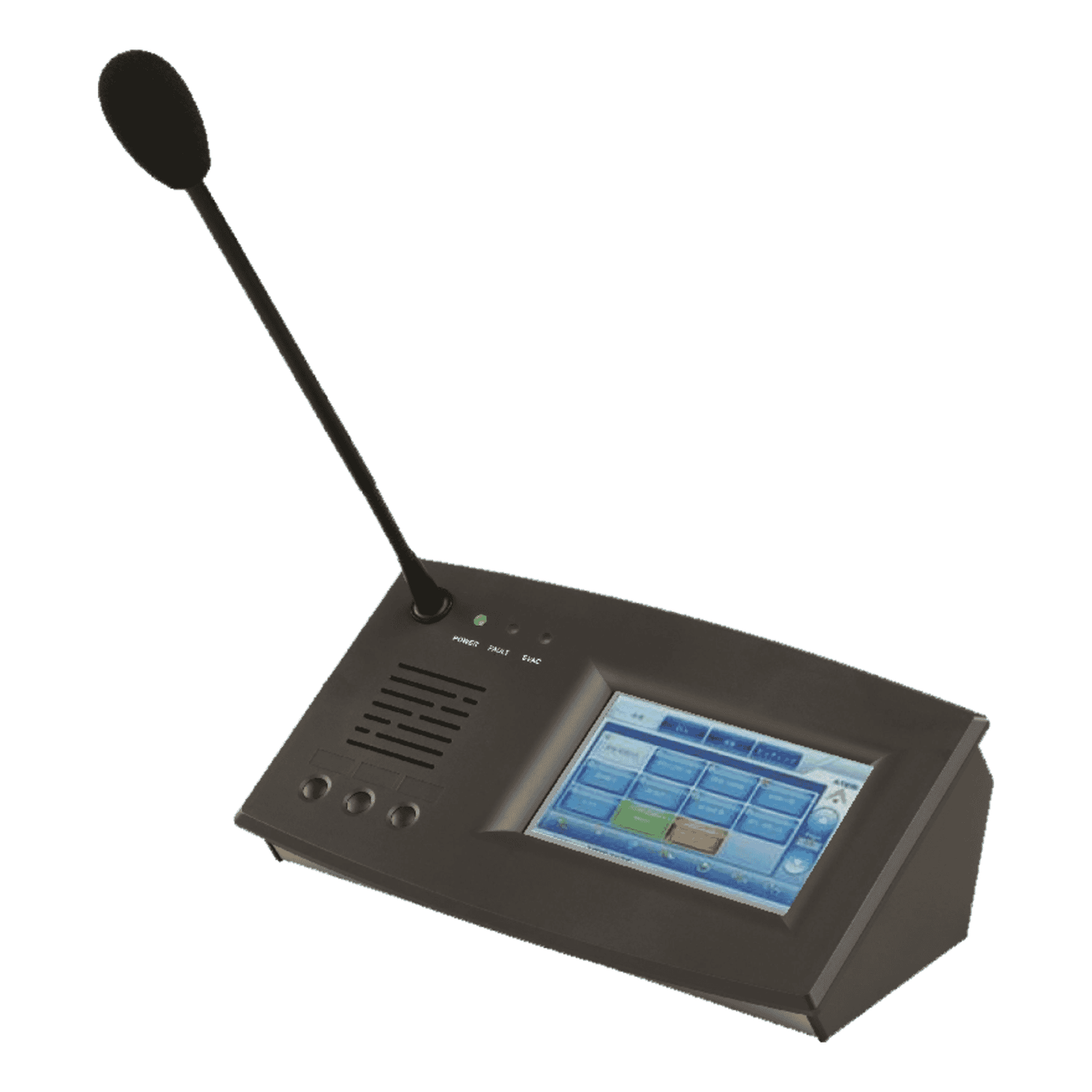

The PPM-IT5 IP/PoE Touchscreen Paging Console is a compact, feature-rich endpoint designed for modern PA/VA (public address and voice alarm) systems. With a 5" full-colour TFT display and native IP/PoE operation, it combines intuitive touchscreen control with robust audio features such as half- and full-duplex intercom with acoustic echo cancellation (AEC) and noise reduction. The unit supports common codecs and streaming formats, includes internal memory and a message scheduler, and offers flexible connectivity for headsets and network management.
Detailed description of specifications and benefits
The PPM-IT5 centers on a 5" 800 × 480 full-colour TFT screen, sized to fit a wide range of environments where wall- or desk-mounted consoles must not dominate space but still provide clear zone selection and message control. The touchscreen user interface makes zone selection, call initiation and scheduled message management straightforward for operators of varying skill levels.
Audio design prioritises intelligibility and reliability. The unit includes a front speaker (specifications vary with some listings reporting 5 W and others noting 1 W), a gooseneck microphone option (approx. 275 mm), and supports a suite of audio codecs—G.711, G.722, G.726, G.727 and G.729—so it can integrate with common SIP and streaming infrastructures. Low THD (<1% @ 1 kHz), a reported frequency response that covers the critical voice band (approximately –3 dB at 200 Hz to 8 kHz, with some sources extending to 12 kHz), and noise reduction combine to deliver clear live paging and intercom conversations.
Network features include Ethernet with PoE for streamlined installation and optional external DC 18–26 V (24 V typical) for backup power. The device supports streaming formats such as SHOUTcast/ICEcast and AAC, enabling background music or multicast audio distribution. Management is provided through a web browser interface and SNMP support, making large-scale deployments and remote diagnostics practical for integrators and facilities managers.
Internal memory (approx. 100 MB) allows storage of pre-recorded messages, alerts or announcements. An integrated message/event scheduler enables automated playback for bell systems, shift changes or timed alerts, reducing the need for continuous operator intervention. Three hardware-programmable front keys give quick access to frequently used functions, improving response times during paging or emergency events.
The PPM-IT5 is PoE-ready for simplified wiring and supports external DC as a backup. Headset connectivity includes an RJ9 telephone-style headset port and two mini-jack sockets for flexible operator setups. Physically the unit is compact (approx. 250 × 140 × 80 mm) and lightweight (approx. 1.1 kg), making it suitable for wall mounting, desktop consoles, or small operator stations.
- Intuitive control:Touchscreen simplifies zone selection and message playback.
- Reliable audio:AEC and noise reduction improve clarity for both paging and intercom use.
- Flexible deployment:PoE operation plus external DC for backup.
- Integrated scheduler:Automate routine announcements and reduce staffing load.
- Open compatibility:Wide codec support and streaming options make integration with existing infrastructure straightforward.
Use cases and scenarios where the PPM-IT5 excels
The PPM-IT5 is aimed at environments where clear voice communication, zoning control and scheduled messaging are essential. Typical use cases include:
- Schools and universities:Timed bells, lecture hall paging and targeted zone announcements for corridors, playgrounds and administrative areas. The scheduler and programmable keys make routine announcements effortless.
- Healthcare facilities:Quick, clear paging and nurse-call integration in wards, waiting areas and critical zones where intelligibility is crucial. Full-duplex intercom with AEC supports two-way staff communication without echo.
- Transport hubs:Stations and terminals that require multi-zone live paging, scheduled service announcements and background streaming for passenger information and ambiance.
- Retail and malls:Centralised advertising, live announcements, store paging and emergency notifications that need to be targeted to specific zones or stores.
- Corporate and hospitality:Facilities requiring discreet yet powerful paging and intercom—reception desks, concierge stations and conference room control points benefit from the compact footprint and touch control.
Comparisons with similar products on the market
Within the class of IP/PoE touchscreen paging consoles, the PPM-IT5 distinguishes itself by combining a compact touchscreen with integrated scheduling and broad codec support. When comparing options, consider the following dimensions:
- Screen size and UI:Some competitors offer larger screens (7" to 10") for richer visual interfaces; those units may be preferable where detailed maps or many zones need to be displayed. The PPM-IT5’s 5" screen, however, is often the better fit for space-constrained installations or simple front-desk operations.
- Audio power and speaker configuration:Larger consoles or dedicated paging amplifiers can offer higher output power and more robust speaker systems for very large open spaces. For medium-sized zones and corridor paging, the PPM-IT5 delivers adequate intelligibility when paired with appropriate local speakers or distributed audio systems.
- Integration and codecs:The PPM-IT5’s codec range (G.711, G.722, G.726/7, G.729) and streaming support are in line with best-in-class IP endpoints, making it competitive for integration with SIP/PBX, streaming servers and third-party PA/VA controllers.
- Feature set:Not all competing consoles include internal scheduling or onboard message storage—features that reduce system complexity and reliance on central servers. For customers who need local scheduling, the PPM-IT5 can be a more economical and resilient choice.
- Price and total cost:The PPM-IT5 is positioned as a mid-to-high tier device in terms of features versus price. For organisations that require only basic paging, simpler SIP handsets or software clients may be less expensive but lack the hardware controls, physical durability and scheduler functionality that a dedicated console provides.
Customer feedback and installer impressions
Public, verifiable customer testimonials for specific hardware models can be limited, but common themes reported by integrators and AV teams using similarly specified consoles include:
- Operators appreciate the intuitive touchscreen and the convenience of programmable hardware keys for frequently used zones or emergency functions.
- Installers highlight the convenience of PoE for straightforward deployment and the utility of secondary DC power for redundancy in critical installations.
- Facilities managers value the onboard scheduler and internal message storage for automating daily routines and reducing operator workload.
- In busy or noisy environments, the AEC and noise reduction features are often singled out as crucial for maintaining intelligible two-way communication during intercom calls.
Where specific product reviews exist, they tend to praise the PPM-IT5 for being a well-balanced solution: compact yet capable, with a sensible mix of networking and audio features for a range of PA/VA applications. Prospective buyers should consult supplier datasheets and, if possible, request a demo or on-site trial to validate suitability for their specific acoustic and operational needs.
Conclusion: why the PPM-IT5 is a compelling choice
The PPM-IT5 IP/PoE Touchscreen Paging Console is a versatile, compact and feature-rich endpoint well suited to schools, hospitals, transport hubs, retail environments and corporate facilities. Its 5" touchscreen offers intuitive control without excessive footprint, while PoE operation, wide codec support, AEC-enabled intercom and integrated scheduler provide the functionality expected from a modern PA/VA console. For organisations seeking a balance of on-device automation, clear voice communication and straightforward network integration, the PPM-IT5 represents a practical choice.
When evaluating paging consoles, weigh the importance of screen size, audio power, scheduler requirements and integration with existing networked audio or control systems. The PPM-IT5 is particularly attractive where compact form, reliability and local scheduling are priorities. For complete technical details, compliance declarations and installation guidance consult the official product datasheet and user manual from the manufacturer or authorised supplier. Pricing and warranty terms vary by supplier and region; prospective buyers should request up-to-date quotes and service information as part of their procurement process.
