Introduction: Bi‑spectrum protection in a compact bullet

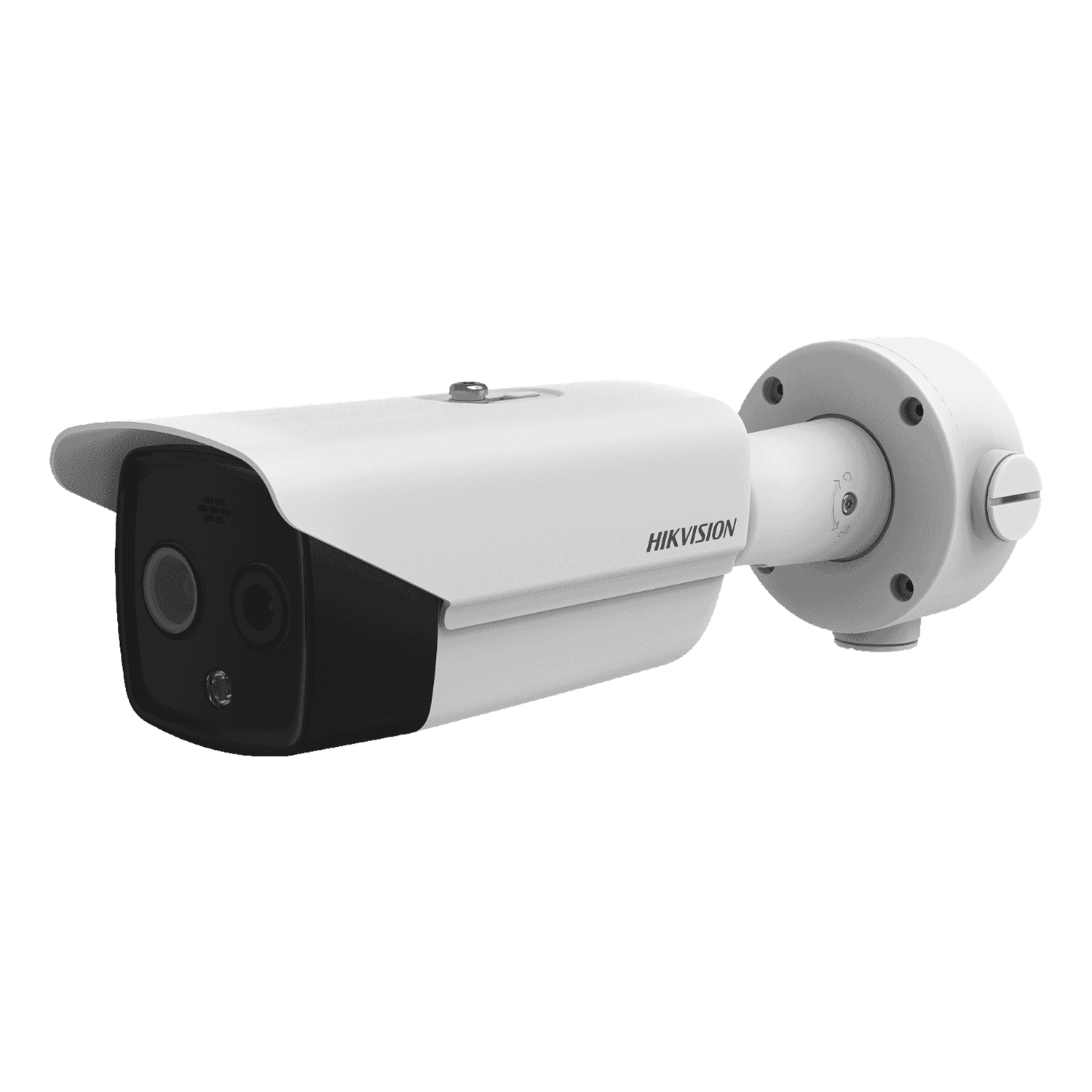

Hikvision DS-2TD2617-3/QA — Bi‑spectrum Thermal + 4MP Bullet Camerablends a 160×120 VOx thermal module with a 4 MP optical module into a single outdoor PoE bullet camera designed for perimeter protection, temperature‑exception monitoring and visual verification. With image fusion, picture‑in‑picture (PIP) and smart analytics, this model targets installations where reliable detection and clear follow‑up imagery matter: industrial yards, critical infrastructure, logistical sites and facilities that need both thermal detection and conventional video in one affordable unit.
Key features at a glance
- Dual‑spectrum imaging: thermal (160×120) plus 4 MP optical, with image fusion, PIP and target coloration.
- Thermal module: VOx uncooled sensor, 17 µm pixel pitch, NETD < 40 mK, 3.1 mm thermal lens.
- Optical module: 1/2.7" progressive CMOS, up to 2688×1520 (4 MP), 4 mm lens with ~84°×44.8° field of view.
- Temperature monitoring: range −20 °C to 150 °C with point/area/line rules and configurable alarms.
- Smart analytics: VCA (line crossing, intrusion, region enter/exit), dynamic fire detection and up to eight rules.
- Ruggedised for outdoors: IP67 ingress protection and IK10 impact rating, PoE (802.3af) or 12 VDC power.
- Affordable positioning: suggested price US$499 (check local pricing and supply); supplier cost example US$271.51.
Detailed specifications and benefits
The DS-2TD2617-3/QA is built around two distinct sensors working together. Understanding both modules explains where this camera delivers the most value.
The thermal sensor is a VOx uncooled focal plane array at 160×120 resolution with a 17 µm pixel pitch and NETD < 40 mK (@25 °C, F#=1.1). The 3.1 mm thermal lens gives a wide instantaneous field of view (approx. 50.0° × 37.2°) and an IFOV of 5.48 mrad. Thermal imaging provides temperature‑based detection that does not depend on visible light, making it ideal for night, low‑light or obscured scenes (smoke, haze, foliage).
Benefits:
- Early detection of people or hot objects independent of lighting.
- Temperature‑exception alarms useful for equipment monitoring, restricted‑area checks and scene‑level thermal anomalies.
- Dynamic fire detection capability—thermal patterns can trigger fast, automated alerts for potential fire ignition.
The 4 MP optical camera (1/2.7" progressive CMOS) captures up to 2688×1520 resolution with a 4 mm lens and an approx. 84° × 44.8° FOV. With 120 dB WDR and low‑light sensitivity (≈ 0.0089 Lux colour, 0 Lux with IR), the optical channel supplies conventional colour video for identification and evidence collection.
Benefits:
- High‑resolution visual verification after thermal detection—confirm human or vehicle presence and identify clothing, signs or vehicle details at short to medium ranges.
- Wide FOV suits general perimeter sweeps and close‑range coverage where the camera is mounted low or on a wall.
Both thermal and optical streams can run simultaneously. Video encodes in H.265/H.264/MJPEG and supports image fusion, PIP and target coloration (white/black hot), which helps operators interpret thermal scenes quickly. The unit supports up to eight configurable VCA rules (line crossing, intrusion, region enter/exit), dynamic fire detection and multiple temperature rule types (point, area, line) across a −20 °C to 150 °C range.
Benefits:
- Reduced false alarms through combined thermal detection with optical confirmation and analytic rules.
- Flexible alarm outputs including configurable white‑light strobe and voice alarms for deterrence and on‑site response.
The camera supports 12 VDC or PoE (802.3af, Class 3) and draws roughly 6 W in typical use (varies with alarms and active outputs). Physical protections include IP67 ingress, IK10 impact resistance and TVS 6000 V surge protection, enabling outdoor deployment in harsh environments from −40 °C to +65 °C and up to 95% humidity (non‑condensing).
Benefits:
- PoE simplifies cabling for networked sites and integrates easily with modern NVRs and PoE switches.
- Robust mechanical and environmental ratings make it suitable for exposed perimeters and industrial facilities.
Use cases and deployment scenarios
The DS-2TD2617-3/QA is versatile and particularly effective where a combination of thermal detection and visual confirmation improves detection reliability and response workflows. Typical scenarios include:
- Perimeter security: thermal detection picks up intruders at night or in poor visibility; the optical module provides immediate visual verification to confirm and record events.
- Industrial and plant monitoring: temperature‑exception rules can alert to overheating equipment, hot spots on conveyors, or abnormal thermal signatures before failures occur.
- Early fire detection: dynamic fire detection and thermal monitoring reduce detection time in areas where conventional smoke detectors may be delayed by open spaces or airflow.
- Critical infrastructure and utility sites: secure substations, water treatment plants and storage yards where both tamper detection and environmental monitoring are desirable.
- Asset protection in logistics or storage yards: monitor stacks of materials for thermal anomalies, unauthorized access and asset movement.
Comparisons with similar products in the market
Bi‑spectrum cameras sit between simple visible‑only cameras and high‑end dedicated thermal systems. Compared to optical‑only bullet cameras, the DS-2TD2617-3/QA adds thermal detection that is independent of light and less affected by obscurants. That reduces reliance on illumination and lowers false negatives at night.
Against higher‑resolution thermal cameras (e.g., 320×240 or 640×480 thermal sensors), the 160×120 thermal array here offers a cost‑effective balance: you lose some thermal detail and detection range but gain a significantly lower price point and smaller data footprint. For many perimeter and site‑monitoring needs, 160×120 thermal is sufficient to detect human and vehicle heat signatures while the 4 MP optical channel supplies the extra detail needed for follow‑up identification.
Compared with multi‑sensor turret or PTZ solutions, the bullet form factor is simpler to deploy and typically less expensive. You trade off pan/tilt/zoom mobility for fixed coverage but benefit from a compact, tamper‑resistant housing (IP67/IK10) and straightforward PoE integration.
In terms of price, the suggested retail positioning (around US$499 in the supplied listing) places it in the affordable segment of bi‑spectrum products — offering many features found on higher priced models but with modest thermal resolution. This makes it attractive for budget‑conscious projects that still require thermal capabilities.
Customer feedback and real‑world impressions
Public reviews for this exact model may be limited in some markets, but common installer and operator feedback for similarly configured bi‑spectrum cameras highlights a few recurring strengths and considerations:
- Strengths: Users value the ability to detect events thermally and immediately verify them visually. Installers appreciate PoE support and robust IP67/IK10 housings that simplify outdoor deployments. Integrators note that thermal alarms combined with analytic rules reduce false positives compared with motion‑only systems.
- Considerations: Thermal resolution (160×120) is lower than premium thermal cameras, so detection ranges are shorter and small‑object thermal detail is limited. For critical, long‑range thermal monitoring, higher‑resolution thermal cameras are preferred. Accurate temperature measurements require correct calibration and careful installation; this product is not a medical thermometer and should be used for industrial/scene monitoring only.
If you are evaluating this model for an installation, request on‑site demos, check compatibility with your VMS/NVR and verify local certification and support options. Also confirm whether a warranty is included—this listing indicates no warranty by default, so check with your supplier or installer for coverage details.
Conclusion: who should choose the DS-2TD2617-3/QA?
The Hikvision DS-2TD2617-3/QA Bi‑spectrum Bullet Camera is a practical, budget‑conscious choice for organisations that need both thermal detection and conventional visual verification in one rugged, easy‑to‑install device. Its strengths lie in perimeter security, industrial temperature monitoring and early fire detection where a balance between capability and cost matters. With PoE power, smart analytics, and configurable alarm outputs, it integrates well into modern networked surveillance systems.
Choose this camera if you want an affordable entry into thermal‑assisted security without the expense of high‑end thermal sensors, and ensure you plan installation and calibration appropriately to get the best results from its temperature monitoring and analytic features.
