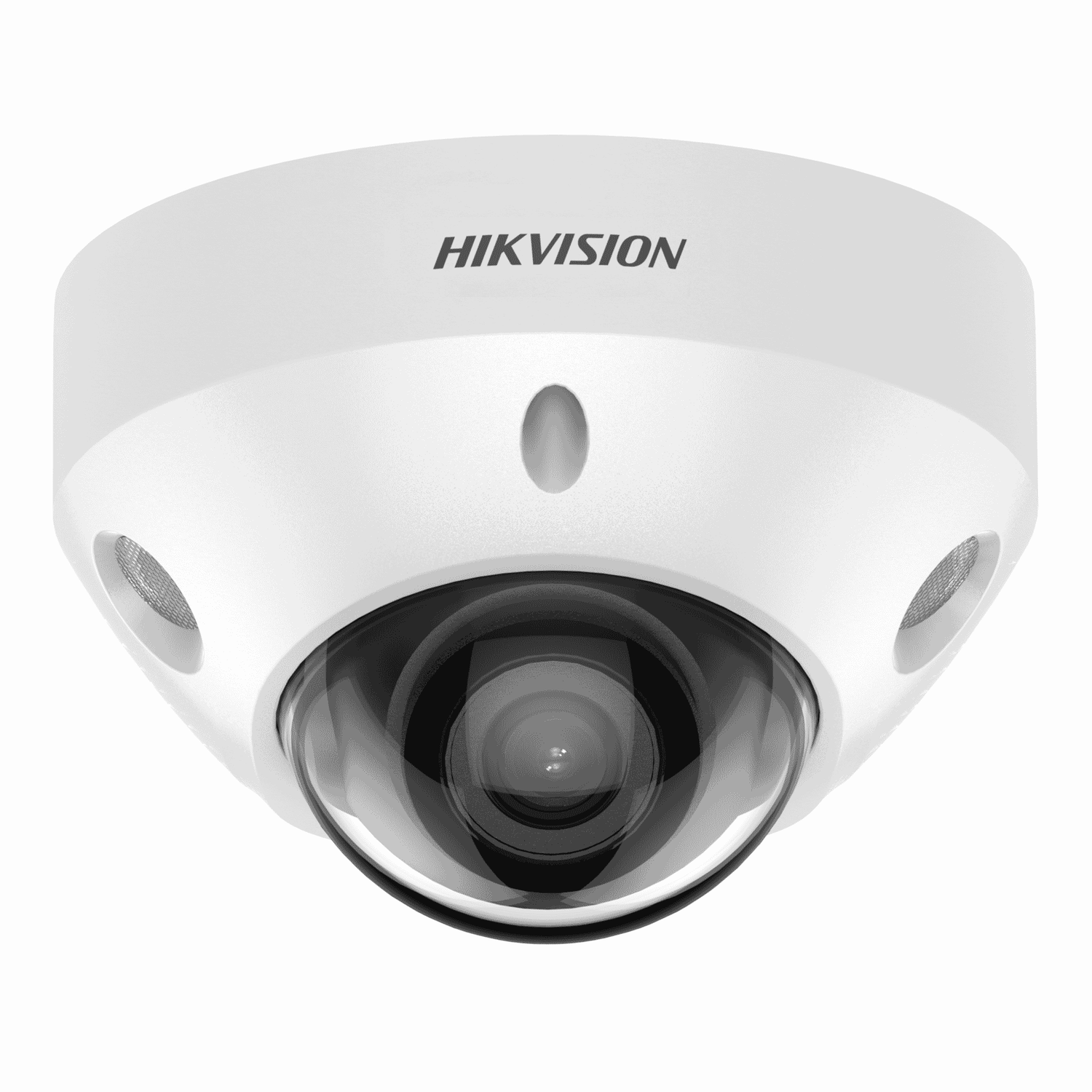

DS-2CD2586G2-IS 8MP AcuSense Mini-Dome, 2.8mm, IP67 IK08
About this product
8 MP fixed mini-dome network camera with AcuSense deep-learning classification and DarkFighter low-light performance. Designed for indoor/outdoor surveillance where accurate human/vehicle detection and high-detail imaging are required.
- High-resolution imaging: 8 MP (3840 × 2160) for detailed capture and evidence-grade footage.
- AcuSense AI: Human/vehicle classification to reduce false alarms and improve event relevance.
- Low-light & IR: DarkFighter technology — colour to 0.003 lux (F1.6, AGC on); 0 lux with IR. Smart EXIR illumination to ~30 m (850 nm).
- True WDR: 120 dB for high-contrast scenes.
- Flexible recording: H.265 / H.265+ and H.264 / H.264+ compression; onboard microSD up to 512 GB, NAS (NFS/SMB) and ANR support.
- Rugged & weatherproof: IP67 ingress protection and IK08 impact resistance for outdoor use.
- Power & connectivity: PoE (IEEE 802.3af) or 12 V DC; 10/100 Mbps Ethernet; ONVIF and Hikvision protocols supported.
- I/O: Audio I/O (line in/out) and 1 alarm input / 1 alarm output on -IS variant.
Use cases: Retail, commercial premises, perimeter and car-park surveillance, and any installation requiring reliable human/vehicle analytics and 4K imaging. Suitable for professional installers and advanced DIY users; professional installation recommended for outdoor or mains-powered installs.
Compliance & safety: Check local product approvals (CE / UKCA) and ensure installations comply with regional wiring and safety regulations. Follow manufacturer installation guidelines and mount using suitable fixings for surface and environment.
Note: The cost price provided (154.36) has no currency specified. The suggested price shown is the minimum selling price to achieve a 16% gross margin based on that cost (see product notes and confirm target market/currency for a market-tailored RRP).
Specifications
Optics-&-image
Video-&-compression
Illumination-&-ir
Audio-&-alarm
Storage-&-network
Power-&-consumption
Physical
Operating-conditions
Model-&-lens-options
Specifications
Optics-&-image
| Image sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Resolution | 8 MP (3840 × 2160) |
| Lens | Fixed 2.8 mm (H:110°, V:56.7°, D:134.1°), F1.6 (M12) |
| Minimum illumination | Colour 0.003 lux (F1.6, AGC on); 0 lux with IR |
| WDR | True WDR 120 dB |
| DORI (2.8 mm) | Detect 89 m; Observe 35 m; Recognise 18 m; Identify 9 m |
Video-&-compression
| Frame rate | Up to 25 fps (50 Hz) / 24 fps (60 Hz) at 3840×2160 |
|---|---|
| Compression | H.265 / H.265+; H.264 / H.264+ |
| Bit rate | 32 kbps – 16 Mbps |
Illumination-&-ir
| IR | Smart IR, EXIR 850 nm, up to ~30 m |
|---|
Audio-&-alarm
| Audio | Built-in microphone; -IS variant has 1 line in / 1 line out (terminal) |
|---|---|
| Alarm I/O | -IS: 1 alarm input / 1 alarm output (max 12 V DC, 20 mA) |
Storage-&-network
| Storage | microSD up to 512 GB; NAS (NFS/SMB); ANR support |
|---|---|
| Network | 10/100 Mbps Ethernet; ONVIF, ISAPI; Hik-Connect / iVMS / Hik-Central compatible |
Power-&-consumption
| Power | 12 V DC ±25% or PoE (IEEE 802.3af) |
|---|---|
| Power draw | Approx. 6.5 W (12 V DC) / max ~8 W (PoE) |
Physical
| Dimensions | Ø 113.6 mm × 72.6 mm |
|---|---|
| Weight | Approx. 400 g |
| Ingress / Impact | IP67 / IK08 |
Operating-conditions
| Temperature | -30 °C to +60 °C |
|---|
Model-&-lens-options
| Model identifier | DS-2CD2586G2-IS |
|---|---|
| Lens variants | 2.8 mm or 4 mm fixed lens options |
