Introduction: What the DS-2CD2683G2-IZS Offers

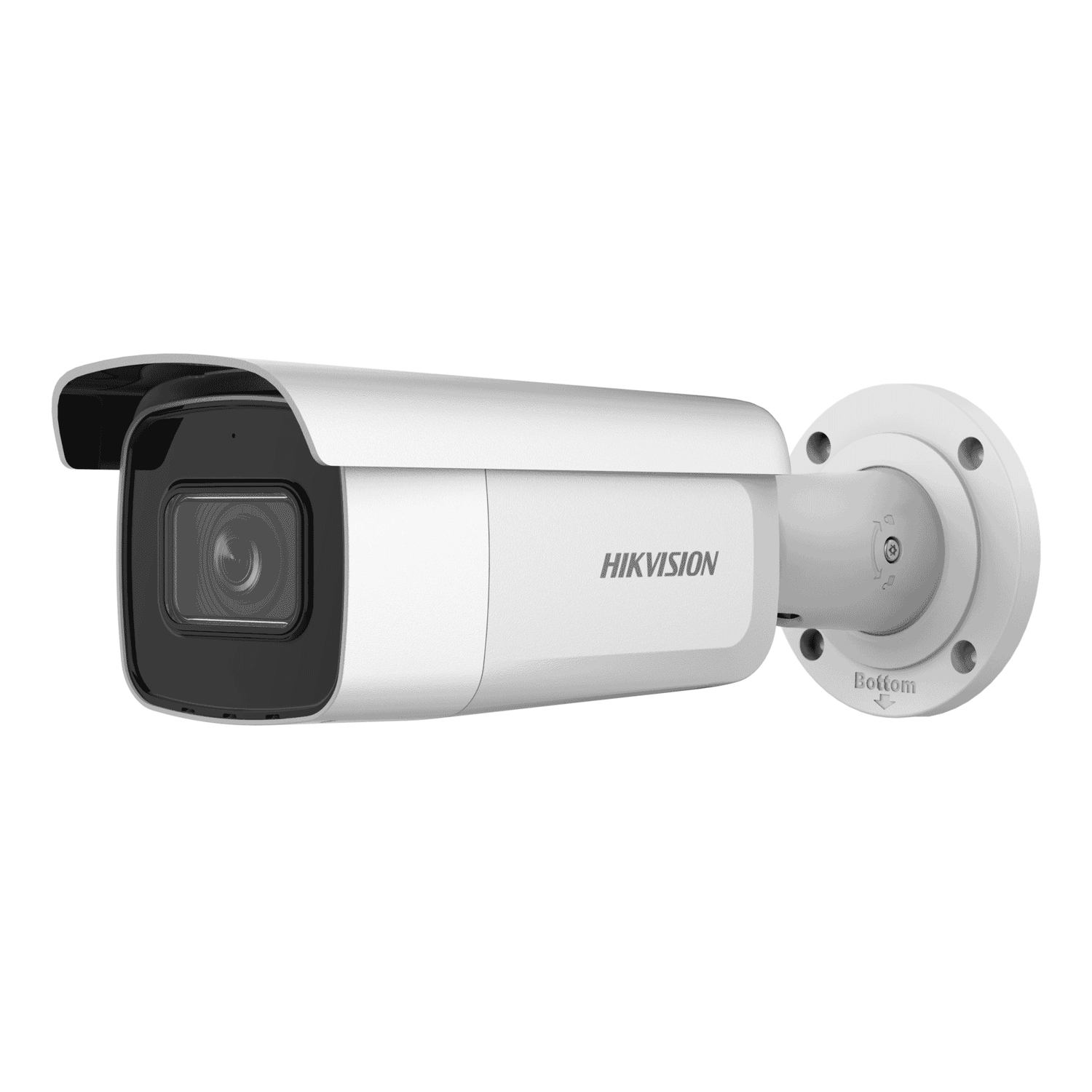

The DS-2CD2683G2-IZS is an 8 MP (4K) outdoor bullet network camera designed for professional perimeter, entrance and exterior surveillance. Combining a motorised 2.8–12 mm varifocal lens, onboard AcuSense deep‑learning analytics for human/vehicle classification, and rugged IP67/IK10 protection, it targets installations that demand high-resolution imaging, reliable event filtering and straightforward commissioning. Whether used by security integrators, facility managers or advanced DIY users, this camera balances image quality, intelligent detection and flexible installation options.
Key Features at a Glance
- 8 MP (3840×2160) 4K imagingfor detailed perimeter and license-plate area coverage.
- Motorised 2.8–12 mm varifocal lensallows remote zoom and focus—reducing time on ladders and simplifying commissioning.
- AcuSense analyticsfor on‑board human and vehicle classification to reduce false alarms.
- H.265+/H.265/H.264 compressionfor efficient storage and bandwidth use.
- 120 dB true WDRto handle scenes with high contrast lighting.
- Infrared night vision(vendor-listed up to ~50–60 m) for low-light operation.
- Flexible power options:PoE (802.3af) and 12 VDC support for versatile deployments.
- Ruggedised build:IP67 ingress protection and IK10 vandal resistance for exposed sites.
Detailed Specifications and Benefits
At the heart of the DS-2CD2683G2-IZS is a 1/2.8" progressive‑scan CMOS sensor that captures 3840×2160 (8 MP) resolution. The high pixel count delivers sharper detail at typical monitoring distances—helpful for recognition at gates, parking lots and service yards. The camera’s minimum illumination is low (colour: ~0.005 Lux at F1.6) and it switches to black-and-white with IR illumination for true zero‑lux scenes, providing consistent nocturnal performance up to the vendor‑listed IR range of roughly 50–60 m. In high-contrast conditions, the 120 dB true WDR balances bright and dark areas so faces and license plates remain legible.
The motorised varifocal 2.8–12 mm lens provides an approximate horizontal field of view from 108° down to 30°, enabling wide-area coverage or tighter long-range views without physically swapping lenses. Motorised controls let installers and administrators adjust zoom and focus remotely, cutting installation time and simplifying fine-tuning after mounting.
Efficient codecs (H.265+/H.265/H.264) lower storage and bandwidth requirements for high-resolution streams. Multi‑stream support (commonly up to three streams) allows a high‑resolution recording stream alongside lower‑resolution streams for remote viewing or mobile devices. Crucially, the onboard AcuSense analytics use deep‑learning models to classify human and vehicle targets. This significantly reduces false alarms caused by lighting changes, weather, animals or vegetation movement—so security teams and monitoring services can focus on verified events.
The camera supports common network protocols including ONVIF Profile S/G for easy integration into existing NVRs and VMS platforms. It offers multi‑streaming and local storage via microSD/SDHC/SDXC cards (reports suggest up to 256 GB), which can be useful as short-term buffering when network connectivity is intermittent. Standard RJ45 Ethernet (10/100 Mbps) carries video and PoE power in a single cable, simplifying wiring on new or retrofit sites.
Power options are flexible: PoE (802.3af Class 3) reduces the need for local power supplies, while 12 VDC input is available for sites without PoE. The camera housing is rated IP67 for weatherproofing and IK10 for vandal resistance, making it suitable for exposed outdoor locations where dust, rain and impact are concerns. Typical operating temperature range runs from about −30 °C to +60 °C—adequate for most temperate and many extreme environments.
Use Cases and Scenarios Where the Camera Excels
The DS-2CD2683G2-IZS is well suited to a range of professional and high-end residential applications where image clarity, reliability and false‑alarm reduction matter:
- Perimeter security:Large estates, industrial yards and warehouses benefit from the 4K sensor and varifocal lens for identifying intruders across wide fences and gates.
- Car parks and vehicle gates:The combination of AcuSense classification and detailed imaging makes this camera useful for detecting vehicle movement while reducing nuisance alerts from pedestrians or animals.
- Retail and storefront exteriors:High resolution and WDR help protect entrances and display areas from theft and vandalism while logging clear evidence for investigations.
- Commercial building entrances:Monitoring arrivals and deliveries with clear facial and plate detail—even in backlit scenes—helps security teams maintain situational awareness.
- Contractor and integrator projects:Motorised lens and PoE lower onsite labour costs and simplify commissioning across multiple units.
How It Compares With Similar Cameras
When evaluating the DS-2CD2683G2-IZS against other 4K bullet cameras or alternative surveillance approaches, several strengths and trade-offs emerge:
- Versus fixed‑lens 4K bullets:The motorised 2.8–12 mm lens provides superior flexibility over fixed lenses—allowing field‑of‑view adjustments post‑installation. Fixed‑lens units may be cheaper up front but can require physical replacements for different coverage.
- Versus PTZ cameras:PTZs offer active tracking and long-range zoom, but are more complex and costly. The DS‑2CD2683G2‑IZS is a simpler, always-on option that delivers ultra‑high resolution over a set patrol area without moving parts beyond the lens adjustments.
- Versus cameras without AI/analytics:The onboard AcuSense classification is a tangible advantage in reducing false alarms compared with basic motion detection—saving operator time and third‑party monitoring costs.
- Against competing brands:Many competitors offer similar 4K bullets with vari‑focus lenses and analytics. The deciding factors are commonly ecosystem compatibility (NVR/VMS support and ONVIF compliance), warranty and local support. If you already use Hikvision systems or NVRs that integrate AcuSense, the DS‑2CD2683G2‑IZS is an obvious fit; otherwise confirm analytic interoperability with your chosen platform.
Customer Feedback and Field Observations
Publicly available customer commentary for cameras in this class typically highlights a few recurring themes—these are useful to consider when assessing real-world performance:
- Installers and integrators frequently praise themotorised lensfor saving time during setup and reducing return visits for focus adjustments.
- End users often note theclarity of 4K footagefor recognition at moderate distances and the camera’s ability to retain detail in mixed lighting thanks to WDR.
- AcuSense analyticsare commonly cited as effective in cutting false alarms from animals and environmental motion; users still recommend tuning sensitivity and detection zones during commissioning for best results.
- Some site operators mention that real-world IR range and low‑light performance depend on mounting height, lens setting and ambient conditions—so expectations should be aligned with the specific deployment.
Note: These points summarize typical user observations for similar Hikvision AcuSense cameras. For product-specific reviews and testimonials, consult reseller listings and independent field reports where available.
Conclusion: Is the DS-2CD2683G2-IZS Right for Your Project?
The DS-2CD2683G2-IZS is a compelling choice where 4K detail, intelligent false‑alarm filtering and robust outdoor protection are priorities. It is particularly well suited to perimeter and parking areas, commercial entrances and professional installations where remote lens adjustment and PoE simplify deployment. Its AcuSense analytics help reduce the operational burden of alarm verification, while efficient codecs and multi‑streaming make it manageable for modern networked recording systems.
As with any surveillance purchase, confirm the specific variant (for example, the -S model that includes audio/alarm I/O), local regulatory markings (CE/UKCA) and the integrator compatibility you require. If those checks align, the DS-2CD2683G2-IZS offers a balanced mix of image quality, intelligence and durability—making it a strong option for many outdoor security applications.
Price note:Suggested retail pricing can vary by region and reseller; factor installation, storage and monitoring costs into total cost of ownership when comparing alternatives.
