Introduction to the product and its key features

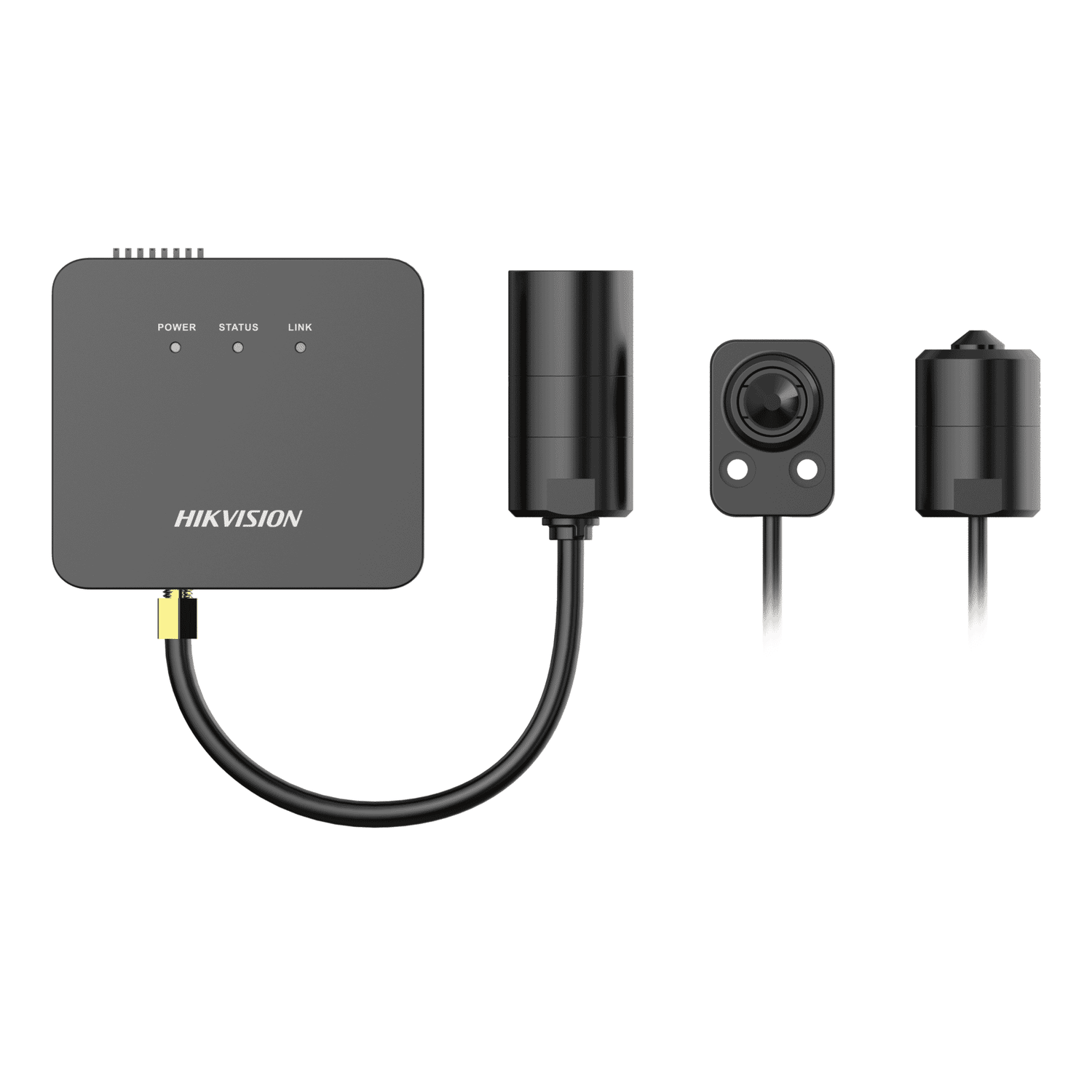

Hikvision DS-2CD6425G1-30 Pinhole IP Camera, 2 MP, 2.8 mm, 2 m Cable (SKU: ITM003190)is a compact, separated pinhole network camera designed for discreet indoor surveillance. Its small sensor head is connected to the main body by a 2 m cable, making it especially suited to concealment or flush installations where a conventional dome or bullet camera would be impractical. Key features include 2 MP Full HD resolution, a 2.8 mm fixed pinhole lens, PoE power, True WDR (~120 dB), efficient H.265 video compression, and support for local microSD storage up to 256 GB.
- 2 MP Full HD (1920 × 1080) at up to 25/30 fps
- Separated pinhole sensor head with 2 m cable for concealed mounting
- 2.8 mm fixed lens (wide field of view) and low-light sensitivity (~0.002 lux)
- True WDR (~120 dB) and 3D-DNR for balanced images in challenging lighting
- PoE (IEEE 802.3af) or 12 V DC power options; ONVIF compatibility
- Suggested price: 369.99 (check your local supplier for currency and availability)
Detailed description of specifications and benefits
The DS-2CD6425G1-30 uses a 1/2.8" progressive CMOS sensor to deliver 2 MP Full HD images at up to 25/30 fps. Modern codecs—H.265, H.264 and MJPEG—are supported (with H.265+ often available on compatible firmware), helping to reduce bandwidth and storage demands without sacrificing detail. True WDR (up to ~120 dB) helps the camera handle scenes with strong backlight or mixed illumination, while 3D-DNR reduces noise in low-light conditions. The camera’s quoted minimum illumination (~0.002 lux with AGC on) means it can capture usable colour images in very dim environments.
The 2.8 mm fixed pinhole lens supplies a wide horizontal field of view (typical H-FOV ≈ 93.9°–107.8°, depending on sub-model specifics), making it suitable for counters, lobbies and other medium-to-wide indoor areas. The pinhole form factor and small M12-style lens allow the sensor head to be mounted behind a small aperture in a surface or panel for inconspicuous observation. The aperture/optical performance (approx. f/2.0–f/2.5) balances depth of field and light gathering for reliable performance in varied interior lighting.
Local storage is supported via microSD/SDHC/SDXC cards up to 256 GB, enabling on-camera buffering or continuous recording without relying solely on network video recorders. The camera supports multiple streams (typically three), so you can send a high-resolution main stream to your NVR while feeding lower-resolution streams to mobile clients. Standard analytics—motion detection, tamper alarm, intrusion and line crossing—are built into the firmware; these allow flexible event-triggered recording and alerts. ONVIF compatibility helps integrate the camera into third-party VMS/NVR systems.
Network connectivity is provided via a single RJ45 10/100 Mbps port. Power can be supplied by PoE (IEEE 802.3af) for simplified installation and centralized power management, or via a 12 V DC input. The camera offers audio I/O and alarm I/O (model dependent), letting it interact with external devices such as speakers or alarms for two-way audio and event responses.
The main body is compact (approx. 69 × 77.5 × 26 mm) and lightweight (~90 g body only) while the sensor head is extremely small, enabling flush or hidden mounting behind a panel, wall, or fixture. The 2 m cable supplied with this SKU gives flexibility in positioning the main body where wiring and power access are easier, while keeping the sensor discreetly placed. Typical power consumption is modest (≈ 3.6–3.7 W), making it an efficient option for multi-camera deployments.
The camera is intended for indoor use with an operating temperature range from roughly -30 to 60 °C and up to 95% non‑condensing humidity. Check the official datasheet and product labelling for CE/UKCA and any other local certifications before installation. Follow local wiring regulations and engage a qualified electrician for any mains work; the separated design facilitates safer and neater installations when hiding the sensor head.
Use cases and scenarios where this product excels
- Retail point of sale and checkout counters: The small sensor head can be placed to capture faces and transactions without drawing attention or obstructing sightlines.
- Reception desks and service counters: Discreet monitoring of interactions while maintaining a non-intrusive customer-facing appearance.
- Concealed observation in fixtures and panels: The separated pinhole design suits mounting behind panels, ceilings or furniture where a visible camera is undesirable.
- ATM or kiosk monitoring (indoor installations): Captures customer faces and activity close to the terminal where camera visibility is limited.
- Evidence capture in narrow or recessed locations: The small head fits into tight spaces where conventional cameras cannot be positioned.
- Installer-friendly deployments: PoE simplifies powering multiple units; ONVIF ensures compatibility with a broad range of NVRs and VMS platforms.
Comparisons with similar products on the market
When evaluating the DS-2CD6425G1-30 it helps to compare by category rather than only by brand. Compared with standard dome or bullet IP cameras, the separated pinhole model offers a clear advantage for concealment and flush installations—where conventional housings are too obvious or bulky. A dome camera may provide similar or higher resolution, but it cannot be hidden behind small apertures.
Against wireless battery-powered mini cameras, this Hikvision unit benefits from continuous wired power (PoE or 12 V DC), higher sustained image quality, better low-light performance and local analytics. Battery cams offer portability and zero wiring but sacrifice long-term reliability, constant recording and often image fidelity.
Within the pinhole camera category, the DS-2CD6425G1-30 stands competitively by combining a 2 MP sensor, True WDR (~120 dB), H.265 compression and multi-streaming with ONVIF support—features that make it easy to integrate into professional systems. If you compare to similarly specified pinhole models from other manufacturers, look for equivalent WDR performance, low-light sensitivity, codec support and local storage limits; these attributes drive real-world performance more than marketing names alone.
Customer testimonials and expected feedback
There are no direct customer testimonials provided here for this specific SKU. However, installers and end users commonly highlight the following advantages based on the camera’s design and feature set:
- Installers appreciate the separated head and 2 m cable for flexible mounting and neater cable runs.
- Retail managers value the discreet profile that captures transaction areas without creating an intrusive presence.
- System integrators often note that PoE plus ONVIF compatibility simplifies deployment into mixed-brand systems.
Potential drawbacks mentioned in general discussions about pinhole cameras include the need for careful placement to avoid obstruction, and ensuring compliance with privacy and signage laws where concealed cameras are used. Also check warranty terms with your supplier—this SKU lists warranty information as 0 in the supplied data, so confirm protection and support before purchasing.
Conclusion: Why choose the Hikvision DS-2CD6425G1-30?
The Hikvision DS-2CD6425G1-30 is a focused solution for indoor environments that require discreet, high-quality surveillance. It combines Full HD 2 MP imaging, wide-angle pinhole optics, strong low-light capability and True WDR with efficient H.265 compression and local storage support. The separated sensor head and 2 m cable make it particularly useful for concealment or flush-mounted installations that standard cameras cannot accommodate.
For installers seeking a compact, professional pinhole camera that integrates into PoE networks and major VMS platforms, this model is a practical choice. As with any security purchase, confirm the exact sub-model, warranty and certification details with your supplier, and ensure installation complies with local laws and wiring regulations. When used appropriately, the DS-2CD6425G1-30 delivers reliable, discreet imaging for retail, reception, kiosk and other indoor surveillance applications.
