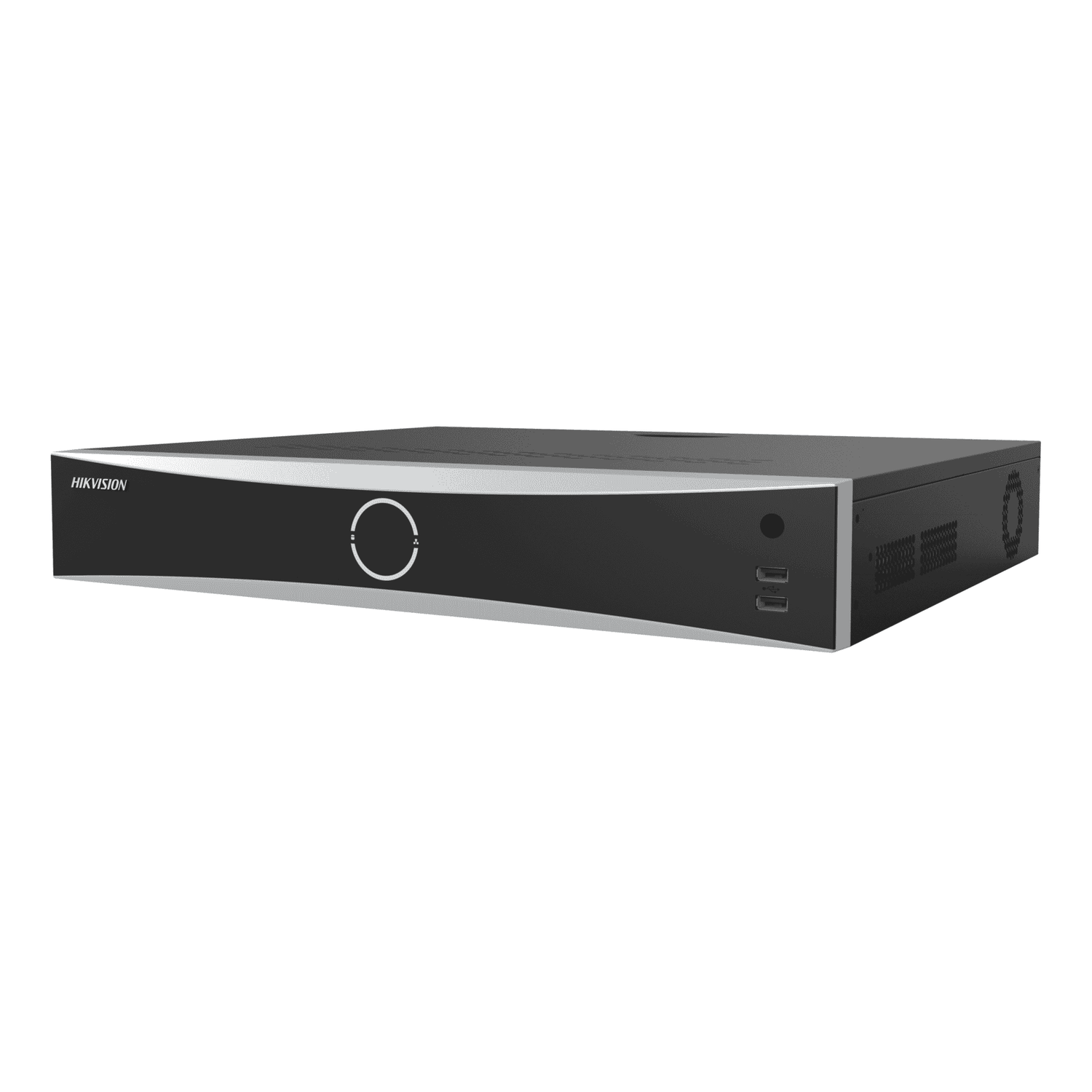

Introduction to the 32‑Channel AcuSense 4K NVR (DS-7732NXI-I4/S(E))
The DS-7732NXI-I4/S(E) is a 1.5U rack-mount network video recorder built for medium-to-large IP CCTV deployments. Combining 32 IP channel inputs with Hikvisions AcuSense deep-learning analytics, 4K HDMI output and four hot-swap SATA bays, this NVR targets installations that demand high-quality local recording, smart perimeter protection and flexible storage. It supports modern video codecs (H.265+/H.265/H.264), dual 1GbE networking and multiple video outputs, making it a capable central recorder for retail, logistics, corporate, and multi-site security systems.
Key features at a glance
- Channels:Up to 32 IP channels (model-dependent).
- Analytics:AcuSense deep-learning analytics including perimeter protection (human/vehicle), Motion Detection 2.0 and facial detection/face-picture comparison.
- Video & output:Supports H.265+/H.265/H.264 codecs with HDMI1 capable of 4K (3840×2160@60Hz) output and additional HDMI/VGA outputs for flexible monitoring.
- Storage:4 hot-swap 3.5" SATA bays plus eSATA for external expansion.
- Networking:Dual 1GbE ports, up to 256 Mbps inbound/outbound bandwidth and support for up to 128 remote connections.
- I/O:Rich alarm I/O (16 inputs, 4 outputs), USB (front 2x USB2.0, rear USB3.0), RS-485/RS-232 and audio in/out.
Detailed specifications and benefits
The DS-7732NXI-I4/S(E) comes in a 1.5U 19" rack-mount chassis (approx. 445 × 400 × 75 mm, weight ≤ 5.6 kg without HDD). Its compact rack footprint suits equipment racks in server rooms and small cabinet installations while preserving four hot-swap HDD bays for straightforward maintenance and drive replacement.
This NVR supports modern codecs including H.265+ and H.265 alongside H.264+/H.264. H.265+ reduces storage and bandwidth requirements versus legacy codecs, enabling longer recording retention on the same disk space. The recorder accepts high-resolution inputs (up to 32 MP/24 MP/12 MP depending on configuration), though ultra-HD modes may limit very high-resolution streams to channel 1. On the decoding side it provides up to 16 channels of 1080p decoding at 30 fps and 16-channel synchronous playback, which is adequate for multi-feed live monitoring and evidence review.
AcuSense analytics are a standout: deep-learning based perimeter protection filters out many false alarms by distinguishing humans and vehicles from other motion triggers. Motion Detection 2.0 further refines event detection, while facial detection and face-picture comparison add value for access control and loss prevention scenarios. These analytics reduce nuisance alarms and help operators focus on genuine incidents, saving time and improving response efficiency.
Local storage comprises four hot-swap 3.5" SATA HDD bays, giving on-site retention and simple drive servicing. An additional eSATA port allows external archive expansion. The NVR supports large per-disk capacities (see datasheet for exact maximums), and when combined with H.265+ compression, it provides a cost-effective, scalable recording platform for longer retention periods without immediate cloud dependency.
Two RJ-45 10/100/1000 Mbps ports provide network redundancy or link aggregation options to increase throughput. With up to 256 Mbps inbound and outbound bandwidth, the DS-7732NXI-I4/S(E) can handle many concurrent high-resolution streams, though planning bandwidth allocation is essential for large installations. Protocol support includes TCP/IP, DHCP, IPv4/IPv6, RTSP, ONVIF and HTTPS for broad device compatibility and secure remote access. The recorder also accommodates up to 128 simultaneous remote connections for viewing and management.
Rich alarm I/O (16 inputs and 4 outputs), serial ports (RS-485/RS-232) and audio RCA in/out enable integration with external sensors, PTZ control, access control gear and two-way audio. Front and rear USB ports facilitate local backup and mouse/keyboard control, while multiple video outputs let security teams monitor local displays and operator stations simultaneously.
Use cases and scenarios where this NVR excels
- Retail and shopping centres:The combination of AcuSense perimeter filtering and facial detection helps loss prevention teams identify suspicious behaviour and match faces against watchlists while reducing false alarms from store traffic and environmental motion.
- Office buildings and campuses:Centralised recording for multiple buildings with local high-resolution playback, perimeter protection for after-hours intrusions and facial detection for visitor management.
- Logistics and warehouses:High channel counts, 4K output for visual verification and robust storage make this NVR suitable for large indoor yards and storage facilities where evidence-grade footage and long retention matter.
- Multi-site deployments:With ONVIF support and up to 128 remote connections, the recorder works well as part of a central management strategy for several sites, especially where local retention and analytics are required at each location.
- Professional monitoring and control rooms:4K HDMI output and multi-channel decoding for live walls enable control rooms to view crisp, simultaneous feeds and perform effective incident review.
Comparisons with similar products on the market
When evaluating the DS-7732NXI-I4/S(E) against alternatives, consider these broad points:
- VS lower-channel NVRs (8–16 ch):The 32-channel capacity scales much better for medium-to-large sites. Smaller NVRs can be more cost-effective for small shops or homes, but they lack the channel density, analytics capacity and I/O available here.
- VS integrated PoE NVRs:Many PoE NVRs include switch ports on the chassis for camera power. The DS-7732NXI-I4/S(E) is a non-PoE recorder (verify SKU), so it suits installations where PoE switching is provided separately, offering flexibility in network design and switch placement.
- VS enterprise-tier recorders:High-end enterprise recorders may offer more HDD bays, higher throughput and redundant power supplies. The DS-7732NXI-I4/S(E) strikes a balance for customers that need advanced analytics and 4K output without the added complexity and cost of full enterprise redundancy.
- VS cloud/NVR-as-a-Service:Cloud recording removes on-site hardware maintenance but incurs ongoing costs and requires significant upstream bandwidth. This NVR emphasizes local retention, lower recurring costs and the ability to store high-resolution video on-site while still supporting remote connections.
Overall, this NVR is positioned for customers who want advanced analytics, high channel counts and flexible local storage, without moving into the highest-cost enterprise class.
Customer feedback and typical reviewer impressions
While specific customer testimonials for this SKU may vary, common themes reported by integrators and end-users of similar Hikvision AcuSense recorders include:
- Positive:Effective reduction of false alarms thanks to AcuSense human/vehicle filtering; clear 4K HDMI output for evidence review; easy HDD replacement with hot-swap bays; solid codec efficiency with H.265+; good value relative to feature set.
- Constructive notes:Confirm SKU details before purchase (PoE vs non-PoE); plan network and disk capacity carefully for ultra-HD deployments; professional installation is often recommended to maximise analytics tuning and integration.
Example summarised feedback: "Installers like the hot-swap bays and analytics — it speeds maintenance and greatly cuts down false alarms. For sites needing lots of channels and smart detection, it hits the sweet spot between price and capability." These representative comments capture the typical strengths and considerations reported in trade feedback.
Conclusion: Why the DS-7732NXI-I4/S(E) is a strong choice
The DS-7732NXI-I4/S(E) 32-channel AcuSense NVR blends high channel density, contemporary codecs and deep-learning analytics into a compact rack-mount recorder. Its combination of H.265+ efficiency, AcuSense perimeter and facial detection, 4K HDMI output, and four hot-swap bays makes it a practical choice for retail, logistics, campus and multi-site environments that require reliable local recording and actionable alarms. Dual 1GbE ports and broad protocol support ensure compatibility within modern IP CCTV architectures, while the balanced hardware spec keeps costs lower than full enterprise class appliances.
For organisations that prioritise intelligent alarm filtering, clear monitoring and flexible on-site storage without paying for redundant enterprise features, the DS-7732NXI-I4/S(E) is a compelling option. As with any professional security installation, verify the exact SKU variant, plan network and storage requirements according to camera resolutions and retention needs, and consider professional commissioning to tune analytics for the best operational results.
Quick reference:32-ch AcuSense 4K NVR, 4hot-swap SATA bays, dual 1GbE, H.265+ support and advanced human/vehicle & facial analytics — ideal for medium-to-large IP CCTV deployments that need smart detection and robust local recording.
