Introduction to the Hikvision DS-2CD2066G2H-IU

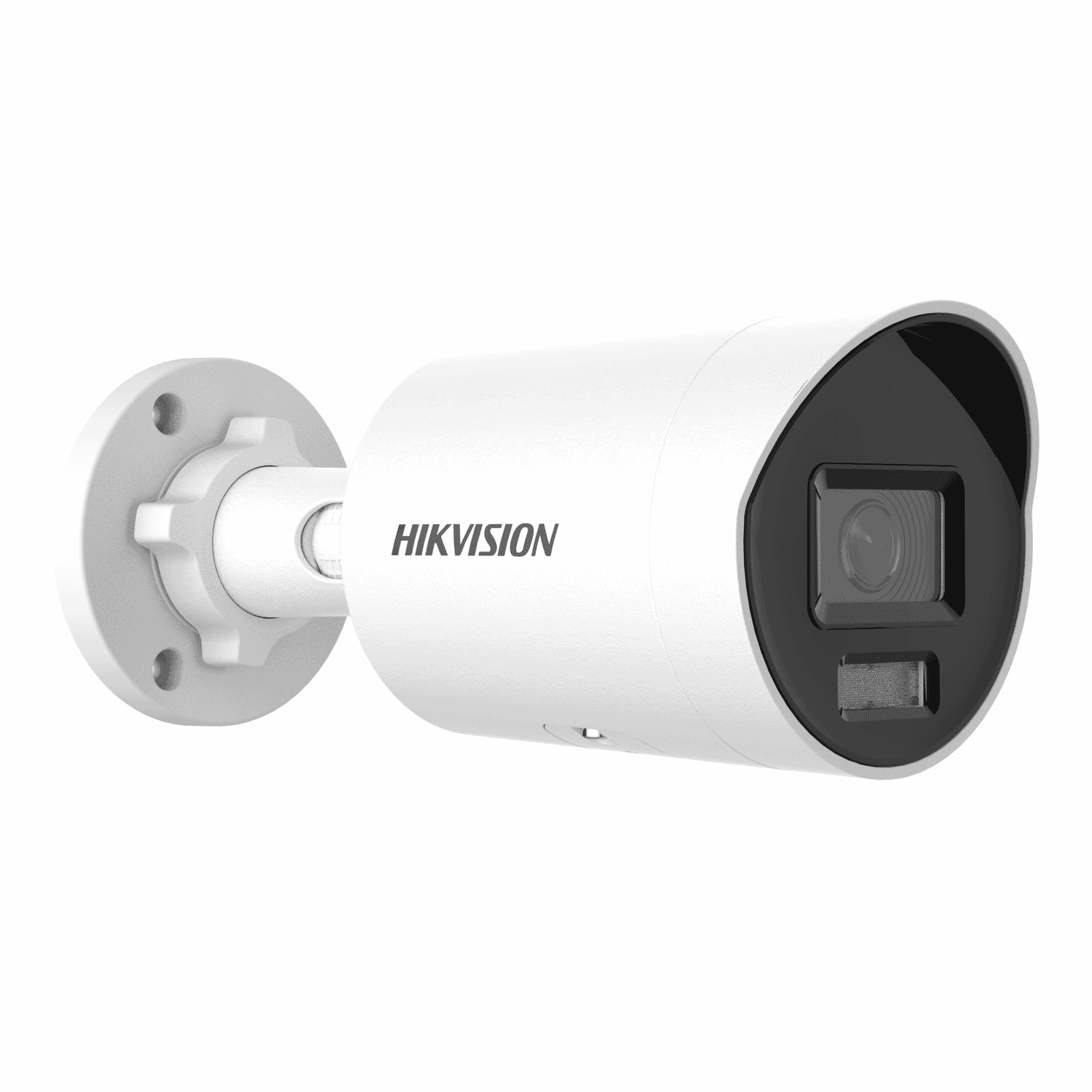

The Hikvision DS-2CD2066G2H-IU is a compact, high-resolution mini bullet IP camera designed for demanding outdoor surveillance applications. Packing a 6 MP (3200 × 1800) Progressive Scan CMOS sensor together with Hikvision's DarkFighter low-light technology and AcuSense deep-learning analytics, this camera aims to deliver clear daytime and night-time images while reducing nuisance alarms. Key hardware highlights include a fixed 2.8 mm lens (≈114.8° horizontal field of view), IP67-rated metal housing for weather resistance, PoE support for simplified installation and a built-in microphone for on-site audio capture.
Detailed specifications and benefits
The DS-2CD2066G2H-IU uses a 1/2.4" Progressive Scan CMOS sensor to achieve a 6 MP resolution (3200 × 1800). A wide aperture (F1.0) and DarkFighter sensor technology enable colour imaging at very low illumination levels (approximately 0.001 lux with AGC on) and 0 lux with IR assistance. The built-in Smart IR provides night illumination to around 40 m (850 nm), and the fixed 2.8 mm M12 lens offers an expansive ≈114.8° horizontal field of view — useful for covering wide entrances, sidewalks or parking lanes from a single mounting point.
To balance image quality with bandwidth and storage constraints, the camera supports modern compression codecs including H.265+/H.265 as well as H.264+/H.264 and MJPEG substreams. The camera also features 120 dB True WDR (wide dynamic range) to handle scenes with both bright and dark areas — for example, a well-lit doorway next to a shadowed alley. Local edge storage is supported via microSD/SDHC/SDXC cards (consult the datasheet for maximum supported capacity), giving an added layer of redundancy or independent recording when network storage is unavailable.
A standout feature is AcuSense deep-learning human/vehicle classification. This on-device analysis filters out common causes of false alarms — such as moving trees or small animals — allowing security teams to focus on relevant events. The -IU variant adds a built-in microphone for audio capture (typical codecs include G.711/AAC/MP3 — check the datasheet for specifics). Network connectivity is standard Ethernet with PoE (IEEE 802.3af) support for single-cable power and data, and ONVIF compatibility helps with integration into third-party NVRs and VMS platforms.
Power options are flexible: 12 VDC (±25%, about 0.58 A, max ≈ 7 W) or PoE (IEEE 802.3af). The weatherproof metal housing and IP67 ingress rating make the camera suitable for outdoor mounting in exposed locations. Some environmental details such as operating and storage temperature ranges and region-specific regulatory markings are listed as "insufficient data" in the supplied specification set — always consult the official Hikvision datasheet and installation guide for full guidance, including regional approvals and firmware compatibility.
Use cases and scenarios where this camera excels
The combination of high resolution, wide field of view, low-light colour capability and intelligent alarm filtering makes the DS-2CD2066G2H-IU a versatile choice for many environments. Typical applications include:
- Retail storefronts and mall entrances — capture wide scenes for loss-prevention and customer behaviour analysis while retaining detail for identification.
- Car parks and driveways — 6 MP detail helps with licence plate clarity at short to medium ranges, while the wide HFOV covers more lanes per camera.
- Perimeter and gate monitoring — AcuSense reduces false alarms from animals or foliage, focusing alerts on human or vehicle movements.
- Small-to-medium commercial sites — PoE simplifies installation for properties without nearby power outlets and supports remote management via NVR or VMS.
- Residential driveways and entrances — the compact bullet form factor and IP67 rating handle exposed mounting points while delivering clear low-light colour images.
For integrators, the camera’s combination of edge storage, ONVIF support and audio capture make it a flexible component in mixed systems, from small standalone setups to larger enterprise deployments with centralized NVRs.
How it compares with similar cameras on the market
When evaluating the DS-2CD2066G2H-IU, it helps to compare the core capabilities rather than focus solely on brand. Key differentiators include resolution, low-light performance, analytics and build quality.
- Resolution:Many conventional outdoor cameras offer 2 MP (Full HD) or 4 MP resolution. The 6 MP sensor provides noticeably more detail, which can improve identification and forensics for medium-distance scenes, though it also demands more storage and slightly greater network bandwidth unless efficient codecs like H.265+/H.265 are used.
- Low-light imaging:DarkFighter technology emphasises retaining colour information at very low lux levels compared with standard sensors that switch to monochrome IR-only modes earlier. This can be particularly valuable where colour cues (vehicle colour, clothing) are important during low-light hours.
- Analytics:AcuSense human/vehicle classification reduces false positives compared with cameras that only offer motion detection. This lowers the burden on monitoring staff and improves the signal-to-noise ratio of alarm notifications.
- Form factor and durability:The mini bullet metal housing and IP67 ingress rating make it robust for outdoor sites; some dome-style alternatives may be more discreet but could trade off the same range or simpler IR illumination patterns.
Choosing between this Hikvision model and competitors should weigh the need for higher resolution and advanced analytics against cost, network capacity and the specific environmental requirements of the site. For many outdoor applications where low-light colour imaging and nuisance alarm reduction are priorities, the DS-2CD2066G2H-IU represents a strong balance of features.
Customer feedback and field impressions
Specific formal testimonials for this exact model were not supplied alongside the technical data. However, common feedback themes reported by installers and end users for cameras with similar feature sets typically include:
- Positive comments on low-light performance — users often note that DarkFighter-equipped cameras retain useful colour detail in conditions where older sensors would be monochrome or blurry.
- Appreciation for AcuSense — reduced false alarms from wind, rain or small animals is frequently highlighted as a major operational benefit, especially for remote monitoring setups.
- Ease of installation — PoE capability and a compact bullet form factor usually lead to faster deployments and tidy cable runs.
- Notes of caution — some integrators remind prospective buyers to verify regional firmware versions, check the maximum supported microSD card size, and confirm local regulatory markings (CE/UKCA) if required by project specifications.
If you require verbatim customer reviews or ratings, ask the supplier or consult reseller pages and independent review sites to view hands-on reports for this specific model and firmware version.
Pricing, warranty and practical considerations
The supplied cost price is 111.46 with a suggested price of 129.29. The currency was not specified in the data provided, so confirm whether these figures are USD, EUR, GBP or another currency before finalising budgets or margins. The specification set lists warranty as 0 — please confirm warranty terms with the vendor or manufacturer, as typical commercial cameras often carry manufacturer or reseller warranties that vary by region.
Other practical considerations prior to purchase include checking the camera’s operating temperature range for your climate, confirming supported microSD card capacities, ensuring ONVIF profile compatibility with your chosen NVR/VMS and verifying that the latest firmware addresses any known vulnerabilities or interoperability issues.
Conclusion: why choose the DS-2CD2066G2H-IU?
The Hikvision DS-2CD2066G2H-IU mini bullet camera combines a high-resolution 6 MP sensor, DarkFighter low-light technology, AcuSense analytics and a rugged IP67 metal housing into a compact package. It is particularly well suited to outdoor sites where wide coverage and low-light colour detail matter, and where reducing false alarms is a priority. With PoE support, H.265+ compression and built-in audio, it is flexible enough for standalone edge-recording deployments or integration into larger surveillance systems.
Before purchasing, confirm regional compliance, warranty and firmware details with your supplier, and ensure your network and storage design can accommodate 6 MP streams (or use substreams and efficient compression to optimise bandwidth). For projects that demand improved identification in low light and smarter alarm handling for human and vehicle detection, the DS-2CD2066G2H-IU is a compelling choice.
