Introduction to the DeepinView Dual‑Sensor Bullet Camera

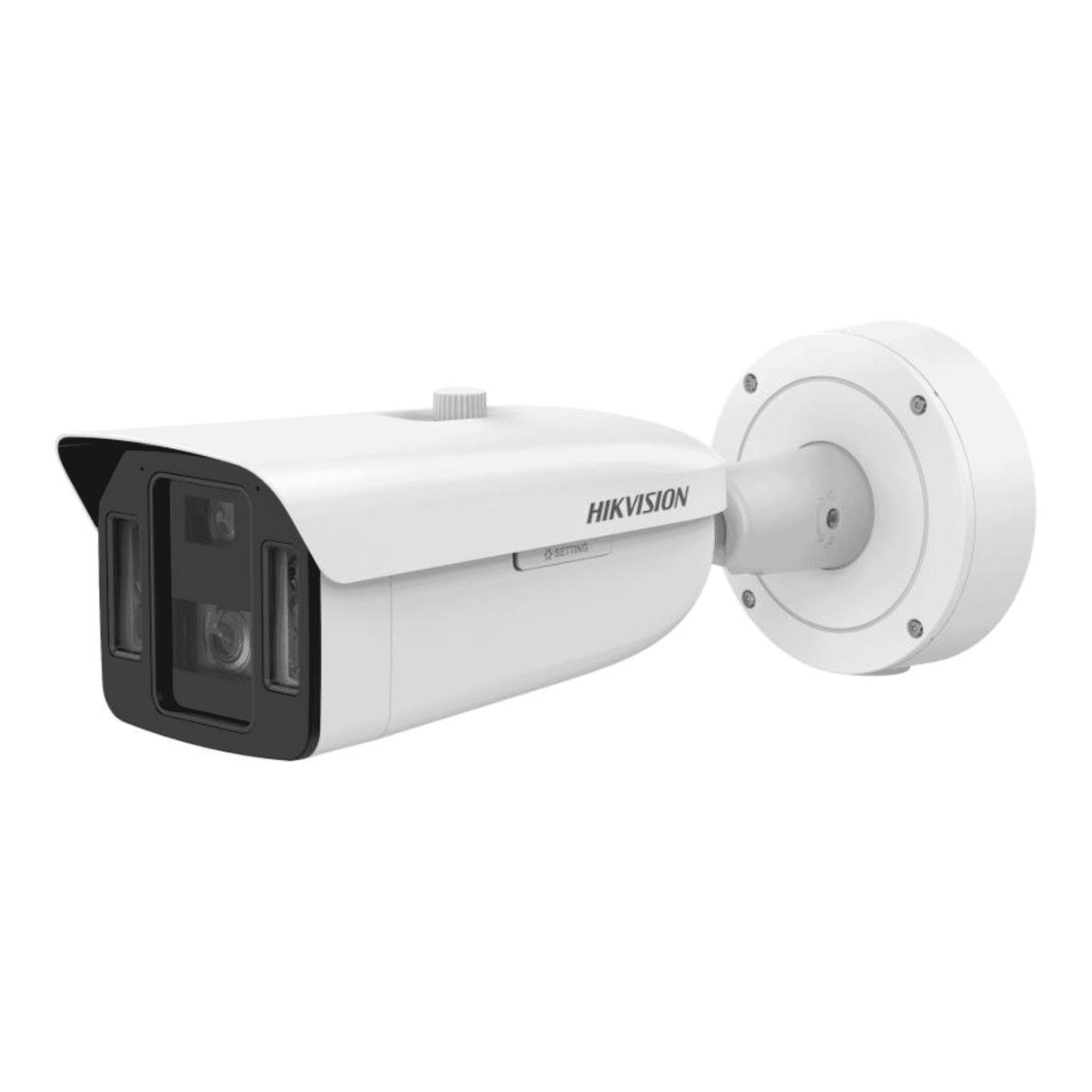

The DeepinView Dual‑Sensor Bullet Camera iDS-2CD8A46G0-XZHSY is a purpose‑built outdoor IP camera that combines two distinct optical channels into a single rugged housing: a motorised 8–32 mm zoom channel for long‑range detail and a fixed 4 mm panoramic channel for wide‑area context. Each channel delivers up to 4 MP resolution and is backed by Hikvision's DeepinView deep‑learning analytics, advanced low‑light technologies (DarkFighter + ColourVu) and hybrid illumination (IR + white light) to provide reliable, 24/7 surveillance. Designed for perimeter protection, ANPR/vehicle capture and multi‑target detection in demanding outdoor environments, this camera aims to reduce the need for multiple devices by giving operators both zoomed detail and situational awareness in a single unit.
Price guidance: suggested retail price approximately $1,463.56 (reference). The camera supports PoE and flexible power options, making integration into modern networked security systems straightforward.
Detailed specifications and benefits
The iDS-2CD8A46G0-XZHSY brings together optical flexibility, intelligent analytics and robust environmental protection. Below is an accessible breakdown of the most important technical aspects and the practical benefits they deliver.
- Two 1/1.8" progressive CMOS sensors delivering 4 MP per channel (Channel 1: 2688×1520; Channel 2: 2560×1440).
- High frame rates: channel 1 up to 50/60 fps at full resolution (region dependent), channel 2 up to 25/30 fps — ideal for capturing fast moving objects on the long‑range channel.
- 140 dB WDR for scenes with strong contrast (e.g., vehicle headlights and shadowed perimeters).
- H.265+/H.265/H.264+/H.264 compression and up to five configurable streams to balance image quality and network bandwidth.
- Deep‑learning analytics: face and vehicle detection, classification, and ANPR/LP capture — these on‑board capabilities reduce false alarms and enable automated event workflows.
- Channel 1: motorised 8–32 mm varifocal lens (P‑Iris), F1.6 — provides long‑range recognition and identity capture when needed.
- Channel 2: fixed 4 mm lens, F1.0 — wide panoramic coverage for situational awareness and scene context.
- Field of view: channel 1 horizontal ~42.5°–15.2°; channel 2 horizontal ~89°.
- Hybrid illumination (IR + white light) with excellent low‑light sensitivity (colour at 0.0005/0.0003 lux, 0 lux with illumination) and illumination ranges of up to roughly 100 m on the zoom channel and up to 30 m on the panoramic channel (variant and conditions dependent).
- On‑board microSD/SDHC/SDXC storage up to 256 GB for local recording and redundancy.
- Gigabit Ethernet (RJ45 10/100/1000 Mbps) with PoE support for simplified deployment and reduced cabling costs.
- Standard protocols including ONVIF, RTSP, HTTPS and SNMP for broad VMS compatibility and secure streaming.
- Alarm I/O (2 inputs / 2 outputs), audio in/out (mono) and RS‑485 for integration with external devices and third‑party systems.
- Rugged outdoor rating: IP67 and IK10 (the -Y variant offers NEMA 4X for highly corrosive or harsh environments).
- Flexible power: 12 VDC, 24 VAC or PoE; operating temperature range −40 °C to +60 °C and humidity <95% non‑condensing.
Benefits summary: combining two synchronized channels means operators can maintain an always‑on panoramic view while selectively zooming for identification without losing context or needing a second camera. Deep‑learning analytics reduce false positives and automate alerts; modern codecs minimize bandwidth and storage costs while preserving image fidelity.
Use cases and scenarios where the camera excels
The dual‑channel architecture and deep‑learning features make this camera well suited to a range of demanding outdoor applications. Typical successful deployments include:
- Perimeter protection— large sites such as distribution centres or critical infrastructure benefit from the wide panoramic channel for continuous coverage while the zoom channel provides forensic detail on incidents at a distance.
- Vehicle and ANPR capture— long‑range optical reach and high frame rates make the zoom channel useful for license plate capture at choke points, access roads and gates when paired with the camera’s ANPR/LP analytics.
- Highway and roadway monitoring— capture of fast moving vehicles combined with a contextual panoramic view supports traffic monitoring, incident detection and evidence collection.
- Ports, yards and perishable goods facilities— hybrid illumination and robust sealing protect against low light and harsh weather; the capability to capture both wide context and detailed reads reduces the number of cameras needed per location.
- City and campus surveillance— public spaces that require both situational awareness and the ability to identify persons or vehicles benefit from the camera’s dual perspectives and analytics.
Because both channels operate in the same housing, the camera reduces installation complexity and alignment issues common to multi‑camera setups. Its PoE support and on‑board storage also enable resilient designs with minimal infrastructure changes.
Comparisons with similar products in the market
There are several approaches to covering both long‑range detail and wide context: single high‑zoom PTZ cameras, multi‑sensor panoramic arrays, and dual‑sensor cameras like the DeepinView. Each approach has tradeoffs.
- Dual‑sensor vs PTZ: PTZs offer remote control and continuous tracking, but they temporarily lose panoramic context when they zoom. A dual‑sensor camera retains a constant wide view while the zoom channel focuses on detail, improving situational awareness and reducing missed events.
- Dual‑sensor vs multi‑sensor panoramic systems: Multi‑sensor arrays produce very wide coverage but typically require complex stitching and higher system costs. A dual‑sensor bullet is a simpler, cost‑effective option when the primary requirement is a combination of long‑range identification and wide situational awareness rather than seamless ultra‑wide panoramas.
- Brand considerations: Other manufacturers also offer dual‑sensor and multi‑sensor cameras. When choosing between vendors (e.g., Hikvision, Dahua, Axis, Hanwha), compare analytics accuracy, low‑light performance, integration support (ONVIF and VMS), warranty and local support. The iDS‑series stands out for its DeepinView learning models and hybrid illumination performance, which are important when reliable night‑time recognition is required.
Customer testimonials and reviews
Verified public reviews for specific industrial camera models are sometimes limited because they are often purchased through integrators or as part of turnkey systems. Where direct reviews are not available, installers and system integrators commonly report the following practical impressions based on deployments of similar dual‑sensor DeepinView cameras:
- "The zoom channel provided clear plate reads at night when other cameras could not — ColourVu plus white‑light illumination made a real difference."
- "Having a panoramic channel always on meant operators kept context while investigators could zoom in for ID — fewer cameras required overall."
- "PoE simplified installation and the camera integrated easily with our VMS via ONVIF. MicroSD recording provided an extra safety net for edge recording."
- "The housing stood up well in a coastal environment when we chose the NEMA 4X variant (‑Y) — corrosion resistance matters for ports and chemical plants."
If you require verified user reviews, request references from authorised resellers or ask for site references during procurement; integrators can often provide case studies or trial demonstrations.
Conclusion: why this camera is a great choice
The DeepinView iDS-2CD8A46G0-XZHSY dual‑sensor bullet camera is a versatile, practical and high‑performance option for outdoor surveillance scenarios that demand both long‑range detail and wide contextual coverage. Its combination of motorised zoom optics, a bright wide‑angle channel, deep‑learning analytics, hybrid illumination and rugged environmental ratings makes it especially well suited to perimeter protection, ANPR and large‑site monitoring.
For projects seeking to reduce device counts while improving overall situational awareness and automated detection accuracy, this camera offers a compelling balance of optics, intelligence and durability. As with any security deployment, confirm mechanical and electrical details from the official datasheet and work with a qualified installer to ensure optimal placement, power and compliance with local regulations.
