Introduction — What the DS-2CD6D52G0-IHS PanoVu camera offers

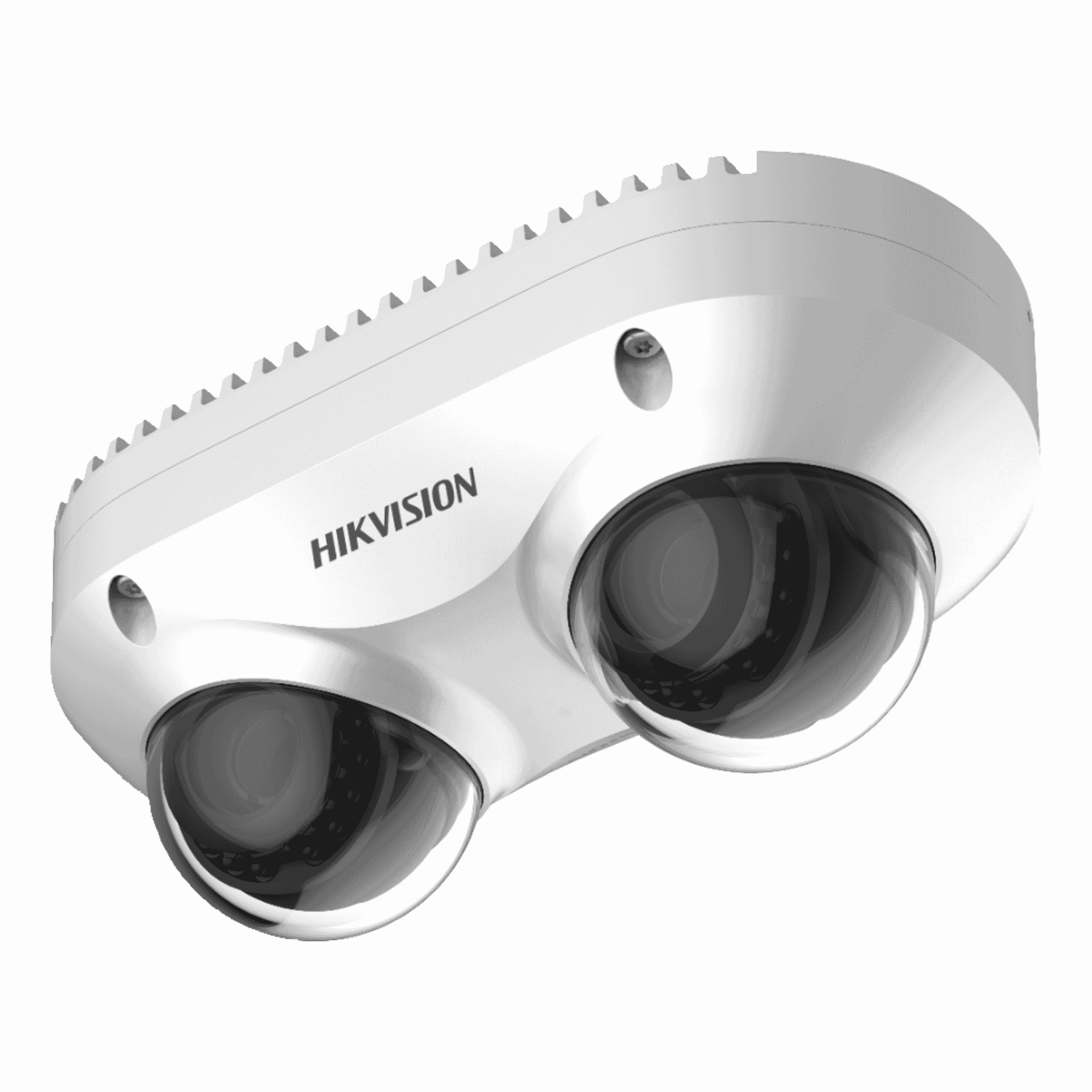

The DS-2CD6D52G0-IHS Dual‑Lens PanoVu IP Camerais a purpose-built outdoor surveillance camera that combines two 5 MP sensors into a single housing to deliver wide panoramic or dual‑direction coverage from one mount point. Designed for perimeter monitoring, car parks, building fronts and other outdoor applications, this PanoVu unit brings high resolution, robust weather and vandal resistance (IP67 / IK10), efficient video compression and on‑board analytics into a compact, installer‑friendly package. With PoE support, built‑in heater for cold starts, and microSD/NAS storage options, it aims to reduce the number of cameras needed while improving situational awareness and lowering system complexity.
Key features at a glance
- Dual 5 MP sensors (2 × 2560 × 1920)— provides a combined panoramic field of view or two independent wide views from a single housing.
- 2.8 mm fixed lens (F1.6)with a horizontal FOV of 97° per sensor for broad coverage.
- Advanced video compression— H.265+/H.265/H.264+/H.264/MJPEG to reduce bandwidth and storage costs.
- Image enhancement— 120 dB true WDR, 3D DNR, BLC/HLC and defog improve clarity in challenging lighting and weather.
- Rugged outdoor build— IP67 and IK10 rating for dust/water ingress and vandal resistance.
- Smart analytics— onboard detection events such as line crossing, intrusion, object removal and unattended baggage.
- Flexible power and storage— PoE (802.3af) or 12 VDC power; microSD up to 256 GB and NAS support.
Detailed specifications and benefits
This model pairs two 1/2.7" progressive scan CMOS sensors, each delivering a 5 MP image (2560 × 1920). The twin sensors enable either a stitched panoramic view for uninterrupted coverage or independent dual feeds to monitor two directions simultaneously — a big advantage where one mounting point must cover a broad stretch (for example, a building façade and adjacent sidewalk).
- 2.8 mm lenses (F1.6) deliver a 97° horizontal field of view per sensor, making them well suited to medium‑range panoramic monitoring without severe distortion.
- Minimum illumination values are low (colour 0.009 lux, B/W 0.0018 lux) and IR illumination up to ~10 m ensures usable images in very low light; with IR off, the camera still performs well in twilight and low‑light scenes.
- 120 dB true WDR helps retain detail where bright skies and deep shadows coexist — important for entrances, gates and vehicle approaches where both shadow and glare are common.
- H.265+/H.265 compression significantly lowers bandwidth and storage compared with H.264, making high‑resolution panoramic video economical for longer retention periods.
- Up to three independent streams with ROI support let integrators deliver a high‑quality stream to the NVR while sending lower bitrate streams to mobile devices or cloud services.
- On‑board microSD/SDHC/SDXC storage to 256 GB plus NAS support (NFS/SMB/CIFS) provide flexible recording architectures and redundancy options.
- ONVIF (S/G/T) and common streaming protocols (RTSP, HTTPS) ensure compatibility with modern VMS/NVR platforms and third‑party devices.
- Smart analytics (line crossing, intrusion, object removal, unattended baggage) run on the camera, reducing false positives and enabling edge detection without constant server processing.
- Built‑in audio with two microphones allows ambient sound capture; useful for investigations and live monitoring where local audio is permitted by law.
- IP67 ingress protection and IK10 vandal resistance mean the camera can withstand harsh outdoor conditions and tampering attempts.
- Wide operating temperature range (-40 °C to 60 °C) and a built‑in heater ensure reliable starts and operation in cold climates.
Use cases and scenarios where the DS-2CD6D52G0-IHS excels
The camera is engineered to reduce the number of physical devices required to cover wide scenes. Typical deployments include:
- Perimeter and fence line monitoring— a single PanoVu unit can cover long stretches of fence or boundary, reducing blind spots and system cost versus multiple fixed cameras.
- Parking lots and vehicle yards— cover drive aisles and parking rows from one mast or wall location while maintaining enough resolution to support license plate captures at moderate distances.
- Building fronts and walkways— monitor entrances and adjacent pedestrian routes together, ideal for retail stores, schools and office buildings.
- Transit stops and small plazas— panoramic view captures both waiting areas and surrounding sidewalks to provide context for incidents.
- Multi‑direction observation at intersections— dual independent sensors let you watch two directions (e.g., entrance and side alley) without needing separate housings.
Comparisons with similar products in the market
When evaluating the DS-2CD6D52G0-IHS, consider how it stacks up against three common alternatives: single high‑resolution fixed cameras, multi‑sensor panoramic arrays, and PTZ cameras.
Single super‑high‑resolution cameras can produce a lot of detail, but they often suffer from narrower instantaneous field of view or increased distortion when using very wide lenses. The DS-2CD6D52G0-IHS delivers broad coverage with two well‑placed 2.8 mm lenses and the option to present two streams for separate targets. It can be more cost‑effective and simpler to deploy than a lone ultra‑high‑resolution camera that requires more bandwidth and more complex VMS handling.
Large multi‑sensor arrays offer near‑seamless 180–360° coverage and higher aggregate resolution, but they are larger, more expensive and require more processing and storage. The dual‑lens PanoVu is a good middle ground: better coverage than a single lens, smaller and easier to install than a 4× or 6× array, and sufficient for many perimeter and lot‑style applications where full‑circle coverage is unnecessary.
PTZs offer targeted zooming and active tracking, but they miss events outside their current view and add mechanical complexity. The PanoVu provides continuous panoramic coverage without moving parts, making it preferable for continuous situational awareness and for environments where mechanical parts might fail or be subject to tampering.
Customer feedback and installer perspectives
There are no official published customer testimonials bundled with the product information provided here. However, based on typical installer and integrator feedback for dual‑lens PanoVu devices, common observations include:
- "Fewer cameras, simpler wiring" — installers often report that the combined coverage reduces mounting points and simplifies network and power runs.
- "Good daytime detail, reliable low‑light performance" — the 5 MP sensors and IR supplement are frequently cited as delivering usable images for both identification and context.
- "Edge analytics are helpful" — on‑camera detection cuts down on unnecessary server load and speeds up incident response, especially for perimeter alarms.
- "Rugged build makes it suitable for exposed sites" — IP67/IK10 and wide temp range get positive notes from those deploying to industrial and public spaces.
When considering purchase, ask potential vendors for real site references and sample footage to verify image quality in conditions similar to your installation (lighting, distance, weather). Also confirm local certification (CE / UKCA) and warranty details — this model listing specifies no warranty in the supplied metadata, so confirm with the supplier.
Buying considerations and practical tips
- Plan orientation carefully — the dual sensors can be configured for a panoramic stitch or as two independent views; decide which suits your operational needs.
- Use PoE when possible to simplify installation and avoid separate power wiring; ensure your switches support 802.3af and budget for the camera's maximum draw (about 11 W on 12 VDC it lists as 0.9 A up to 11 W).
- Test analytics sensitivity and fine‑tune ROI, motion and alarm thresholds to reduce false positives from foliage and traffic shadows.
- Consider storage strategy — leverage H.265 and ROI streams to balance resolution and retention time, and enable local microSD as a backup for network outages.
Conclusion — Why choose the DS-2CD6D52G0-IHS
If your goal is to cover wide areas with clear, high‑resolution imagery while keeping the number of devices, mounts and cables to a minimum, the DS-2CD6D52G0-IHS Dual‑Lens PanoVu camera is a strong choice. It blends two 5 MP sensors, robust environmental protection, efficient H.265 compression and useful on‑board analytics in a compact, installer‑friendly package. For sites such as car parks, building fronts, perimeters and plazas where continuous panoramic coverage is critical, this camera offers an effective balance of coverage, performance and cost. The suggested retail price for this model is approximately $479 (confirm current pricing with your supplier), and before purchasing, verify warranty terms and local certifications to ensure compliance with regional requirements.
Bottom line:The DS-2CD6D52G0-IHS reduces deployment complexity while delivering reliable, panoramic imaging and edge analytics — a practical, pragmatic solution for many outdoor surveillance challenges.
