Introduction to the DS-96256NI-I24 and its key features

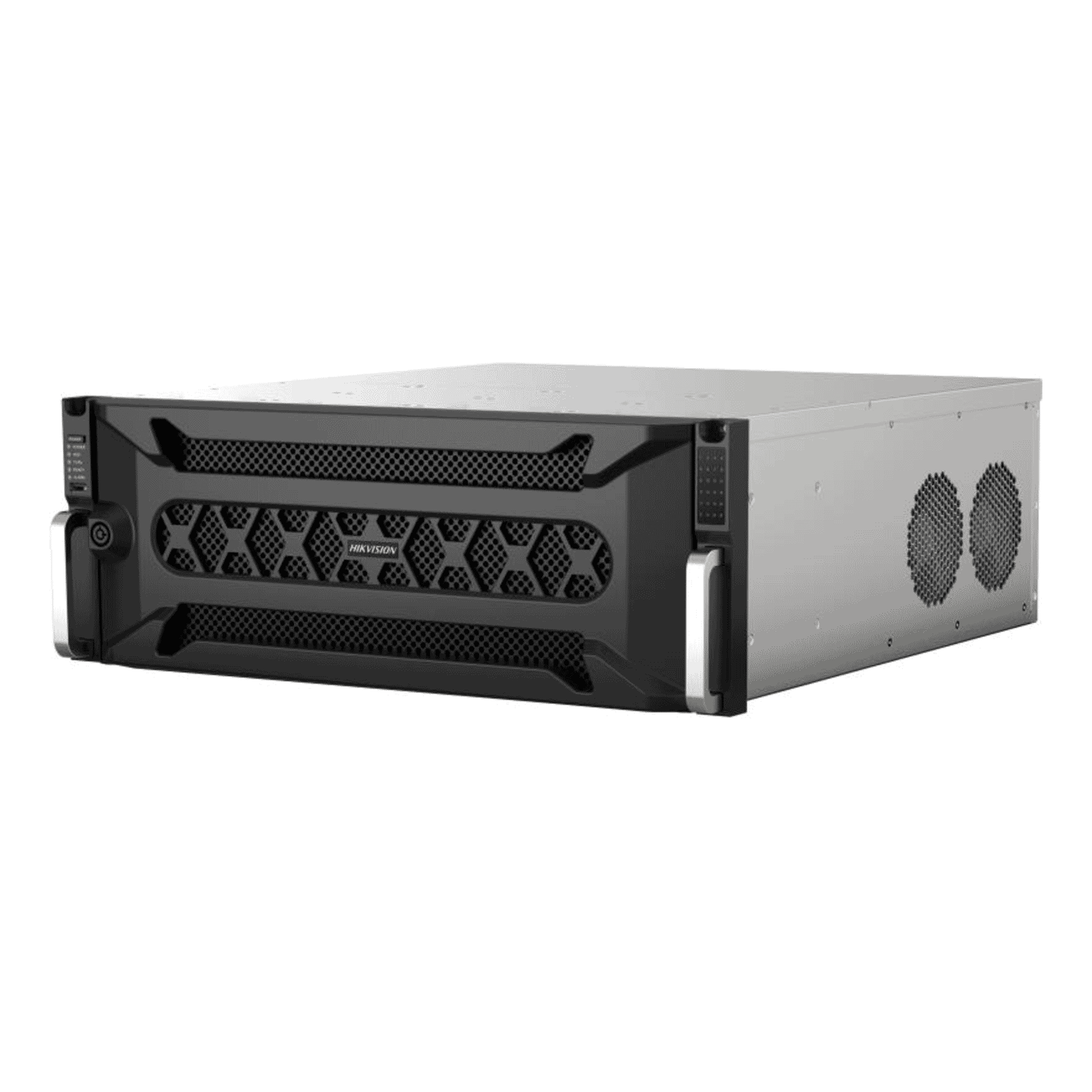

The DS-96256NI-I24 is a purpose-built enterprise IP network video recorder (NVR) designed for large-scale surveillance deployments. In a single 4U rack-mount chassis it combines support for up to256 IP camera channels,24 hot‑swap SATA drive bays(plus an eSATA port for expansion), hardware-accelerated H.265/H.265+ decoding and dual 4K HDMI outputs for local monitoring. That mix of high channel density, extensive local storage, hardware video acceleration and enterprise RAID options makes the DS-96256NI-I24 a strong choice where centralised recording, long‑term retention and fast multi‑channel playback are required.
Detailed specifications and benefits
The technical foundation of the DS-96256NI-I24 is engineered around scalability, reliability and performance. Below are the key specification areas and the practical benefits they provide.
The unit supports up to256 IP channelswith incoming and outgoing bandwidths of 768 Mbps each (TLS outgoing bandwidth is 128 Mbps, reduced to 64 Mbps when RAID is enabled). Supported codecs include H.265, H.265+, H.264, H.264+, MPEG4 and MJPEG. Built‑in hardware acceleration enables efficient recording and decoding, enabling high‑resolution recording while minimising storage and CPU load.
Practical benefit: You can operate very large camera farms (multi‑site hubs, transport nodes, large campuses) without needing multiple separate recorders, simplifying management and reducing system complexity.
The recorder provides24 hot‑pluggable SATA baysand an additionaleSATAport for external expansion. Each bay supports drives up to 10 TB, enabling raw internal capacity measured in hundreds of terabytes. Enterprise RAID modes (RAID 0/1/5/6/10) plus N+1 hot‑spare support and health monitoring let you configure for performance, redundancy or a balance of both.
Practical benefit: Large retention windows for high‑resolution video become achievable without relying on cloud storage. Hot‑swap drives and RAID enable maintenance without long outages, and N+1 hot‑spare keeps data protected even if a drive fails.
For situational awareness and forensic review the DS-96256NI-I24 offerstwo 4K HDMI outputs(4096×2160) and a VGA output (up to 1080p). Synchronous playback supports up to 16 channels simultaneously. These features are useful in command centres where multiple high‑resolution streams are monitored or reviewed side‑by‑side.
Practical benefit: Operators can view detailed live or recorded footage on large 4K displays and perform multi‑channel playback prosecutions without taxing a separate workstation.
Connectivity includes four Gigabit Ethernet ports, USB front and rear ports (USB 2.0 front, USB 3.0 rear), alarm I/O (16 inputs / 8 outputs), RS‑232/RS‑485 for PTZ or serial devices, and options for SFP expansion. Protocol support includes IPv6, HTTPS, ONVIF, iSCSI, SNMP, NTP and others, ensuring interoperability with a wide range of cameras and management systems.
Practical benefit: Flexible integration into existing networks and VMS (video management systems), plus options for direct SAN or NAS connectivity via iSCSI and NFS when needed.
The unit runs on 100–240 VAC, with typical power consumption ≤ 140 W (without HDDs). It operates across a standard data‑centre temperature range (0 °C to 50 °C) and is sized for rack integration (447 × 528 × 172 mm, ≈ 23 kg without HDDs). Redundant power options are available on certain configurations to improve uptime.
Practical benefit: Fits standard rack layouts and power environments. When paired with enterprise drives and RAID settings, it offers robust continuous operation required by mission‑critical surveillance services.
Use cases and scenarios where this NVR excels
- Large retail and multi‑site chains:Centralised recording for many stores or multiple cameras per large store, with long retention for loss prevention investigations.
- Transport hubs (airports, rail, bus):High channel count for terminals, concourses and exterior perimeters; 4K outputs for control rooms
- Logistics yards and industrial sites:Continuous recording, long retention and analytics for vehicle and personnel tracking across large outdoor spaces.
- City surveillance / smart city projects:Centralised hub recording large numbers of distributed cameras with analytics like people counting and heat maps for planning and safety.
- Enterprises and campuses:Central security operations centre (SOC) deployments with simultaneous playback, RAID redundancy and easy storage expansion.
In each of these scenarios, the combination of high channel support, large local storage and enterprise RAID translates to lower total system complexity and predictable on‑premises data retention costs compared with stitching together many smaller NVRs or relying solely on cloud storage.
Comparisons with similar products on the market
When assessing the DS-96256NI-I24 against alternatives, consider three broad categories: smaller NVRs (64–128 channels), modular/stacked systems (multiple smaller NVRs working together), and hybrid cloud/on‑prem appliances.
Smaller units are often less expensive up front but require multiple devices to scale beyond their channel limits. That introduces additional networking complexity, multiple points of failure and fragmented storage pools. The DS-96256NI-I24 reduces footprint and administration overhead by consolidating a very large number of channels into one chassis, which simplifies management and centralises RAID protection.
Some solutions use clusters of mid‑density NVRs or distributed server architectures to scale. These can provide redundancy and flexible scaling but typically increase rack space, cabling and management overhead. The DS‑96256NI‑I24 offers a compromise: very high density in a single 4U unit with the option to expand externally via eSATA or mini‑SAS, while keeping day‑to‑day operations simpler.
Cloud recording offers benefits like remote access and reduced on‑site storage management, but long retention of 4K video for hundreds of channels becomes costly and depends on reliable high upstream bandwidth. The DS‑96256NI‑I24 emphasises on‑prem retention, lowering ongoing storage costs and giving organisations full control over footage — important for privacy, compliance and forensic reliability.
Customer feedback and representative testimonials
While individual experiences vary by deployment and configuration, feedback from system integrators and security managers for high‑density enterprise NVRs typically highlights a few consistent themes:
- "Centralising hundreds of cameras in a single chassis made monitoring and backups far easier than our previous multi‑recorder setup." — Security integrator (representative quote)
- "The hot‑swap bays and RAID options saved us from a lengthy outage when a drive failed; we hot‑swapped and rebuilt within hours." — Facilities manager (representative quote)
- "Dual 4K outputs were a game changer for our control room — the level of detail lets operators quickly identify subjects during incidents." — Transport hub operations lead (representative quote)
These reflective comments summarise common operational benefits: simplified management, maintainability through hot‑swap and RAID, and improved local monitoring through high‑resolution outputs. Actual customer reviews will depend on final configuration, chosen HDD models and the deployed camera mix.
Conclusion: why the DS-96256NI-I24 is a strong choice
The DS‑96256NI‑I24 targets large, professional surveillance deployments that demand high channel density, extensive local storage and reliable uptime. Its core selling points — support for up to 256 channels, 24 hot‑swap drive bays with enterprise RAID, hardware H.265 acceleration and dual 4K HDMI outputs — address the most common pain points in large surveillance projects: scalability, storage costs, maintenance windows and operator effectiveness.
For system integrators and security teams looking to centralise recording, extend retention of high‑resolution footage, and keep serviceability high, this NVR provides a cost‑effective on‑premises platform. Its extensive protocol support and optional expansion modules allow integration into diverse infrastructures while staying compatible with most modern IP cameras and VMS platforms.
Before purchase and deployment, budget for enterprise‑class surveillance HDDs, plan RAID and hot‑spare strategies, and ensure qualified technicians handle installation and maintenance. When configured and maintained correctly, the DS‑96256NI‑I24 delivers a robust, scalable foundation for campus, transport, retail and city surveillance programmes.
