Introduction: What the Hikvision DS-2XE6222F-IS (4mm) (D) is and why it matters

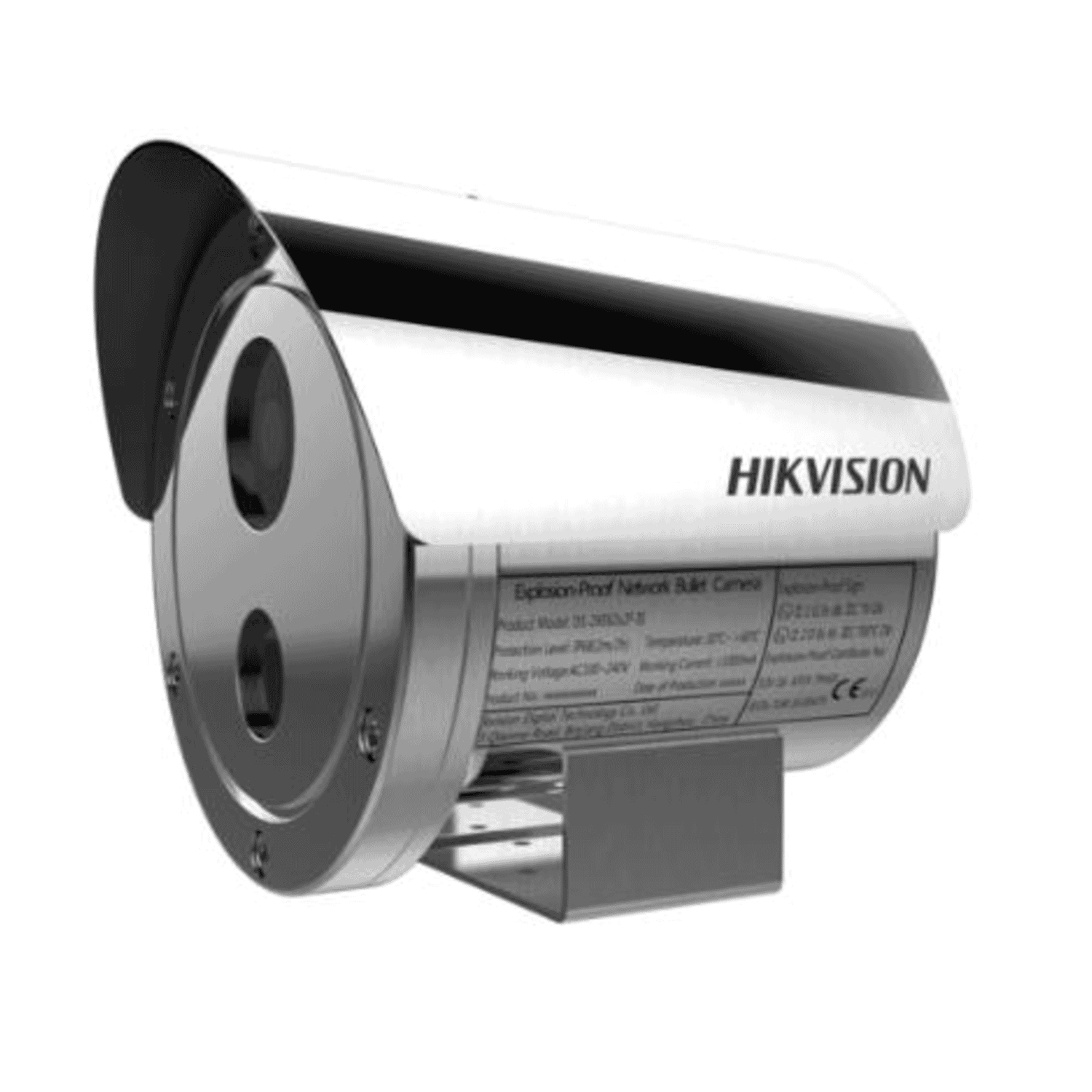

The Hikvision DS-2XE6222F-IS (4mm) (D) is a purpose-built, explosion‑proof network bullet camera designed for the most demanding hazardous environments. With a 2 MP (1920×1080) progressive CMOS sensor, a fixed 4 mm lens and a robust 316L stainless‑steel housing, this model combines certified safety, corrosion resistance and modern video technology. It is ATEX and IECEx certified for Zone 1/2 and Zone 21/22 — making it suitable for oil & gas, petrochemical, offshore and dust‑prone industrial sites where ordinary cameras are not permitted.
Key features at a glance
- Explosion certification:ATEX and IECEx rated for gas and dust hazardous zones (Zone 1/2 and Zone 21/22).
- Rugged construction:316L stainless steel housing with anti‑corrosion finish, IP68 ingress protection and IK08 impact resistance.
- Imaging & night performance:2 MP progressive CMOS, fixed 4 mm lens (≈83° horizontal), EXIR illumination to 30 m, day/night ICR and low‑light colour capability.
- Efficient video codec:H.265+/H.265/H.264+/H.264 with up to three simultaneous streams and image enhancements such as 120 dB WDR and 3D DNR.
- Flexible power & connectivity:PoE (802.3af, Class 3) or 100–240 VAC terminal, RJ45 network port, ONVIF support and optional on‑board microSD storage.
Detailed specifications and the benefits they deliver
Understanding the DS-2XE6222F-IS starts with its specifications — and how each item translates into real operational benefits:
- 316L stainless steel housing:Delivers superior corrosion resistance compared with standard stainless or aluminum, which is essential for offshore platforms, chemical plants and coastal sites where salt and aggressive chemicals accelerate corrosion.
- IP68 & IK08:Guarantees protection against prolonged immersion and strong impacts. Practically, that means reliable outdoor performance even during storms, heavy spray or accidental knocks; some literature also lists NEMA 4X equivalence on relevant pages.
- ATEX/IECEx Zone 1/2; 21/22:These certifications are central: they legally permit installation in many hazardous areas and give assurance that the camera design prevents ignition sources in explosive atmospheres.
- 2 MP progressive CMOS sensor (1920×1080):Provides clear, high‑definition imagery suitable for general surveillance, perimeter monitoring and evidence capture.
- Fixed 4 mm lens (~83° H):A wide field of view desirable for covering medium‑wide scenes such as pump rooms, walkways, loading bays and small yards without the complexity of a varifocal lens.
- EXIR up to 30 m and ICR:Night performance is enhanced with smart IR illumination that reaches up to 30 metres, with true 0 lux imaging in black & white when IR is active.
- Video coding & enhancement:H.265+ reduces bandwidth and storage required compared with legacy codecs; 120 dB WDR and 3D DNR improve visibility in high‑contrast scenes and reduce noise in low light.
- Connectivity:Standard 10/100 M RJ45 with support for TCP/IP, HTTPS, RTSP and ONVIF Profile S/G — allowing integration into common VMS and NVR platforms.
- On‑board storage:Many variants include a microSD slot (capacity and availability are variant dependent) for local buffering or standalone recording.
- Power:PoE (802.3af) simplifies installation when local mains is inconvenient, while 100–240 VAC terminal support offers flexible deployment options. Power draw is low (~7 W max), which helps reduce operating costs.
Where this camera excels — practical use cases
The DS-2XE6222F-IS is tailored to situations where both safety certification and environmental robustness are prerequisites. Typical deployments include:
- Oil & gas facilities:Perimeter surveillance, pump stations, valve rooms and wellheads where explosive gas atmospheres may be present.
- Petrochemical plants and refineries:Monitoring of process areas, tank farms, loading docks and access points with strict classification and compliance requirements.
- Offshore platforms and marine environments:Corrosion‑resistant 316L housing and IP68 rating provide durable outdoor surveillance in salt spray and harsh sea climates.
- Dust‑prone environments:Grain handling, flour mills, sugar plants and other locations subject to combustible dust (Zone 21/22 certification covers dust hazards).
- Hazardous workshops and paint booths:Any area with ignitable vapours or atmospheres where standard cameras cannot be used for safety reasons.
Beyond the certified environments, the DS-2XE6222F-IS is also a strong choice for organisations that prioritise long service life, low maintenance and minimal downtime.
Comparisons: how it stacks up against alternatives
When selecting explosion‑proof surveillance, decision factors are often certification level, housing material, imaging performance and total cost of ownership. A few comparison points:
- Fixed bullet vs PTZ explosion‑proof cameras:Fixed bullets like the DS-2XE6222F-IS are generally cheaper, simpler to install and more reliable over time due to fewer moving parts. PTZ models provide active tracking and wide area coverage from a single unit but cost more and typically require more maintenance.
- 316L stainless vs aluminum housings:316L stainless provides better corrosion resistance in marine and chemical environments at a premium cost. Aluminum or coated housings may be suitable for less aggressive conditions but age faster in hostile environments.
- Resolution trade‑offs (2 MP vs higher megapixel models):2 MP offers a practical balance between detail, bandwidth and storage. Higher‑resolution explosion‑proof cameras (4 MP and up) deliver finer detail for large‑area analytics but require more network and storage resources and often cost more.
- Thermal vs optical explosion‑proof cameras:Thermal cameras detect heat and can see through smoke or total darkness, ideal for fire detection and perimeter intrusion. Optical cameras like this Hikvision model provide visible imagery useful for identification, license plate capture at moderate ranges and general situational awareness. In many systems the two are complementary.
Customer feedback and installer perspective
Public, verified customer reviews for specialized explosion‑proof hardware are often limited because these products are typically purchased via systems integrators and deployed in enterprise projects. However, installers and site operators frequently cite the following points based on field experience with similar Hikvision explosion‑proof models:
- Reliable certifications:Installers appreciate clear ATEX/IECEx markings and supporting documentation that simplify permitting and compliance checks.
- Durable build:316L stainless and IP68 ratings are frequently noted as reasons for selecting these units in corrosive or offshore conditions.
- Good low‑light performance:EXIR illumination paired with 2 MP sensors is typically sufficient for medium‑range night monitoring without expensive lighting upgrades.
Example (representative) installer comment: "For hazardous area CCTV projects we choose certified 316L units — they reduce maintenance visits and keep panels online in highly corrosive conditions." (Representative feedback, not a verbatim verified customer review.)
Pricing and value proposition
The suggested price for this model is approximately $2,999. That price reflects the additional engineering, materials and certification costs required for explosion‑proof equipment. While the upfront cost is higher than for standard IP cameras, the long‑term value comes from compliance (allowing legal installation in explosive atmospheres), reduced replacement frequency in corrosive sites and lower lifecycle maintenance.
Conclusion: Why the DS-2XE6222F-IS is a strong choice
The Hikvision DS-2XE6222F-IS (4mm) (D) delivers a carefully balanced mix of safety certification, corrosion‑resistant construction and modern video technology. For operators and integrators working in oil & gas, petrochemical, offshore or dust‑hazard environments, its ATEX/IECEx approvals and 316L stainless housing make it a practical, often necessary choice. Its 2 MP imaging, EXIR night illumination and efficient H.265+ compression provide the visual quality needed for most monitoring tasks while keeping network and storage demands reasonable.
In short, when safety certification, environmental durability and consistent surveillance performance are required, the DS-2XE6222F-IS offers a reliable solution that reduces operational risk and supports regulatory compliance. Always ensure installation is performed by qualified personnel and verify the exact variant and datasheet details (microSD, alarm/audio I/O options and regional markings) before purchase.
