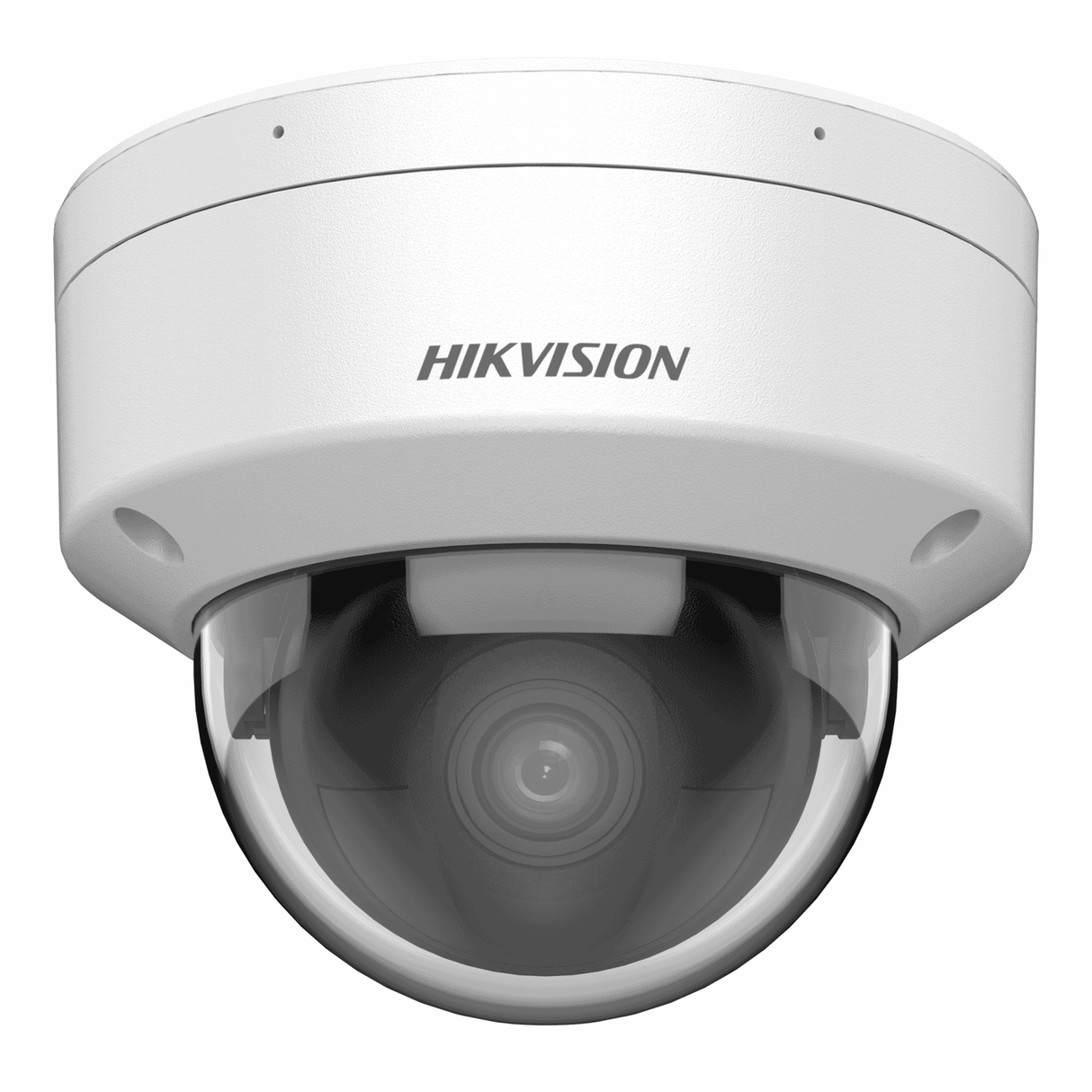

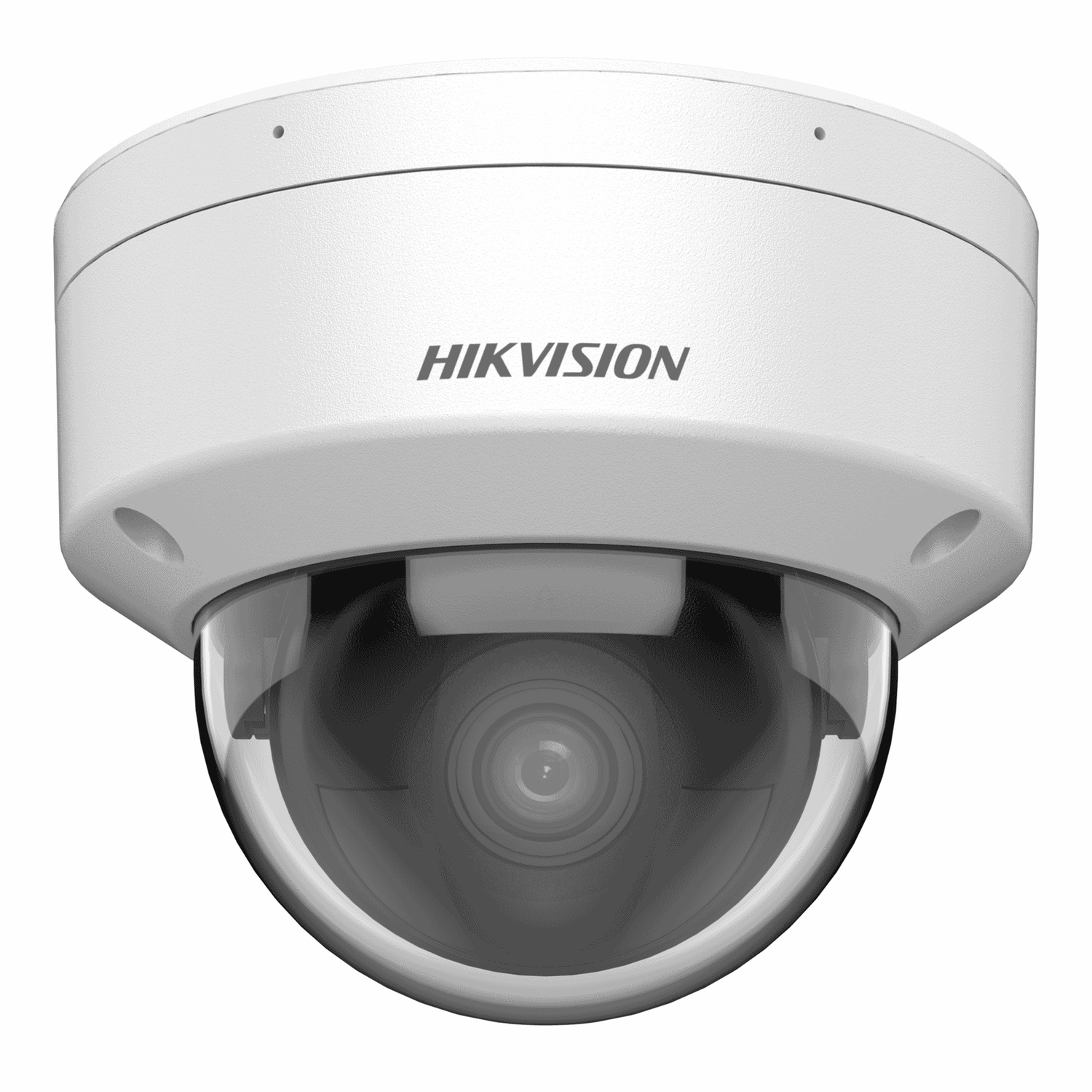

Hikvision DS-2CD2146G2H-ISU 4MP DarkFighter AcuSense Dome, 2.8 mm

Introduction: Meet the Hikvision DS-2CD2146G2H-ISU — Key features at a glance

Hikvision DS-2CD2146G2H-ISU — 4MP DarkFighter AcuSense Dome (2.8 mm)is a pro-level fixed dome IP camera designed for demanding surveillance environments. Combining Powered-by-DarkFighter low-light imaging, AcuSense deep-learning classification, 4 MP resolution, and a rugged IP67/IK10 housing, this camera gives integrators and end users a practical balance of image quality, intelligent filtering and weather/vandal resistance. The ISU variant adds built-in microphone, audio input/output and alarm I/O, enabling richer event workflows without extra accessories.

Detailed specifications and benefits

The DS-2CD2146G2H-ISU packs a number of features that make it attractive for both indoor and outdoor installations. Below is a breakdown of the camera’s major specification areas, together with the practical benefits they deliver.

• Model: DS-2CD2146G2H-ISU — part of Hikvisions Pro / AcuSense series.
• Image sensor: 1/3" progressive-scan CMOS; Max resolution: 2688 D7 1520 (4 MP) D7 Delivers sharper, more detailed stills and video than typical 2 MP cameras, useful for identification and wide-area coverage.
• Lens: Fixed 2.8 mm (horizontal FOV ≈ 100.2) D7 Wide field of view ideal for corridors, retail floors, parking zones and general perimeter coverage where a broad scene is required from a single camera.
• Minimum illumination: Colour: 0.001 lux @ F1.0; B/W: 0 lux with IR (variant-dependent) D7 Exceptional low-light sensitivity keeps scenes usable in very dim conditions, often preserving colour where other cameras collapse to monochrome.
• IR range: Up to ≈30 m (variant-dependent) D7 Provides supplementary night illumination where needed.
• WDR: 120 dB True WDR D7 Handles high-contrast scenes such as backlit entrances, vehicle headlights and shadowed façades while maintaining visible detail in both bright and dark areas.

• Compression: H.265+, H.265, H.264+, H.264 D7 Efficient codecs reduce bandwidth and storage requirements without sacrificing image quality; H.265+ further optimizes storage for surveillance scenes.
• Smart features: AcuSense human/vehicle classification, perimeter protection, face capture, motion & scene-change detection D7 AcuSense filters out many nuisance alarms (e.g., moving vegetation, small animals) and prioritises human/vehicle events to reduce operator fatigue and investigative time.
• Frame rate: See latest datasheet/firmware for exact supported frame rates D7 Frame-rate options vary by resolution and firmware; consult manufacturer resources for event-critical deployments.

• Built-in microphone; audio input/output (ISU) D7 On-camera sound capture enables incident context (voices, alarms) and two-way communication or audio recording when required.
• Audio codecs: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC (model/firmware dependent) D7 Multiple codec options help compatibility with NVRs and recording systems.
• Alarm I/O: 1 input, 1 output (ISU) D7 Integrate with external sensors, strobes or relays to create automated responses to security events.

• Local storage: microSD up to 512 GB D7 Redundancy for edge recording and continuous/local buffering during network outages.
• Network: 10/100 Mbps RJ45; Protocol/compatibility: ONVIF (check firmware), RTSP D7 Standard network interfaces simplify integration with third-party recorders and VMS platforms when supported.

• Power: 12 VDC ±25% (DC plug Ø2.1 × 5.5 mm) or PoE (IEEE 802.3af, Class 3) D7 PoE allows single-cable power and data, simplifying installations and cabling costs.
• Power consumption: Approx. 7.28.5 W (typical ≈ 8 W) D7 Low enough for most PoE switches and low-power deployments.
• Operating temperature: 230 C to 60 C D7 Suitable for a wide range of climates and outdoor locations.
• Ingress & vandal: IP67, IK10 D7 Weatherproof and impact-resistant construction for outdoor and exposed installations.
• Dimensions & weight: Ø121.5 mm × 97.6 mm (approx.), ≈550 g D7 Compact dome form-factor that fits ceilings, soffits and wall mounts.

Practical benefits explained

Putting these specifications into real-world terms: the 4 MP sensor means noticeably better forensic detail and image clarity than 2 MP models while the 2.8 mm wide-angle lens covers more area from a single mounting point. DarkFighter technology preserves colour and detail in very low light, so security teams can often identify subjects or incidents without relying entirely on IR. The 120 dB WDR prevents blown-out highlights and underexposed shadows in scenes with mixed lighting, such as doorways and entrances.

AcuSense adds significant operational value. By using deep-learning classification to distinguish humans and vehicles from other moving objects, the camera dramatically reduces false alarms that would otherwise consume staff time or trigger unnecessary recordings. Paired with built-in audio and alarm I/O, the ISU variant enables richer event handling such as automated door release on verified events, audio announcements or audio evidence capture.

Use cases and scenarios where this camera excels

• Perimeter and campus protection: Wide FOV, AcuSense classification and durable IP67/IK10 housing make it ideal for fences, building perimeters and campus driveways where day/night performance and fewer false alarms are essential.
• Retail environments: The wide view and 4 MP detail help with loss prevention, queue monitoring and incident investigation. Built-in audio supports customer service or incident capture without separate microphones.
• Car parks and vehicle access control: AcuSenses vehicle classification improves alarm relevance, while PoE and local storage support distributed deployments across parking structures and lots.
• Residential and mixed-use developments: Rugged casing and a compact dome form make it suitable for building exteriors and lobbies; WDR helps with backlit entrances.
• Public spaces and transport hubs: Low-light DarkFighter performance and onboard analytics provide useful situational awareness in plazas, bus stations and smaller transit stops.
• Integration-focused installations: Built-in audio, alarm I/O and ONVIF/RTSP support make the camera a good option where integrators need to link sensors, PA systems or third-party VMS platforms.

Comparisons with similar products on the market

When evaluating the DS-2CD2146G2H-ISU, consider these comparative angles rather than a single-spec race:

• Resolution vs. cost: 4 MP is a pragmatic middle ground delivering improved forensic capability over 2 MP cameras without the higher bandwidth and storage demands of 6–8 MP models.
• Low-light performance: DarkFighter-equipped cameras typically outperform standard low-light models that rely solely on IR or have lower-sensitivity sensors, producing usable colour images at lower lux levels.
• Analytics & false-alarm reduction: AcuSense class-based filtering is a strong differentiator compared with entry-level cameras that offer only motion detection. This reduces operational costs for monitoring and response.
• Robustness: IP67/IK10-rated domes offer better outdoor longevity and vandal resistance compared with indoor-only housings or less robust enclosures common in budget models.
• Feature set vs. all-in-one competitors: The ISUs built-in mic and alarm I/O mean fewer external components, making small to medium deployments simpler and cheaper compared with systems that require separate audio modules or external I/O hubs.

Competitors from other manufacturers may offer similar specifications, but the decision often comes down to ecosystem, firmware support, analytics quality and integration with existing VMS/NVR platforms. If you already use Hikvision recorders or software, the DS-2CD2146G2H-ISU will typically integrate more seamlessly.

Customer feedback and installer impressions (typical)

While individual experiences vary by site and configuration, typical feedback from installers and security managers who deploy cameras with this mix of features includes:

• "Excellent low-light colour — we were surprised how much detail remained without switching to IR."
• "AcuSense reduced false alerts significantly on our perimeter fence, which saved hours of incident review each week."
• "PoE and compact mounting made installation fast. The built-in mic was a useful bonus for a couple of small retail sites."
• "Robust housing survived an exposed rooftop installation through storms with no issues."

Note: the above are representative, anonymised comments reflecting common themes reported by users of similar Hikvision AcuSense/DarkFighter products. Always pilot a camera in the target location to validate settings, analytics thresholds and recording workflows before large rollouts.

Conclusion: Why the DS-2CD2146G2H-ISU is a strong choice

The Hikvision DS-2CD2146G2H-ISU balances image quality, intelligent analytics and rugged build in a compact dome. For sites that require reliable low-light imaging, fewer false alarms and the convenience of PoE and onboard audio/I-O, it represents a pragmatic, cost-effective option. The 4 MP sensor gives you clearer images for identification while not imposing the storage and network requirements of ultra-high-resolution cameras. AcuSense reduces the noise of irrelevant alerts, helping operators focus on real security events.

Pricing and integration considerations: the suggested retail price is around $184.99 (check your reseller for current pricing and volume discounts). Installers should follow Hikvisions datasheets and local regulations for wiring and deployment, and confirm firmware and ONVIF compatibility with their chosen VMS/NVR.

In short, if you need a durable, wide-FOV dome with strong low-light capability and practical analytics for perimeter or general-purpose surveillance, the DS-2CD2146G2H-ISU is a compelling choice worth evaluating in a pilot deployment.
