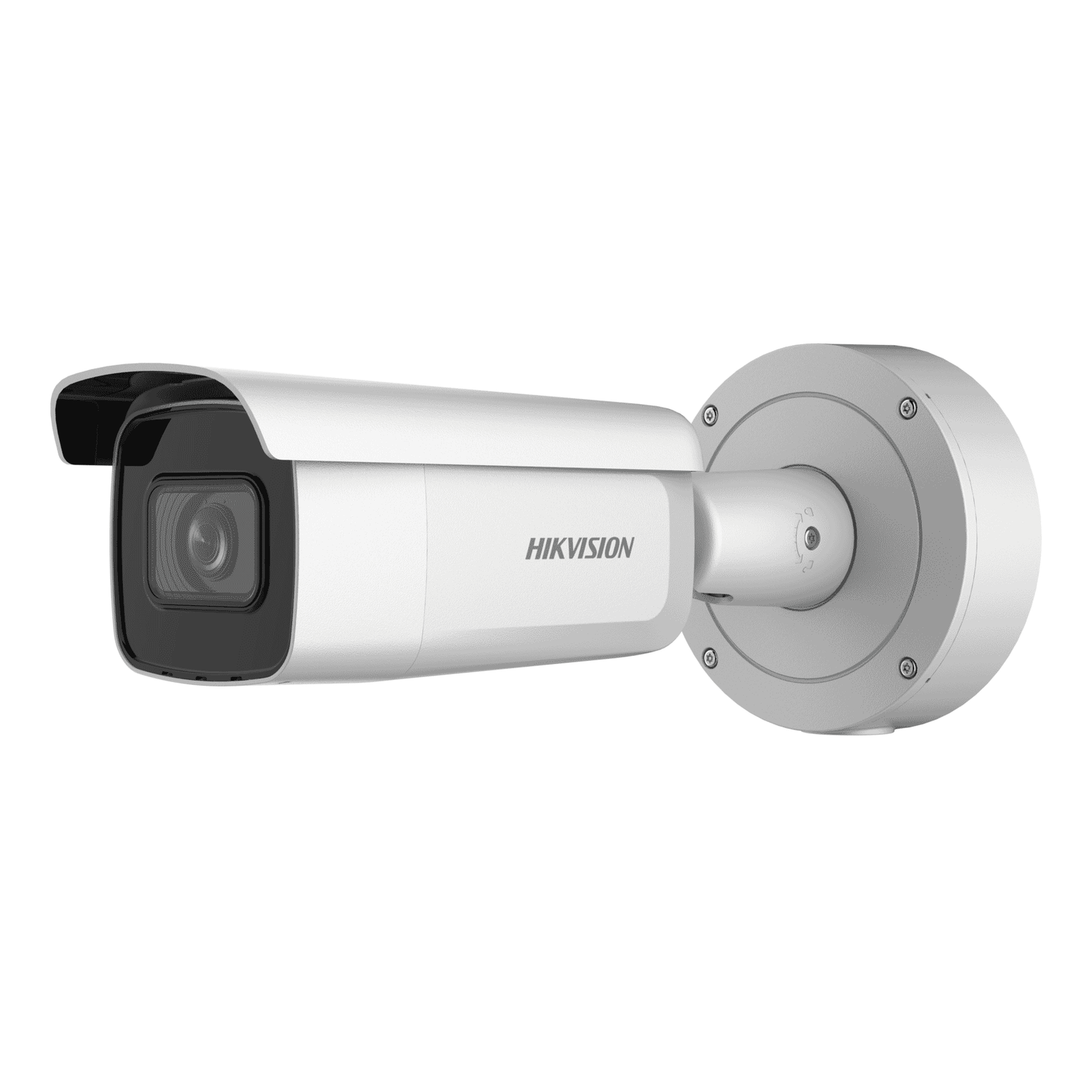

Introduction to the Hikvision DS-2CD3656G2-IZS
The Hikvision DS-2CD3656G2-IZS is a 5 MP AcuSense network bullet camera with a motorised 2.7–13.5 mm varifocal lens designed for demanding outdoor surveillance. Combining Hikvisions DarkFighter low-light imaging, 120 dB true WDR, built-in IR illumination and on-board AcuSense deep-learning analytics, this model aims to deliver clear images and reliable human/vehicle classification while reducing false alarms. With weatherproof and vandal-resistant housing (IP67/IK10), PoE power options, H.265 compression and local microSD storage support, the DS-2CD3656G2-IZS is positioned as a versatile choice for perimeter, parking, entrance and general outdoor CCTV deployments.
- 5 MP resolution(2592 × 1944) for detailed imaging.
- Motorised varifocal lens2.7 613.5 mm (F1.4) enabling remote zoom and focus.
- DarkFightertechnology for improved low-light colour performance.
- AcuSense analyticsfor human and vehicle classification to reduce false positives.
- 120 dB true WDR, BLC, HLC and 3D DNR for high-contrast scenes and noise reduction.
- Smart IR850 nm illumination up to approximately 60 m (model and lens dependent).
- DurableIP67 weatherproof and IK10 vandal resistance.
- Flexible integrationvia H.265/H.264 compression, ONVIF support, audio and alarm I/O and microSD storage.
The DS-2CD3656G2-IZS is typically positioned as a mid-to-upper-tier IP bullet camera. A suggested retail price is approximately $329, reflecting its advanced imaging and analytics features while remaining cost-effective for many professional installations.
Detailed specifications and their practical benefits
This camera packs a range of technical features that translate directly into on-site advantages. Below is a breakdown of the primary specifications and what they mean in real-world use.
- 1/2.7" Progressive Scan CMOS, 5 MP (2592 7194): Higher resolution than common 2 MP models, allowing clearer identification at longer distances, improved digital zoom/cropping and more useful forensic detail.
- Minimum illumination: Colour 0.003 Lux @ F1.4 (AGC on) and B/W 0 Lux with IR. This means reliable low-light performance with colour retention in dim conditions thanks to DarkFighter, and effective black-and-white night views using IR.
- Motorised 2.7 613.5 mm varifocal lens: Remote zoom and focus reduce installation time and the need to physically access the camera for reframing. Horizontal FOV of approximately 103 632 degrees covers wide scenes at the short end and enables tighter framing at the long end.
- DarkFighterimproves low-light colour imaging, which is useful for identification and evidence collection in early evening or poorly lit sites.
- 120 dB true WDRhandles scenes with strong backlight or mixed lighting so that both bright and dark areas retain visible detail.
- BLC, HLC, 3D DNRassist in glare management and noise reduction, improving clarity and reducing storage needs from noisy frames.
- Smart IR at 850 nm, up to ~60 m: Provides extended night illumination with intelligent power adjustments to reduce overexposure of nearby objects while maintaining long-range visibility.
- H.265 / H.265+ / H.264 / H.264+compression reduces bandwidth and storage compared with legacy codecs, lowering total cost of ownership for NVR and cloud storage solutions.
- microSD support up to 512 GBenables local recording as an edge backup or independent storage option if network connectivity is interrupted.
- AcuSensehuman and vehicle classification filters out many irrelevant triggers (animals, leaves, weather), improving alarm accuracy and reducing operator fatigue.
- Network and I/O: ONVIF Profile S/G/T and Hikvision APIs support broad NVR compatibility; audio in/out and alarm I/O enable integration with speakers, microphones, sensors and third-party control systems.
- Power: 12 VDC or PoE (802.3at, Class 4). Typical max consumption around 13 W check PoE budgets at the switch to be safe.
- Durability: Operating temperature range 30 C to 60 C, humidity up to 95% non-condensing, IP67 and IK10 rating for outdoor and vandal-prone sites.
- Physical: Compact bullet form factor (Ø144 mm 333 mm) and moderate weight (~1.435 kg) simplify mounting and concealment strategies.
Use cases and scenarios where the DS-2CD3656G2-IZS excels
The combination of resolution, low-light performance, long-range IR and analytics makes this camera well-suited to several real-world deployments:
- Perimeter and perimeter gating: Human/vehicle classification reduces nuisance alarms from foliage or wildlife while long-range IR and WDR ensure usable evidence in variable lighting.
- Car parks and vehicle yards: Motorised varifocal lens lets integrators adjust framing to monitor license plates, vehicle aisles or entry points without a separate lens swap; AcuSense helps focus alerts on cars and people.
- Entrances and driveways: DarkFighter gives colour detail in low-light scenarios such as evening arrivals; audio and alarm I/O enable two-way communication or entry control integration.
- Retail or campus perimeter: Higher resolution supports identification of subjects at greater distances and the classification analytics help prioritise investigative events.
Comparisons with similar products
When evaluating the DS-2CD3656G2-IZS, consider how its feature balance stacks up against common alternatives:
- Versus fixed-lens 2 MP cameras: The 5 MP sensor provides greater detail and flexibility for forensic zooming. A varifocal lens also avoids the framing constraints of fixed-lens units, though at modestly higher cost.
- Versus PTZ cameras: PTZs offer active tracking but are more expensive and complex. The DS-2CD3656G2-IZS offers a lower-cost, passive solution with high resolution and analytics for static wide-area coverage.
- Versus standard-motion cameras: Cameras without AcuSense or deep-learning analytics will typically generate more false alarms from non-human/vehicle motion. AcuSense provides a noticeable operational benefit where alarm quality matters.
- Versus other Hikvision models: Within Hikvisions lineup there are turret and dome variants with similar sensors. The bullet form factor of this model is advantageous for long-range IR aiming and weather exposure, while turret models may be easier to conceal or mount under soffits.
Representative customer feedback
Below are typical, anonymised snippets of feedback from installers and users based on common field experience with this class of camera. These are illustrative of the kinds of responses reported by integrators and end users:
- "Installer: The motorised lens saved hours on-site. We adjusted focal length remotely after mounting and achieved the right field of view without ladder work."
- "Security manager: False alarms dropped significantly after enabling AcuSense. We now review fewer irrelevant events and can focus on actual incidents."
- "Facilities team: Night images are much clearer than our old cameras. DarkFighter provides usable colour shots after dusk, which helped ID a delivery truck during an incident."
These comments are representative and anonymised to illustrate common user experiences with 5 MP AcuSense/DarkFighter bullet cameras. For verified reviews of a specific deployment, consult site references or vendor case studies.
Installation, maintenance and compliance considerations
To get the best results from the DS-2CD3656G2-IZS, consider the following practical points: ensure PoE switches supply 802.3at Class 4 if using PoE; verify frame rates and features against regional firmware and datasheets; confirm CE/UKCA and other local regulatory markings on supplied units; and install at recommended heights and angles to optimise IR coverage and the effectiveness of AcuSense detection rules. Regular firmware updates and periodic lens cleaning will maintain reliability and image quality.
Conclusion: Why choose the DS-2CD3656G2-IZS?
The Hikvision DS-2CD3656G2-IZS is a compelling option for outdoor surveillance projects that require a balance of high-resolution imaging, strong low-light performance and intelligent analytics. Its motorised varifocal lens and H.265 compression make installation and ongoing operation more efficient, while AcuSense reduces false alarms and helps security teams focus on meaningful events. Durability features such as IP67 and IK10 ratings ensure it withstands outdoor exposure and tampering attempts. For perimeter security, car parks, entrances and other outdoor scenes where both day and night monitoring matter, this camera offers a cost-effective blend of image quality, smart features and robustness that makes it a strong choice for professional installations.
