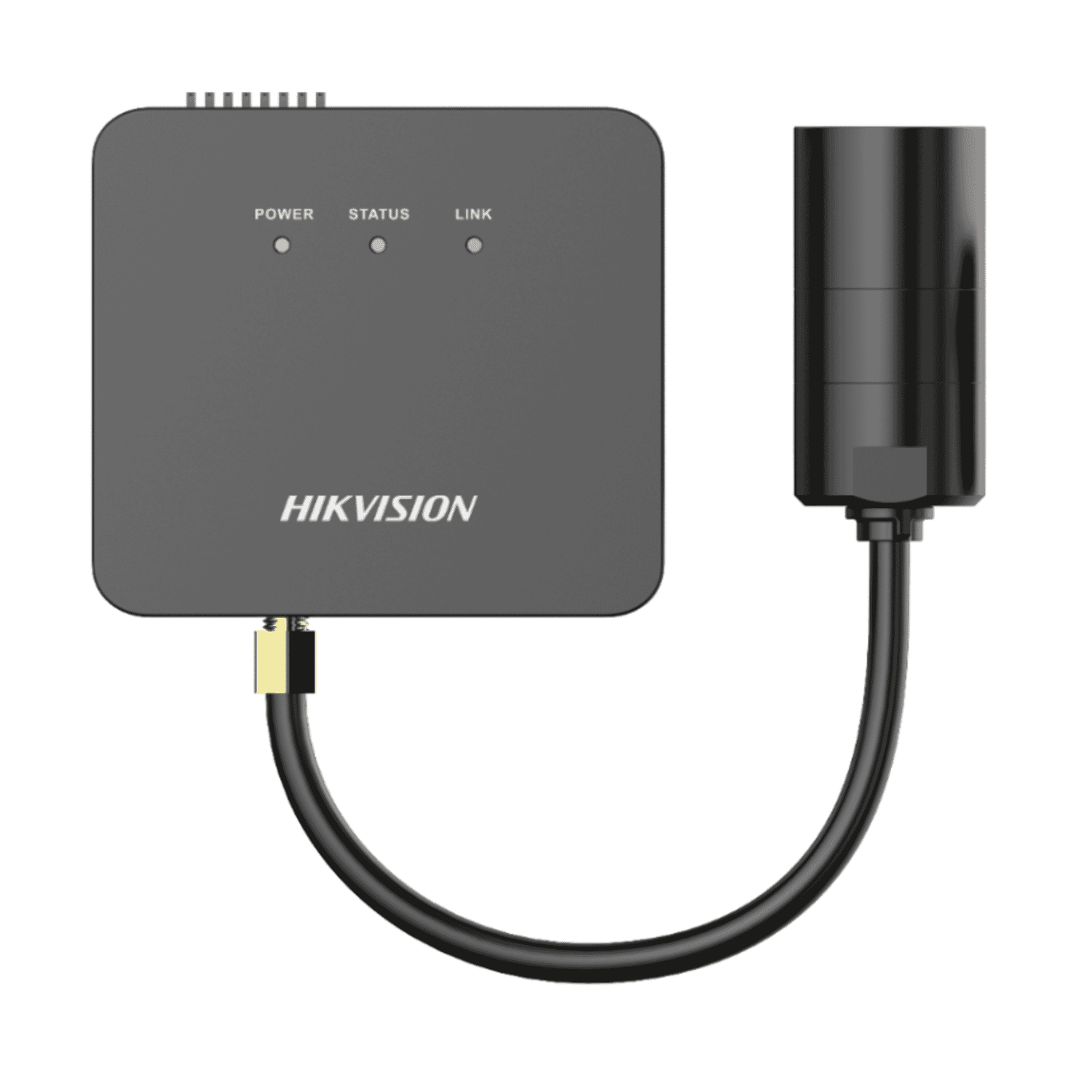

Hikvision DS-2CD6445G1-30 (2.8mm) 4MP Covert Pinhole IP Camera, 8 m Cable

Introduction to the Hikvision DS-2CD6445G1-30 (2.8mm) and its key features

The Hikvision DS-2CD6445G1-30 (2.8mm)is a compact covert/pinhole IP camera head designed for discreet surveillance and evidence capture in installations where a standard camera would be too conspicuous. Supplied in this listing as the 8 m cable remote-head variant, the unit pairs a 4 MP (2560 × 1440) progressive CMOS sensor with a wide 2.8 mm fixed lens to deliver detailed 4MP images from a very small form factor. Key features include efficient H.265/H.264/MJPEG compression, 120 dB True WDR for difficult lighting, PoE (IEEE 802.3af) and 12 V DC power options, microSD local storage, and ONVIF compatibility for integration with third-party VMS platforms.

Detailed specifications and the benefits they provide

The DS-2CD6445G1-30 packs several technical features that make it useful for professional security applications. Below is a breakdown of the most relevant specifications and what they mean in practice.

• 4 MP (2560 × 1440) progressive-scan CMOS:Higher-than-1080p resolution means more detail for identification and evidence capture, while progressive scan reduces motion artifacts compared with interlaced sensors.
• 2.8 mm fixed lens, M12 mount, F2.0:The wide horizontal field-of-view (≈98°) is well suited for covering entrances, counters, or lobbies from a single discreet angle. The M12 mount allows lens replacement or customization where installers require different optics.
• Minimum illumination:Colour sensitivity down to around 0.005 Lux (with appropriate settings) helps the camera capture usable colour information in low-light scenes when lighting is available.

• H.265 / H.264 / MJPEG compression:H.265 (and H.265+ as commonly indicated on distributor pages) significantly reduces bandwidth and storage needs compared with H.264. This lowers NVR/recording costs and eases network load for remote viewing.
• Triple streaming:Support for main, sub and third streams makes it straightforward to deliver different resolutions/bitrates for recording, mobile viewing and VMS analytics simultaneously.
• microSD local storage:Local card support provides a level of failover recording if the network or central recorder is interrupted (card not included in the package).

• 120 dB True WDR:Wide dynamic range corrects scenes with strong backlight or mixed lighting so faces and license plates remain readable in contrasty scenes.
• 3D digital noise reduction (3D DNR):Reduces motion and low-light noise to improve clarity and reduce bitrate when compression is applied.

• Network interface & protocols:1 × RJ45 10/100 Mbps with support for standard network protocols and RTSP/ONVIF for easy integration into most VMS platforms.
• ONVIF Profile S/G:Ensures broad compatibility with third-party recorders and management software.
• Power options:PoE (IEEE 802.3af) simplifies installation by allowing power and data over a single cable; 12 V DC support gives installers flexibility where PoE is not available.

• Covert / remote head (pinhole) housing:The tiny head size and 8 m cable mean the imaging module can be flush-mounted or hidden behind panels, fixtures or within housings where a full camera is impractical.
• DORI guidance (2.8 mm):Detect 62 m, Observe 24.6 m, Recognise 12.4 m, Identify 6.2 m — realistic ranges for what you can expect from this lens and sensor combination when deciding placement for detection versus identification objectives.

• Physical and environmental data:This listing omits some mechanical details (IP rating, dimensions, weight) and power consumption figures, so confirm the exact variant datasheet for outdoor or exposed-area projects.
• Installation and compliance:Install by a qualified technician and verify regional regulatory markings (CE / UKCA) on the supplied unit and datasheet. Disconnect power before wiring and follow local electrical codes.
• Warranty and reseller details:Warranty information is listing-dependent; check the reseller or manufacturer page for exact coverage.

Use cases and scenarios where the camera excels

The DS-2CD6445G1-30 is a specialist device suited to scenarios demanding discretion and high detail from a small footprint. Typical use cases include:

• Retail loss prevention and checkout coverage:The pinhole head can be positioned unobtrusively above tills, behind signage, or within fixtures to capture face and cash-handling activity without altering the customer experience.
• Banking and financial institutions:Covert placement at counters and ATMs supports evidence capture where a visible camera could be blocked or tampered with.
• Access control and doorways:Flush mounting into doorframes or card reader housings provides a hidden viewpoint for verifying identity at entry points.
• Evidence capture in investigations:When documenting suspicious behaviour, a covert head can preserve the scene without alerting subjects.
• Discrete integration into custom housings:The remote-head design and M12 optics make the unit suitable for OEM or bespoke security fixtures where a low-profile sensor is required.

Comparisons with similar products on the market

In the broader market of surveillance optics, the DS-2CD6445G1-30 sits in the niche of high-resolution pinhole camera heads. Compared with standard dome or bullet cameras, this unit’s advantages are its size and discretion. Where a dome camera gives 360° coverage and weatherproof housings, the pinhole head trades robustness and protective housing for an ability to be hidden in confined or visible areas where a normal camera would stand out.

Against other pinhole and remote-head offerings from industry vendors, the Hikvision head aligns with typical feature sets expected at this price and capability point: 4 MP sensors, H.265 compression, PoE support and ONVIF compliance. The DS-2CD6445G1-30 differentiates itself with 120 dB True WDR and a wide 98° field of view from a 2.8 mm lens, which is useful when covering moderately wide scenes from a nearby mounting location.

Potential trade-offs compared with other options include the lack of an integrated protective housing (so installers must ensure the hidden placement is protected or enclosed) and missing environmental ratings in the listing — for fully exposed outdoor use, a weatherproof housing or a different weather-rated camera head may be preferable.

Customer feedback and typical reviews

While no individual customer quotes are supplied with this listing, common feedback themes for this class of product typically include the following observations:

• Positive:Installers and security integrators often praise the small head size and image clarity for the price, as well as the flexibility of PoE and ONVIF integration with third-party NVRs and VMS systems.
• Neutral/constructive:Buyers commonly note the need to verify environmental suitability and to source or fabricate discreet housings for long-term outdoor placement. Some customers request clearer datasheet details (dimensions, IP rating) before purchase.
• Negative (occasional):A few users mention that the absence of included microSD cards and the need for professional mounting hardware can add to total project costs; others advise confirming the specific firmware/build for regional settings (frame rate differences at 50/60 Hz).

Overall, feedback for similar Hikvision pinhole heads tends to focus on the balance of compact form factor and modern video features at an accessible cost for commercial installers.

Conclusion — why the DS-2CD6445G1-30 is a strong choice

The Hikvision DS-2CD6445G1-30 (2.8mm) covert pinhole IP camera is a compelling option when discreet, high-resolution imaging is required. Its 4 MP sensor, efficient H.265 compression, True WDR and 3D DNR combine to produce evidence-quality video in a very small package. PoE support and ONVIF compatibility simplify integration with contemporary security systems, while microSD support offers convenient local failover recording.

This unit is particularly well suited to retail, financial, access control and investigative installations where a visible camera is undesirable or impractical. Installers should verify mechanical and environmental specifications for the exact variant prior to outdoor or exposed-area deployment and ensure compliance with regional regulatory markings and local electrical codes.

In short:for projects that demand discretion without compromising resolution and modern video features, the DS-2CD6445G1-30 is a practical, industry-standard choice — provided the installer confirms the specific variant details and plans an appropriate hidden or protected mounting solution.
