Introduction to the Hikvision DS-2DE4225WG-E3

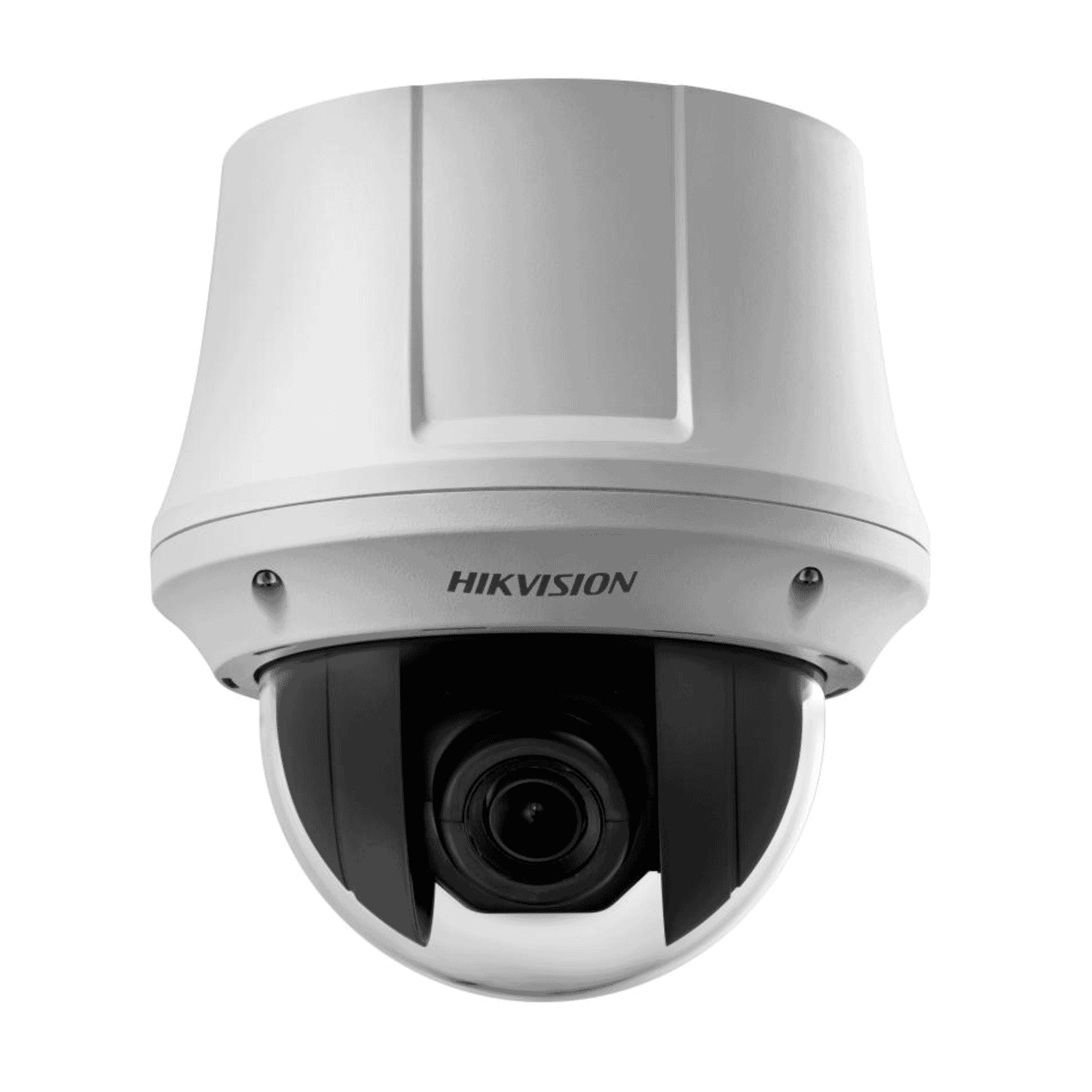

The Hikvision DS-2DE4225WG-E3 is a Pro-Series in-ceiling speed-dome IP PTZ camera designed to deliver high-quality 2 MP (1080p) imaging combined with a powerful 25× optical zoom and Hikvision DarkFighter low-light technology. Built for large indoor environments such as shopping centres, transport hubs, airports and warehouses, this model brings remote pan/tilt/zoom control, long-range detail capture and superior low-light colour performance to centrally mounted ceiling deployments.
Key aspects that make this camera attractive to system designers and end users include a motorised 4.8–120 mm lens with 25× optical zoom, 360° continuous pan and wide tilt range, advanced image processing (120 dB True WDR, HLC/BLC, 3D DNR), H.265+ compression for efficient storage and bandwidth use, and secure network features such as HTTPS/802.1x/TLS.
Specifications and What They Mean for Your Installation
Below is a practical breakdown of the DS-2DE4225WG-E3’s specification highlights and the benefits they deliver in real-world surveillance applications.
- Sensor & resolution:1/2.8" progressive-scan CMOS delivering 1920 × 1080 (2 MP). This provides clear, full-HD imagery suitable for identification at moderate distances while keeping bandwidth/storage requirements lower than 4K alternatives.
- Lens & zoom:Motorised 4.8–120 mm, F1.6 lens offering 25× optical zoom (plus 16× digital). The long optical reach combined with the relatively fast F1.6 aperture enables detailed inspection of distant subjects and better light gathering in dim scenes.
- Low‑light performance:DarkFighter technology — colour imaging preserved at very low lux levels (Colour 0.005 Lux; B/W 0.001 Lux). This makes the camera particularly useful where colour recognition matters at night or in poorly lit interiors.
- WDR & image enhancement:120 dB True WDR, HLC/BLC, 3D DNR and digital defog help the camera manage high-contrast scenes, reduce noise in low light and improve clarity in environments with fog or glare.
- Pan/tilt range and speed:360° continuous pan, 0°–90° tilt with configurable speeds (0.1°–160°/s) and preset speeds up to 160°/s. This provides fast repositioning for incident response and smooth tracking for patrol routines.
- Presets and patrols:Up to ~300 presets, 8 patrols (up to 32 presets each), pattern scans and park actions allow complex automated monitoring schedules and quick recall of critical viewpoints.
- Compression & frame rates:Supports H.265+/H.265/H.264 with dual-stream capability; main stream can deliver up to 25/30 fps at 1080p (region dependent). H.265+ reduces bandwidth and storage costs significantly compared to older codecs.
- Onboard storage:microSD/SDHC/SDXC support up to 256 GB enables edge recording for redundancy or small installations without a local NVR.
- Privacy & image control:Up to 24 privacy masks and >52 dB SNR help tailor coverage and maintain usable image quality in complex scenes.
- Network security:1 × RJ45 10/100 Mbps with HTTPS/802.1x/TLS support — important for securing video streams and authenticating devices in enterprise environments.
- Audio & alarm I/O:Line in and line out plus 1 alarm input and 1 alarm output allow integration with external sensors, speakers, or access control systems.
- Power options:Variant dependent — either 12 V DC (2.0 A, max 24 W) + PoE (802.3at) or 24 VAC + PoE (802.3at). Confirm the SKU power variant for your deployment and order the correct accessories. PoE (802.3at) simplifies installation wiring for many sites.
- Size & environment:Ø 165 mm × 179.5 mm, approx. 2.0 kg; operating temperature −10 °C to 50 °C and humidity ≤90% non‑condensing. In-ceiling form factor is designed for discreet, central mounting in interior spaces.
- Surge protection & compliance:TVS 6000V surge protection and typical approvals (CE, RoHS, FCC etc., model/region dependent). Always verify regional certifications and follow local electrical/network installation rules.
Use Cases Where the DS-2DE4225WG-E3 Excels
This camera is aimed at large indoor areas where a combination of wide coverage, long-range detail and good low-light colour is required. Typical installs include:
- Shopping centres and retail precincts:Mounted centrally in atriums or corridors to track crowds, zoom in on incidents and preserve facial or apparel detail even in mixed lighting.
- Airports and transport hubs:Monitoring of concourses, gates and baggage areas where both wide-area scanning and close-up identification are needed.
- Warehouses & logistics centres:Overseeing loading bays, aisles and high-value storage where the zoom and PTZ automation can follow activity across large open spaces.
- Event venues & stadia interiors:For indoor arenas, foyers and circulation areas where crowd control and incident investigation require flexible, centralized coverage.
- Critical infrastructure & enterprise:Lobbies, server rooms and secure interior facilities that benefit from alarm integration and secure streaming.
How It Compares with Similar PTZ Cameras
Compared with other in-ceiling or indoor PTZ cameras from competitors, the DS-2DE4225WG-E3’s primary strengths are its combination of a long 25× optical zoom, DarkFighter low-light colour performance and enterprise-friendly network/security features. When evaluating alternatives, consider these points:
- Resolution vs. zoom trade-off:Some competitors offer 4K sensors at fixed wide angles or with lower optical zoom. The Hikvision’s 2 MP sensor delivers efficient streaming and storage, while the 25× optical zoom retains detail at distance — a desirable trade-off when long-range identification is needed more than ultra-high pixel counts.
- Low-light colour:DarkFighter is Hikvision’s established low-light technology; equivalent offerings from other vendors (Axis’ Lightfinder, Dahua’s Starlight) provide similar benefits. Choice often comes down to image tuning preference and system compatibility with existing NVR/VMS ecosystems.
- Form factor:In-ceiling PTZs are quieter and less obtrusive than dome housings; some rivals offer pendant or surface-mounted PTZs with similar optics but different aesthetics. Choose based on mounting constraints and visual impact requirements.
- Integration & ecosystem:If you already run Hikvision infrastructure, compatibility and feature parity (like ONVIF support, but check versions) may favour this model; heterogeneous systems should verify codec, analytics and control compatibility with the chosen VMS.
Customer Feedback & Reviews
At the time of writing, specific public customer testimonials for the DS-2DE4225WG-E3 are limited. From installer and system integrator feedback on similar Hikvision Pro-Series PTZs, common praise points include:
- Reliable PTZ mechanics and fast preset recall suitable for active monitoring stations.
- Strong low-light colour performance that reduces reliance on added lighting in indoor spaces.
- Effective bandwidth savings when using H.265+, without noticeably degraded forensic detail.
Potential concerns raised in comparable deployments include ensuring you select the correct power variant (12 V DC / 24 VAC / PoE) for your site and confirming firmware updates and secure configuration to meet organisational cybersecurity policies.
Conclusion: Why Choose the DS-2DE4225WG-E3?
The Hikvision DS-2DE4225WG-E3 is a strong option where a balance of long-range optical zoom, low-light colour imaging and comprehensive PTZ features are required in an in-ceiling format. It is well suited to large indoor venues that need broad coverage plus detailed inspection capability without the bandwidth penalty of very high-resolution sensors.
Practical advantages include the 25× optical zoom, DarkFighter low-light capability, 120 dB True WDR and H.265+ compression for efficient operation. Network security features, onboard storage up to 256 GB and alarm/audio I/O add flexibility for integration into modern security systems.
Pricing and procurement notes: the supplied data lists a cost price of 288.62 and a suggested retail price of 365.00 (the suggested price was recommended as £365 excl. VAT if the cost is GBP). Before ordering or publishing commercial materials, confirm the currency of the cost, the correct SKU power variant (12 V DC + PoE or 24 VAC + PoE) and any regional certification requirements.
In short, for organisations seeking a centrally mounted, discreet PTZ camera that delivers long-range viewing, dependable PTZ control and superior low-light colour imaging for indoor spaces, the DS-2DE4225WG-E3 is a compelling candidate. Validate the exact model variant, wiring and mounting details with your installer, and test the camera in your target site lighting to ensure it meets identification and coverage goals.
