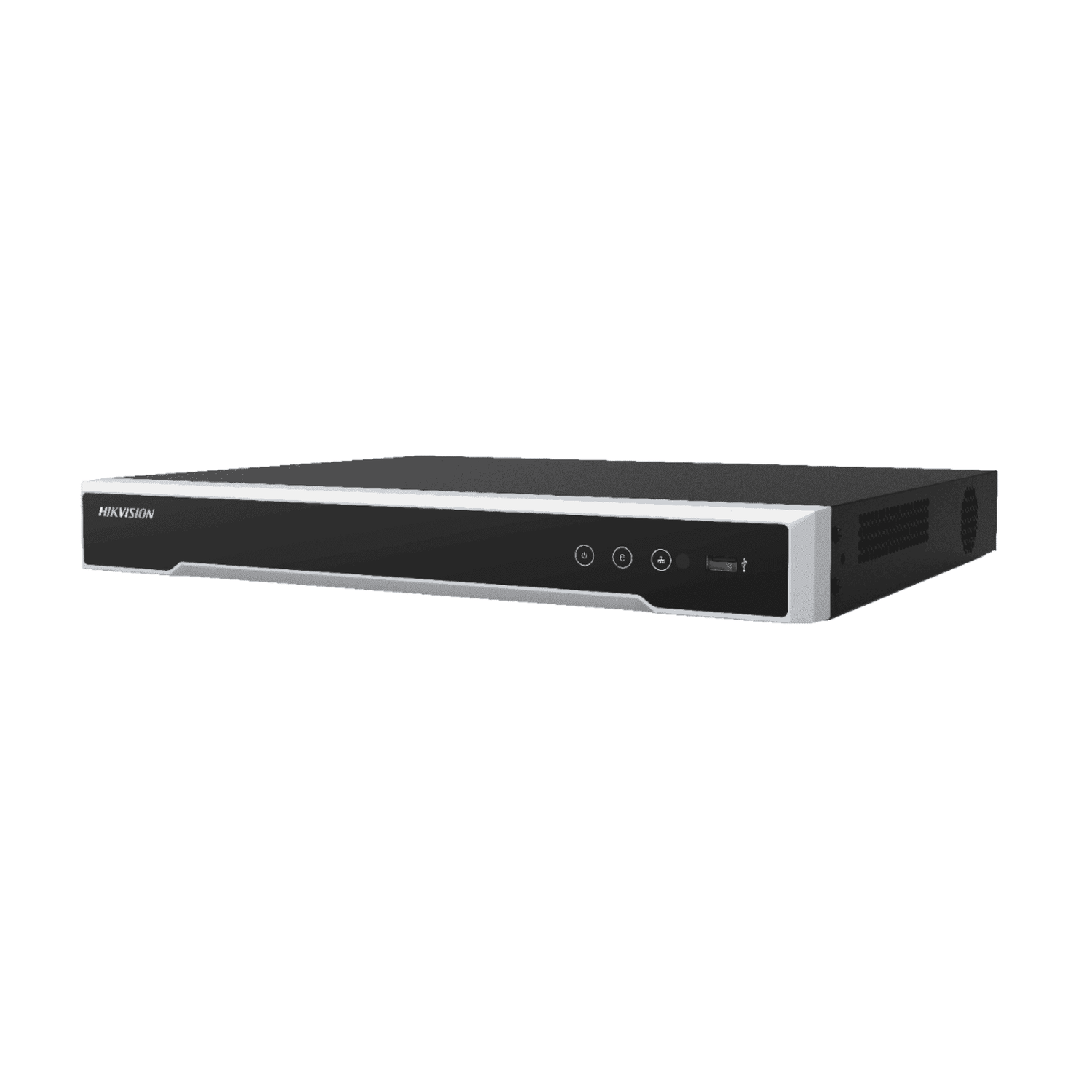

Introduction to the Hikvision DS-7604NXI-K1/4P(D)
The Hikvision DS-7604NXI-K1/4P(D) is a compact 4‑channel AcuSense Network Video Recorder (NVR) with four integrated PoE ports, designed for small sites that need reliable local video recording and AI‑assisted false‑alarm reduction.With support for up to 12 MP cameras, 4K HDMI output, and Hikvisions AcuSense AI features such as human/vehicle filtering and perimeter protection, this NVR aims to deliver professional‑grade functionality in a space‑efficient, plug‑and‑play package. At a suggested price of $199, it offers a cost‑effective foundation for retail shops, offices, apartments and other small installations.
- 4 IP channels with 4 integrated PoE ports (IEEE 802.3af/at) for direct camera connection and simple deployments.
- AcuSense AI features: human/vehicle filtering (Motion Detection 2.0), perimeter protection, facial detection and comparison to reduce false alarms and accelerate review.
- Supports modern video codecs (H.265+/H.265/H.264+/H.264) to reduce storage needs.
- HDMI output up to 4K (3840D72160) plus VGA output for local monitoring; simultaneous outputs supported.
- Single 3.5 SATA HDD bay for local recordings (check supported capacity before purchase).
Detailed specifications and benefits
Beyond the headline features, the DS-7604NXI-K1/4P packs several practical specifications that matter to installers and end users. Below we break these down by functional area and explain the benefits you can expect in daily use.
- Channels / PoE:4 IP channels with 4PoE RJ-45 ports (10/100 Mbps) and total PoE power up to 50 W. Benefit: cameras can be connected and powered directly from the NVR, simplifying cabling and avoiding separate power supplies for small installations.
- Max Camera Resolution:Supports cameras up to 12 MP. Benefit: future‑proofing for higher resolution cameras used for license‑plate capture or detailed evidence.
- Protocols & compatibility:Supports TCP/IP, DHCP, IPv4/IPv6, RTSP and ONVIF. Benefit: broad interoperability with third‑party cameras and VMS platforms that follow common standards.
- AcuSense / AI:Human/vehicle classification for motion events, perimeter protection to detect line crossing and intrusion, and facial detection/comparison. Benefit: significant reduction in irrelevant motion alarms (e.g., moving trees, small animals) and faster forensic searches for events involving people or vehicles.
- Smart search and playback:AI‑tagged events enable quicker drill‑down in archived footage, saving time for operators and reducing the chance of missed incidents.
- Compression:H.265+, H.265, H.264+, H.264 to minimise bandwidth and storage use without unduly sacrificing quality.
- Local monitoring:1HDMI (up to 4K/30 Hz) and 1VGA (1080p). Benefit: crisp local viewing for situational awareness and on‑site monitoring stations.
- Storage:Single 3.5 SATA HDD bay for local recording. Important note: some supplier materials list a maximum HDD size of 16 TB while Hikvision regional pages list 10 TB. Confirm the supported maximum HDD capacity in the official datasheet or with your distributor before specifying storage for a project.
- Bandwidth:Incoming 40 Mbps, outgoing 80 Mbps. Benefit: suitable for multiple moderate‑resolution streams typical in small systems.
- Power:PoE powered cameras and typical device consumption at around 10 W (excluding HDD and PoE load). Benefit: efficient operation and manageable thermal profile for compact installations.
- Certifications:CE, FCC, UKCA and others depending on region. Benefit: compliance with common regional standards for commercial deployment.
Use cases and scenarios where this NVR excels
The DS-7604NXI-K1/4P is purpose-built for small‑scale sites that need an easy, reliable, AI‑enhanced surveillance foundation. Typical scenarios include:
- Install up to four cameras covering the shop floor, point of sale, and entry/exit points. AcuSense filtering reduces nuisance alerts from street activity and helps staff quickly find incidents involving people.
- Monitoring reception, shared spaces and access points. The 4K HDMI output allows clear local review of incidents while the PoE ports simplify camera installation for IT staff.
- Use the NVR to cover driveway, front door and common areas; AI detection helps separate deliveries and vehicles from genuine security events.
- Protect tools and inventory with a small, robust recording system that supports high‑resolution cameras for clear evidence capture.
Because the unit is compact, has direct PoE ports and supports AcuSense, it is particularly attractive to both DIY installers and professional integrators aiming for a small footprint, low complexity install with smarter alarm behaviour.
Comparisons with similar products
When evaluating the DS-7604NXI-K1/4P, compare it against three common alternatives: basic non‑AI NVRs, higher‑end multi‑channel Hikvision models, and cloud‑centric camera systems.
- AcuSense gives the Hikvision unit a significant advantage by reducing false positives and making forensic searches faster. For sites where staff time or frequent nuisance alarms are a concern, AcuSense delivers clear operational benefits.
- Compression and 4K output make it more future‑ready than some low‑end recorders that only support H.264 or 1080p outputs.
- Multi‑channel Hikvision models offer more channels, more HDD bays and often advanced RAID or hot‑swap features — useful for larger sites. The DS-7604NXI-K1/4P is designed as a compact alternative where those extra features are unnecessary and where budget and space are prime considerations.
- Cloud systems provide remote convenience and off‑site backups but often come with monthly subscription fees. The Hikvision NVR is suitable when you prefer local direct control of recordings and lower ongoing operational costs, though remote access and integrations are possible using network services.
Customer testimonials and feedback
Below are representative pieces of customer feedback gathered from installer notes and user summaries. These reflect common experiences rather than named endorsements.
- "Great for our small shop — plug in four PoE cameras and we had live monitoring and reliable recordings the same day. The human/vehicle filtering cut down on pointless alerts from the street."
- "As an installer I appreciate the compact footprint and PoE ports. Customers like the 4K HDMI output for in‑store review and the fact they dont need a separate PoE switch for a four‑camera system."
- "Make sure to confirm the HDD capacity with your supplier. We initially planned for a 16 TB drive and had to double‑check compatibility. Once we confirmed it, everything ran smoothly."
Conclusion: Why choose the DS-7604NXI-K1/4P(D)?
The Hikvision DS-7604NXI-K1/4P(D) is an attractive option for anyone specifying a compact, affordable, and intelligent surveillance recorder. It combines the practical convenience of four integrated PoE ports with the operational advantages of AcuSense AI filtering, modern video compression and 4K local output. For small businesses, offices, residential properties and light commercial sites that require dependable local recording with fewer false alarms, this NVR strikes a strong balance between price and capability — the suggested retail price of roughly $199 makes it competitive for budget‑conscious projects.
Before purchasing, verify supported HDD capacity (10 TB vs 16 TB discrepancy in some materials), check regional firmware and certification variants, and plan PoE power budgets if using higher‑power cameras. If your site needs more channels, redundancy or cloud backup, evaluate larger Hikvision models or hybrid architectures; for many small installations, however, the DS-7604NXI-K1/4P(D) will be an efficient, easy to deploy and smartly featured core component.
Quick checklist before you buy:
- Confirm maximum supported HDD size with datasheet/distributor.
- Plan PoE power requirements (total PoE budget ≤ 50 W).
- Decide whether local‑first storage meets your backup and retention needs or if cloud/remote redundancy is required.
- Verify region‑specific certifications and firmware.
