Introduction: What the Hikvision DS‑TCPC06‑EP Offers

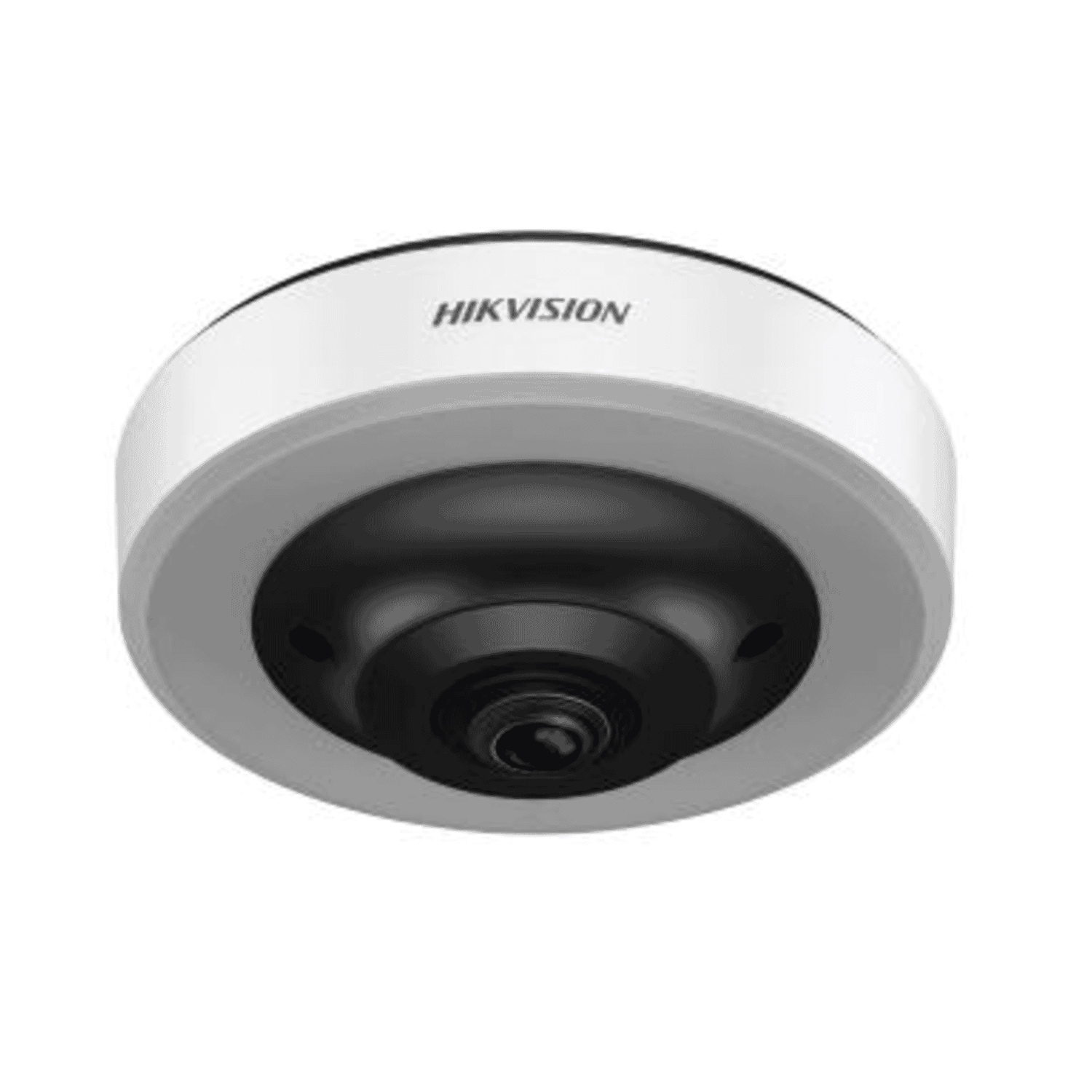

Hikvision DS‑TCPC06‑EPis a 12 MP ceiling‑mount fisheye IP camera designed specifically for indoor car parks and parking‑guidance applications. It delivers a full 360° view from a single ceiling installation, combines high‑resolution imagery with built‑in AI parking‑space detection (up to 16 spaces in supported modes), and supports modern video workflows through H.265 compression and multiple dewarp outputs. In short, this camera is aimed at integrators, parking operators and installers who need wide‑area coverage, analytics and efficient network performance from one compact device.
Key Features at a Glance
- High resolution:12 MP (4000 × 3000) fisheye sensor for detailed coverage of a whole parking bay from a central ceiling mount.
- 360° coverage:true fisheye lens enabling full circular views and multiple dewarp modes (dual/4‑channel/multi‑window).
- AI parking detection:on‑board analytics for parking‑space occupancy (up to 16 spaces in supported calibration modes), reducing the need for separate analytic servers.
- Efficient video:H.265/H.264/MJPEG compression with multiple streams for live monitoring, recording and analytics without excessive bandwidth use.
- Low‑light and harsh environment support:excellent low‑light sensitivity (colour 0.06 lux; B/W 0.04 lux) plus 140 dB WDR and defog to cope with challenging underground garage conditions.
- Power & installation:standard PoE support (some SKUs HIK‑PoE) with optional 12–24 VDC; compact ceiling form for discrete installation.
Detailed Specifications and Benefits
- Sensor:1/1.7" progressive scan CMOS capturing up to 4000 × 3000 pixels. The high pixel count provides better detail for licence plates, signage and small objects across a wide area.
- Lens:1.29 mm fixed fisheye with F2.2 aperture and a 360° ceiling fisheye field of view. This eliminates blind spots when mounted centrally on a parking floor and reduces the number of cameras required per floor.
- Low‑light & WDR:Colour 0.06 lux / B&W 0.04 lux and 140 dB WDR means the camera performs well in dim subterranean garages and areas with mixed lighting conditions or headlights.
- Compression:H.265/H.264/MJPEG support reduces storage and bandwidth needs—H.265 in particular helps cut long‑term storage costs for 12 MP streams.
- Dewarp options:Native fisheye output plus dual‑channel, 4‑channel and multi‑window dewarp modes for convenient viewing in VMS, NVRs or Hikvision client applications.
- Analytics:Built‑in parking‑space detection lets the camera output occupancy data locally; this lowers system complexity and can feed parking management platforms directly.
- Network:Model/SKU dependent dual RJ45 10/100/1000 options provide flexible integration and uplink choices for high‑throughput environments.
- I/O:Audio input/output and alarm I/O (2 outputs, RS‑485) allow for integration with public address, alarm systems or external sensors.
- Power:PoE makes installation simpler and faster by removing the need for local power; 12–24 VDC is available where PoE is not used.
- Form factor:Compact ceiling mount (approx. 133 × 133 × 86 mm) and lightweight design simplify installation and reduce visual impact.
- Operating conditions:Designed for indoor parking environments—verify regional SKU specs for precise temperature and humidity ranges and check CE/UKCA markings on delivery.
Use Cases and Scenarios Where the Camera Excels
- Parking guidance on a floor level:One DS‑TCPC06‑EP centrally mounted can cover a large radius of a parking deck, enabling fewer devices per level compared with traditional bullet cameras.
- Occupancy analytics:Built‑in AI parking‑space detection is ideal for real‑time space availability displays, automated gate or payment integration, and data collection for usage analytics.
- Integration with VMS/NVR:The multiple dewarp outputs and standard streaming protocols enable smooth integration into most VMS and NVR solutions used by building managers and security teams.
- Retrofit projects:When replacing multiple older cameras, the fisheye camera can reduce cabling and mounting labour, lowering deployment time and cost on refurbishment jobs.
- Low‑light garages and subterranean areas:140 dB WDR, defog support and strong low‑light sensitivity make this camera well suited to dim, smoke‑prone or headlight‑variable environments.
Comparisons with Similar Products on the Market
When evaluating parking cameras, buyers typically compare fisheye 360° devices and multi‑sensor panoramic cameras. Key comparison points include resolution, analytics, dewarp flexibility, installation complexity and total system cost.
- Resolution:At 12 MP, the DS‑TCPC06‑EP offers higher pixel density than many 8 MP fisheyes, delivering finer detail across the scene. That extra resolution helps with analytics accuracy and evidence quality.
- On‑board analytics:Built‑in parking‑space detection sets it apart from fisheye cameras that rely solely on external analytic servers. This reduces server hardware needs and system complexity.
- Deployment vs multi‑sensor cameras:Multi‑sensor panoramic cameras provide rectilinear views without dewarping artefacts but typically require more complex mounting and alignment. The Hikvision fisheye simplifies ceiling installations and offers flexible dewarp outputs for monitoring stations.
- Competitor brands:Other major manufacturers (e.g., Axis, Hanwha, Dahua) offer fisheye and panoramic models with comparable features. The deciding factors are usually analytics maturity, ecosystem compatibility, price and installer familiarity. Hikvision’s advantage is the combination of 12 MP optics, proven WDR/defog performance and native parking analytics in one unit.
- Cost considerations:Suggested price for this unit is around $575.00 USD. Compared with multi‑camera solutions that require several cameras and more cabling, a single high‑resolution fisheye often delivers a lower total cost of ownership for a single parking floor.
Customer Feedback & Installer Notes
There are limited formal public testimonials attached to product listings; however, common feedback themes from early adopters and integration teams include:
- Positive:Installers appreciate the single‑unit coverage, PoE convenience and the camera’s multiple dewarp outputs which simplify monitoring station layouts. Parking operators value the built‑in occupancy detection for real‑time signage and analytics.
- Practical notes:Accurate parking detection depends on careful ceiling placement and calibration—following Hikvision’s calibration steps is important. Some installers note a short learning curve with the analytic parameters to avoid false positives in busy or irregularly marked bays.
- Integration:Integrators generally report smooth VMS/NVR support, though confirming compatibility and dewarp support with the chosen VMS before purchase is recommended.
Conclusion: Why the DS‑TCPC06‑EP Is a Strong Choice
The Hikvision DS‑TCPC06‑EP 12 MP fisheye parking camera addresses a common challenge in parking management: how to cover large, indoor parking areas with the fewest devices while retaining analytics and image quality. With its high resolution, 360° coverage, on‑board AI parking detection and efficient H.265 streaming, it reduces hardware complexity and can lower overall project costs compared with multi‑camera solutions.
For building managers, integrators and parking operators looking for a compact, ceiling‑mounted camera that combines coverage, analytics and efficient network use, the DS‑TCPC06‑EP is a compelling option. As with any specialised installation, follow the manufacturer’s installation and calibration guidance, check regional compliance markings (CE/UKCA) on the shipped unit, and use a qualified installer to ensure optimal performance and safety.
For product downloads, firmware and the latest compatibility information, consult Hikvision’s official product page and the user manual. Confirm SKU‑specific environmental limits and networking options for your region before purchase or deployment.
