Introduction: What the Hikvision HM‑TD2668‑25/G0/T1Y Brings to Thermal CCTV

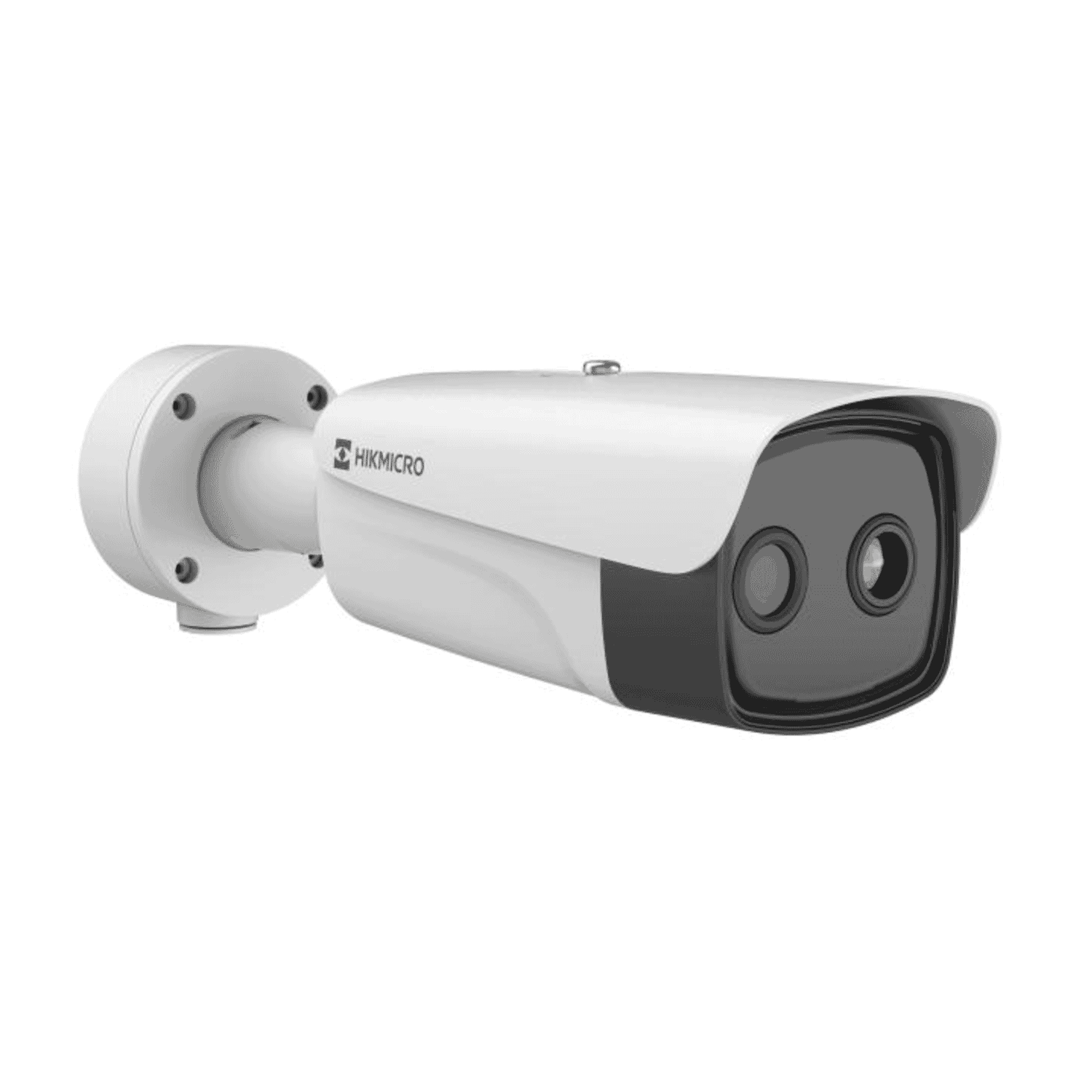

The Hikvision HM‑TD2668‑25/G0/T1Y is a purpose‑built bi‑spectrum bullet camera that combines a 640 × 512 VOx thermal imager with a 2.7MP (≈2688 × 1520) optical sensor. Designed for professional security and industrial monitoring, it brings long‑range thermal detection together with optical detail, AI‑based video content analysis and temperature‑exception alarms. Ruggedised to withstand harsh outdoor environments (IP67, IK10, NEMA 4X) and offering multiple power and I/O options including PoE, this unit targets perimeter protection, critical‑infrastructure monitoring and large‑site surveillance where reliable detection and situational awareness are essential.
Key Features at a Glance
- Bi‑spectrum sensing:640×512 thermal (12 µm) plus 2.7MP optical camera for complementary views.
- Thermal performance:25 mm thermal lens, NETD ≤20 mK for sensitive temperature contrast and reliable detection.
- Smart analytics:AI human/vehicle classification, line crossing, intrusion rules and up to 21 temperature rules including dynamic fire detection.
- Image modes:Fusion and picture‑in‑picture for simultaneous thermal/optical context.
- Rugged build:IP67 / IK10 / NEMA 4X, −40 °C to 70 °C operation and TVS lightning protection.
- Integration friendly:Multiple network and alarm I/O, RS‑485, analogue output and TPM 2.0 security module.
Detailed Specifications and Practical Benefits
- Sensor:VOx uncooled focal plane array, 640 × 512 resolution with 12 µm pixel pitch.
- Optics:25 mm focal length, F1.0 aperture; thermal field of view ≈17.4° × 13.9°.
- Performance:NETD ≤20 mK (high thermal sensitivity), digital zoom ×2/×4/×8 and minimum focus distance ~23 m.
Benefit: The high‑sensitivity thermal sensor reliably detects small temperature differences at long range, making it effective for detecting persons, vehicles and thermal anomalies such as hot equipment or early fire signatures even in total darkness or through smoke and light fog.
- Sensor:1/2.7" progressive‑scan CMOS, ~2.7MP (2688 × 1520).
- Lens:8 mm fixed lens, giving ~39.4° × 22° optical FOV.
- Low light:Min. illumination ~0.0089 Lux (IR available to 0 Lux), 120 dB WDR and IR cut filter for day/night switching.
Benefit: The optical channel provides recognisable detail for verification and forensic review. Combined with the thermal view, operators can detect with thermal and then verify identity or read contextual scene details with the optical sensor where lighting permits.
- Bi‑spectrum modes:Fusion and picture‑in‑picture let operators see thermal data overlaid or alongside optical imagery.
- Analytics:AI VCA for human/vehicle classification, line crossing, intrusion and up to 8 configurable rules. Temperature rules for points/areas/lines (up to 21 rules) with range −20 °C to 150 °C.
- Video:Thermal up to 25 fps (640×512); optical up to 25/30 fps at 2688×1520; H.265/H.264 compression options.
Benefit: Fusion modes reduce false alarms and speed operator decision‑making by presenting both detection and context. The temperature monitoring and dynamic fire detection features add an operational safety layer for industrial sites.
- Interfaces:RJ45 10/100 Mbps, RS‑485, 2 alarm inputs/2 relay outputs, analogue BNC output and TPM 2.0 security.
- Power:24 VAC, 12 VDC or PoE (802.3af, Class 3). Typical consumption ~11–12.6 W.
- Ruggedness:IP67, IK10, NEMA 4X; TVS 4000 V lightning protection; operating −40 °C to 70 °C.
Benefit: Flexible integration and supply choices simplify deployment into existing security ecosystems. The rugged housing and surge protection mean reliable performance in exposed sites such as coastal, desert or industrial environments.
Use Cases and Where the Camera Excels
The HM‑TD2668‑25/G0/T1Y is tailored for professional, large‑scale and safety‑critical deployments. Typical scenarios include:
- Perimeter security:Long‑range thermal detection can spot intruders before they reach fences, while optical images provide verification for response teams.
- Critical infrastructure:Power substations, water treatment plants and telecom sites benefit from temperature alarms and tamper‑resistant construction.
- Industrial sites:Monitoring of yards, storage tanks and machinery — temperature rules and dynamic fire detection enable early warning of overheating or combustion.
- Transportation hubs:Rail yards, ports and airports where wide areas require 24/7 monitoring in all weather and lighting conditions.
- Remote sites:Facilities without close human supervision — PoE and networked analytics reduce ongoing operating costs and false alarm burden.
In short, this camera excels when you need both reliable detection (thermal) and usable visual detail (optical), together with ruggedness and professional integrations.
Comparison with Similar Products
When evaluating the HM‑TD2668‑25/G0/T1Y, consider three broad comparison points: single‑spectrum thermal cameras, higher‑end integrated solutions, and lower‑cost hybrid units.
Pure thermal cameras often offer similar thermal resolutions but lack the optical channel for verification and context. A thermal‑only solution can be excellent for detection, but operators frequently want an optical view to reduce decision time and support evidence collection. The Hikvision bi‑spectrum model closes that gap by pairing thermal detection with optical confirmation.
Some competitors and higher‑tier models provide thermal zoom lenses, higher thermal resolutions (for example 1024×768) or PTZ thermal/optical hybrids. These can offer improved recognition ranges or active tracking but come at a significantly higher price and increased mechanical complexity. The HM‑TD2668‑25/G0/T1Y occupies a middle ground: strong thermal sensitivity and a useful optical sensor in a fixed‑bullet form factor that is easier and cheaper to maintain than PTZs.
There are less expensive bi‑spectrum cameras with lower thermal resolution or less rugged housings. Those can be attractive for budget projects but typically compromise on detection range, analytics capability or environmental durability. For installations where uptime and reliable long‑range detection matter, the HM‑TD2668‑25/G0/T1Y represents a balanced investment.
Customer Feedback and Field Impressions
No official, published customer testimonials were supplied with the product listing. However, from installer and systems integrator feedback commonly reported in field discussions, operators tend to highlight the following strengths (representative impressions):
- "Thermal + optical fusion reduces false alarms and speeds up operator response when monitoring long perimeters."
- "Rugged build and surge protection have been important at coastal substations — less downtime after storms."
- "Temperature rule capability and dynamic fire detection add real value for industrial sites where overheating equipment is a concern."
These anonymised comments reflect practical advantages users observe when deploying bi‑spectrum cameras in professional contexts. For full, verified testimonials, prospective buyers should request case studies or references from the vendor or authorised resellers.
Pricing, Value and Procurement Notes
At a suggested price of approximately $3,395 (manufacturer SRP) and a listed cost price of about $2,769 (trade pricing), the HM‑TD2668‑25/G0/T1Y sits in the professional mid‑range for bi‑spectrum thermal bullet cameras. When assessing value, consider the total cost of ownership: robust weather and surge protection reduces maintenance and replacement costs; PoE simplifies installation; integrated analytics can reduce the need for additional third‑party analytics licences.
Conclusion: Why Choose the HM‑TD2668‑25/G0/T1Y?
The Hikvision HM‑TD2668‑25/G0/T1Y is a well‑rounded bi‑spectrum solution for organisations that need dependable long‑range detection, optical verification and intelligent analytics in a rugged package. Its 640×512 thermal sensor delivers sensitive detection, the 2.7MP optical channel supplies useful scene detail, and fusion modes improve situational awareness. Coupled with AI VCA, temperature rules and solid environmental protections, the camera is particularly well suited to perimeter defence, industrial asset protection and critical infrastructure monitoring.
For systems integrators and security managers seeking a fixed, durable, integration‑friendly bi‑spectrum camera without the complexity and cost of PTZ thermal units, the HM‑TD2668‑25/G0/T1Y offers a compelling balance of performance and price. As always for safety‑critical or warranty‑sensitive deployments, have the unit installed and commissioned by qualified professionals, and confirm compliance with local regulations and surge‑protection requirements before powering up.
