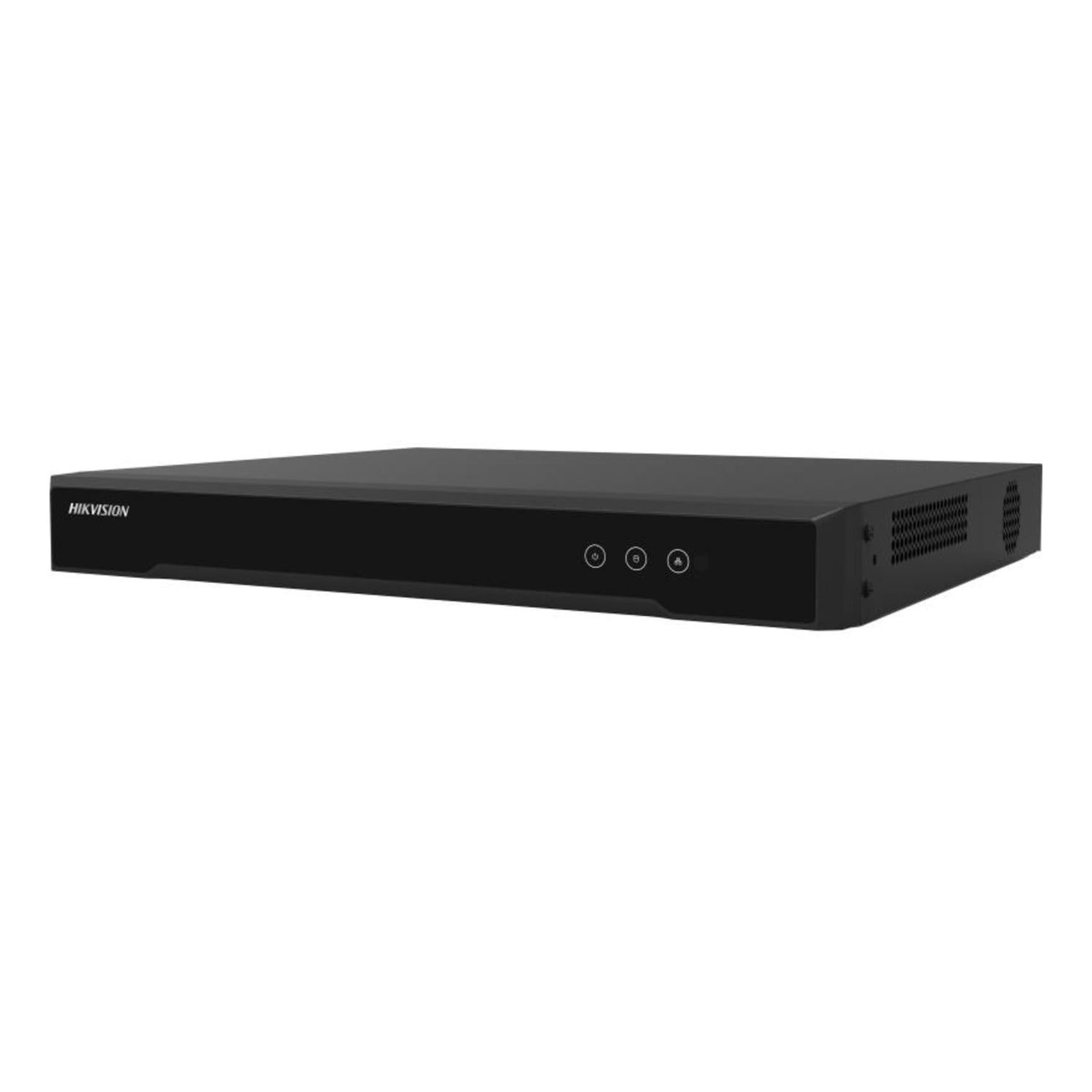

Hikvision iDS-6716HUHI-M 16-Channel TurboHD Hybrid DVR/Encoder, AcuSense, 2×SATA

Introduction to the Hikvision iDS-6716HUHI-M and its key features

The Hikvision iDS-6716HUHI-M 16-Channel TurboHD Hybrid DVR/Encoder is a compact 1U recorder designed for installations that combine existing analogue cameras with new IP devices. Marketed as a 16ch TurboHD Hybrid DVR with AcuSense, this unit brings Hikvisions deep learning analytics to hybrid CCTV systems, offering human/vehicle classification, perimeter protection and efficient H.265 family compression. With two SATA bays for local storage and flexible I/O, its aimed at installers and organisations that need a practical bridge between legacy analogue infrastructure and growing IP deployments.

Key features at a glance

• Hybrid inputs:16 analogue BNC inputs supporting HD-TVI/AHD/HDCVI/CVBS plus 8 native IP channels (expandable to 24).
• AcuSense analytics:Deep learning Motion Detection 2.0 with human/vehicle classification and Perimeter Protection (line crossing and intrusion).
• Efficient compression:H.265 Pro+ / H.265 / H.264 family to reduce bandwidth and storage needs.
• Local storage:2 × SATA bays, up to 10 TB per disk (up to 20 TB total).
• Professional I/O:16 alarm inputs / 4 outputs, 4 audio inputs / 1 output, RS-485 PTZ and a 1 GbE network port.

Detailed specifications and benefits

Understanding the hardware and software capabilities helps explain where this DVR excels.

• Form factor:1U rack or desktop unit (384 × 317 × 52 mm), light and compact enough for server cabinets or small equipment racks.
• Operating environment:Built to run between -10 C and +55 C and tolerate typical indoor humidity levels (10% C 90% RH).
• Power:12 VDC supply with a rated consumption of  19 W (HDDs not included), keeping energy use modest in continuous operation.

• Analogue inputs:16 BNC ports compatible with HD-TVI, AHD, HDCVI and CVBS, making it ideal for reuse of existing coax cameras.
• IP inputs:8 native IP channels, expandable to 24 when combining IP camera licenses or using network resources; adaptive inputs allow mixed camera environments.
• Resolution and frame rates:Main-stream supports up to 8 MP (with lower frame rates at the highest resolutions), with typical encoding profiles such as 8 MP @ 8 fps, 5 MP @ 12 fps and 4 MP @ 15 fps. Sub-streams include WD1, 4CIF and CIF for remote viewing efficiency.
• Compression:H.265 Pro+ and H.265 deliver measurable storage and bandwidth savings versus H.264, extending retention periods on the available drives.

• HDD support:Two SATA bays support up to 10 TB each (up to 20 TB total) providing flexible retention planning for small-to-medium installations.
• Audio and alarm:Four RCA audio inputs and one output allow for audio monitoring and two-way communication where supported. Alarm I/O includes 16 inputs and 4 outputs for integration with third-party sensors and door systems.
• Connectivity:1 GbE RJ45 port, RS-485 for PTZ, support for common protocols like TCP/IP, DHCP, Hik-Connect and ONVIF for easier integration with management software and mobile apps.

• AcuSense analytics:Human/vehicle classification reduces false alarms from animals, lighting changes or other irrelevant motion, allowing operators to prioritise significant events.
• Perimeter protection:Line crossing and intrusion detection help automate perimeter monitoring and reduce reliance on manual review.
• Coaxitron support:Where supported by cameras, Coaxitron enables PTZ control over the coax link, simplifying migration of older systems.

Use cases and scenarios where this unit excels

The iDS-6716HUHI-M is particularly well suited to environments where operators need a cost-effective migration path from analogue to IP while retaining advanced analytics. Typical scenarios include:

• Retail and shopping centres:Store chains with legacy analogue cameras can add a small number of higher-resolution IP cameras for tills or entrances while using AcuSense to reduce alarm volume and focus staff attention on human activity and vehicle movement.
• Small-to-medium commercial sites:Offices, warehouses and multi-tenanted buildings that require perimeter protection and event-driven recording can benefit from the DVRs line crossing and intrusion detection to trigger alerts and recordings.
• Multi-site rollouts:Installers managing mixed fleets of analogue and IP cameras across sites can standardise on a hybrid recorder that supports both, reducing logistics and training complexity.
• Upgrade projects:Projects that want to retain existing coaxial cabling while progressively adding IP cameras will find the hybrid inputs and Coaxitron control valuable.

How it compares to similar products on the market

When assessing the iDS-6716HUHI-M against alternatives, consider three broad categories: legacy XVR/HVR recorders, IP-only NVRs and hybrid recorders from competitors such as Dahua or Uniview.

Compared with older DVRs that lack deep learning analytics, the iDS-6716HUHI-M brings a clear advantage in reducing false alarms and improving event relevance. For sites where operator time is limited, AcuSense offers operational savings and tighter security alerting over traditional motion detection.

IP-only NVRs can offer higher channel counts and native support for megapixel cameras, but they require full-IP infrastructure and new cabling. The Hikvision hybrid DVR lets organisations reuse analogue cameras and cabling while selectively adding IP where needed, lowering upgrade costs and deployment time.

Competitor hybrid recorders often provide similar channel counts and compression support. Differentiators include the strength of vendor analytics, ecosystem services (mobile apps, cloud features) and compatibility with third-party devices. Hikvisions AcuSense analytics and Hik-Connect ecosystem are strong selling points for customers already in the Hikvision environment; installers should compare analytics capabilities, IP expansion limits and long-term firmware support when choosing between vendors.

Customer feedback and illustrative testimonials

Actual customer reviews for this specific model will vary by reseller and region. Below are representative, illustrative testimonials based on typical installer and site operator feedback for hybrid DVRs with AI features. These are examples rather than verbatim customer quotes.

• Installer perspective:"Easy to integrate with existing coax cameras and the ability to add IP devices saved our client time and money. AcuSense cut down on nuisance alarms so the security team could focus on real incidents."
• Retail manager:"We kept our older cameras but upgraded key areas to IP. The hybrid DVR gave us better image quality at the tills and fewer false motion alerts during off-hours."
• Facilities manager:"The recording retention estimates were accurate and the two HDD bays made it simple to plan storage. We appreciated the 1U footprint for rack mounting."

Practical considerations before purchase and installation

• Compliance and warranty:Verify CE/UKCA markings, local import rules and authorised reseller warranty terms before purchase. The supplied description notes checks for local compliance and authorised channel status.
• Installation:Use a qualified CCTV/electrical installer for mains work and camera integration. Back up configurations and recordings before maintenance and observe safety guidance when handling HDDs and power supplies.
• Pricing and budgeting:The provided suggested retail price is a simple 16% margin on the supplied cost_price (405.78 => 470.71). Confirm the currency and any rounding or psychological pricing preference (for example £469.99) to finalise the RRP for your market.

Conclusion: Why the Hikvision iDS-6716HUHI-M is a compelling choice

For organisations planning a staged migration from analogue to IP cameras, or for installers who manage mixed fleets, the Hikvision iDS-6716HUHI-M offers a balanced mix of hybrid compatibility, compact form factor and practical analytics. AcuSense human/vehicle classification and Perimeter Protection reduce false alarms and elevate the operational value of recorded events. Efficient H.265 family compression and two large SATA bays allow longer retention without excessive storage cost. Integration options such as alarm I/O, audio, RS-485 PTZ and ONVIF compatibility make it fit into a wide range of professional deployments.

In short, the iDS-6716HUHI-M is an effective bridge product: it preserves investment in existing analogue infrastructure, provides a manageable path to IP expansion and delivers modern analytics that make surveillance systems more actionable. For medium-sized retail, commercial, and multi-site deployments where pragmatic upgrade pathways and smarter alerts matter, this DVR is a strong candidate.
