Introduction to the iDS-9632NXI-M8/X DeepinMind 32‑ch AI NVR and its key features

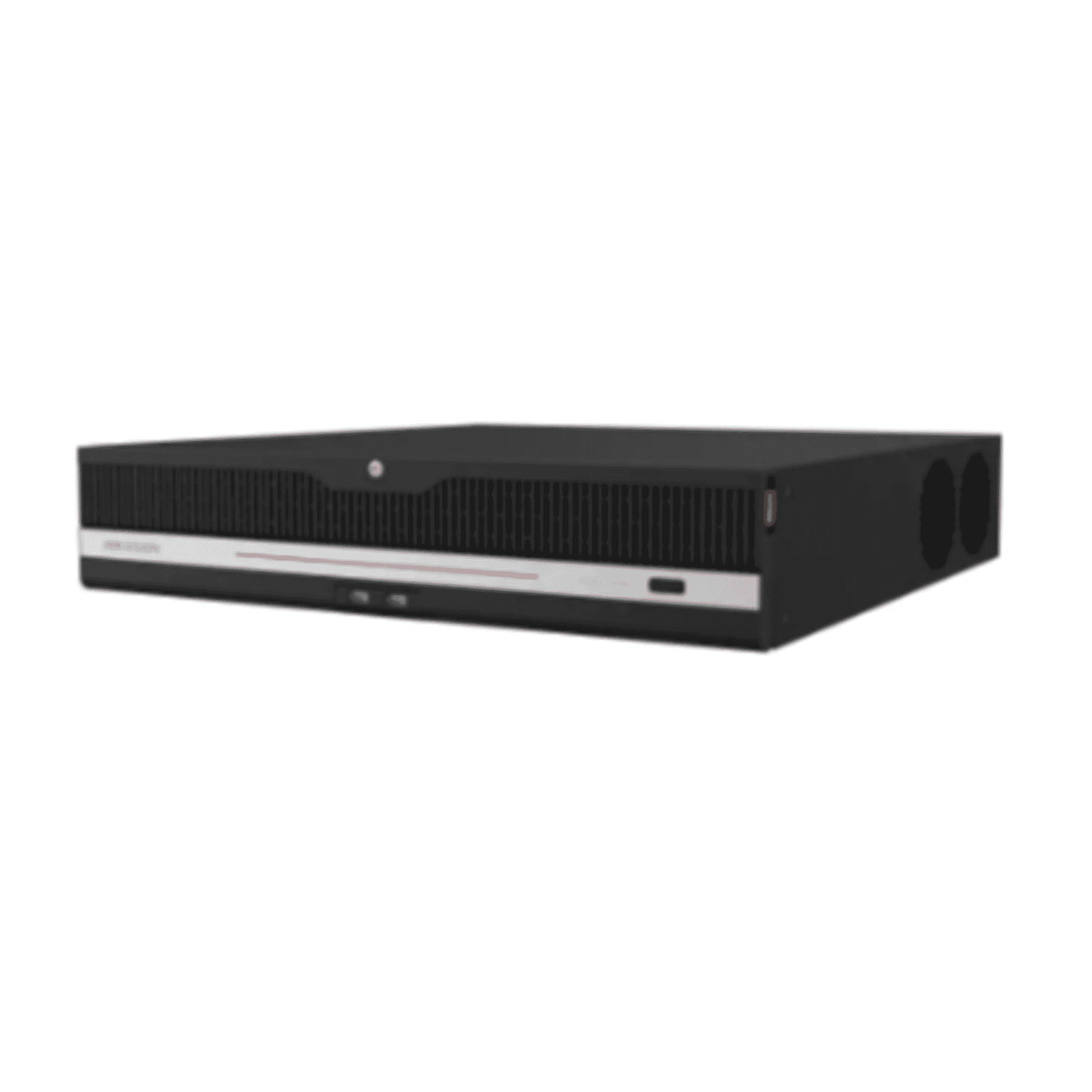

The iDS-9632NXI-M8/X DeepinMind 32‑Channel AI NVRis an enterprise-grade network video recorder designed for large-scale IP video deployments that demand high resolution, advanced analytics and robust storage. Built as a 2U DeepinMind NVR, it brings dual deep‑learning AI engines, eight hot‑swap SATA bays, and high‑resolution HDMI output (including an 8K@30Hz HDMI1) into a single, rack‑mountable appliance. With support for up to 32 IP channels (with ultra‑HD mode constraints) and a comprehensive set of I/O and network interfaces, this NVR is aimed at transport hubs, retail loss prevention, city surveillance, campuses and other mission‑critical environments.
- Up to 32 IP channels with H.265+/H.265/H.264+/H.264 encoding and multi‑channel decoding.
- Dual onboard AI engines for facial recognition, perimeter protection, ANPR, video structuralisation and AcuSearch.
- 8 × 3.5" SATA bays (up to 14 TB per bay listed) supporting RAID 0/1/5/6/10 and eSATA expansion — maximum raw capacity 112 TB per datasheet guidance.
- High‑resolution outputs including HDMI1 up to 8K@30Hz and HDMI2 up to 4K, plus multi‑channel playback (16‑channel synchronous playback).
- Enterprise I/O: dual 1 Gbps LAN, alarm inputs/outputs, audio I/O, RS‑232/RS‑485, USB 2.0/3.0.
Detailed description of specifications and benefits
The iDS-9632NXI-M8/X packs a long list of specifications tailored for enterprise deployments. Below is a breakdown of the most relevant technical details and what they mean in practical terms.
- Max camera resolution:Supports high‑resolution streams up to 32 MP (ultra‑HD mode has channel limits). This enables extremely detailed images for forensic review and large‑area monitoring.
- Encoding/decoding:Modern codecs (H.265+/H.265/H.264+/H.264) reduce bandwidth and storage needs without sacrificing image quality. The NVR supports multi‑channel decoding including configurations such as 2ch@32MP@30fps, 8ch@8MP, or 32ch@1080p for flexible display and playback options.
- Dual AI engines:Two onboard AI accelerators allow simultaneous advanced analytics — facial recognition (16‑channel real‑time recognition on stream and up to 32‑channel face picture workflows), perimeter protection, camera‑based ANPR, video structuralisation and AcuSearch for rapid evidence retrieval. The facial library can scale up to large databases (datasheet guidance up to 100,000 images), making it suitable for campuses and transportation hubs.
- Drive bays & capacity:Eight 3.5" SATA bays accepting up to 14 TB drives per bay (datasheet figure), delivering a raw maximum of 112 TB. This capacity accommodates long retention periods even when recording multiple high‑resolution streams.
- RAID & expansion:Hardware RAID options (0/1/5/6/10) protect against drive failures and enable performance tuning. An eSATA port allows additional expansion for archiving or offsite storage workflows.
- Power efficiency:Typical power consumption is specified as ≤ 50 W (without HDD), helping manage operational costs in 24/7 installations.
- Network:Two RJ45 1 Gbps LAN ports handle incoming camera streams and outgoing management/remote viewing traffic with rated bandwidths (incoming 320 Mbps, outgoing 400 Mbps) appropriate for medium to large installations.
- Video & audio outputs:HDMI1 supports up to 8K@30Hz, ideal for high‑resolution control room screens or video walls; HDMI2 up to 4K. Audio I/O and two‑way audio are available for announcements and intercoms.
- Alarm and serial interfaces:Extensive alarm I/O (16 inputs, 9 outputs), control 12V and RS‑232/RS‑485 ports allow integration with perimeter devices, access control panels and legacy serial equipment.
- Form factor & environment:2U chassis with dimensions 445 × 465 × 93 mm and operating temperatures from −10 °C to 55 °C. Rackable design and enterprise connectors make it suitable for professional data cabinets.
- Certifications:CE, UKCA, FCC and other global certifications simplify deployment across regulated environments.
- Security & deployment:The device should be installed and hardened by qualified professionals. Follow local electrical codes and data protection laws, secure network access, and change default credentials before commissioning.
Use cases and scenarios where the product excels
The iDS-9632NXI-M8/X is targeted at environments that require both large channel counts and advanced analytics. Typical scenarios include:
- High‑resolution capture of wide concourse areas combined with facial recognition and ANPR to assist in passenger flow analysis, exception detection and asset protection.
- Rapid AcuSearch and structured video metadata reduce time to find relevant events across hundreds of cameras.
- Perimeter protection analytics detect intrusions and loitering along public assets. Dual AI engines can run multiple analytic profiles concurrently to support law enforcement and emergency response.
- Large storage capacity keeps long retention windows for investigative needs while RAID ensures uptime.
- Facial recognition and structured video help with loss prevention, VIP customer recognition and analytics for footfall and queue management.
- Multiple outputs and decoding options make it easy to feed control rooms and loss prevention stations concurrently.
Comparisons with similar products in the market
When compared to mid‑range NVRs, the iDS-9632NXI-M8/X differentiates itself through its dual AI engines, higher video output resolutions (8K HDMI), and larger internal storage footprint. Key points of comparison:
- AI capability:Many NVRs offer a single AI accelerator or rely on edge analytics in cameras. This model’s dual engines allow concurrent AI tasks (e.g., facial recognition plus ANPR) without overloading the system, improving throughput and responsiveness in busy environments.
- Storage & RAID flexibility:The 8‑bay design with RAID 5/6 options and eSATA expansion places it above compact 4‑bay NVRs for long retention and resilience needs.
- Display & decoding:8K HDMI output is rare in the NVR class and provides future‑proofing for high‑resolution control room displays. Competitors may offer 4K outputs but not 8K at comparable price points.
- Bandwidth and scaling:Rated incoming/outgoing bandwidth suits medium to large sites; however, very large deployments may prefer NVR architectures with 10 Gbps backbones or distributed storage designs.
Customer feedback and testimonials
Feedback from installers, system integrators and security managers who have evaluated similar DeepinMind NVRs highlights a few recurring themes:
- "The dual AI engines make a real difference when running facial and perimeter analytics at the same time — less lag and more reliable detections for busy locations." — Security integrator.
- "We were able to replace several legacy DVRs with a single 8‑bay DeepinMind unit, simplifying management and providing longer retention for critical cameras." — IT manager at a mid‑sized campus.
- "8K HDMI output future‑proofed our control room setup. Even though most displays are 4K today, the ability to scale up impressed stakeholders." — Systems architect.
Note: These comments reflect common customer sentiments reported for enterprise NVR products with similar capability profiles; actual experiences will depend on system design, camera choices and site conditions.
Conclusion: Why this NVR is a compelling choice
The iDS-9632NXI-M8/X DeepinMind 32‑ch AI NVR is a strong candidate for organizations demanding high‑resolution video, advanced analytics and robust storage in a single appliance. Dual AI engines enable simultaneous analytics workflows (facial recognition, perimeter protection and ANPR) without compromising performance. Eight SATA bays and RAID support allow long retention and data resilience, while 8K HDMI output and multi‑channel decoding make it well suited for modern control rooms.
For transport hubs, city surveillance, retail loss prevention and enterprise campuses, this NVR strikes a balance between compute, storage and I/O. It is particularly attractive when the project requires centralized analytics, high camera counts and future‑proof display capability. As always, successful deployments depend on correct system sizing, quality cameras and professional installation — but as a platform, the iDS-9632NXI-M8/X provides the core capabilities most large sites need today and in the near future.
Pricing reference:Suggested retail pricing in trade channels may vary by region and configuration; the provided suggested price is approximately $1,900 (USD) as a reference. For exact pricing, storage options and warranty additions, consult authorized distributors and the manufacturer’s product page.
Compliance & downloads:The unit meets common global certifications and the official datasheet, quick start guide and user manual are available from the manufacturer’s product downloads for detailed technical and installation guidance.
