Introduction to the Hikvision DS-K2602T and its key features

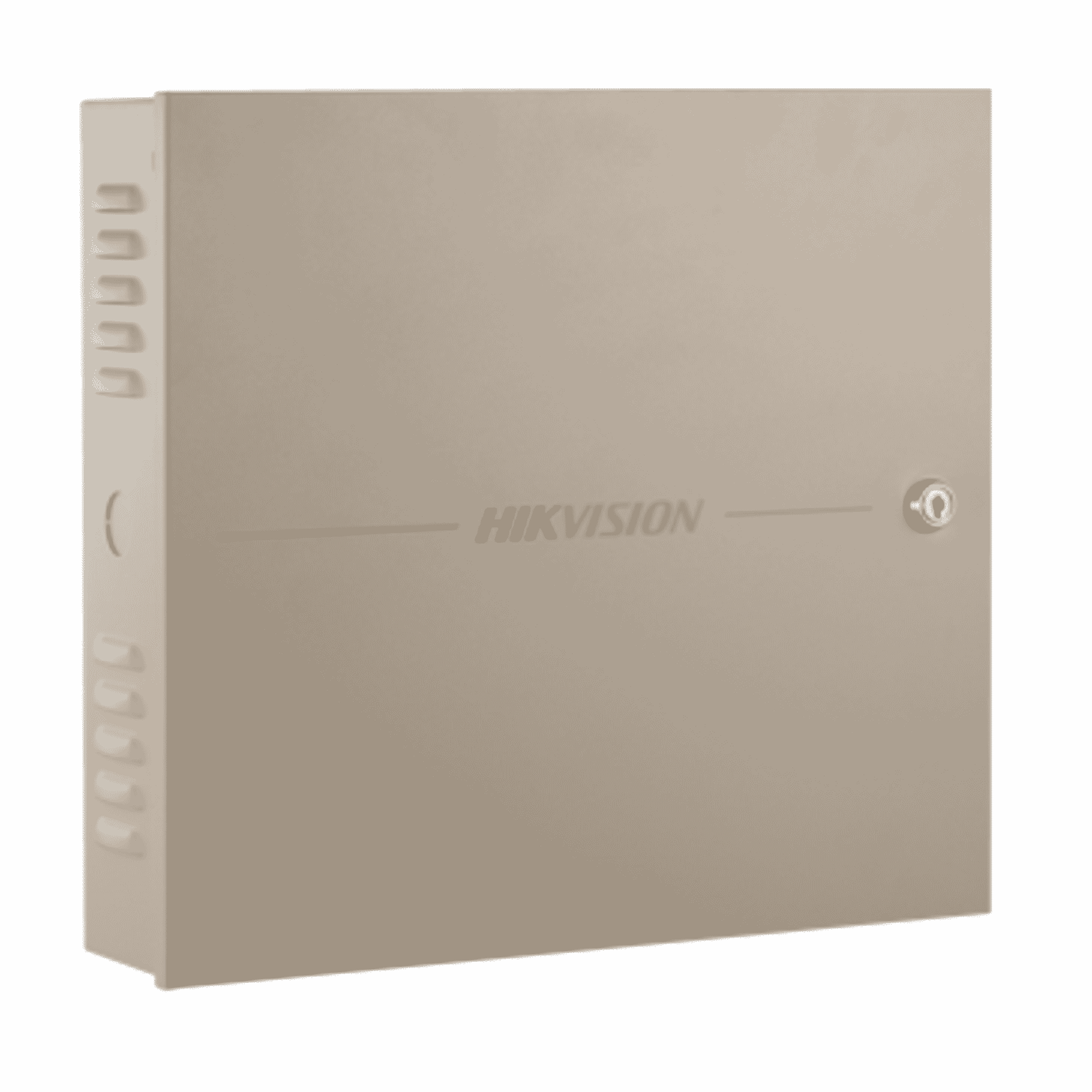

The Hikvision DS-K2602T 2-Door Network Access Controller is a compact, professional-grade controller designed for small to medium access control installations. Built as part of Hikvision's DS-K2600T Pro series, the DS-K2602T offers dual-door control, multiple communication interfaces (TCP/IP and RS-485), and broad downstream compatibility (RS-485 and Wiegand). With large onboard storage for user credentials and events, battery-backed offline operation, and common enterprise access features such as anti-passback and multi-card authentication, this unit targets sites that need reliable local control without sacrificing integration flexibility.
Key features at a glance:
- 2-door controller with 2 lock relays and 2 exit buttons.
- Network uplink via TCP/IP and RS-485; downstream reader support via RS-485 and Wiegand (W26/W34).
- Large on-device storage: 100,000 card records (expandable to 200,000) and 300,000 events (expandable to 600,000).
- Rich access control functions: multi-card, anti-passback, first-card, blacklist/guest/duress profiles, and door interlocking.
- Alarm and event coverage including tamper, forced entry, door held open, unsecured door, and invalid card attempts.
- Offline operation with battery backup and NTP time synchronization; remote firmware upgrades supported.
The DS-K2602T is engineered to balance storage capacity, interface flexibility, and durability. Below are the core specification areas and the practical benefits each one delivers for installers and end users.
- Network uplink:TCP/IP and RS-485 — gives installers the choice between standard Ethernet networking and a serial RS-485 bus for long-distance, reliable connections in multi-unit systems.
- Downstream reader support:RS-485 and Wiegand (W26/W34) — supports a wide range of third-party readers, making it easy to integrate existing hardware or mix card/reader technologies.
- Lock relays and exit inputs:2 lock relays and 2 exit buttons — native support for two doors with independent control and monitoring.
- Door contacts:2 — for direct monitoring of door state and triggering door-related alarms.
- Card capacity:100,000 users standard, expandable to 200,000 — suitable for larger small-business deployments or multi-tenant buildings where many credentials must be managed locally.
- Event logs:300,000 events standard, expandable to 600,000 — enables long retention of access history on the device itself, which is important for forensic analysis when network connectivity is intermittent.
- Power:DC 12 V / 1 A (main board variants), product power ≤100 W with load, ≤4 W no-load — typical for access control equipment and compatible with common power supplies and backup systems.
- Battery backup and offline operation:Data is retained during power loss; the device can operate locally from battery power so doors remain controlled even if mains power is lost.
- Operating conditions:−20 °C to +65 °C with 10%–90% non-condensing humidity — robust for a wide range of indoor and sheltered outdoor equipment rooms.
- Enclosure dimensions:373 × 345 × 98 mm — provides space for wiring, batteries, and expansion modules in a compact package.
- Certifications:CE, FCC (per datasheet) — aligns with common regulatory expectations; installers should confirm local approvals as required.
Practical benefits:The combination of large local storage, multiple communication options, and a long list of access control and alarm conditions allows system integrators to build resilient systems that continue to operate locally during network outages, support diverse reader hardware, and retain long-term audit logs. For facility managers, this translates to fewer single points of failure, flexible upgrade paths, and improved security oversight.
The DS-K2602T is well-suited to situations that demand local resilience, compatibility with legacy readers, and modest multi-door control. Typical deployments include:
- Small and medium commercial offices:Dual-door control for main entry and secure internal areas (server rooms, finance office), with centralized network management and offline continuity.
- Educational institutions:Control of administrative offices, small labs, and service entrances where local storage of many student and staff cards is helpful for audit and safety compliance.
- Retail and back-of-house:Secure control of staff-only areas, storerooms, and delivery entrances where tamper and forced-entry alarms are valuable.
- Healthcare and clinics:Controlled access to medication stores, records rooms, and staff-only corridors with support for duress and blacklist profiles.
- Multi-tenant small buildings:Support for multiple credential types and local event logs simplifies day-to-day management and incident response.
In each scenario, the DS-K2602T’s mixture of local storage and network features helps ensure that access policies remain enforceable even during temporary network or power interruptions.
When comparing the DS-K2602T to other access controllers, consider three key dimensions: number of controlled doors, storage capacity/offline capability, and integration flexibility.
- Versus single-door controllers:Many single-door controllers are cheaper and simpler to install, but they lack the centralized wiring and consolidated event storage of a two-door unit, which can increase management overhead when protecting adjacent doors that share policies. The DS-K2602T reduces wiring complexity and centralizes logs for two doors in one enclosure.
- Versus multi-door central controllers:Higher-end multi-door controllers (4, 8 or more doors) offer more consolidated management for large sites but come at increased cost and complexity. For small/medium sites that only require control of a couple of doors, the DS-K2602T is a cost-effective middle ground.
- Versus cloud-only access platforms:Cloud systems excel at remote management and simplified user provisioning but can be limited by network and internet availability. The DS-K2602T’s strong local storage and battery backup provide resilience and forensic logs even when connectivity is lost — an advantage for security-critical areas.
- Third-party reader compatibility:Wiegand and RS-485 downstream support means the DS-K2602T can integrate with a broad range of readers and badge technologies, making it easier to migrate from legacy systems compared with controllers that only support proprietary reader protocols.
While individual reviews will vary, installers and end users often highlight a few recurring themes for products like the DS-K2602T:
- Reliability:Positive feedback typically points to stable day-to-day operation and the peace of mind that comes from local event storage and battery-backed operation.
- Integration flexibility:Installers appreciate the ability to use both Wiegand and RS-485 readers, reducing the need to replace functioning legacy readers during upgrades.
- Value for money:For organizations needing two-door control with heavy local storage, the suggested street price (around $289) often represents a reasonable balance between capability and cost compared with both cheaper single-door alternatives and more expensive multi-door systems.
- Installation considerations:Some installers note that careful attention to cabling, earthing, and enclosure space is important — as with any professional security installation — and recommend following Hikvision’s datasheet and local regulations closely.
Note: Specific customer testimonials and formal reviews should be consulted from distributor listings, installer forums, or Hikvision’s authorized channels to get firsthand accounts and performance benchmarks in comparable installations.
The Hikvision DS-K2602T 2-Door Network Access Controller is a versatile, resilient choice for small to medium-sized access control deployments. It combines flexible networking (TCP/IP and RS-485), broad downstream reader compatibility (Wiegand and RS-485), and substantial onboard storage for cards and events — all of which support continuous operation and comprehensive auditing even during power or network interruptions. Its alarm handling and advanced access functions (anti-passback, multi-card, duress profiles) make it suitable for security-sensitive areas without the cost and complexity of large-scale enterprise controllers.
For organizations that need a reliable two-door solution, want to preserve or integrate existing readers, and prioritize local logging and offline capability, the DS-K2602T delivers strong value. As always, confirm local certification requirements, follow the official installation guidance, and consult real-world reviews or partner installers to ensure it matches your site-specific needs.
