Introduction: What the Hikvision DS-K2M002X Does and Who Its For
The Hikvision DS-K2M002X 2-Door Access Control Expansion Module is a compact DIN-rail mounted device designed to expand the physical I/O and reader interfaces of a Hikvision access control system. Intended as a downstream module connected to a Hikvision master controller (for example the DS-K27xx family), it adds local lock outputs, door sensors, exit buttons, alarm inputs/outputs and support for modern reader protocols such as OSDP as well as traditional Wiegand. With a suggested price of $149, the DS-K2M002X is aimed at commercial and multi-door installations that need neat cabinet integration and reliable local control without adding full controller functionality to each door.
Key Features at a Glance
- Controls 2 doorswith independent lock/relay outputs and door monitoring.
- Reader flexibility: supports up to 4 RS-485 (OSDP) readers or up to 2 Wiegand readers (26/34 bits, custom formats supported).
- Rich local I/O: exit buttons, door contacts, tamper input, 4 alarm inputs and 2 alarm outputs.
- DIN / guide-rail mountfor neat cabinet installations and tidy wiring runs.
- Power and battery support: 12 V DC ±15% with battery charge/discharge support; designed to integrate into powered enclosures.
- Status LEDs: local indicators for power, run, communications and door status for quick on-site diagnostics.
Detailed Specifications and Benefits
The DS-K2M002X packs practical hardware and interfaces tailored for system integrators and facilities managers. Below are the primary technical specifications and the benefits they deliver in day-to-day use.
- Lock control outputs:2 independent outputs to drive electric strikes or maglocks, enabling reliable door locking/unlocking per door.
- Exit button inputs:2 inputs to integrate local push-to-exit switches for safe egress and compliance with building codes.
- Door contact inputs:2 inputs to monitor door status (open/closed) for alarm conditions or event logging.
- Alarm inputs / outputs:4 alarm inputs and 2 alarm outputs to tie the access system into intruder alarms, fault monitoring, or other building systems.
- Tamper input:1 tamper detection line to alert if the enclosure or module is opened or tampered with.
- RS-485 (OSDP) readers:Up to 4 RS-485 ports, typically 2 for readers and 2 for communication to the controller, support the modern OSDP protocol for encrypted, bidirectional communication and improved security over legacy Wiegand.
- Wiegand support:Up to 2 Wiegand inputs (26/34 standard or custom formats), allowing use with a wide range of legacy readers.
- Linked capacity:Manages 2 doors locally and can work with combinations of up to 4 RS-485 readers and 2 Wiegand readers, giving integrators flexibility in phased rollouts or hybrid reader deployments.
- Power supply:12 V DC ±15% with battery charge/discharge support. The module relies on a stable 12 V supply and can be integrated into an enclosure with a backup battery for uninterrupted operation.
- Power consumption:Rated at 50 W (specification ceiling). This means installers should provide an adequately sized power source, particularly when multiple modules and readers are powered from the same supply.

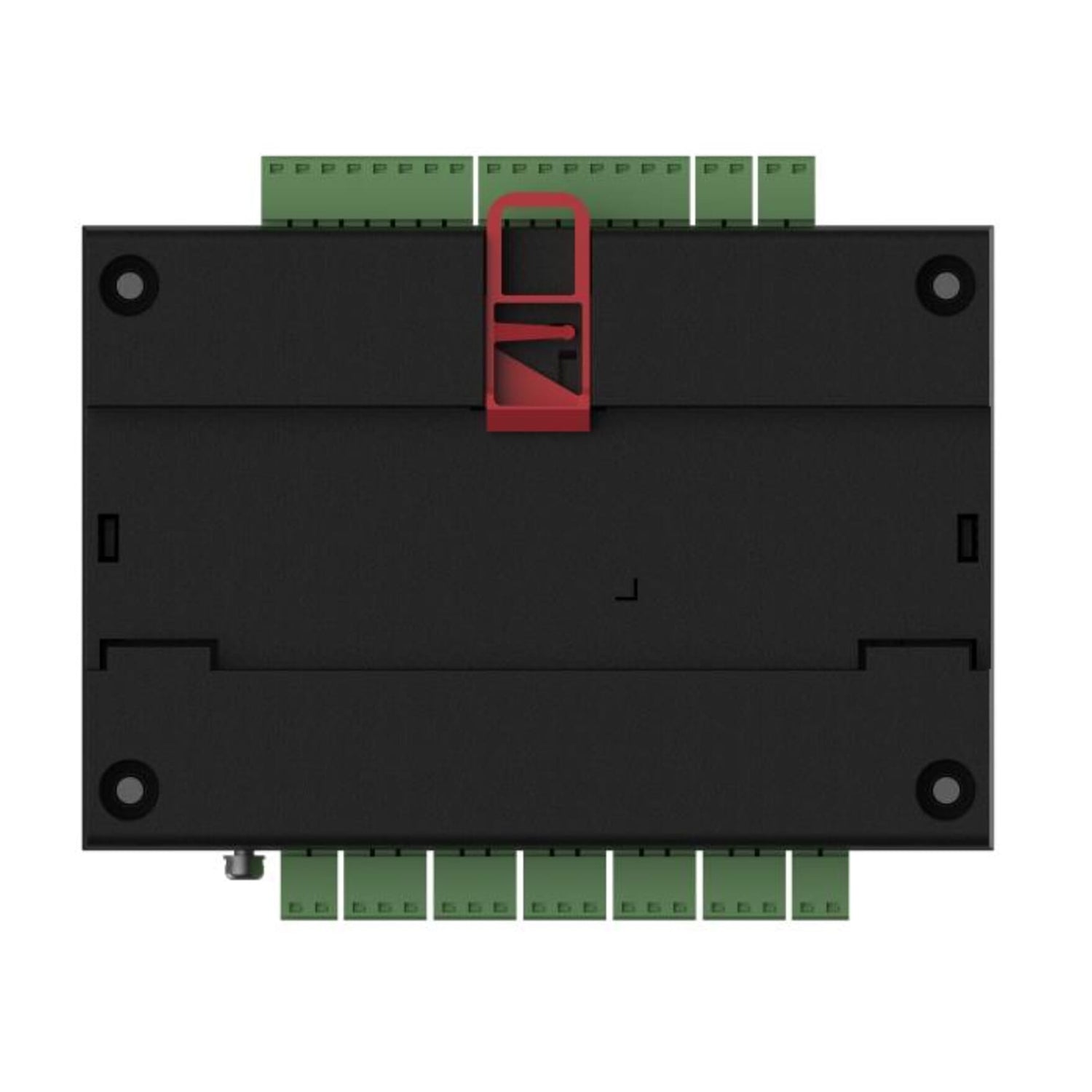

- Mount:DIN / guide-rail for clean cabinet mounting—ideal for server rooms, electrical cabinets and centralized access panels.
- Operating conditions:-10 6C to 55 6C; 0 60% RH non-condensing, suitable for typical indoor environments.
- LEDs:Six local LEDs indicate power, run state, communications and door statuses to help technicians quickly identify issues onsite without a laptop.
- Compatibility:Designed to work with Hikvision master controllers such as the DS-K27xx family, providing centralized web configuration, user management and advanced features (antipassback, interlocking, multi-factor where supported).
Use Cases and Where the DS-K2M002X Excels
The DS-K2M002X is well suited to several common access control deployment scenarios. Its strengths lie in scalability, neat cabinet installations, and supporting mixed-reader environments.
For mid-size offices with multiple controlled doors per floor, a master controller can be located in a comms room while DS-K2M002X modules are mounted on DIN rails in floor-level distribution cabinets. This keeps wiring short (locks, readers, sensors) and centralizes controllers for easier administration.
Retail outlets or small campuses with separate entry points benefit from the modules ability to support both OSDP and Wiegand readers. Where a mix of legacy readers and newer encrypted readers exist, the DS-K2M002X lets you upgrade incrementally without replacing every reader at once.
Properties that need access control tied into alarm systems—warehouses, labs, or data centers—will value the alarm inputs/outputs and tamper detection. Local alarm I/O allows the access system to trigger sirens, strobes or building management events in response to door or tamper conditions.
Comparisons with Similar Products
When evaluating expansion modules or distributed controllers, consider three axes: interface flexibility, mounting style, and independence. The DS-K2M002X is an expansion module (not a standalone controller), which makes it distinct from full-featured controllers that include user databases and network services.
Standalone controllers (from Hikvision and other vendors) often include onboard configuration, local user storage and sometimes PoE for readers. The DS-K2M002X intentionally offloads user and policy management to a master controller, which simplifies the modules role and often reduces cost per door. The trade-off is dependency on the master controller for administration and advanced features.
DIN-rail modules like the DS-K2M002X are optimized for cabinetized deployments and tidy wiring. Bench-top or board-level controllers can be cheaper in some scenarios but lack the neat installation and modular scalability of a DIN-rail approach. Integrators who prefer rack or cabinet mounting will appreciate the DS-K2M002Xs form factor.
Many legacy expansion devices only support Wiegand. The DS-K2M002Xs support for OSDP (over RS-485) is a meaningful advantage for security-conscious installations because OSDP supports encrypted communication between readers and controllers and bidirectional communication for diagnostics and firmware updates.
Customer Feedback and Reviews (Availability)
At the time of writing, there are no verified, named customer testimonials provided with this product summary. However, typical installer and integrator feedback for modules of this type commonly highlights the following themes:
- Positive:Ease of DIN-rail installation, flexible reader support (OSDP + Wiegand), clear status LEDs and compact footprint for cabinetized designs.
- Considerations:Must be paired with a compatible Hikvision master controller (not a standalone management device), so procurement should include the controller and suitable power/enclosure if needed. Confirm certifications (CE/UKCA) and warranty terms with the reseller or manufacturer.
Practical Notes for Purchase and Installation
Resellers sometimes offer the bare module or a variant in a powered enclosure (e.g., DS-K2M002X-E). Verify whether a power supply, backup battery, and cabinet are included or must be purchased separately. Also verify environmental conditions, cable runs and whether reader power will be supplied centrally or locally. Because the module can consume up to the specified ceiling of 50 W, size power supplies accordingly.
Conclusion: Why Choose the DS-K2M002X?
The Hikvision DS-K2M002X 2-Door Expansion Module is a pragmatic choice when you need to extend a Hikvision master controller to additional doors while keeping wiring and devices organized within electrical cabinets. Its mix of modern reader support (OSDP), legacy compatibility (Wiegand), comprehensive local I/O and DIN-rail form factor make it a flexible and installer-friendly option for commercial, retail and multi-site deployments. For projects where centralized management, scalability and cabinetized deployments matter, the DS-K2M002X offers a cost-effective, tidy solutionjust be sure to pair it with a compatible master controller, confirm power/enclosure needs, and verify certification and warranty details with your supplier.
Suggested retail price:$149 (check current list prices and reseller offerings).Warranty and certification:Confirm with vendor; manufacturer datasheet should be consulted for CE/UKCA and warranty details.
