Introduction: Meet the Hikvision DS-K2M061 Secure Door Control Unit

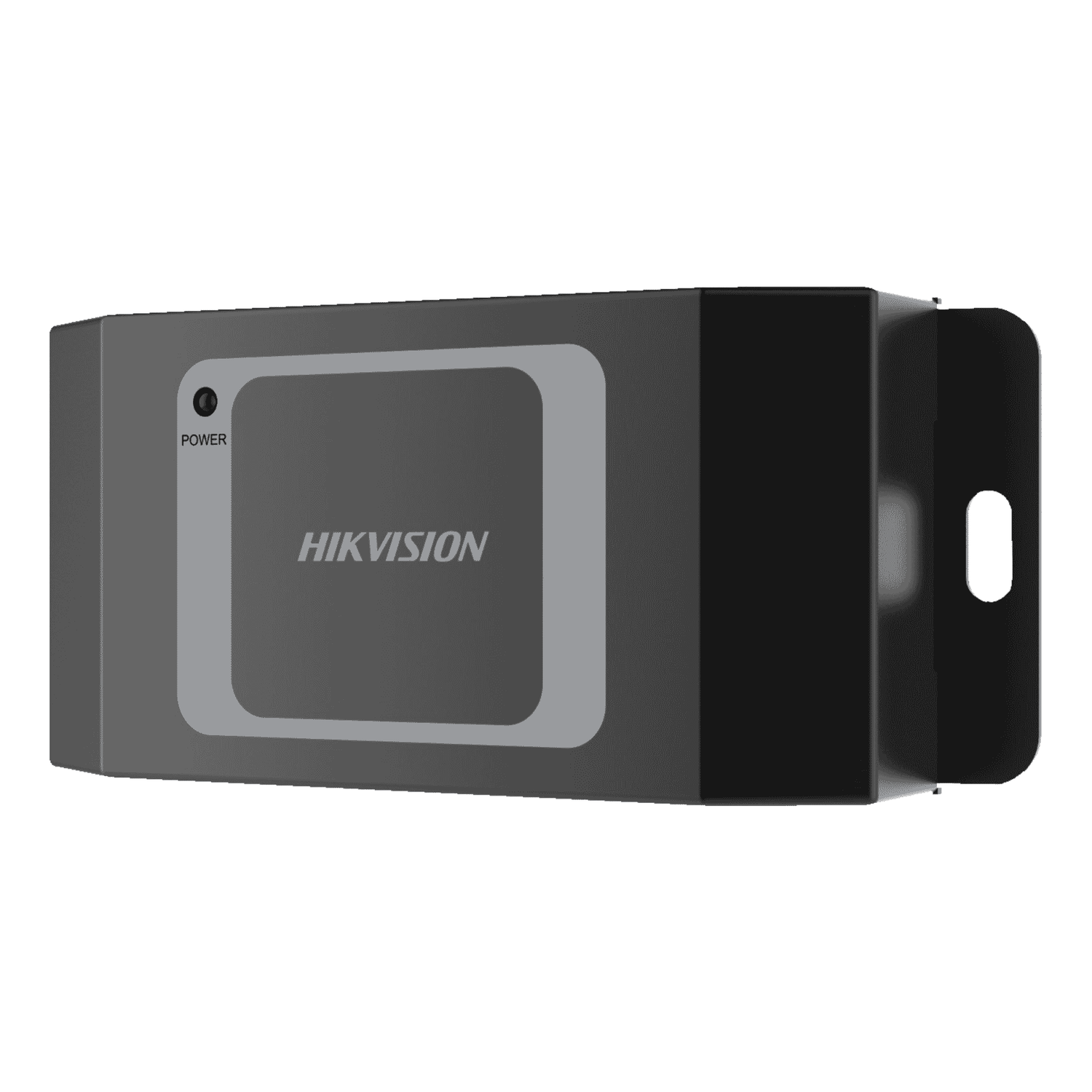

Hikvision DS-K2M061 Secure Door Control Unitis a compact, wall-mount auxiliary module designed to simplify and harden access control wiring. Intended as an intermediary between door hardware and an access controller, the DS-K2M061 isolates lock and sensor circuits inside a tamper-resistant enclosure while forwarding status and event signals to the main controller via RS-485. It also accepts an external Wiegand reader input, making it a flexible choice in installations where direct wiring to the controller is impractical or where physical separation is preferred for security reasons.
Key features at a glance include RS-485 communication, Wiegand reader integration, a single lock relay (NO/NC), multiple inputs for door contact, exit button, tamper and alarms, and a compact, rugged enclosure rated for wide temperature and humidity ranges. With a modest power draw of 12 V DC at 0.5 A, the unit fits neatly into most access control designs without introducing significant power demands.
Detailed Specifications and Benefits
The DS-K2M061 packs essential access control interfaces into a small package that addresses several common installation challenges. Below is a concise presentation of its specifications and the practical benefits they deliver:
- Interface: RS-485 and Wiegand — RS-485 provides a robust, noise-resistant link to the primary controller for status reporting and control commands. The Wiegand input lets integrators connect an external reader directly to the module, preserving the controller for centralized logic while keeping reader wiring locally terminated.
- Inputs: door magnetic contact, exit button, tamper, plus two alarm inputs — these inputs allow the module to monitor door state, emergency signals and enclosure integrity. Tamper detection helps protect against unauthorized access to wiring and the module itself.
- Outputs: single lock control relay (NO/NC) and an alarm output — the relay supports standard electric lock configurations and can be wired normally open or closed depending on the lock type. The alarm output can trigger sirens, strobes or feed into building alarm systems for coordinated responses.
- Power: 12 V DC, 0.5 A; Power LED — low current draw reduces the need for large power supplies, and the visible power indicator simplifies troubleshooting during commissioning and maintenance.
- Mechanical and environmental: compact wall-mount enclosure (48 mm × 115 mm × 26 mm), operating temperature range -40 °C to 70 °C, humidity tolerance 0%–90% — these specifications allow use in a variety of indoor and protected outdoor environments where thermal extremes or humidity are a concern.
Collectively, these specifications translate into a device that reduces wiring complexity at the door, improves signal reliability by isolating circuits in a secure enclosure, and supports a standard set of access control inputs and outputs that integrate with most modern controllers.
Isolating the lock and sensor wiring inside a tamper-resistant housing minimizes tampering opportunities and reduces electromagnetic interference risks on long cable runs. The RS-485 connection is resistant to noise and supports multi-drop communication, so a single controller can manage multiple DS-K2M061 modules across a site. Wiegand support means existing card readers can be retained without re-terminating cables back to the main controller, saving time during upgrades or staged deployments.
Use Cases and Deployment Scenarios
The DS-K2M061 is particularly well suited to several common access control situations:
- Perimeter and high-risk doors: For doors that require stronger physical isolation of wiring (for example, exterior doors, stairwell doors or doors at remote locations), the DS-K2M061 allows lock power and sensor lines to terminate inside a locked module rather than being exposed at the reader.
- Retrofit projects: When updating legacy systems, integrators often want to reuse Wiegand readers but connect them to a new controller. This module accepts Wiegand input and forwards events via RS-485 to the controller, making migration simpler and less disruptive.
- Multi-controller or distributed architectures: In large buildings or campuses where controllers are centralized, distributing DS-K2M061 modules near doors reduces the number of long power runs and localizes wiring faults for easier troubleshooting.
- Integration with alarm and safety systems: The two alarm inputs and alarm output enable the module to participate in coordinated responses with fire panels, intrusion systems or building management platforms. For example, the module can forward a forced-door alarm to the controller while also triggering a local alarm output for immediate notification.
- Harsh environment installations: With a wide operating temperature range and broad humidity tolerance, the module can be used in unheated vestibules, equipment rooms or other spaces where environmental conditions vary significantly.
Comparisons with Similar Products
When evaluating the DS-K2M061, it helps to compare its capabilities to similar auxiliary access control modules on the market. Typical points of comparison include communication interface, reader protocol support, input/output count, physical protection, environmental ratings, and price.
Compared with simple relay boards or passive terminal boxes, the DS-K2M061 adds intelligence by actively monitoring inputs (tamper, door contact, alarms) and reporting status back to the controller via RS-485. That bidirectional link improves diagnostics and situational awareness compared with one-way or passive wiring solutions.
Against competing branded modules from other manufacturers, the DS-K2M061’s strengths are its compact tamper-resistant enclosure, Wiegand input for legacy reader support, and robust temperature/humidity tolerance. Some rivals may offer additional features such as OSDP (a more secure reader protocol than Wiegand), more relays or integrated power supervision. If OSDP or multiple lock outputs are required, a different model or product family might be a better fit.
Price-wise, the manufacturer suggested price for the DS-K2M061 is approximately $79.99 with a cost price of $48.85, positioning it as a mid-range auxiliary module — affordable for many commercial projects while offering a higher level of functionality than basic passive devices. For projects requiring advanced encryption or multi-lock control, higher-end modules or controllers with built-in distributed I/O may be worth the premium.
Installation, Maintenance and Best Practices
Although the DS-K2M061 is straightforward in concept, proper installation ensures reliability and security. Recommended best practices include:
- Have a qualified technician perform the installation. Isolate power before connecting wiring, and follow the official datasheet and user manual for wiring diagrams and configuration steps.
- Mount the unit in a locked or supervised enclosure when used in high-risk areas to preserve the tamper-detection benefit.
- Label wires and document RS-485 addresses during commissioning to simplify later troubleshooting and scaling.
- Verify compatibility and firmware notes with the controller vendor, especially in mixed-vendor environments. Check for CE/UKCA or other compliance markings as required by local regulations.
- Use appropriate surge and transient protection on long external cable runs to improve reliability in electrically noisy environments.
Customer Feedback and Practical Impressions
Public reviews for such auxiliary modules tend to be limited because they are frequently purchased by installers rather than end users. Installer feedback often focuses on reliability, ease of wiring and compatibility. Common themes from professional installers using modules like the DS-K2M061 include appreciation for the compact tamper housing, the convenience of Wiegand pass-through when migrating readers, and the clarity of status indicators during testing.
Typical practical impressions reported by integrators are:
- "Solid, compact unit that saved us time on a retrofit project — allowed local termination of lock and reader lines without rerouting to the controller."
- "Tamper detection and alarm inputs make it a useful device for sensitive doors where wiring must be protected."
- "Simple installation and low current draw — we didn’t have to upgrade the power supply for a handful of doors."
Because warranty terms and support vary by reseller, prospective buyers should confirm warranty coverage and return policies at the point of purchase. The product listing indicates warranty details are not included in the base spec, so verifying support options in advance is prudent.
Conclusion: Why the DS-K2M061 Is a Strong Choice
TheHikvision DS-K2M061 Secure Door Control Unitis a practical, well-rounded auxiliary module for projects that need to isolate door hardware wiring, integrate Wiegand readers, and report door and alarm status back to a controller via RS-485. It balances compact size, a useful set of inputs and outputs, environmental robustness, and affordable pricing, making it suitable for commercial retrofits, perimeter security doors, and distributed access control architectures.
While it does not replace full-featured controllers or modules with advanced encrypted reader protocols, it fills a common niche — providing tamper-resistant local termination, reducing wiring complexity, and preserving compatibility with existing readers. For installers and integrators looking for a compact module that improves security and simplifies deployments at the door, the DS-K2M061 is worth consideration. As always, confirm compatibility with your controller, review the latest datasheet, and consult installation best practices to achieve the most reliable and secure deployment.
