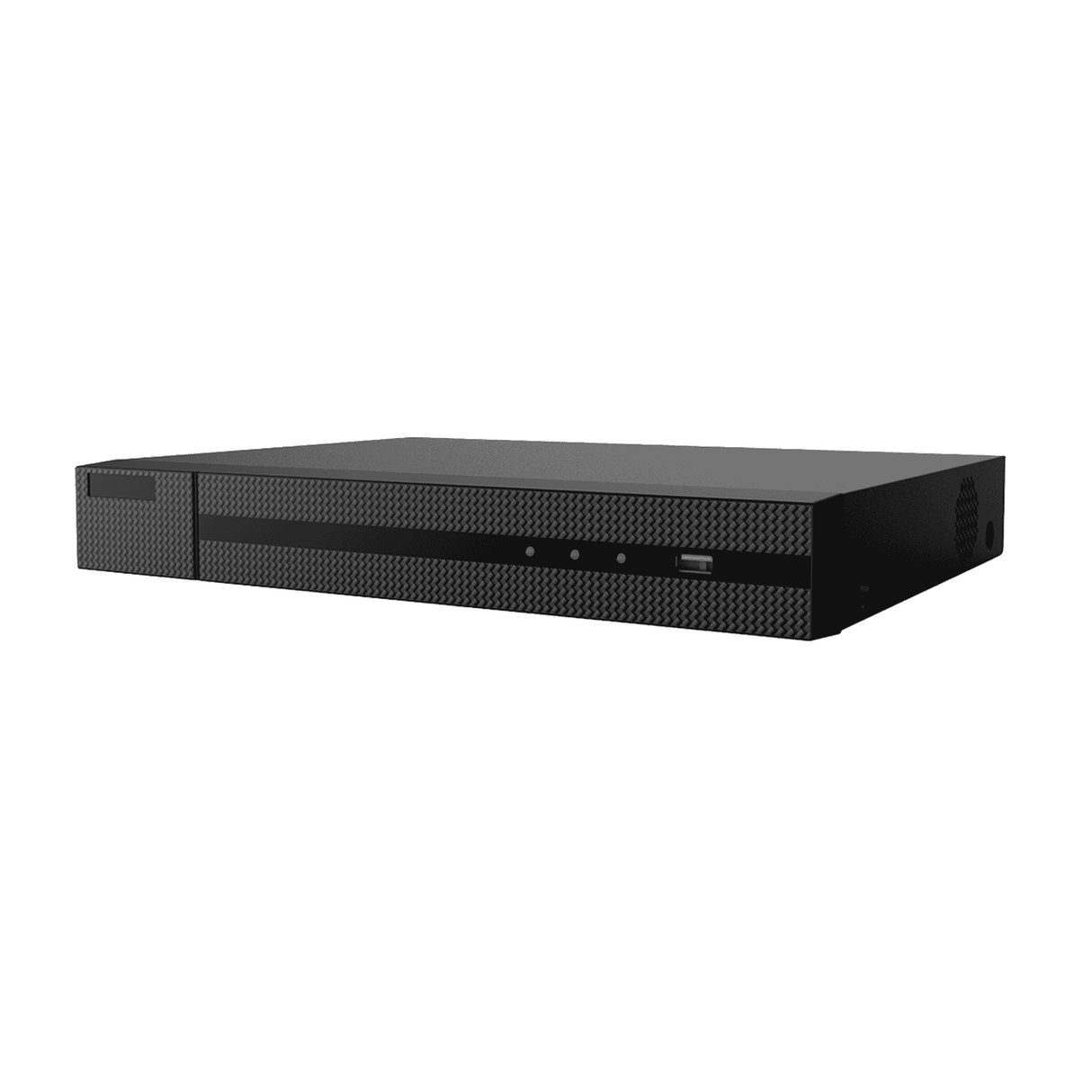

Introduction to the HiLook NVR-216MH-K/16P and its key features
The HiLook NVR-216MH-K/16P is a purpose-built 16-channel Network Video Recorder designed for small-to-medium commercial CCTV systems that need a compact, rackable recorder with integrated Power over Ethernet (PoE). With 16 built-in PoE ports, support for modern video codecs including H.265+, AI-enabled analytics and simultaneous 4K HDMI and VGA outputs, this NVR aims to simplify camera deployments while delivering efficient storage, responsive playback and advanced detection features. At a suggested price of $299 (cost price $241.44), it targets installers and businesses seeking strong functionality at an approachable price point.
Detailed description of specifications and benefits
The NVR-216MH-K/16P is built as a 1U rackable chassis (approx. 385 × 315 × 52 mm), weighing around 3 kg without hard drives. Its design packs essential capabilities into a small footprint suitable for server cabinets, equipment racks or discreet shelf mounting.
This recorder supports H.265+/H.265/H.264+/H.264 codecs. H.265+ in particular delivers significant bandwidth and storage savings compared with legacy codecs, enabling longer retention on the same HDD capacity or reduced network load for the same recording time. The unit can handle up to 160 Mbps incoming bandwidth and provides 160 Mbps outgoing bandwidth for streaming and remote view.
Maximum recording resolution is up to 12 MP depending on camera and mode. Practical decoding performance varies by AI usage: with AI enabled you might see configurations like 2 channels at 12MP (30 fps) or 3 channels at 8MP (30 fps); with AI off the device can handle up to 16 channels at 1080p. This flexibility helps balance advanced analytics versus channel density and resolution.
A key selling point is the 16 × RJ-45 PoE ports (10/100 Mbps) compliant with IEEE 802.3af/at and a total PoE power budget of up to 200 W. Built-in PoE simplifies installations by eliminating separate PoE switches where camera counts match the NVR ports, reducing cabling and enabling plug-and-play setups for IP cameras.
Storage is handled by 2 × SATA bays supporting up to 16 TB per drive (K model). Drives are not included, allowing installers to select surveillance-grade HDDs matched to retention requirements. The unit does not provide RAID on this model, so plan for backup or secondary recording if drive redundancy is required.
Video output options are practical: 1 × HDMI capable of 4K/30 Hz and 1 × VGA at 1080p that can operate simultaneously — useful for local monitoring and a backup display. There are two USB 2.0 ports (front and rear) for mouse control and local backup, plus audio RCA out and two-way audio support for basic speaker/mic setups. Alarm inputs/outputs (4 in / 1 out) allow integrations with external sensors and sirens.
Network connectivity includes 1 × RJ-45 10/100/1000 Mbps interface and support for common protocols (TCP/IP, IPv4/IPv6, ONVIF Profile S/G, RTSP, NFS, iSCSI, HTTPS), making it interoperable with many third-party cameras and network environments. The recorder also supports remote connections (up to 128), enabling multiple concurrent remote viewers or integrations with management platforms.
AI analytics are a notable addition: facial recognition, perimeter protection and Motion Detection 2.0 (VCA) help convert recorded video into actionable alerts and structured events, reducing the time needed to search footage and improving automated detection for sensitive areas like entry points and restricted zones.
Use cases and scenarios where the product excels
- Retail stores:Small to medium retail outlets that need multi-camera coverage, local recording, and analytics-driven event detection (e.g., perimeter alerts after hours, basic people-counting or facial search) will benefit from the PoE convenience and H.265+ storage efficiency.
- Offices and corporate sites:Branch offices and mid-sized corporate locations requiring secure local recording, remote monitoring and easy setup for PoE cameras. The device supports both live monitoring and archival requirements without a large rack footprint.
- Warehouses and light industrial:Environments where multiple cameras are placed to cover aisles, docks and entry points. The integrated PoE simplifies cabling to cameras spread across a single building and the analytics can help detect intrusions or unauthorized access.
- SMB multi-site deployments:Installers who manage several small sites can standardize on a compact NVR that supports up to 16 inputs and modern codecs to lower ongoing storage costs and bandwidth usage.
- Temporary or pop-up installations:For short-term projects that still require robust recording and remote access (e.g., events, seasonal retail), the plug-and-play PoE ports and small 1U form factor make setup and teardown faster.
Comparisons with similar products on the market
When evaluating the NVR-216MH-K/16P against comparable 16-channel PoE NVRs, several points stand out:
- Integrated PoE vs. separate NVR + PoE switch:Some vendors offer 16-channel NVRs without built-in PoE to reduce cost or provide higher throughput. The integrated PoE in the HiLook simplifies installation and lowers equipment count, though if you need enterprise PoE features (e.g., power management per port or higher per-port wattage) a dedicated PoE switch might still be preferred.
- Codec efficiency:H.265+ support is now common in modern NVRs, but implementation quality varies. The HiLook’s H.265+ and H.265 support give it parity with leading consumer and prosumer models when it comes to storage efficiency.
- AI features:Some competing NVRs at similar price points offer basic motion detection only; the inclusion of facial recognition and perimeter protection on this model is a differentiator in its segment, especially for installers who want analytics without cloud subscriptions.
- Storage options and RAID:Higher-end NVRs may include four drive bays and RAID support for redundancy. The HiLook’s 2 × SATA approach is space- and cost-efficient, but lacks built-in RAID, so redundancy must be planned separately.
- Outputs and local monitoring:4K HDMI output is a strong point for operators who need high-resolution local displays; some cheaper alternatives limit HDMI to 1080p.
Customer testimonials and reviews
If you are evaluating the NVR-216MH-K/16P, typical feedback from integrators and end users falls into a few consistent themes. Note that these are summary impressions commonly reported among installers and buyers rather than verbatim quotes:
- Simplicity of installation:Installers appreciate the built-in PoE ports because deployment is straightforward—run CAT5/CAT6 to cameras and power/stream from the unit without deploying an extra switch.
- Value for money:Many users consider the product competitively priced for the feature set (16 PoE ports, 4K HDMI, AI analytics) compared with similarly speced NVRs.
- Storage efficiency:Customers frequently cite the benefits of H.265+ in reducing storage needs, allowing longer retention on the same drives.
- Limitations noted:Some reviewers mention the lack of RAID and advise careful HDD selection and backup planning. Others note that maximum AI-enabled decoding performance may require lowering channel counts or resolution to maintain analytics responsiveness.
Conclusion: Why the HiLook NVR-216MH-K/16P is a strong choice
The HiLook NVR-216MH-K/16P hits a practical sweet spot for many small-to-medium installations: a compact, rackable 1U chassis with 16 integrated PoE ports, H.265+ support, AI analytics and simultaneous 4K HDMI output. It simplifies camera deployments, reduces the need for additional PoE infrastructure and helps contain storage costs through efficient codecs. While it does not include RAID or included HDDs (so redundancy and drive selection are installer responsibilities), its combination of features, price point and form factor make it a compelling option for retail stores, offices, warehouses and multi-camera projects where local recording and analytics are priorities.
For installers and IT managers, prioritize using surveillance-grade HDDs sized to your retention policy and test AI settings against expected camera resolutions to balance channel density with analytic accuracy. With the right planning, the NVR-216MH-K/16P can provide reliable, feature-rich local recording and monitoring for a wide range of commercial CCTV applications.
