Introduction to the MAXHUB UC M40 and its key features

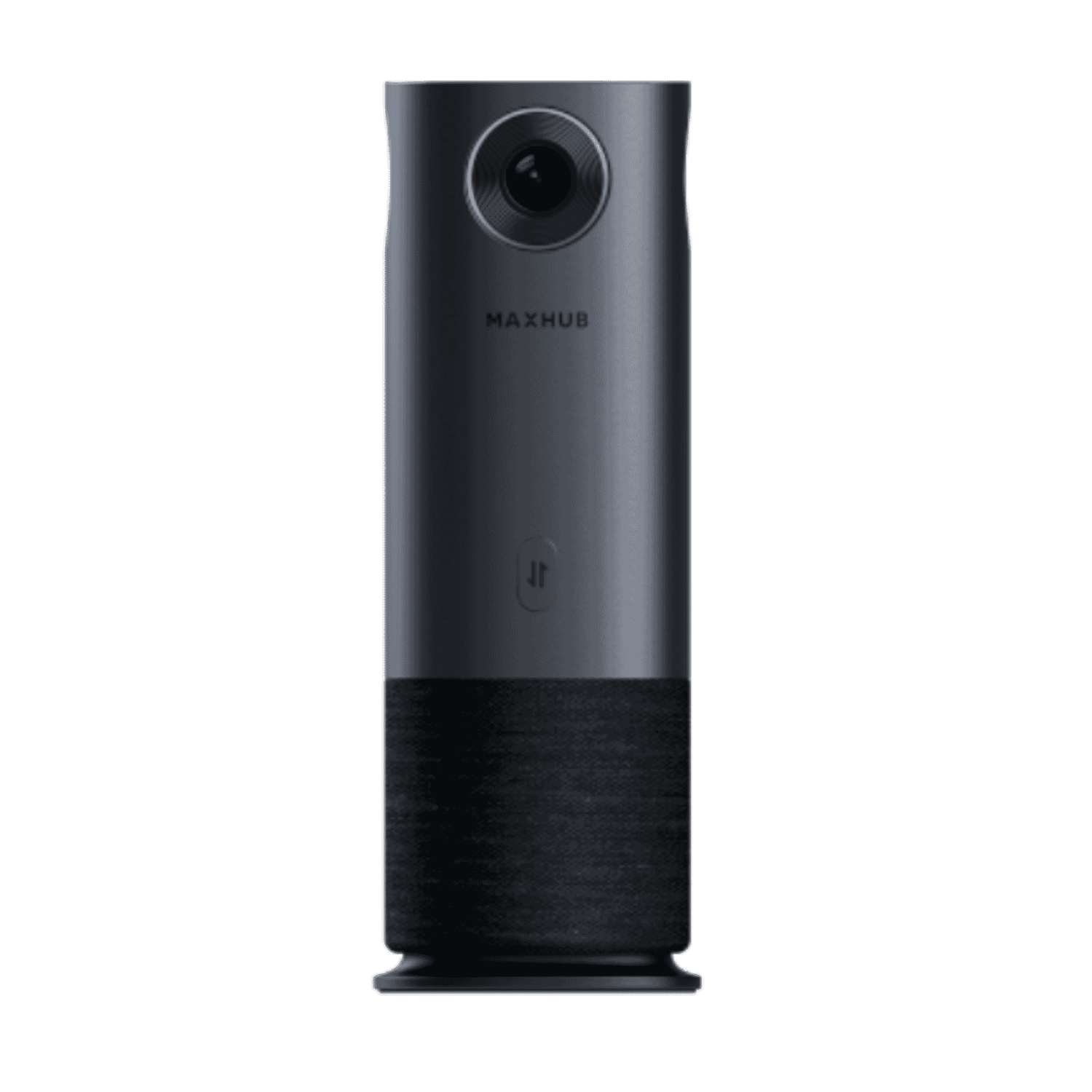

MAXHUB UC M40is an all-in-one 360° USB conference camera designed to simplify video collaboration for small to medium meeting rooms, huddle spaces and portable conferencing setups. Housed in a compact metal enclosure, the UC M40 integrates a 4-lens stitched panoramic camera, AI-driven face and voice tracking, a 4-element omnidirectional microphone array and a built-in full-range speaker. It connects via USB-C (UVC) for true plug-and-play compatibility with popular platforms such as Zoom, Microsoft Teams, Google Meet and WebEx.
Key features at a glance:
- 4-lens panoramic cameraproducing stitched 360° panoramic output up to 4992 × 928 @30 fps.
- AI capabilitiesincluding face recognition and dual-mode speaker tracking for dynamic meeting capture.
- Integrated audiowith a 4-microphone omnidirectional array (≈5 m pickup radius) and a 3 W full-range speaker for one-device conferencing.
- Flexible layouts(panorama, compose, grid, presentation, speaker) adjustable on-device or with MAXHUB PanoCAM Studio.
- Plug & PlayUSB-C UVC compatibility with Windows, macOS and Linux; no special drivers required for common use.
Detailed specifications and benefits
- Image sensor:1/2.7" CMOS, approximately 5 MP effective.
- Optics:Four 2.49 mm f/2.5 lenses with per-lens field of view of 140° diagonal / 111° horizontal / 85° vertical.
- Max panoramic resolution:4992 × 928 @30 fps (MJPG). The device also supports 1080p and 720p modes and alternative layouts such as grid and speaker-focused compositions.
- V-FOV presets:Top / Middle / Down vertical field-of-view presets selectable via the mode button or the PanoCAM Studio app.
Benefit: The stitched 4-lens approach delivers a true 360° view of the room, removing blind spots and enabling more natural hybrid conversations. High panoramic resolution (4992 × 928) preserves facial detail across the full circle, while layout presets and software control let organisers choose the best framing for presentations, group shots or speaker-focused views.
- Microphones:4-element omnidirectional array with approximately 5 m pickup radius; frequency response ≈200 Hz–8 kHz and SNR ~65 dB.
- Speaker:1 × 3 W full-range speaker delivering about 75 dB SPL at 1 m and a frequency range of 200 Hz–15 kHz.
Benefit: The integrated microphone array paired with onboard voice tracking reduces the need for separate boundary mics or ceiling installations in small to medium rooms. The speaker provides sufficient output for typical huddle rooms and personal workstations, enabling a tidy, low-equipment setup.
- USB-C (UVC / USB 2.0):Plug-and-play connection to hosts for video and audio without special drivers.
- Other I/O:DC IN 12 V ⎓ 1 A for power where USB power is insufficient.
- Controls:Mode button, mute/unmute soft button and LED indicators including voice locator for quick status checks.
- Power:Max consumption under 8 W; supplied adapter 12 V ⎓ 1 A.
Benefit: Easy installation and operation are core strengths. The UC M40 is designed for fast deployment—simply plug into a laptop or room PC and start the meeting. On-device controls provide immediate layout or mute control without opening software.
- Dimensions:67.6 × 67.5 × 182.3 mm;Weight:~450 g.
- Housing:Compact metal enclosure for a premium look and portability.
- Warranty:3 years for the camera, 1 year for accessories.
Benefit: The compact, metal-built UC M40 is easy to move between rooms or carry for remote presentations, while still feeling sturdy enough for frequent use in office environments.
- OS support:Windows, macOS and Linux via UVC.
- Software:MAXHUB PanoCAM Studio for advanced layout and FOV control (Windows 10+ / macOS 10.13+).
- Platforms:Compatible with Zoom, Microsoft Teams, Google Meet, WebEx, RingCentral and most major meeting platforms.
Benefit: Broad compatibility reduces integration friction in mixed-OS environments. PanoCAM Studio enables IT or power users to fine-tune framing, V-FOV presets and stitching behavior when desired, while everyday users still benefit from straightforward plug-and-play operation.
Use cases and scenarios where the UC M40 excels
The MAXHUB UC M40 is tailored for a range of real-world meeting and collaboration scenarios where a single, portable device can replace multi-component arrangements.
In compact meeting spaces, the UC M40 captures all participants without the need to aim a PTZ camera or place multiple cameras around the table. Its 360° panoramic mode ensures everyone is visible, while grid or compose modes let remote participants see a tidy, framed view.
Hybrid meetings require both good sightlines and reliable audio. The UC M40’s microphone array and voice-tracking AI help focus on active speakers while minimizing manual camera adjustments. For teams moving between rooms or hosting off-site workshops, the device’s portability makes hybrid conferencing less complex.
Frequent travelers, remote workers and consultants can set up a professional conferencing experience on a laptop with a single USB-C connection. The integrated speaker removes the need to rely on laptop speakers, which are often inadequate for group listening.
For small classrooms or training rooms, the UC M40 can capture the instructor and participants simultaneously, and presentation mode allows focus on slides with participant thumbnails. The V-FOV presets are useful for quickly shifting perspective when a presenter moves or when the camera is placed at different heights.
Comparison with similar products on the market
There are several approaches to video conferencing hardware: single wide-angle webcams, PTZ cameras paired with separate microphones and speakers, and integrated 360° products that bundle camera and audio. The MAXHUB UC M40 sits in the integrated category and competes on a balance of price, portability and features.
- Vs. single-lens wide-angle webcams:Typical wide-angle webcams offer a broad field of view but usually cannot capture a full 360° circle or stitch multiple views. The UC M40’s multi-lens stitching removes blind spots and provides versatile layouts that single-lens devices cannot match.
- Vs. PTZ camera + external audio setups:PTZ cameras excel at high-resolution framing and long-throw capture but require additional microphones, speakers and often more complex control systems. The UC M40 offers a cleaner, simpler install for small rooms at a lower total cost and with fewer cables and configuration steps.
- Vs. integrated 360° competitors:Some dedicated 360° conferencing devices target the same market. The UC M40’s strengths include a high-resolution panoramic mode (4992 × 928), selectable V-FOV presets and bundled PanoCAM Studio control. With a suggested retail price of $699, it aims to deliver strong value versus higher-priced room systems that may cost substantially more once microphones, speakers and installation are included.
In short, the UC M40 is an excellent choice when you want a compact, cost-effective way to capture entire rooms without the setup complexity of multi-device installations or enterprise AV integration.
Customer feedback and representative testimonials
While individual experiences vary, early adopters and reviewers tend to highlight the UC M40’s ease of use and the convenience of integrated audio. Representative feedback commonly reports:
- "Setup was literally plug-and-play — we were in a Teams call in under a minute."
- "The panoramic view makes small meetings feel more inclusive; remote attendees can see everyone without awkward camera angling."
- "For huddle rooms, the mic pickup and built-in speaker are surprisingly good — we didn’t need extra hardware for most meetings."
- "PanoCAM Studio gave us the flexibility to deliver different views for presentations versus group discussions."
Constructive notes from users include suggestions to upgrade the speaker power for larger spaces and to be mindful of USB bandwidth limits on older laptops—using the supplied DC power adapter can mitigate power or performance constraints in some setups.
Conclusion: why the MAXHUB UC M40 is a great choice
The MAXHUB UC M40 is a thoughtfully designed, all-in-one conferencing camera that targets the common pain points of modern hybrid work: complexity, clutter and inconsistent audio/video coverage. With a stitched 4-lens 360° panoramic camera, AI-driven tracking, an integrated mic array and a built-in speaker, it offers a compact, portable solution that works with major collaboration platforms via simple USB-C plug-and-play.
For organizations that need an affordable, easy-to-deploy device for huddle rooms, shared workspaces, remote presenters or portable meeting kits, the UC M40 balances capability and value. Backed by a three-year camera warranty and software tools for advanced control, it’s a compelling choice for teams that want to streamline their meeting room technology without sacrificing user experience.
If you’re evaluating options for small to medium conference spaces and require broad coverage with minimal setup, the MAXHUB UC M40 is worth a close look — versatile in use, friendly to IT and intuitive for everyday users.
