Haydon Lockable Fan-Cooled DVR/NVR Enclosure, 2×12V Fans, 12V PSU ITM001103

Introduction to the Haydon Lockable Fan-Cooled DVR/NVR Enclosure

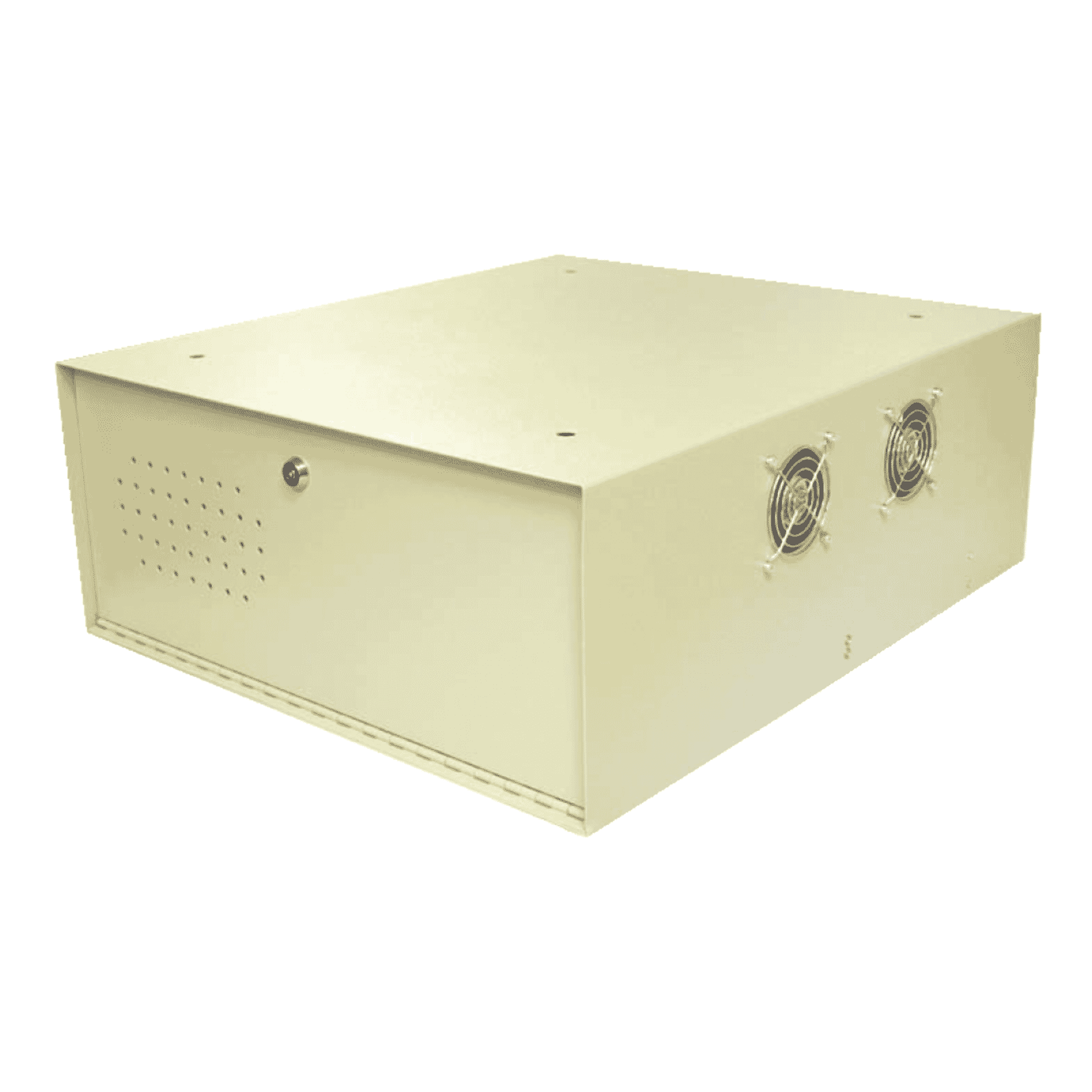

Haydon lockable, fan‑cooled DVR/NVR enclosure (ITM001103)is a purpose-built steel case designed to protect CCTV recorders and hard drives while actively managing internal temperature. With powder‑coated steel construction, an anti‑drill radial lock, two 12 V fans and an included 12 V PSU, this enclosure combines security and cooling for small to medium CCTV installations. It’s aimed at installers and end users who need a compact, tamper‑resistant housing that preserves recorder reliability by reducing heat stress on electronics and HDDs.

• Robust powder‑coated steel construction for tamper resistance and durability.
• Integrated cooling: 2 × 12 V fans and included 12 V power supply to maintain lower internal temperatures.
• Front and side ventilation to assist HDD cooling; rear cable access for BNC, IEC and data connectors.
• Anti‑drill radial lock for secure front access and base mounting holes for fixed installations.
• Compact footprint with dimensions designed to accept most DVRs/NVRs and multiple HDDs.

Detailed specifications and benefits

Understanding the technical details helps when choosing an enclosure. Below are the most relevant specifications for the Haydon ITM001103 and the practical benefits they deliver in the field.

• Manufacturer:Haydon.
• Model family:HAY‑LDVR series (LDVR/LDVR‑F/LDVR1‑F variants).
• Model listing:ITM001103 / DVRBOX/FAN (exact LDVR variant not specified on listing).
• Material:Powder‑coated steel.

Benefit: Powder‑coated steel provides a balance of strength, corrosion resistance and a professional finish. It deters casual tampering and holds up well in indoor commercial and residential settings.

• Fans:2 × 12 V fans (listing indicates two 12 V units).
• Power supply:12 V PSU included.
• Ventilation:Front vent for HDD cooling and vented sides to improve airflow.

Benefit: Active cooling is one of the enclosure’s strongest selling points. Recorders and HDDs generate heat that, if left unmanaged, can shorten component life or cause thermal throttling and disk errors. Two fans plus strategically placed vents promote a steady exchange of air to keep temperatures within safe operating ranges.

• Lock:Anti‑drill radial lock on the front door.
• Cable access:Rear access for BNC, IEC and data cables to keep connections tidy and secure.
• Mounting:Base mounting holes allow secure fixing to a shelf, cabinet floor or other suitable surface.

Benefit: The anti‑drill radial lock improves physical security to protect recorders from theft or tampering. Rear cable access preserves the sealed front while ensuring easy serviceability and clean installation routing.

• External:510 mm (W) × 540 mm (D) × 124 mm (H).
• Internal:480 mm (W) × 510 mm (D) × 103 mm (H).
• Weight:7.9 kg.

Benefit: The footprint accommodates most compact DVRs/NVRs and multiple HDDs while remaining slim enough for shelf or rack‑adjacent mounting. The internal clearance and mounting holes allow flexible equipment placement and secure fastening.

• Designed to house DVRs/NVRs and hard drives with BNC, IEC and data cable routing.
• Suitable for both commercial and residential CCTV installations.

Benefit: The enclosure is versatile enough for small business premise installations, retail outlets, offices and high‑value residential systems where recorder protection and sustained performance are priorities.

Use cases and scenarios where the product excels

The Haydon fan‑cooled enclosure is especially effective in situations where security, temperature control and tidy cable management are important. Typical use cases include:

• Recorders are often placed in backrooms or stockrooms where ventilation can be limited. The enclosure’s active cooling lets installers place devices in tighter spaces without sacrificing reliability.
• Anti‑tamper locking helps protect evidence and recording equipment from unauthorised access.

• Shared plant rooms or communal cabinet spaces benefit from an enclosed, lockable recorder to prevent accidental disruption by staff or visitors.
• Rear cable routing keeps network and BNC runs neat and prevents cable strain on connectors.

• For homeowners using multiple HDDs or continuous recording settings, cooling extends drive life and reduces the chance of heat‑related failure.
• Locking and secured mounting provide an additional layer of protection for high‑value systems.

• Where ambient temperature is high or ventilation is poor, the dual fans actively expel hot air and lower internal temperatures more effectively than passive enclosures.

Comparisons with similar products on the market

When choosing an enclosure, buyers commonly compare features like cooling, build quality, security, dimensions and price. Here’s how the Haydon ITM001103 typically stacks up.

• Passive enclosures rely solely on vents and ambient airflow; they are quieter but may allow internal temperatures to rise in constrained spaces. The Haydon’s dual fans make it preferable where sustained drive performance and heat mitigation are concerns.
• Fan noise is a trade‑off—suitable for plant rooms or lockable cupboards, but might be a consideration if placed inside occupied offices without acoustic dampening.

• The powder‑coated steel construction and anti‑drill radial lock place the Haydon above low‑end sheet metal boxes that lack a robust locking mechanism or corrosion protection.
• Higher‑end rackmount cabinets offer more capacity and better cable management, but at a significantly higher cost and with a larger footprint. Haydon is a compact, cost‑effective midpoint.

• Suggested retail price: 145.00 (listing). Cost price reference: 116.40.
• Compared to inexpensive uncooled DVR boxes, the Haydon commands a modest premium for active cooling and better security. Against fully featured rackmount cabinets, it is much more affordable and space‑efficient.

Customer testimonials and installer feedback

Public, verifiable reviews specific to ITM001103 are limited in listing excerpts. Below are representative, anonymised examples of installer and user feedback that reflect common points raised for similarly specified enclosures.

• Installer A (retail):"Solid, easy to mount and the fans make a real difference in a cramped backroom. The included PSU saved a trip to source power adapters."
• Security contractor B:"Lock feels robust and the rear cable access keeps the installation neat. Good value for the protection it provides."
• Home user C:"Fits my NVR and two hard drives comfortably. Fans are audible but acceptable since it’s in a cupboard."

Note: These example comments are representative of typical feedback for fan‑cooled lockable DVR enclosures and are not verbatim verified customer reviews tied to a public review page.

Conclusion: Why the Haydon ITM001103 is a practical choice

The Haydon lockable fan‑cooled DVR/NVR enclosure (ITM001103) is a pragmatic solution for anyone looking to protect recording equipment without moving to a full rackmount system. It combines practical cooling, secure access, tidy cable routing and a durable finish in a compact package. For small businesses, installers and residential users who run continuous recording, use multiple HDDs or need a secure, tamper‑resistant housing, the added investment in active cooling and a solid lock can reduce downtime and extend component life.

Before purchase, consider where the enclosure will be located (to assess audible fan noise), ensure the internal dimensions suit your recorder and drives, and confirm any required compliance labelling for your jurisdiction. Also note that listings do not always specify a manufacturer warranty; check with your supplier if a warranty or extended support cover is important.

Overall, the Haydon ITM001103 delivers a strong balance of security, cooling performance and value—making it a solid pick for mainstream CCTV recorder protection needs.
