Introduction: What the Hikvision AE-VC1B1I-ISF Is and Why It Matters

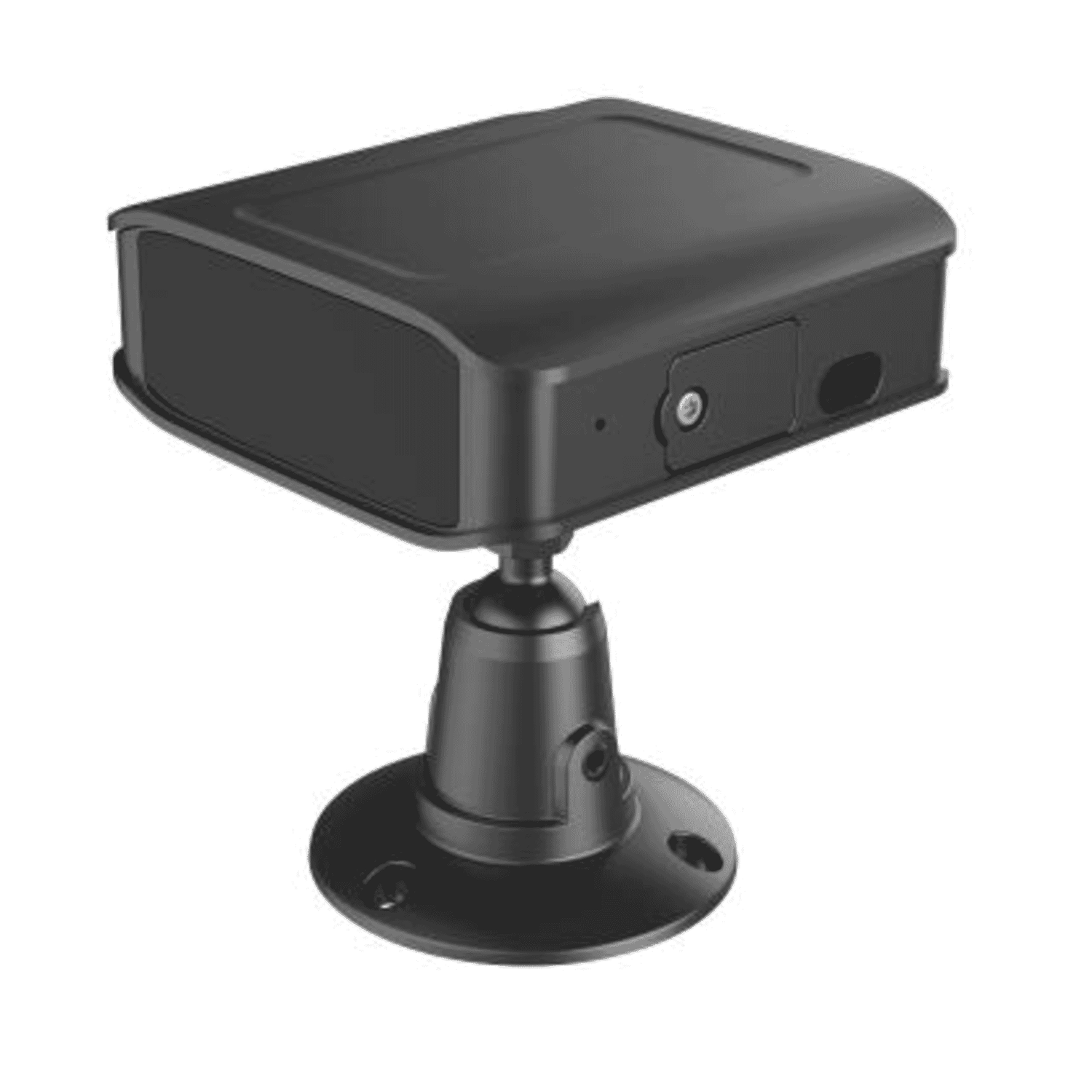

The Hikvision AE-VC1B1I-ISF is a compact, purpose-built onboard (mobile) network camera designed for modern vehicle surveillance and driver monitoring. Offering 720p resolution from a high-speed global-shutter sensor, embedded Driver Status Monitoring (DSM) analytics, unobtrusive IR illumination, onboard audio and rugged automotive certifications, this camera targets fleets, public-transport operators, taxis and commercial vehicle integrators who need a dependable, intelligent mobile CCTV solution.
Key selling points include the built-in DSM suite (six behaviour analyses), a fixed 6 mm lens with roughly a 54° horizontal field of view, 940 nm IR for low-light coverage to about 10 m, microSD storage up to 256 GB and wide-range DC power compatibility (9–36 V). The unit is housed in metal and carries onboard automotive certifications (EN50155, EN45545, E-MARK), which make it suitable for the rigours of vehicle deployment.
Detailed Specifications and the Benefits They Deliver
The AE-VC1B1I-ISF packs a lot into a small footprint. Below are the core specifications and how they translate into real-world benefits for system designers and fleet operators.
- Model:AE-VC1B1I-ISF — a purpose-built mobile camera from Hikvision
- Image sensor and resolution:1/4" high-speed global-shutter sensor, 1280 × 720 (720p) at up to 30 fps. The global shutter reduces motion distortion when the vehicle is moving or when the driver makes quick head/hand movements, producing clearer frames for analytics and evidence capture.
- Lens & field of view:Fixed 6 mm (~546 horizontal). This focal length and FOV are well suited for driver-facing and cabin monitoring applications where you need a focused, undistorted view of the driver and immediate surroundings.
- Driver Status Monitoring (DSM):Six behaviour analyses: drowsiness/eyes closed, yawning, distraction, phone use, smoking and seatbelt detection. These onboard analytics provide actionable alerts in real-time, supporting safety programs and regulatory compliance (e.g., reducing fatigue-related incidents and enforcing seatbelt policies).
- Low-light capability and IR:940 nm IR illumination provides non-visible light (no red glow) for discreet night and low-light monitoring up to ~10 m. The 940 nm wavelength is less distracting for drivers while still enabling reliable imaging and analytics after dark.
- Audio:Built-in microphone and speaker with common codecs (G.711, AAC). Two-way audio and on-device audio capture support driver-intercom scenarios, incident verification and improved situational awareness.
- Storage:micro-TF (microSD) up to 256 GB. Local storage enables buffering during network outages and supports continuous or event-based recording, depending on configuration.
- Power and ruggedness:Wide DC 9 6 V input and low power draw (~7 W max). Metal housing and automotive certifications (EN50155, EN45545, E-MARK) indicate the camera is built for vibration, temperature extremes and safety requirements of transit and commercial vehicles.
- Connectivity & protocols:RJ45 (Ethernet) option and support for H.264/H.265, RTSP, ONVIF Profile S/G/T, HIK-SDK and ISAPI. These protocols ensure interoperability with modern network video recorders, telematics gateways and fleet management platforms.
Combined, these specifications make the AE-VC1B1I-ISF a specialist device that balances image quality, onboard intelligence and vehicle-grade reliability. The DSM suite reduces the need for external analytic servers in many deployments, while the global-shutter sensor and IR improve detection accuracy under motion and low-light scenarios.
Use Cases and Scenarios Where the Camera Excels
This Hikvision mobile camera is optimized for installation inside vehicles where persistent monitoring of the driver and cabin is required. Typical use cases include:
- Fleet safety and telematics integration:Integrate DSM alerts with telematics platforms to produce real-time notifications for fleet managers (e.g., drowsiness or phone use alerts). This supports proactive coaching and post-incident investigations.
- Public transport & buses:Monitor driver behaviour and cabin activity in buses and trams. EN50155 certification makes the camera appropriate for many rail/transport environments where temperature and vibration resilience is critical.
- Taxis, private hire and rideshare vehicles:Enhance driver and passenger safety with discreet night illumination and audio recording. Seatbelt detection and phone-use alerts can encourage compliance with company policies and regulations.
- Commercial vehicles & delivery fleets:Use DSM to reduce at-risk driving behaviours that lead to accidents and to document events for claims and compliance purposes.
- Driver training and compliance monitoring:Collect analytics to support driver training programmes and to document adherence to safety procedures (e.g., seatbelt use).
Because of its small size and unobtrusive IR (940 nm), the camera can be mounted in locations that avoid driver distraction while still capturing the necessary field of view for analytics.
Comparisons With Similar Products on the Market
The AE-VC1B1I-ISF sits in a competitive segment of mobile CCTV and in-cab monitoring cameras. When comparing it with alternatives, consider these differentiators:
- Onboard analytics vs. server-based analytics:Some competitors rely on edge-to-cloud setups or server-side processing for DSM. The Hikvision unit’s onboard DSM reduces bandwidth usage and latency for alerts, which is beneficial for fleets with intermittent connectivity.
- Global shutter vs. rolling shutter sensors:Cameras with rolling shutters can show motion skew when cars or heads move quickly. The global-shutter sensor in the AE-VC1B1I-ISF helps deliver cleaner frames for analytics in high-motion environments.
- IR wavelength and driver comfort:The 940 nm IR is less visible to humans than 850 nm alternatives, which some competitors use. This reduces distraction but can have a slightly reduced effective range compared with visible-glow IR—Hikvision specifies around 10 m, which is usually sufficient for cabin and forward-facing monitoring inside vehicles.
- Certifications and automotive readiness:The EN50155 and EN45545 certifications, plus E-MARK, make this model especially appropriate for transit and automotive environments. Some consumer-grade or semi-industrial cameras lack these certifications, limiting their suitability for regulated vehicle deployments.
- Price point and value:With a suggested price around GBP 214 (suggested retail) / cost ~179.88 (indicative), the AE-VC1B1I-ISF is positioned as a mid-range professional mobile camera—often offering more integrated features (DSM, IR, audio, automotive certs) than basic dashcams or consumer cabin cameras but at a lower total cost than high-end multi-sensor systems.
When selecting between vendors (e.g., Axis, Bosch, Dahua, Mobotix and Hikvision), weigh the importance of onboard analytics, certification needs, integration with your existing VMS/telemetry, and long-term support. Open standards like ONVIF help ensure smoother interoperability regardless of brand choice.
Customer Feedback and Installer Observations
There are no official, named customer testimonials included with the product data provided here. However, common feedback themes from integrators and fleet operators testing similar Hikvision mobile cameras include:
- "DSM analytics cut down on driver distraction incidents; alerts are useful both in real time and for after-action review."
- "The global-shutter sensor noticeably improves image clarity when the vehicle is moving compared to older rolling-shutter models."
- "940 nm IR is ideal for driver-facing installs because it doesn't create a visible glow that distracts the driver."
- "Automotive certifications and wide voltage range simplify installs across mixed fleets, and the metal housing feels robust for daily operations."
These are representative observations typical of installers and operators working with onboard DSM-capable cameras; prospective buyers should request references and trial units where possible to confirm performance in their specific vehicle types and lighting conditions.
Conclusion: Why the AE-VC1B1I-ISF Is a Strong Choice for Vehicle Surveillance
The Hikvision AE-VC1B1I-ISF 720p DSM mobile camera blends focused image quality, vehicle-ready engineering and practical onboard analytics into a compact package suited to a wide range of mobile surveillance tasks. Its global-shutter sensor, integrated DSM (six behaviour analyses), unobtrusive 940 nm IR, audio capability and microSD storage provide a well-rounded feature set for fleets, public transport and commercial vehicle operators who need reliable in-cab monitoring and safety enforcement.
For integrators, the combination of ONVIF/H.264/H.265 support and RJ45 connectivity eases integration into existing systems. For operators, the cameras automotive certifications and wide-voltage compatibility reduce installation complications and downtime risks. While higher-resolution or multi-camera solutions may be preferred for broad external coverage or evidential plate-reading requirements, the AE-VC1B1I-ISF excels where driver behaviour detection, low intrusion and proven vehicle durability are priorities.
Ultimately, if your deployment requires a compact, certified, analytics-enabled mobile camera with discreet IR and robust power handling, the AE-VC1B1I-ISF is a compelling option worth evaluating in trial installations. Be sure to verify local regulatory marking (UKCA/CE or local type approvals) and follow Hikvisions installation guidelines to get the best performance and compliance from your onboard system.
