Introduction: Hikvision DS‑MI9605‑GA — Mobile enforcement recorder built for vehicles

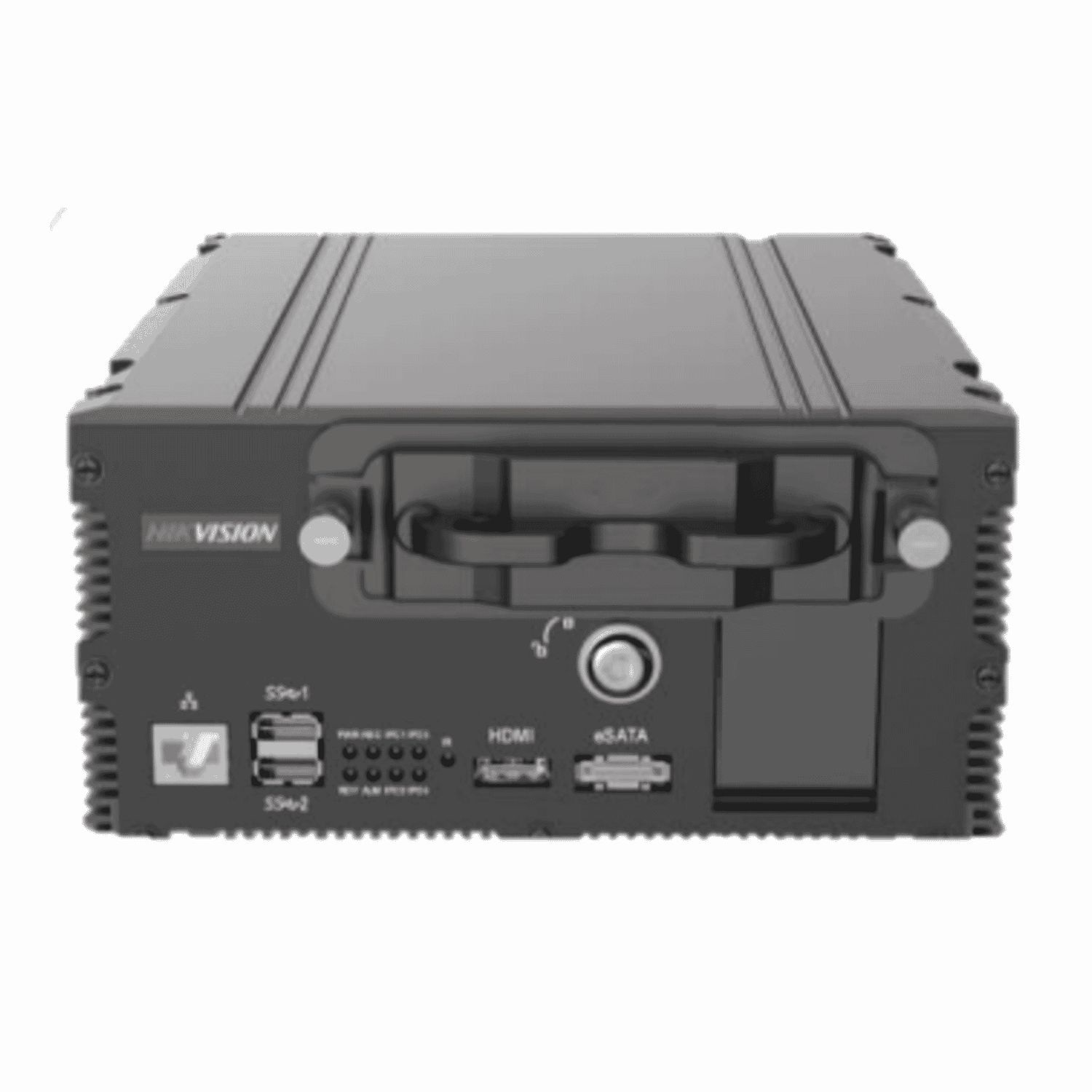

The Hikvision DS‑MI9605‑GA/4M/GLF/1T is a purpose‑built vehicle‑mounted mobile CCTV recorder designed for patrol cars, traffic enforcement units and commercial fleets that require reliable in‑vehicle evidence capture. This 4MP variant supports one speed‑dome channel plus four IP camera channels, H.265/H.264 compression, removable 2.5" HDD/SSD storage (the pictured variant includes a 1 TB HDD), built‑in GNSS for geo‑stamping and optional cellular/Wi‑Fi modules for remote transfer. Rugged by design — with an aluminium die‑cast, fanless chassis and aviation‑style connectors — the DS‑MI9605‑GA is optimised for the rigours of mobile operations.
- 1× speed‑dome input plus 4× IP camera channels (4M variant) supporting up to 4 MP resolution.
- Efficient H.265 and H.264 compression for main and sub streams, maximising storage and bandwidth.
- Pluggable 2× 2.5" HDD/SSD bays (up to 2 TB per drive) with vibration damping and optional low‑temperature heater.
- Built‑in GNSS/GPS for accurate geo‑stamping and overlay of location on evidence videos.
- Pluggable 3G/4G and 2.4 GHz Wi‑Fi modules for remote upload and live monitoring (SMA/Rosenberger antenna connectors).
- Wide vehicle power input (DC 9–32 V), aviation‑style connectors, multiple alarm I/O and multiple video outputs (CVBS, VGA, HDMI).
Detailed specifications and benefits
Understanding the technical details shows why the DS‑MI9605‑GA is suited for enforcement and fleet applications. Below are the important specifications and the practical benefits they provide.
- Channels:1 speed‑dome + 4 network cameras. Benefit: flexible camera combinations—PTZ for incident capture plus multiple fixed views for context.
- Resolution:Up to 4 MP on supported cameras. Benefit: high‑definition footage that preserves license plate details and facial features at common enforcement distances.
- Compression:H.265 / H.264. Benefit: H.265 reduces storage and bandwidth requirements compared with H.264, enabling longer retention or higher frame rates on the same drives.
- Drive bays:Two pluggable 2.5" HDD/SSD bays (dummy HDD supported). Benefit: easy swap‑out for evidence transfer, rapid maintenance, and flexible capacity planning.
- Capacity:Up to 2 TB per drive per Hikvision specifications; 1 TB variant supplied in this model. Benefit: ample onboard retention for most patrol shift cycles; additional drives or remote upload can extend retention time.
- Build and environmental features:Aluminium die‑cast fanless chassis, vibration damping and optional HDD heater for cold climates. Benefit: dependable operation in vehicle vibration, temperature swings and harsh deployment environments.
- Networking:1× gigabit Ethernet with pluggable cellular (3G/4G) and Wi‑Fi modules. Benefit: on‑site transfer via local Wi‑Fi or nationwide transfer with cellular modules for rapid evidence upload.
- GNSS:Built‑in GNSS/GPS for geo‑stamping. Benefit: automatic position overlay on videos and metadata for chain of custody and situational awareness.
- I/O:Aviation plug connectors, 8 alarm inputs, 2 alarm outputs, RS‑232, multiple USB ports and CVBS/VGA/HDMI video outputs. Benefit: seamless integration with vehicle harnesses, external sensors (siren, blue light, vehicle status) and external displays.
- Power input:Wide DC 9–32 V. Benefit: compatible with a broad range of vehicle power systems and tolerant of voltage fluctuations during engine start/stop.
- Operating temperature:−10 °C to +60 °C standard, extendable to −30 °C with HDD heater option. Benefit: deployable in both temperate and cold regions without sacrificing drive integrity.
Use cases and scenarios where the DS‑MI9605‑GA excels
This recorder is designed around real‑world vehicle use. Typical scenarios include:
- Complete situational recording: PTZ front/rear coverage for pursuits or traffic stops while fixed cameras record cabin and side views.
- Evidence integrity: GNSS geo‑stamping and removable drives allow secure chain of custody for prosecutions.
- High resolution capture of moving violations, red‑light or speed enforcement when combined with a speed/detection system and PTZ camera.
- Remote upload: instantaneous transfer of critical footage from the field via 3G/4G for time‑sensitive incidents.
- Long shift recording backed by efficient H.265 compression and 2× drives for shift‑by‑shift management.
- Alarm I/O interfaces with parking ticket printers, sensors and barrier controls to create a complete enforcement toolkit.
- Accident reconstruction and driver behaviour monitoring with synchronized GPS and multi‑camera footage.
- Remote monitoring: Wi‑Fi or cellular options allow fleet managers to view live or recorded footage and respond to incidents faster.
Comparisons with similar products in the market
When selecting a mobile recorder there are several product types to consider: consumer dashcams, compact single‑channel mobile DVRs, and rugged multi‑channel mobile NVRs like the Hikvision DS‑MI9605‑GA. Here is how the DS‑MI9605‑GA stacks up.
- Dashcams are low cost and easy to install but typically lack multiple channels, removable enterprise‑grade storage, GNSS overlay, alarm I/O and professional connectors. The DS‑MI9605‑GA provides multi‑camera support, integration and forensic‑grade storage for enforcement use.
- Compact DVRs may support one or two feeds and often use proprietary compression and fixed storage. The Hikvision unit supports full network cameras, higher resolutions (4 MP), H.265, removable HDDs and greater integration making it better suited for comprehensive enforcement roles.
- The DS‑MI9605‑GA sits alongside comparable offerings from other major suppliers. Its strengths are the removable 2.5" drives, wide DC input, GNSS integration, optional cellular/Wi‑Fi modules and a durable fanless chassis with aviation connectors. When comparing, look at: supported camera resolutions and codecs, environmental ratings (temperature/vibration), ease of drive removal for evidence handling, and available telematics integration.
- Deployers often choose between brands based on local support, integration with existing camera fleets, and firmware/feature parity. Hikvision’s ecosystem of cameras and management software is an advantage if you already use Hikvision devices.
Customer feedback and testimonials
While individual experiences vary by installation and use case, common feedback themes from agencies and fleets adopting similar Hikvision mobile recorders include:
- "Reliable recording under harsh vehicle conditions — the fanless, die‑cast chassis and vibration damping made a noticeable difference compared to consumer devices."
- "Removable drives simplify transferring evidence to the station and reduce vehicle downtime for maintenance."
- "Built‑in GNSS with overlayed metadata has saved time in investigations and improved the evidentiary value of video clips."
Prospective buyers should request demo units or pilot installations and ask for references from similar agencies to validate performance in their operating environment.
Conclusion: Why the DS‑MI9605‑GA is a strong choice for mobile enforcement
The Hikvision DS‑MI9605‑GA/4M/GLF/1T is engineered for the demands of mobile enforcement, traffic monitoring and fleet security. It combines multi‑channel HD recording, efficient H.265 compression, removable enterprise storage, GNSS geo‑stamping and robust vehicle‑grade construction — all features that matter when evidence integrity, uptime and integration are priorities. Optional cellular and Wi‑Fi modules extend the unit’s usefulness by enabling remote data transfer and live monitoring, while wide DC input and environmental options make the unit adaptable to diverse vehicle platforms and climates.
For police forces, traffic authorities and commercial fleets looking for a dependable in‑vehicle recording solution that balances performance with practical evidence‑handling features, the DS‑MI9605‑GA is a compelling choice. Evaluate the unit within a pilot deployment, confirm accessory inclusion (3G/4G, Wi‑Fi, GNSS antennas and harnesses), and plan drive management to match your retention and evidentiary needs. With its combination of ruggedisation, connectivity and forensic capabilities, the DS‑MI9605‑GA offers a purpose‑built platform for modern mobile enforcement operations.
