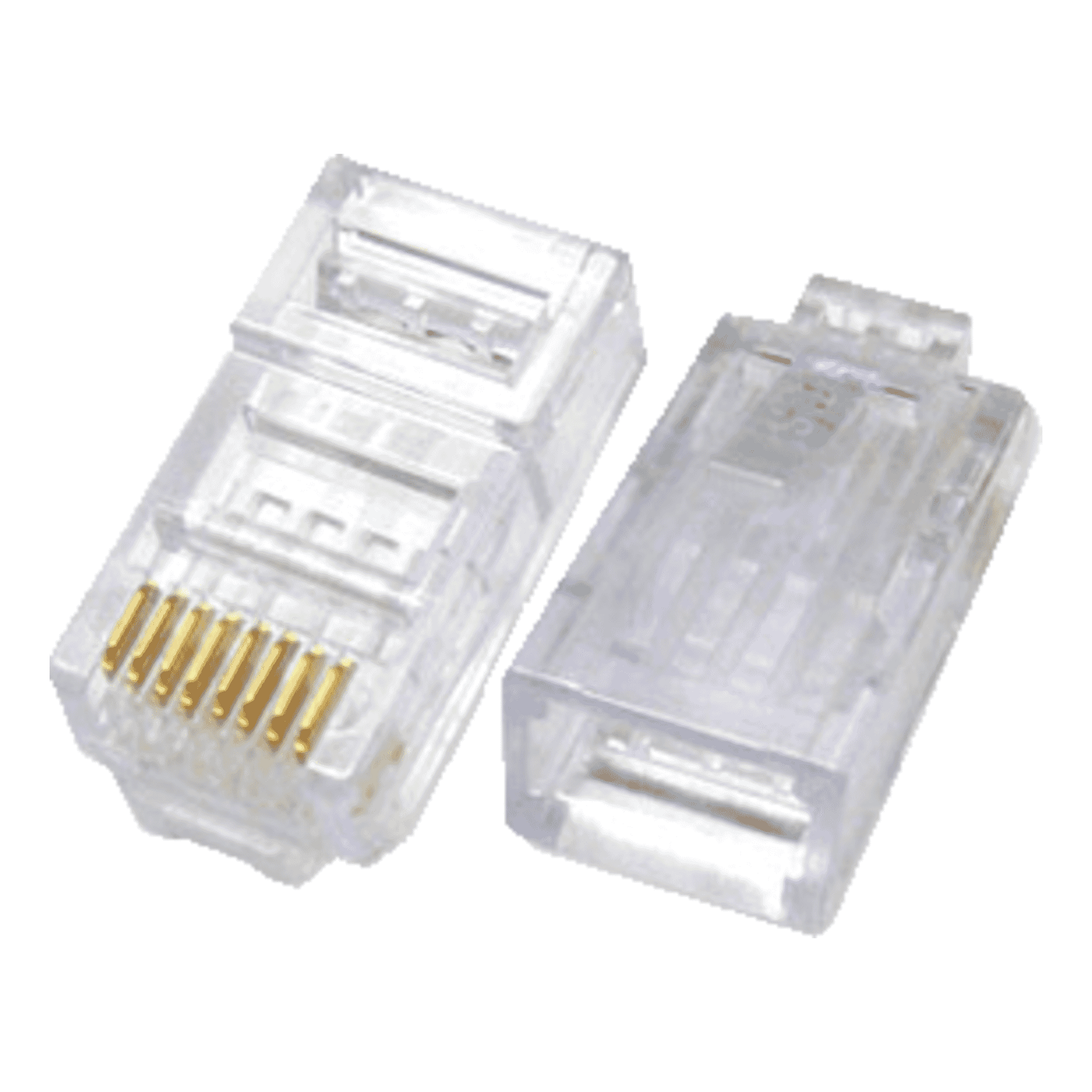

Introduction: Meet the Haydon RJ45 Cat6 Rapid‑Fit Crimp Connector (ITM001135)
The Haydon RJ45 Cat6 Rapid‑Fit Crimp Connector (SKU ITM001135) is a pass‑through 8P8C modular plug designed for modern Cat6 installations and gigabit Ethernet networks. Built for speed and reliability, this RapidFit style connector lets conductors feed through the plug, simplifying wire ordering verification and enabling faster terminations when used with a compatible RapidFit crimper. Its gold‑plated contacts and Cat6 performance make it a practical choice for installers, contractors, and anyone building or repairing high‑speed copper Ethernet links.
Key features at a glance
- Category:Cat6 — suitable for Gigabit Ethernet (typical performance up to 250 MHz).
- Connector type:RJ45 (8P8C) pass‑through / RapidFit modular plug.
- Contacts:Gold‑plated for improved corrosion resistance and reliable contact.
- Compatible cable gauge:Typically solid 24–26 AWG (verify SKU/datasheet for stranded compatibility).
- RapidFit style:Feed‑through design for quicker termination and easy wire verification.
Detailed specifications and benefits
Understanding the technical details of the Haydon RJ45 Cat6 Rapid‑Fit crimp connector helps you match the component to your project requirements. Below are the key specification areas and what they mean in practical terms.
- Frequency rating:Typically up to 250 MHz, meeting Cat6 expectations for gigabit Ethernet traffic and supporting reliable 1000BASE‑T connections in typical installations.
- Contact plating:Gold‑plated contacts reduce the risk of corrosion and maintain a low‑resistance electrical path over time, improving long‑term link stability—important in high‑uptime environments such as offices and data closets.
- Connector form factor:8P8C (RJ45) standard, meaning compatibility with mainstream network devices and patch panels when properly terminated.
- Pass‑through design:Feed‑through plugs allow each conductor to extend beyond the front of the plug. This makes it simple to visually verify correct wiring order (T568A/T568B) and to trim conductors cleanly for a neat termination.
- Faster terminations:When paired with a RapidFit‑compatible crimper, pass‑through plugs significantly reduce the time per termination compared with traditional crimp‑and‑trim workflows.
- Lower rework rates:Visual verification of conductor order before crimping reduces wiring mistakes, saving time and improving first‑time fix rates on site.
- Versatility:These plugs are engineered for typical solid Cat6 cable (24–26 AWG). They are well suited to both patch leads and fixed cabling where modular plug terminations are required.
- Reliability:Gold plating and Cat6 construction contribute to consistent, low‑loss connections that support higher frequencies and PoE applications (verify PoE rating in the official Haydon datasheet).
The available data does not confirm pack size, contact plating thickness variant details, operating temperature range, insertion/retention cycle counts, or explicit CE/UKCA markings. Always consult the Haydon product datasheet or distributor technical pages (Haydon HAY‑RJ45CAT6 / HAY‑RJ45CAT6‑50RAP and distributor listings) for full electrical/mechanical ratings and environmental limits before large‑scale deployment.
Use cases and scenarios where this connector excels
The Haydon Cat6 Rapid‑Fit crimp connector is engineered for practical field use. Typical applications include:
- On‑site patch lead assembly:Installers making custom length patch cables on demand benefit from the speed and verification offered by pass‑through plugs.
- Data closet and server room work:When repairing or building patch panels and short patch leads, the plug’s Cat6 rating supports full gigabit links and typical PoE delivery.
- Commercial office installations:For structured cabling runs where modular plugs are required at workstations or for short runs, these connectors streamline termination workflows.
- Small‑to‑medium IT and AV projects:Home labs, AV installations, and classroom networks where installers prefer modular, field‑terminated connections.
- Emergency fixes and upgrades:RapidFit plugs are valuable when time is limited—faster terminations and visual verification reduce downtime.
Comparisons with similar products in the market
Choosing the right RJ45 connector involves weighing style, cable compatibility, performance, and cost. Here are comparisons that highlight where the Haydon Rapid‑Fit plug sits relative to common alternatives.
- Speed and accuracy:Pass‑through plugs (like Haydon Rapid‑Fit) enable visual verification and quicker trimming, typically reducing termination time. Standard plugs require careful insertion and trimming under the face of the plug, which can be slower and more error‑prone.
- Tooling:RapidFit plugs achieve their speed when used with compatible RapidFit crimpers. Standard plugs may use universal crimpers but will not benefit from the same feed‑through advantages.
- Bandwidth:Cat6 connectors are specified for higher frequency operation (typically up to 250 MHz) versus Cat5e (100 MHz), offering improved headroom for gigabit Ethernet and reduced crosstalk.
- Future‑proofing:If you anticipate heavier network loads or want extra margin in cabling performance, Cat6 is the safer choice.
- Environment:The Haydon Rapid‑Fit offering appears to be an unshielded plug suited to most office and data center conditions. For high EMI environments or where shielded cable is used end‑to‑end, choose shielded (FTP/STP) plugs and ensure connectors and jacks are properly grounded.
- Flexibility:Field‑terminated plugs let you create custom lengths on site, but require time, skill, and tools. Pre‑terminated leads are quick to deploy but less flexible for custom runs.
- Cost considerations:Connectors like the Haydon Rapid‑Fit are cost‑effective per unit, especially when you already have crimping tools and produce many custom cables.
Customer testimonials and installer feedback
At the time of writing, no verified customer testimonials specific to Haydon SKU ITM001135 were provided. That said, general installer feedback for Cat6 Rapid‑Fit pass‑through plugs commonly praises:
- Reduced termination time when used with a compatible RapidFit crimper.
- Cleaner, easier wire ordering verification and fewer wiring mistakes.
- Good long‑term reliability when gold‑plated contacts and proper crimping technique are used.
If you have customer reviews or site photos, including them in product listings or specification sheets helps other buyers gauge real‑world performance. For formal references, consult distributor pages and Haydon’s technical resources for any published test results or compliance statements.
Pricing, packaging and warranty considerations
The supplied cost_price is 1.80 and the suggested_price is 2.09, which represents a minimum recommended RRP to secure a 16% margin on the provided cost (1.80 × 1.16 = 2.088 → 2.09). Important clarifications are required before final RRP recommendations:
- Please confirm the currency of cost_price and whether the price is per single connector or per pack (and if so, the pack size).
- Warranty information was not provided (warranty = 0 in the dataset). Verify Haydon’s warranty or return policy for this SKU if warranty protection is needed.
Conclusion: Why choose the Haydon RJ45 Cat6 Rapid‑Fit connector?
For installers and projects that demand speed, reliability, and Cat6 performance, the Haydon RJ45 Cat6 Rapid‑Fit Crimp Connector (ITM001135) is a compelling option. Its pass‑through RapidFit design simplifies wiring verification and reduces termination time when used with appropriate crimping tools. Gold‑plated contacts and Cat6 capability provide robust electrical performance suitable for gigabit Ethernet links, and the plug’s compatibility with common 24–26 AWG solid conductors aligns with most structured cabling use cases.
Before purchasing at scale, confirm pack size, stranded cable compatibility (if needed), plating thickness, and full datasheet specifications from Haydon or authorised distributors. Also clarify pricing currency and packaging so final RRP and margin tiers can be calculated accurately. With those details verified, this Rapid‑Fit connector is a practical, cost‑effective component for professional network terminations and small‑to‑medium cabling projects.
- Haydon product page references: HAY‑RJ45CAT6 / HAY‑RJ45CAT6‑50RAP (see Haydon/distributor pages for PDF datasheets).
- Distributor technical pages: CPC / Farnell listings may carry full specifications and compliance data.
