Introduction: What the AMG9CLE-1PO-1PA Does and Why It Matters

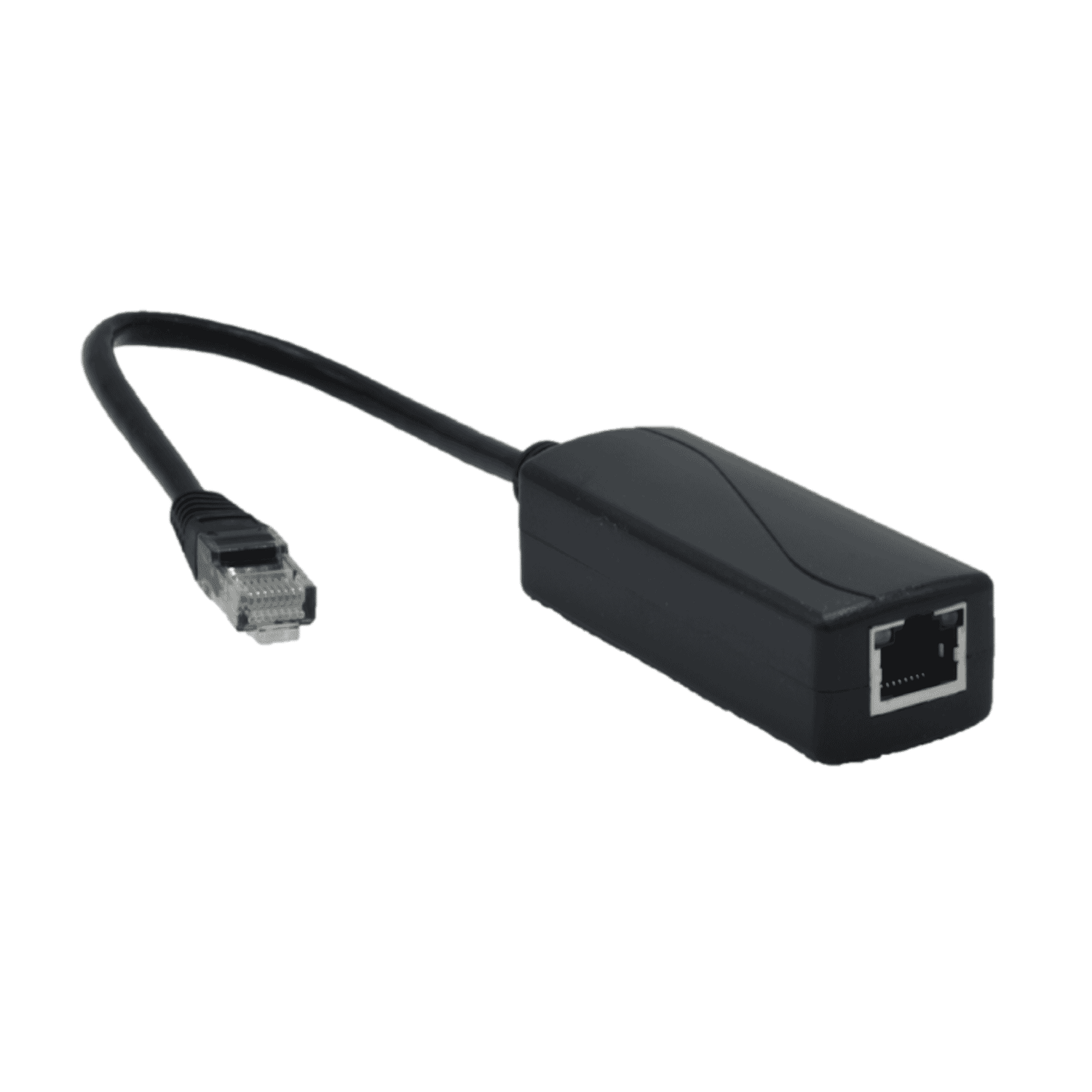

AMG9CLE-1PO-1PA — Active PoE to Passive PoE Converter (ITM002521)is a compact inline device that converts standard IEEE 802.3af/at (active) Power over Ethernet (PoE) into a 24 V DC passive PoE output at up to 1 A. In plain terms, it lets you power passive 24 V PoE devices from commonly available PoE switches or injectors that provide 802.3af (15 W) or 802.3at (30 W) power. With two gigabit Ethernet ports (one PoE-in and one passive PoE/data out), an industrial temperature range (-40°C to +65°C), and plug-and-play operation, the converter is aimed at installers and system integrators who need a simple, rugged way to bridge active PoE sources and passive-PoE powered devices.
Priced as a cost-effective accessory for field installations (suggested price around 34.99 USD, reseller listings), the AMG9CLE-1PO-1PA is particularly useful in CCTV, wireless backhaul, and remote sensor deployments where passive PoE is already in use or required by the device vendor.
Key Features at a Glance
- Converts IEEE 802.3af/at active PoE input to 24 V DC passive PoE output (24 V DC @ 1 A).
- 2 x 10/100/1000 Mbps RJ45 ports — 1 x PoE-in (PD), 1 x passive PoE/data out supporting gigabit throughput.
- Supports both 802.3af (15 W) and 802.3at (30 W) power sources for broad compatibility.
- Industrial operating temperature from -40°C to +65°C for challenging outdoor or enclosed environments.
- Compact, inline form factor suited to tight spaces such as camera poles and roadside cabinets.
- Plug & play — no configuration required; AMG-listed 3-year support warranty (as listed by resellers).
Detailed Specifications and Benefits
Understanding the technical details helps match the AMG9CLE-1PO-1PA to the right projects. Below are the core specifications and the practical benefits they deliver:
- Model / SKU:AMG9CLE-1PO-1PA / ITM002521
- Manufacturer:AMG Systems
- Function:Active (802.3af/at) → Passive PoE converter
- Passive output:24 V DC, up to 1 A
- PoE input:IEEE 802.3af and 802.3at (15 W / 30 W)
- Ports:2 x 10/100/1000 RJ45 (1 PoE-in PD, 1 passive PoE/data out)
- Data rate:Gigabit Ethernet (10/100/1000 Mbps)
- Operating temperature:-40°C to +65°C
- Form factor:Compact, inline converter for confined spaces
- Configuration:Plug & Play (no user configuration)
- Warranty:3 years (AMG support — as listed by resellers)
- Official datasheet / other mechanical or certification details:INSUFFICIENT DATA — contact AMG or your authorised distributor for the official datasheet, compliance and certification documentation (CE/UKCA, etc.)
- Simplifies mixed PoE deployments:Many legacy or specialised devices expect 24 V passive PoE. This converter lets you use modern 802.3af/at switches without re-wiring or replacing endpoint devices.
- Maintains gigabit data throughput:Unlike some midspan power-only injectors, this unit passes full gigabit Ethernet traffic so network performance is preserved.
- Durable in harsh environments:The wide operating temperature range and compact form factor mean it can live near camera poles, in roadside cabinets, or inside small enclosures where space and environmental conditions are constrained.
- Minimal deployment overhead:No configuration, DIP switches, or software — installers can plug it in and verify operation quickly on site.
- Cost-effective:At a modest price point, it’s an economical way to adapt existing infrastructure and extend life and utility of passive-powered devices.
Use Cases and Scenarios Where This Converter Excels
The AMG9CLE-1PO-1PA is designed to solve practical problems commonly encountered in the field. Typical scenarios include:
Many security cameras or camera accessories use passive 24 V PoE. When upgrading network switches to modern managed PoE switches (802.3af/at), installers can use the AMG converter to keep the existing camera hardware without installing separate power supplies at each camera location.
Some wireless radios or access points, particularly vendor-specific outdoor units, expect a 24 V passive feed. The converter enables these devices to be powered from mainstream PoE switches or injectors while maintaining gigabit connectivity for backhaul links.
Remote instrumentation and telemetry devices in roadside cabinets, utility poles, or industrial enclosures often need a reliable 24 V rail. The converter provides a neat, inline solution that avoids additional DC power distribution wiring.
For projects migrating infrastructure, this converter allows mixed deployments where some endpoints remain passive-powered while the core network transitions to active PoE. It removes the need to immediately replace or retrofit many endpoints.
How It Compares to Similar Products
When considering a PoE power adaptation solution, you’ll typically evaluate active-to-passive converters, passive injectors (non-powered splitters/injectors), and PoE splitters. The AMG9CLE-1PO-1PA sits in the active-to-passive converter category and compares as follows:
- Versus Passive Injectors:Passive injectors supply 24 V directly but require a local 24 V power source. They don’t accept 802.3af/at input. The AMG converter accepts standard PoE from switches/injectors and converts it to passive 24 V, which is more convenient where active PoE is already deployed.
- Versus PoE Splitters:PoE splitters commonly take PoE and split power and data, often providing lower DC voltages (5 V, 12 V, 24 V) to devices but sometimes only support 100 Mbps or are bulkier. The AMG unit is compact, inline and explicitly passes gigabit data while delivering 24 V DC at up to 1 A—making it better for gigabit devices and space-constrained installs.
- Versus Other Active-to-Passive Converters:Many converters exist with varying output voltages, current capacities and temperature ratings. The AMG9CLE-1PO-1PA’s strengths are its industrial temperature rating, gigabit support, and small inline form factor. When selecting, confirm output current (1 A here), output voltage (24 V), and any certifications required for your project; some alternatives may offer higher current or integrated surge protection but could be larger or more expensive.
Customer Testimonials and Reviews
At the time of writing, no verified customer testimonials or official user reviews were located on AMG’s public site or the supplier listings compiled for this article. Reseller pages list the product and basic specs but an official AMG PDF datasheet and published customer reviews were not publicly available. For validated customer feedback and project references, contact AMG or an authorised distributor.
That said, installer communities commonly value products with the following attributes—attributes this converter targets: quick plug-and-play deployment, reliable operation in wide temperature ranges, and the ability to maintain gigabit throughput while adapting power formats. If you require on-site or peer reviews before procurement, ask your distributor for references or field notes from existing AMG deployments.
Installation Notes, Safety and Warranty
- Install in a dry, ventilated enclosure and avoid placing the unit where it could be exposed to sustained moisture unless the enclosure protects it.
- Confirm the PoE source can supply sufficient power (802.3af or 802.3at) and verify cable/pinout compatibility with the passive-powered device.
- Disconnect power before wiring. For permanent or regulatory-bound installations, use a qualified installer and verify required compliance documentation.
- AMG-listed 3 year support warranty is indicated on reseller listings; for full warranty terms and certification documents (CE, UKCA, etc.), contact AMG or an authorised distributor.
Conclusion: Why Choose the AMG9CLE-1PO-1PA?
If you need a compact, rugged and cost-effective way to power 24 V passive-PoE devices from mainstream 802.3af/at PoE sources while preserving gigabit data rates, theAMG9CLE-1PO-1PAis a strong candidate. Its plug-and-play simplicity, industrial temperature rating, and inline gigabit support make it practical for CCTV, wireless backhaul, remote sensor and transitional network deployments. While official datasheet and certification details should be confirmed directly with AMG or your distributor for projects with strict compliance requirements, the converter addresses a common real-world gap between modern PoE infrastructure and legacy or vendor-specific passive-PoE endpoints.
In short: use the AMG9CLE-1PO-1PA when you need a small, reliable adapter to bridge active PoE infrastructure and 24 V passive-powered devices without sacrificing network performance or adding bulky equipment into the installation.
