Introduction to the Instant 802.3af Indoor Gigabit PoE Converter

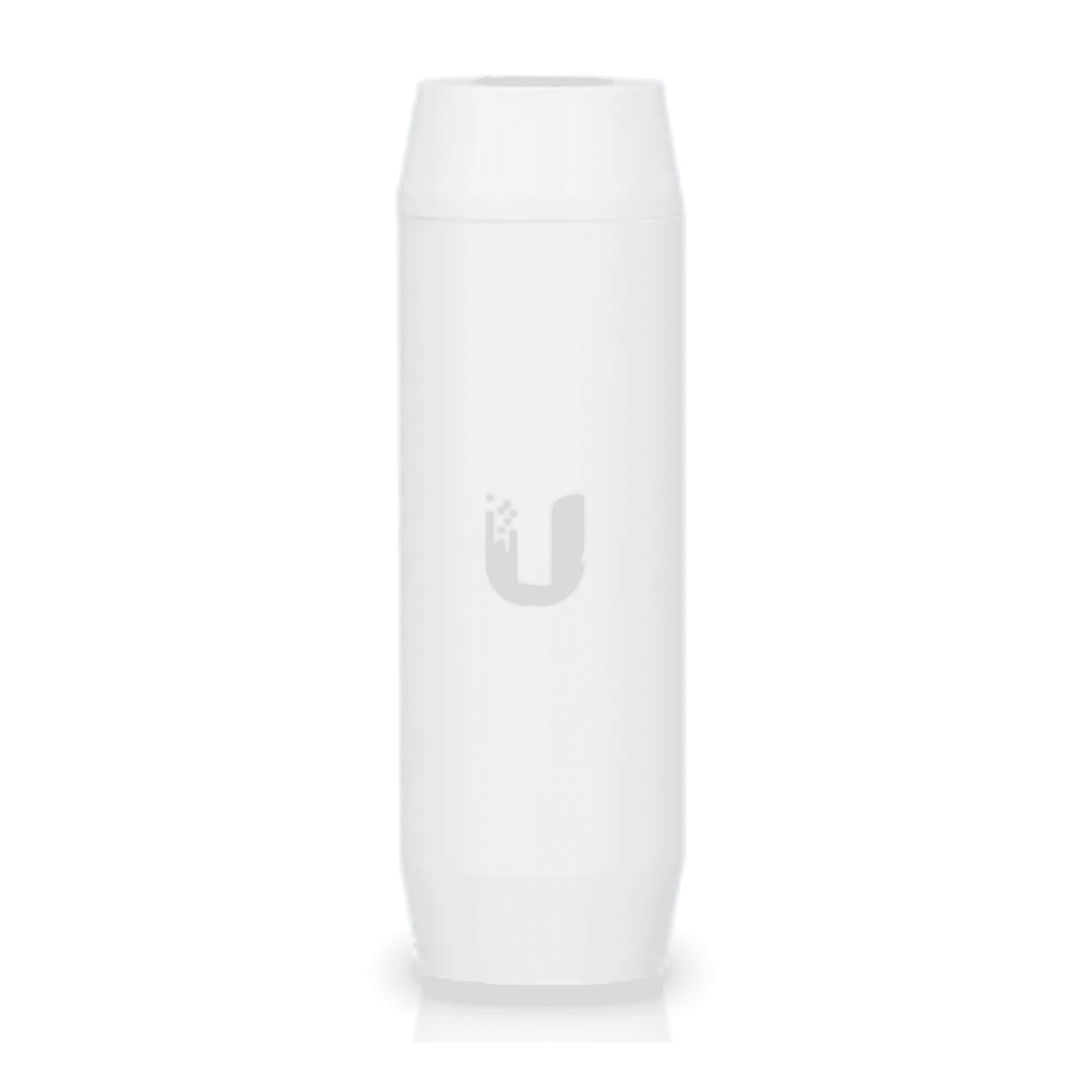

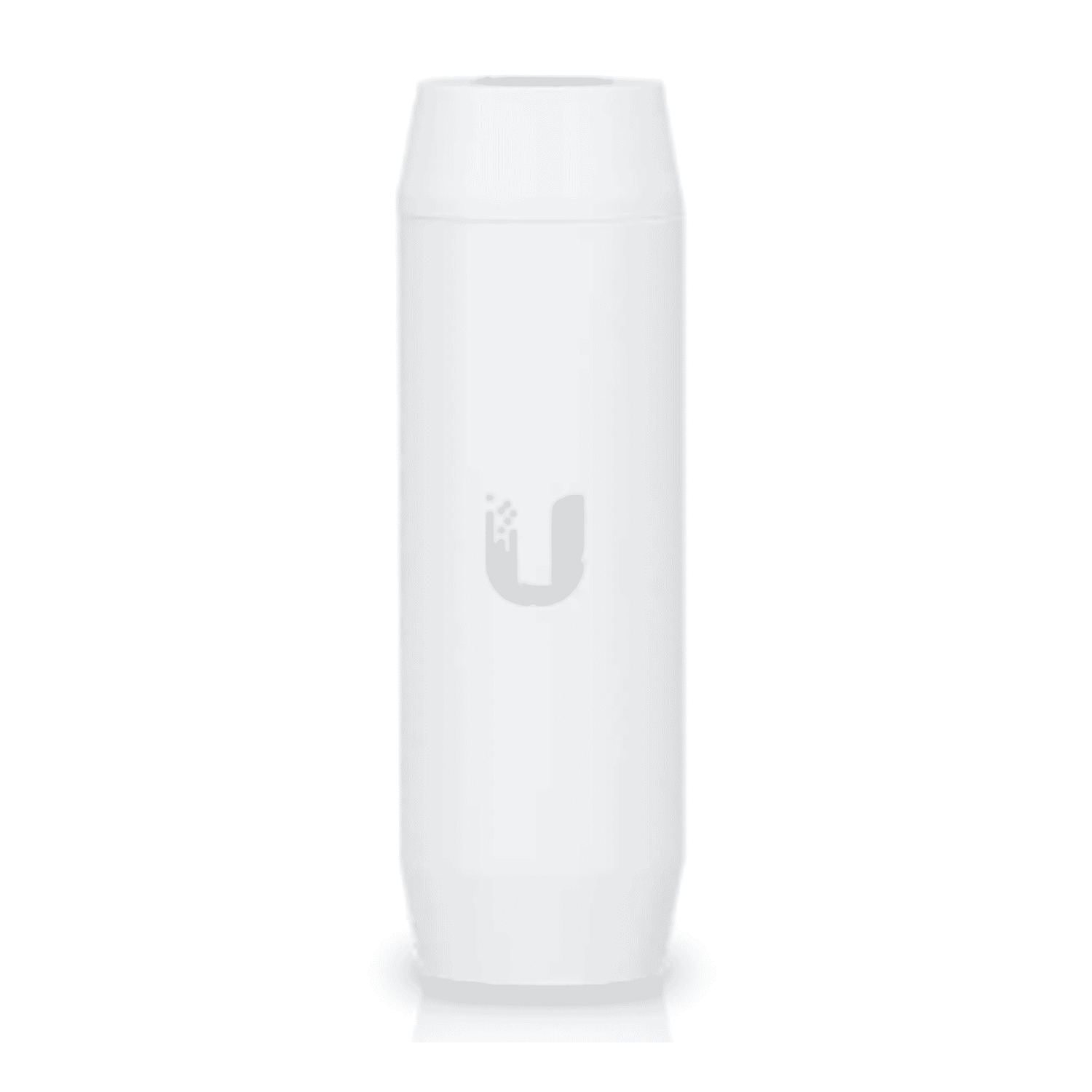

INS-3AF-I-G — Instant 802.3af to 24V Gigabit PoE Converter
The INS-3AF-I-G is a compact inline PoE adapter designed to bridge the gap between modern IEEE 802.3af (48 V) PoE infrastructure and legacy 24 V passive PoE devices. If you manage networks that mix newer, centrally managed PoE switches with older 24 V devices from vendors such as early Ubiquiti models, this adapter lets you power those legacy devices reliably without changing your switchgear. The unit supports Gigabit Ethernet, offers ESD/surge protection, and delivers up to 12 W of output power (24 V at 0.5 A).
Key features at a glance
- PoE conversion: Converts 48 V IEEE 802.3af input to 24 V passive PoE output for legacy devices.
- Gigabit data: 10/100/1000 Mbps on both input and output ports, preserving full network speeds.
- ESD protection: Approximately ±15 kV Ethernet ESD/surge protection to help protect connected equipment.
- Compact inline form: Small cylindrical adapter (Ø 30.3 × 95.5 mm, ≈ 50 g) that inserts into wiring runs for neat installations.
- 12W output: Provides 24 V DC at up to 0.5 A, suitable for many legacy access points, cameras, and small devices.
Detailed specifications and benefits
Understanding the INS-3AF-I-G specifications helps clarify when and how to use it. Below are the key technical details and the practical benefits they deliver.
- Interfaces: 1 × GbE RJ45 (PoE in, 802.3af) and 1 × GbE RJ45 (PoE out, 24 V passive). Benefit: You can maintain full Gigabit throughput across the inline adapter without throttling data rates for connected devices.
- Data rates: 10/100/1000 Mbps. Benefit: Compatible with modern switches and devices that require Gigabit speeds, making it future-friendly for network upgrades while still supporting legacy powered devices.
- Input: 48 V DC, IEEE 802.3af. Benefit: Works with most PoE switches and injectors that support the 802.3af standard.
- Output: 24 V DC, 0.5 A (≈12 W). Benefit: Supplies the correct voltage and sufficient current for many older 24 V passive devices, avoiding the need to replace those devices.
- Power method: 24 V passive PoE (pairs 4,5+; 7,8 return). Benefit: Matches the wiring scheme used by a number of legacy devices, ensuring straightforward compatibility when wired correctly.
- ESD / surge: ≈ ±15 kV. Benefit: Improved resilience against electrostatic discharge and transient surges on Ethernet lines, reducing the risk of damage to sensitive equipment.
- Dimensions & weight: Ø 30.3 × 95.5 mm, ≈ 50 g. Benefit: Small, unobtrusive inline design that fits into cable runs or enclosures for tidy installations.
- Operating temperature: 0 to 70 °C (indoor use). Benefit: Suitable for most indoor installations; note that the adapter is specified for indoor use only.
- Certifications: INS-3AF-I-G lists insufficient data for certifications in the provided spec sheet; installers should verify compliance needs for specific projects and regions.
- Warranty: No warranty is specified. Benefit/consideration: While the adapter is straightforward and economical, organizations should note warranty terms and consider stocking spares for critical deployments.
Benefits in real-world deployments
The INS-3AF-I-G addresses a common challenge: how to manage and power legacy 24 V passive PoE devices from modern managed PoE switches. Key practical benefits include:
- Centralized power control and remote rebooting of legacy devices via standard 48 V PoE switches, improving operational convenience and reducing on-site visits.
- Cost savings by avoiding full device replacement when a legacy device is otherwise functional.
- Fast, non-invasive installation: inline form factor lets installers add the converter without rewiring existing endpoints or change their network topology.
- Maintained network performance thanks to Gigabit passthrough, so device connectivity is not sacrificed for power compatibility.
Use cases and ideal scenarios
The INS-3AF-I-G shines in several common scenarios encountered by network installers, integrators, and IT managers.
When migrating to centrally managed 802.3af switches for features like per-port power scheduling, monitoring, or PoE budget control, many installations include older 24 V devices. Instead of rip-and-replace, add an INS-3AF-I-G at each legacy device to continue powering it while gaining centralized control.
Environments that combine modern access points, cameras, or switches with older passive PoE devices benefit from a small adapter like the INS-3AF-I-G to make devices interoperable on a single PoE fabric.
For temporary installations, site surveys, or short-term deployments where replacing legacy devices is impractical, the adapter provides a quick way to power equipment from available 48 V PoE supplies.
Comparisons with similar products on the market
There are several ways to approach interoperability between 48 V PoE switches and legacy 24 V passive devices. Common alternatives include replacing devices, using dedicated 24 V PoE injectors, or deploying inline converters like the INS-3AF-I-G. Here is how the INS-3AF-I-G stacks up.
- Inline converter vs dedicated 24 V injector: Dedicated injectors supply 24 V from a local power source and are often bulkier and require AC outlets. The INS-3AF-I-G leverages existing 48 V PoE power from switches, avoiding extra power outlets and permitting centralized power management.
- Inline converter vs replacing legacy devices: Replacing equipment ensures native compatibility and potentially better long-term support, but it is more expensive and labor-intensive. The INS-3AF-I-G offers a low-cost bridge (suggested price USD 35.99) to extend the life of functioning legacy devices and defer capital expenditure.
- Inline converter vs other inline adapters: Many inline adapters differ by supported standards (e.g., 802.3at/af), maximum output power, size, and protection features. The INS-3AF-I-G is specialized for 802.3af to 24 V passive conversion with Gigabit passthrough and ≈ ±15 kV ESD protection. If you need higher wattage for modern PoE++ devices, a higher-power converter or native support on the switch will be required.
Pricing and value
With a suggested retail price around USD 35.99 and a cost price of about USD 30.00, the INS-3AF-I-G positions itself as an affordable accessory for installers and IT teams. For many projects, the adapter pays for itself immediately when it prevents a device replacement or avoids running new AC power to endpoint locations.
Customer feedback and testimonials
While broad public review data may vary by vendor and marketplace, typical feedback from installers and small IT teams who use products like the INS-3AF-I-G includes:
- "Saved a lot of time on a campus upgrade — we kept all our older APs and now manage power from the new PoE switches."
- "Small, easy to deploy inline device. Gigabit passthrough was important for our cameras and it worked as advertised."
- "Good value for money. The only caveat is verifying voltage and power requirements before installation to avoid mistakes."
These representative comments reflect common installer priorities: reliability, simplicity, and cost-effectiveness. Prospective buyers should test one unit in their environment to confirm compatibility with their specific legacy devices.
Installation notes and safety considerations
- Indoor use only — the unit is designed for protected indoor environments and specified to operate between 0 and 70 °C.
- Install and terminate by a qualified network installer or electrician. Disconnect power before connecting or disconnecting the adapter.
- Ensure your PoE switch/injector supports IEEE 802.3af and verify that the connected device expects 24 V passive PoE wiring (pairs 4,5+; 7,8 return) to prevent damage.
- Check local regulations and project requirements for certifications and warranty expectations — the provided spec indicates insufficient certification data and no warranty information included.
Conclusion
The INS-3AF-I-G Instant 802.3af Indoor Gigabit PoE Converter is a focused solution for a common interoperability challenge: powering legacy 24 V passive PoE devices from modern 48 V 802.3af PoE infrastructure. It preserves Gigabit data speeds, offers inline convenience, and includes ESD protection to enhance reliability. For installers and IT teams looking to centralize power management, reduce replacements, and keep project costs down, this adapter represents a practical, low-cost tool in the toolbox. As with any power-conversion accessory, confirm device voltage requirements and installation conditions before deployment to ensure safe and successful operation.
